CE Approved Cheap Tire Changer and Wheel Balancer Combo

Yingkou Yuanmech Machinery Co., Ltd.
  • Warranty：14 Months
  • Structure：Vertical

Base Info

  • Model NO.：CB5557
  • Power Source：Pneumatic
  • Type：Simple Disassembly
  • Automatic：Semi-Automatic
  • Standard：Standard
  • Certification：CE
  • Condition：New
  • Product Name：Tire Changer and Wheel Balancer Combo
  • Working Pressure：8-10bar,117-145psi
  • Outside Clamping：10-22"
  • Inside Clamping：13-24"
  • Max. Wheel Width：3-15"
  • Max. Wheel Diameter：1040mm (41")
  • Bead Breaker Force：2500kg
  • Keywords：Car Machine Tyre Changer Plus Balancer
  • Machine Weight：N.W:205kg G.W:225kg
  • Optional Specifications 1：Optional Different Kinds of Front Cover
  • Optional Specifications 2：Optional Different Kinds of Pneumatic Locking
  • Optional Specifications 3：Optional Different Kinds of Inflation Gun
  • Optional Extra Accessory1：Motorcycle Adaptor
  • Optional Extra Accessory2：Bead Blaster Function
  • Optional Extra Accessory3：Leverless System
  • Transport Package：Plywood
  • Specification：1160*900*1040mm(870mm)
  • Trademark：YuanMech
  • Origin：Yingkou, Liaoning, China
  • HS Code：8479899990
  • Production Capacity：3000PCS,Month
  • Package size per unit product：200.00cm * 100.00cm * 100.00cm
  • Gross weight per unit product：350.000kg

Description

 C958C958   24"        C9582   24"     Two Point Pressure Right Helper   C9583   24"      Three Point Pressure Right Helper  C9582S   24"Leverless    Two Point Pressure Right Helper   C9583S   24"Leverless     Three Point Pressure Right Helper                                                                                                   Wheel Balance B657

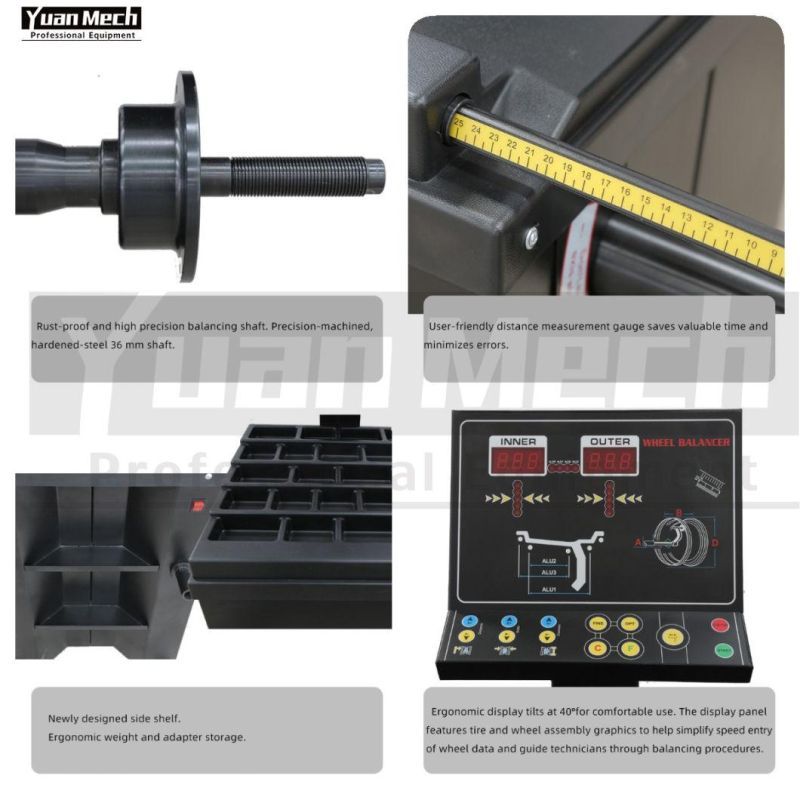

  1. Rust-proof and high precision balancing shaft. Precision-machined, hardened-steel 36 mm shaft.
  2. User-friendly distance measurement gauge saves valuable time and minimizes errors
  3. Newly designed side shelf.Ergonomic weight and adapter storage.
  4. Ergonomic display tilts at 40°for comfortable use. The display panel features tire and wheel assembly graphics to help simplify speed entry of wheel data and guide technicians through balancing procedures.

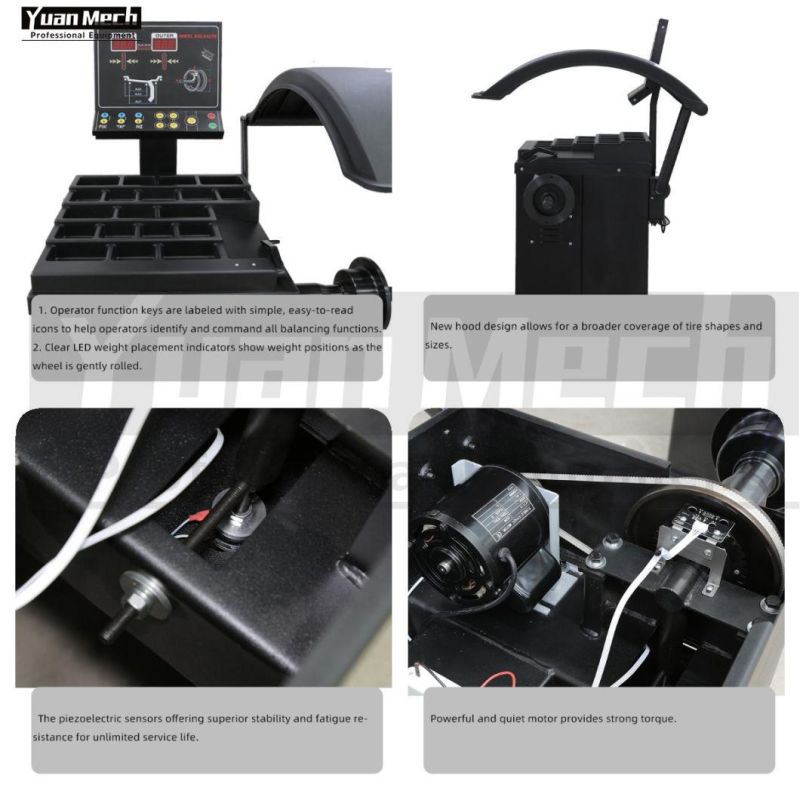

  5. Operator function keys are labeled with simple, easy-to-read icons to help operators identify and command all balancing functions.
  6. Clear LED weight placement indicators show weight positions as the wheel is gently rolled.
  7. New hood design allows for a broader coverage of tire shapes and sizes.
  8. The piezoelectric sensors offering superior stability and fatigue resistance for unlimited service life.
  9. Powerful and quiet motor provides strong torque.
  10. High precision encoder
CE Approved Cheap Tire Changer and Wheel Balancer ComboCE Approved Cheap Tire Changer and Wheel Balancer ComboCE Approved Cheap Tire Changer and Wheel Balancer ComboCE Approved Cheap Tire Changer and Wheel Balancer ComboCE Approved Cheap Tire Changer and Wheel Balancer Combo
CE Approved Cheap Tire Changer and Wheel Balancer Combo



1. Why is filter-regulator (FRL) so important?
It dry the air so there is no moisture inside pneumatic components. It lubricates the rubber seals to extend its service life. In general FRL is important to maintain long service life of the machine.
2. When working table doesn't turn, how to determine if the problem comes from gearbox, motor or switch?
Disconnect belt and see if the motor can run properly. If not, test the motor itself to see clockwise rotation and anti-clockwise rotation. If motor running properly then the problem is the switch.
We have trouble shooting in details, please contact us for more information.
3. When working table doesn't have needed power to clamp the rim, how to trouble shooting if the problem comes from table cylinder, turning air distributor or pedal valve?
When the cylinder not strong enough, there could be air leaking. The leaking could be on the covers or internal piston. There is a systematic method to trouble shoot, please contact us if you are interested in how to trouble shoot.
