• Model NO.：BY-5
• Brand：Baoyue
• Coating：Painting
• Airflow Direction：Fully Undershot-type
• Heating Mode：Diesel
• Paint Mist Treatment：Fibreglass Filter
• Condition：New
• Color：Optional
• Purification：≥98%
• Heating：Riello Rg 5s
• Noise Decibels (a)：≤70
• Free Air Speed：≥0.3m,S
• Frequency Air Change：294 Time,H
• Air Capacity：25000m3,H
• Max Operating Temprature：80
• Voltage：220V,380V, 50Hz,60Hz
• Warranty：1 Year
• Transport Package：Standard Export Package
• Specification：CE
• Trademark：Bauyues
• Origin：Guangzhou, China
• HS Code：8419899090
• Production Capacity：50set,Month
• Package size per unit product：690.00cm * 390.00cm * 265.00cm
• Gross weight per unit product：3500.000kg

Intake and Exhaust systemInlet: 1×7.5KW turbo fan, power: 7.5KW, air capacity: 25000m 3 /h.Outlet: 1×7.5KW turbo fan, power: 7.5KW, air capacity: 25000m 3 /h.Heating systemRIELLO RG5S diesel burner, stainless steel heat exchanger, pneumatic damper actuates from spraying to baking cycle. Max. heating productivity: 26000kcal/h.Purification systemPre-filter, ceiling filter, fibreglass filter, activated carbon filterRoofGalvanized steelControl systemSpraying, heat spraying, baking, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop, hour meter, temperature limit controller, pressure gauge, pressure alarm system, adjustable electric exhaust damper, all motors are normal start.Total power18.5KW

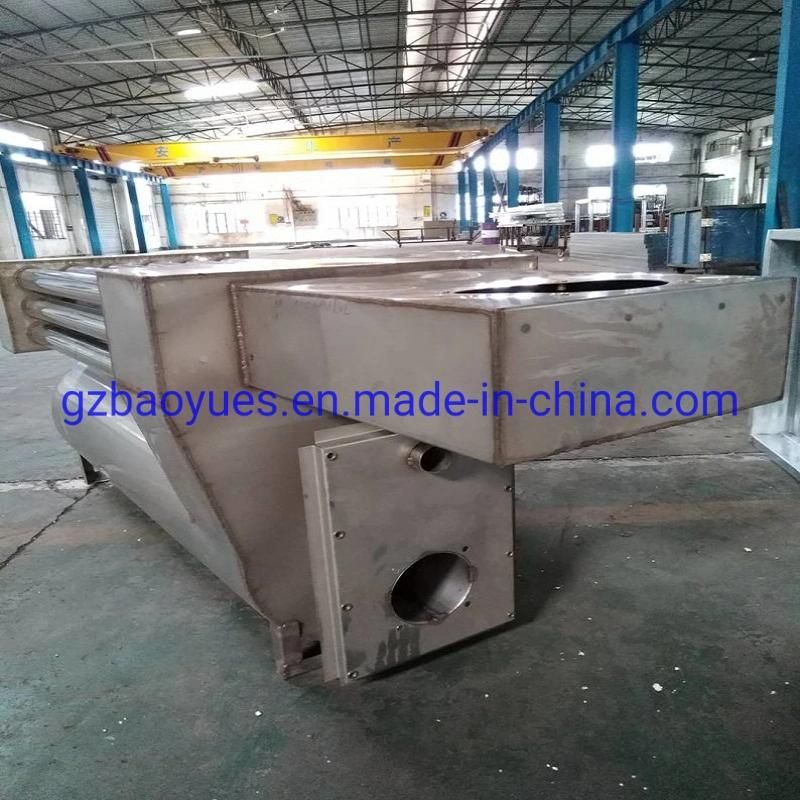

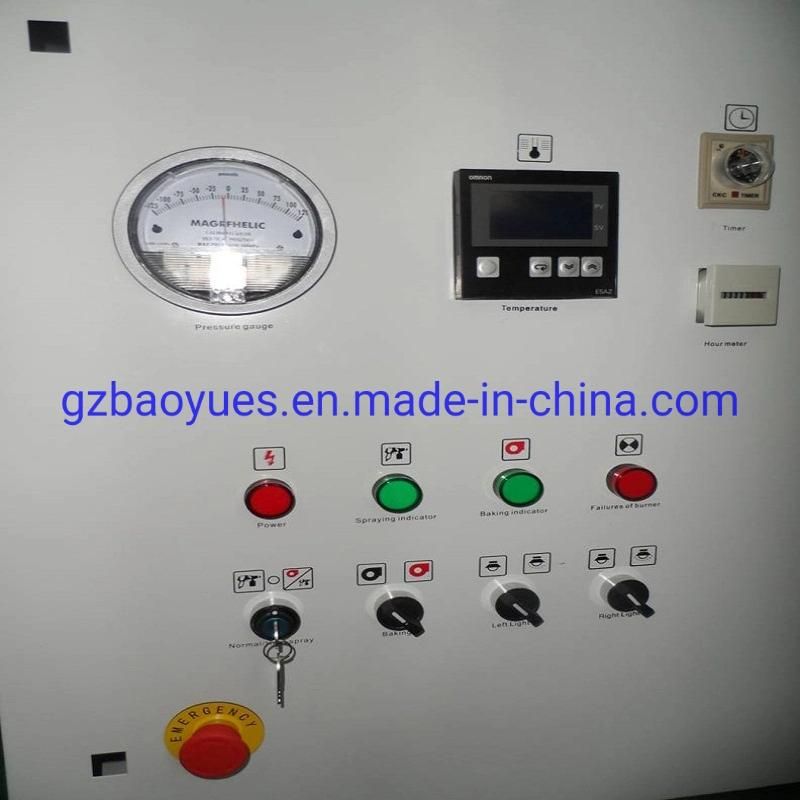

Parts details:

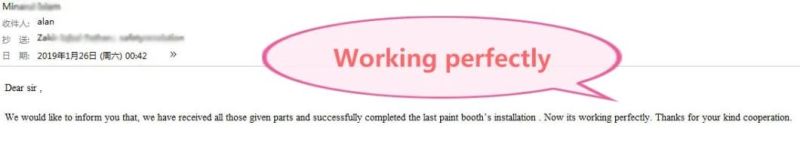

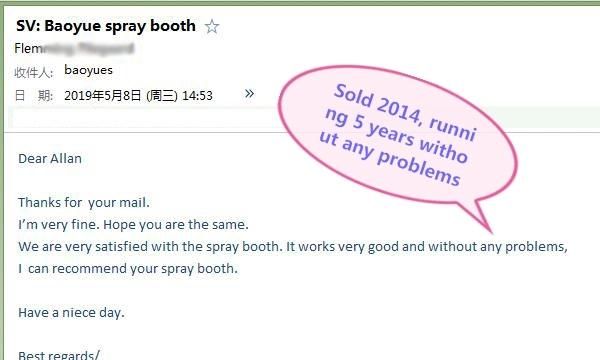

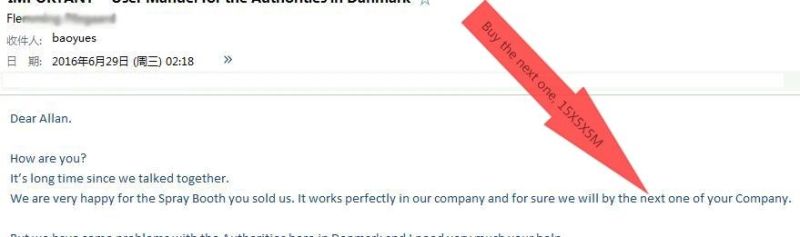

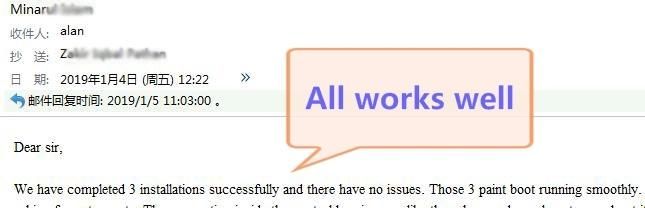

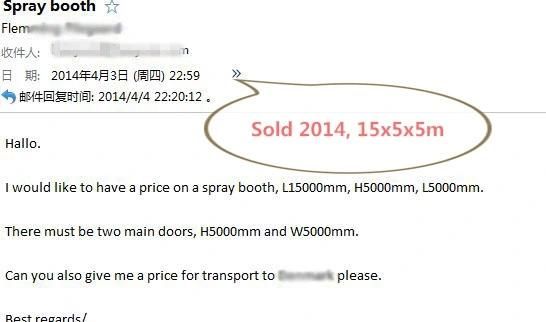

What customers saying:

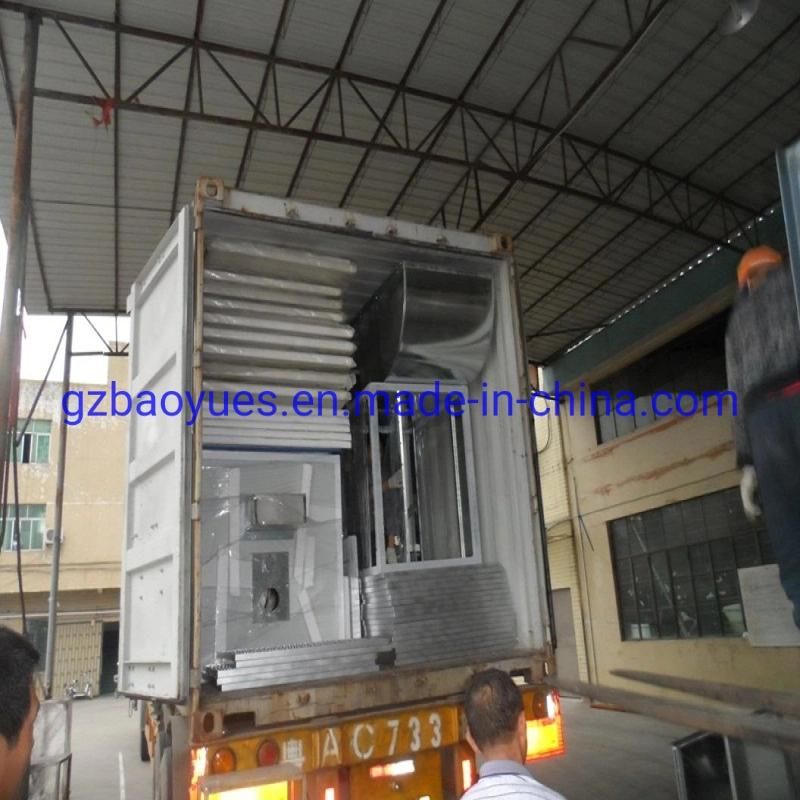

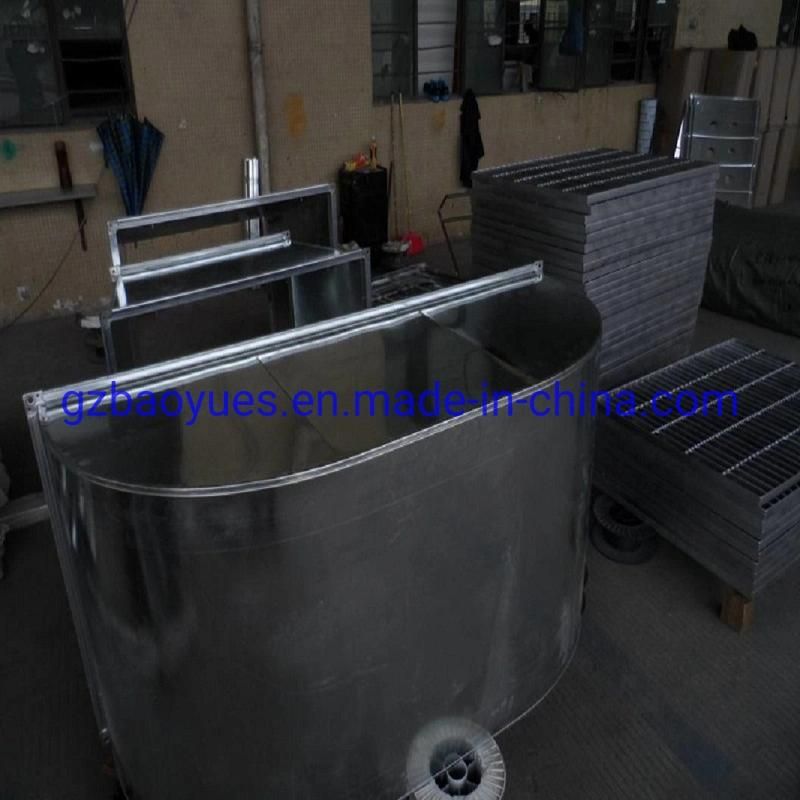

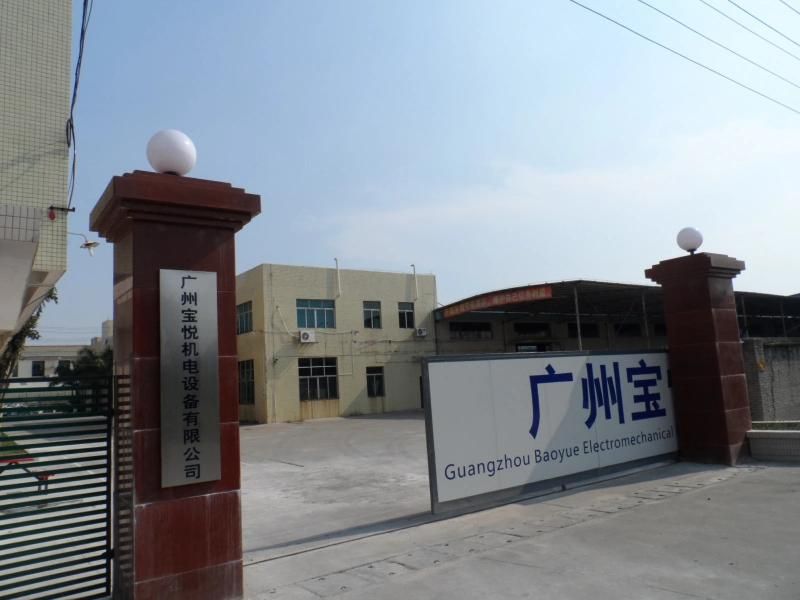

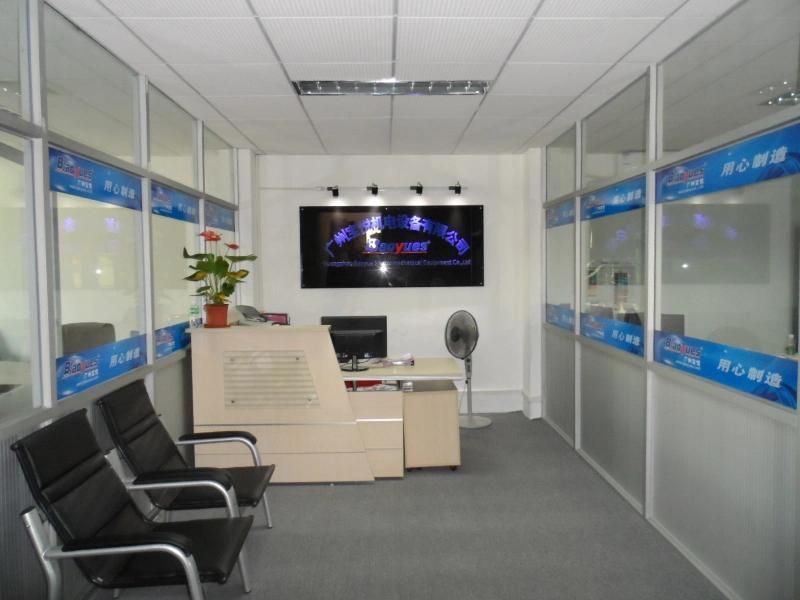

Factory show:
