• Model NO.：SJG3-3
• Shearing Lift Type：Big Shear Type
• Condition：New
• Brand：Sdlift
• Design：Scissor
• Safe Device：Explosion-Proof Lock Valve
• Motor：From Italy or Chinese Famous Brand
• Application：Home Garage Car Parking Lift
• Color：Red, Grey, Yellow, Blue, or as Your Optional
• Power Supply：220V,240V,380V,415V (as Request)
• Material：High Strength Manganese Steel
• Transport Package：Rectangular Tube Base + Angle Iron Frame + Waterp
• Trademark：SDLIFT
• Origin：Shandong China
• HS Code：84289090
• Production Capacity：5000 Set Per Year

Lift height : 3000mm

Lift loading capacity : 3000kg

Lift platform size : 5200*2800mm

Power : As clients local requests.

Special request : can be designed.

1. Explosion-proof lock valve to avoid

a sudden drop if emergency occurs.

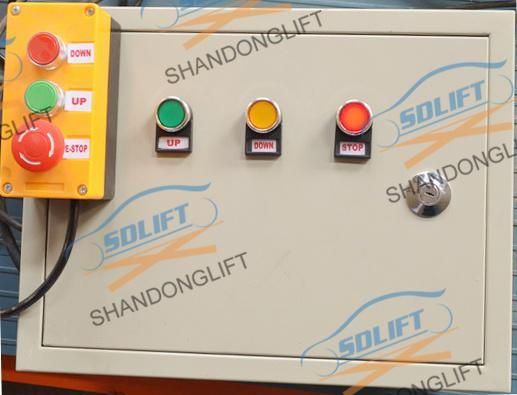

2. Control system: control box, hand controller,remote control:

 Three buttons: "UP" " DOWN"

"EMERGENCY"

1) Platform Material: rectangular tube +checkered

iron

2) Scissor material: high strength Manganese Steel.

3) High Precision Hydraulic Cylinder.

4) Piston Rod: hard chromium plating surface.

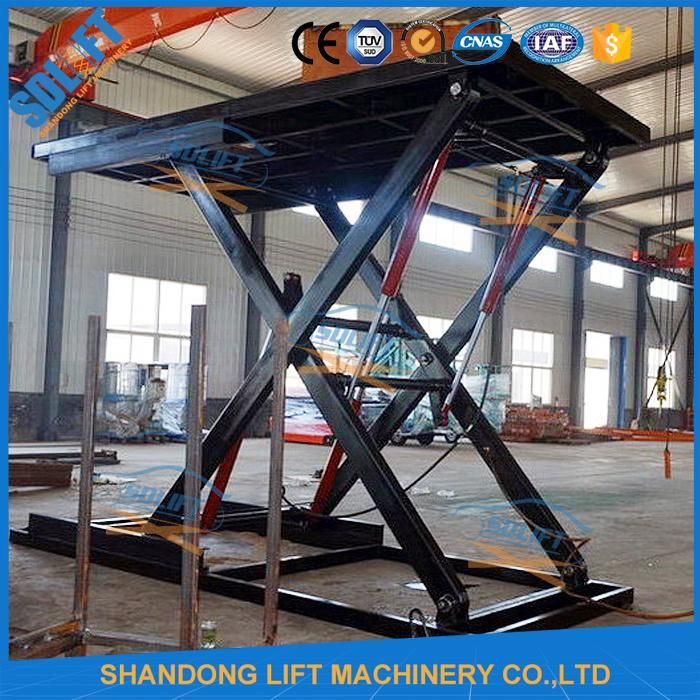

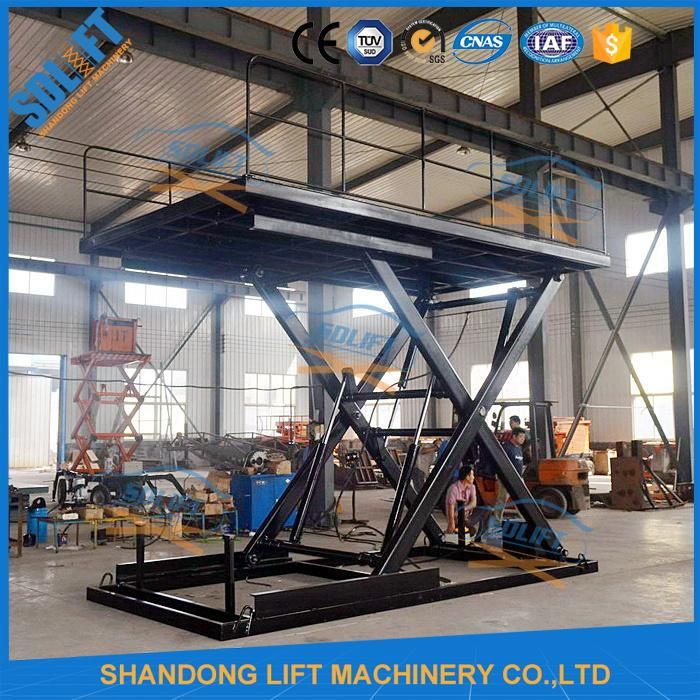

 Picture show :

 Safety :

1) Heavy duty loading capacity 1T- 30T
2) Lift height from 1m - 12m
3) Platform size can be done as your request
4) Easy operation
5) The hydraulic cylinders and hose are armed with explosion-proof lock valve to avoid a sudden drop once hydraulic pipe breaks, the work platform will be down slowly to ensure safety of car
6) The handrail to guarantee safety of car
7) Equipped with 4 guide rails to ensure safety and steady.
8) The limit switch system ensure lifts stop at accurate position.
9) Overload protection facility is equipped on, the lift will not work when goods is overloaded.
