• Model NO.：SJG3-3.5
• Shearing Lift Type：Small Shear Type
• Condition：New
• Brand：Sdlift
• Design：Scissor
• Application：Vertical Parking Stair Lift Platform 2 Desk Car Li
• Safety Trip Bar：Yes, Under Platform
• Lifting Speed：3-6m,Min
• Motor：From Italy or Chinese Famous Brand
• Material：High Strength Manganese Steel
• Lift System：Hydraulic Motor Pump System
• Safe Device：Explosion-Proof Lock Valve
• Colour：Grey, Blue or as Your Request
• Transport Package：Iron Case or Plywood Case Package
• Trademark：SDLIFT
• Origin：Shandong China
• HS Code：84289090
• Production Capacity：5000 Set Per Year

MODEL

LOAD CAPACITY

PLATFORM SIZE

LIFT HEIGHT

PIT DEPTH

WEIGHT

SJG2.5-3.5

2.5T

5.2m x 2.6m

3.5m

800mm

6300KG

SJG2.5-5

2.5T

5.6m x 3m

5m

750mm

6500KG

SJG3-3

3T

5.2m x 2.6m

3m

800mm

6100KG

Our factory accept customized according to customers requirements.

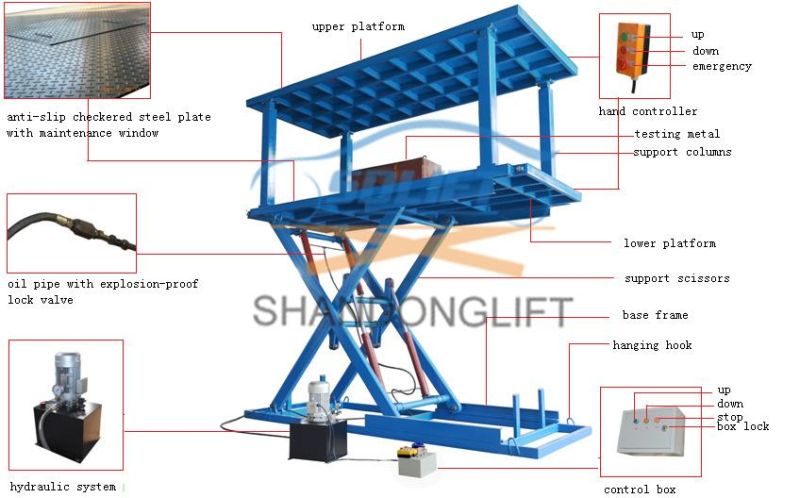

Parts Show :

Safety device:
1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs
2) The safety guard rails to guarantee safety of the car above platform
3) The limit switch system helps the Underground Garage Lift to stop at accurate position
4) Electricity leakage protection device is equipped on, all electric components are CE certified.
5) All the Underground Garage Lift are passed 1.2 times loading test before leaving factory

Packaging and Shipment :

Welcome to our  factory to Inspection or visit !

The Underground Garage Lift has passed CE, TUV,  SGS certificate, also welcome to visit our factory on site by yourself. We can  discussing and study with each other.

Our service:

1) We can design the customerized car lift as per your requirement.
2) The most suitable car lift will be recommended to you once we got your requirement.
3) Shipment can be arranged from our port to your destination port.
4) Operation video can be sent to you if needed.
5) User-friendly English manual for machine installation using and maintenance.
6) Two year warranty for whole machine without man-made faults.
7) We will send you parts for free if there are any non-human factors faults during warranty time.
8) Supply 24-hours technical assistance by email, telephone or other communication online.
9) We could reply you in 2 hours after received your any questions even on weekend and holiday. Engineers are available to your country if necessary.
