• Update Method：by Internet
• Type：Diagnostic Scanner
• Software Update：1 Year Free Update
• Protocols：ISO 9142-2, ISO 14230-2, ISO 15765-4, K,L-Line etc
• Touchscreen：7-Inch
• System：Android 4.4.4
• Battery：5000 mAh Lithium-Polymer Battery
• Memory：64GB on-Board Memory
• Connection：WiFi, Bt
• Coverage：98% Vehicle Coverage
• Features：Expert Mode for Advanced Key Learning
• 2 in 1 Tool：Full System Diagnosis&Key Programmer
• Supported System：All Systems Like ABS, DPF, Epb, Sas, SRS, TPMS, I
• Availale：Ready Stock
• Suitable：Locksmith, Workshop etc
• Transport Package：Carton Package
• Trademark：Autel
• Origin：China
• HS Code：9031809090
• Production Capacity：800PCS,Month

Basic Info.

Update Method by Internet Type Diagnostic Scanner Software Update 1 Year Free Update Protocols ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line etc Touchscreen 7-Inch System Android 4.4.4 Battery 5000 mAh Lithium-Polymer Battery Memory 64GB on-Board Memory Connection WiFi, Bt Coverage 98% Vehicle Coverage Features Expert Mode for Advanced Key Learning 2 in 1 Tool Full System Diagnosis&Key Programmer Supported System All Systems Like ABS, DPF, Epb, Sas, SRS, TPMS, I Availale Ready Stock Suitable Locksmith, Workshop etc Transport Package Carton Package Trademark Autel Origin China HS Code 9031809090 Production Capacity 800PCS/Month

Product Description

 AUTEL Official Authorized Store!
100% Original Products and Best Price.
We Support Wholesale Price and Dropshipping.
Overseas wareouse located in Spain, Germany, USA, Australia, Russia and etc.

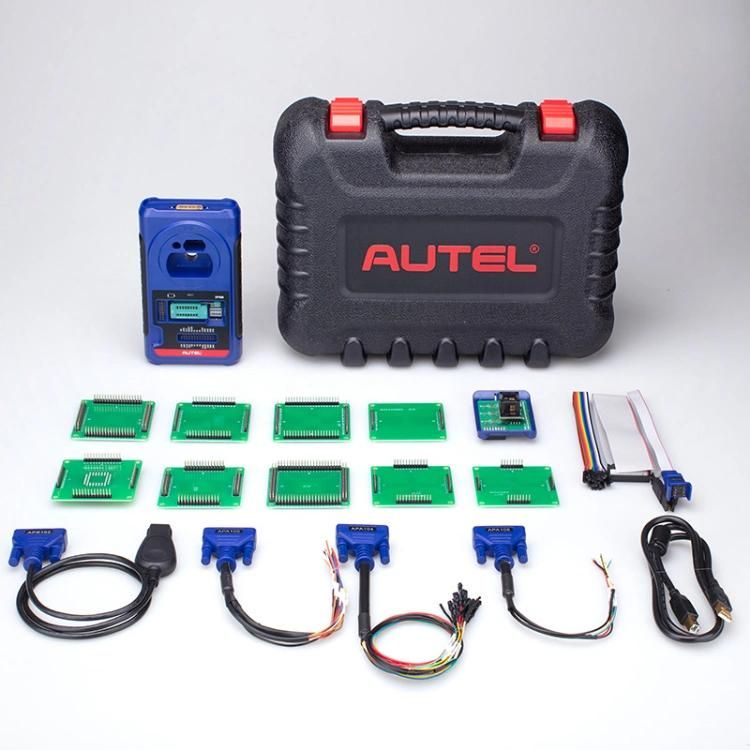

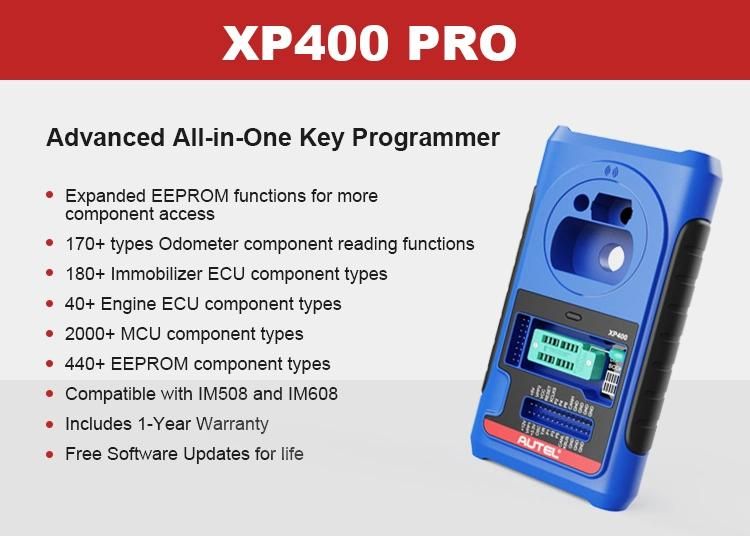

Combo set IM508 with XP400PRO

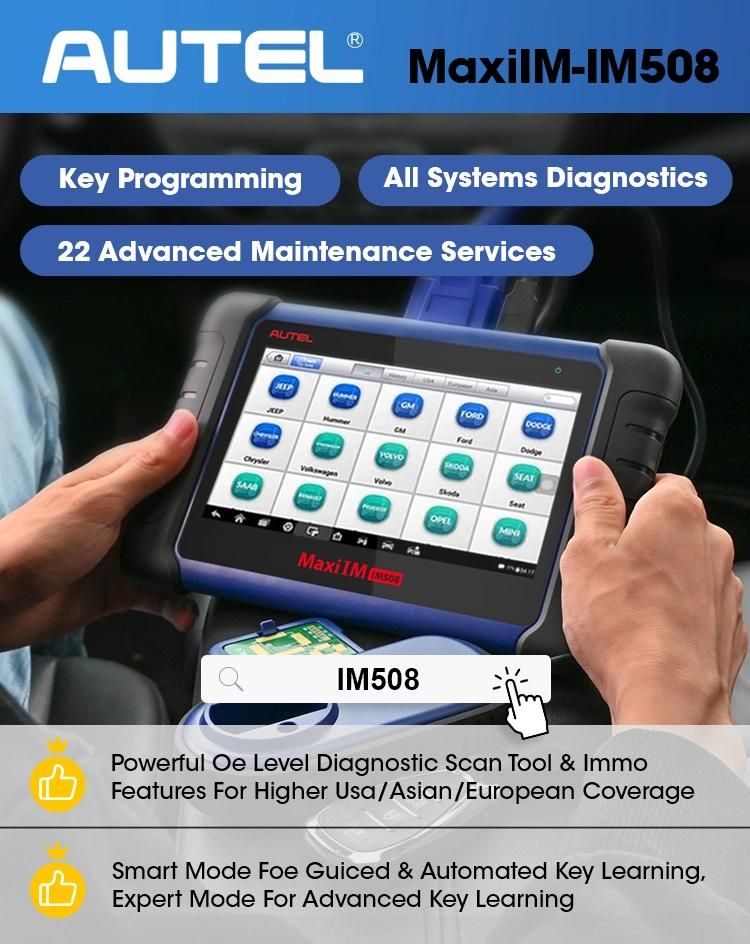

Autel IM508 Key Programmer Features:



• Powerful Cortex-A9 processor



• 7"1024x600 LCD capacitive touchscreen



• Internal reliable 32GB Memory



• Android Operating System for fast boot-up and multitasking



• Powerful combination of key programming/all system diagnostics/advanced maintenance services

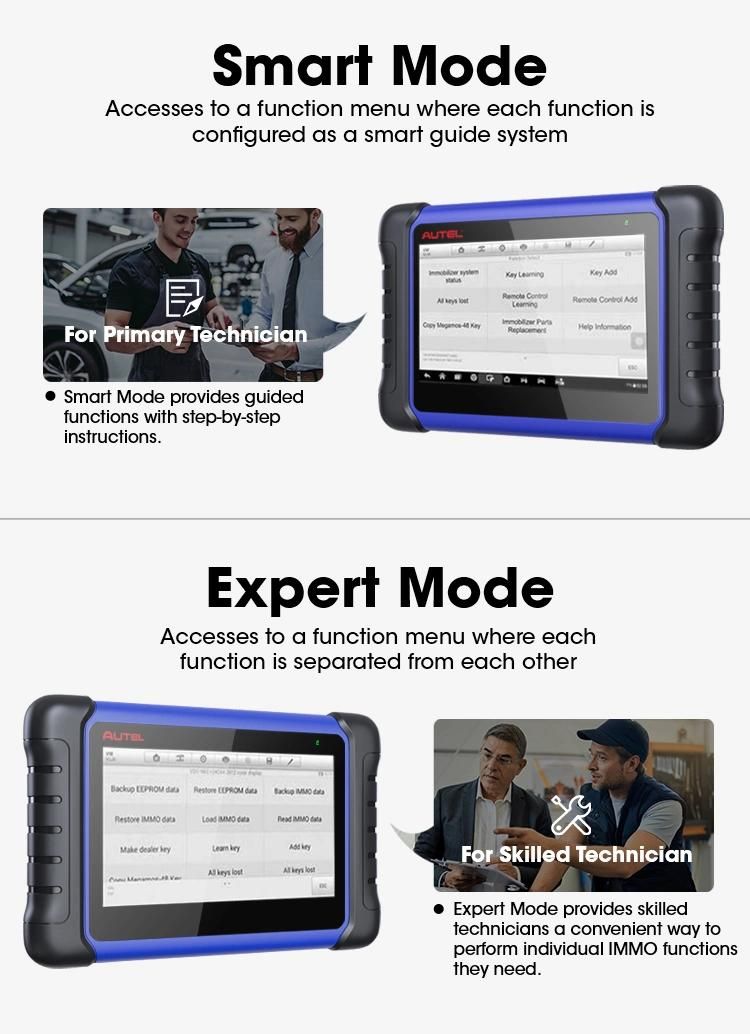

• Smart Mode for guided and automated key learning



• Expert Mode for advanced key learning



• Read PIN/CS (all key lost) , key generation, key learning, remote learning



• IMMO ECU reset/adaptation, refresh/coding



• Transpronder read/write, EEPROM/MCU read/write



• Powerful OE level diagnostics for more than 80 US, Asian and European makes and models



• Advanced maintenance services including EPB, DPF, SAS, Oil reset, BMS and TPMS sensor ID relearn

Autel IM508 Key Programmer Specification:



Operating System	Android™ 4.4.4, KitKat
Processor	Cortex-A9 processor(1.6 GHz)
Memory	64GB
Display	7-inch LCD capacitive touchscreen with 1024x600 resolution
Connectivity	Mini USB 2.0 USB2.0 Wi-Fi Micro SD card slot(supports up to 32GB)
Sensors	Ambient light sensor for brightness auto changing
Power and Battery	3.7 V/5000 mAh lithium-polymer battery Charges via 5 VDC power supply
Tested Battery Life	Around 4.5 hours of continuous use
Battery Charging Input	5V/1.5A
Power Consumption	500 mA (LCD on with default brightness, Wi-Fi on)@3.7 V
Operating Temp	0 to 50°C (32 to 122°F)
Storage Temp	-20 to 60°C (-4 to 140°F)
Operating Humidity	5%-95% non-condensing
Net Weight	885g(2.31|b.)
Supported Automotive Protocols	ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610,GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6

Autel IM508 Key Programmer Details:
