• Model NO.：EDIAG P03
• Version：V1.5
• Color：Black
• Material：Plastic
• Operation System：Android Phone,PC
• Output Protocol：Bluetooth
• Support Car：Support 12V Gasoline, Petrol
• Applicable Scope：5-10m
• Voltage：9V-16V
• Current：Around 3mA

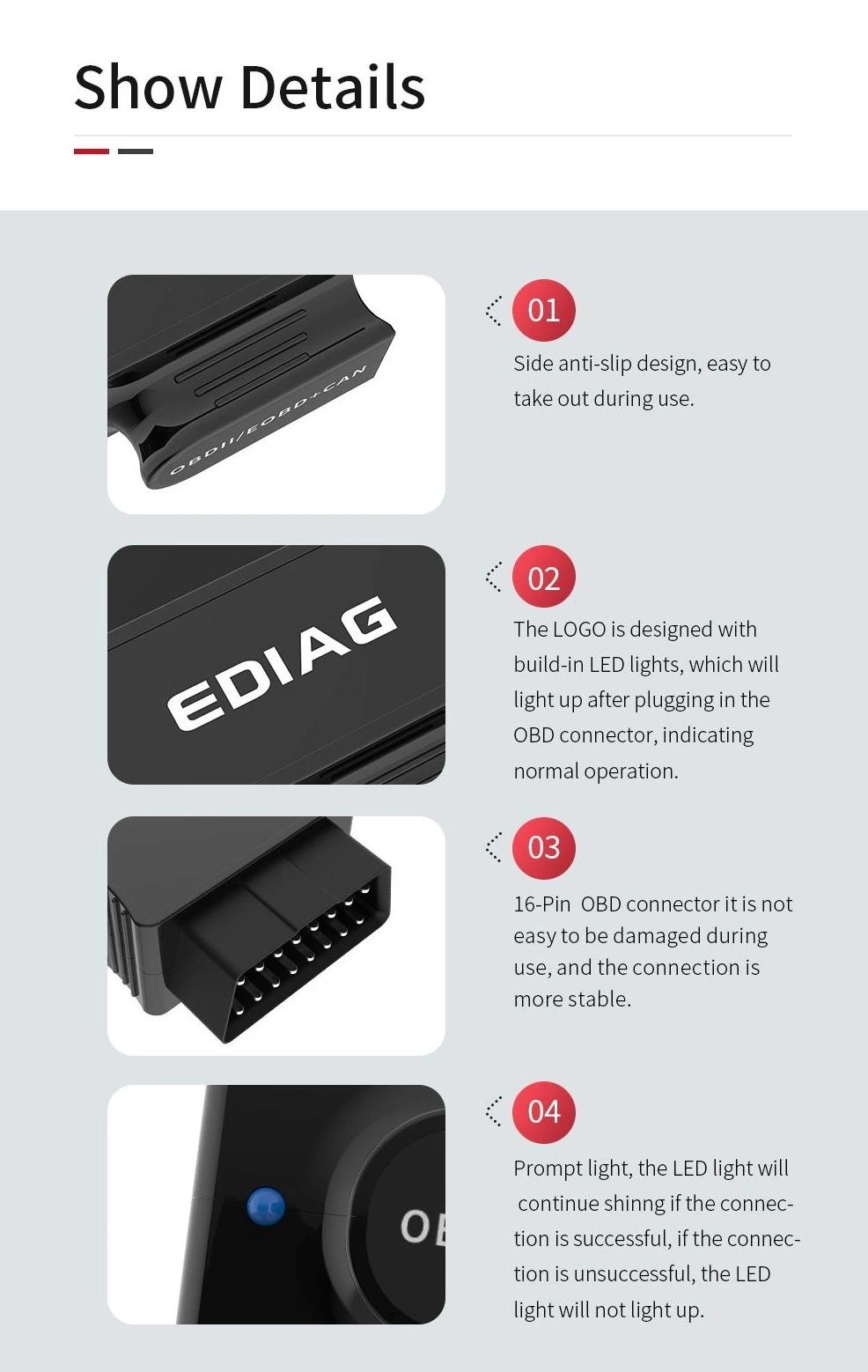

• Components：LED Light
• Transport Package：Carton
• Specification：0.15kg; 52inch*42inch*25inch
• Trademark：EDIAG
• Origin：China
• HS Code：9031809090
• Production Capacity：5203

Basic Info.

Model NO. EDIAG P03 Version V1.5 Color Black Material Plastic Operation System Android Phone/PC Output Protocol Bluetooth Support Car Support 12V Gasoline, Petrol Applicable Scope 5-10m Voltage 9V-16V Current Around 3mA Components LED Light Transport Package Carton Specification 0.15kg; 52inch*42inch*25inch Trademark EDIAG Origin China HS Code 9031809090 Production Capacity 5203

Product Description

EDIAG P03 Auto Scanner elm 327 OBDII Interface OBDII test

Why choose our products?
1. All products in our company are 100% original EDIAG products.
2. The lowest price in whole Made-in-China.
3.Overseas warehouse: Fast shipping & Seller paying customs tax for EU countries.
4.Countries with local free return : United States, Canada, Australia, United Kingdom, France, Spain, Germany, Russia, Brazil, Israel, South Korea, Saudi Arabia, UAE, Poland, Netherlands, Italy. ( Note: If products are blamed of any quality problem, free return service to local country will be open. )



Product Introduction:
EDIAG P03 is the newly developed wireless scan tool and this item is the version 1.5.
It supports almost every OBD II protocol.
Bluetooth connection, no Batteries, Cables, or Switches.
Wireless (Bluetooth) 5~ 10 meters.
Retrieve Fault Codes (DTCs) and Check Engine.
Can also be used with a PC or with a Bluetooth Card.
SKU:YHP03-B

Features:
1.  Affordable for all and super cost-effective
2.  Friendly to individual car owners
3.  Plug and play, Bluetooth connection communication
4.  Wide Car Model Coverage : gasoline car only
     American car after 2000, European car after 2003, Japanese car after 2008
5.  Various languages are available
     Depend on your PC or Android-based smart phone

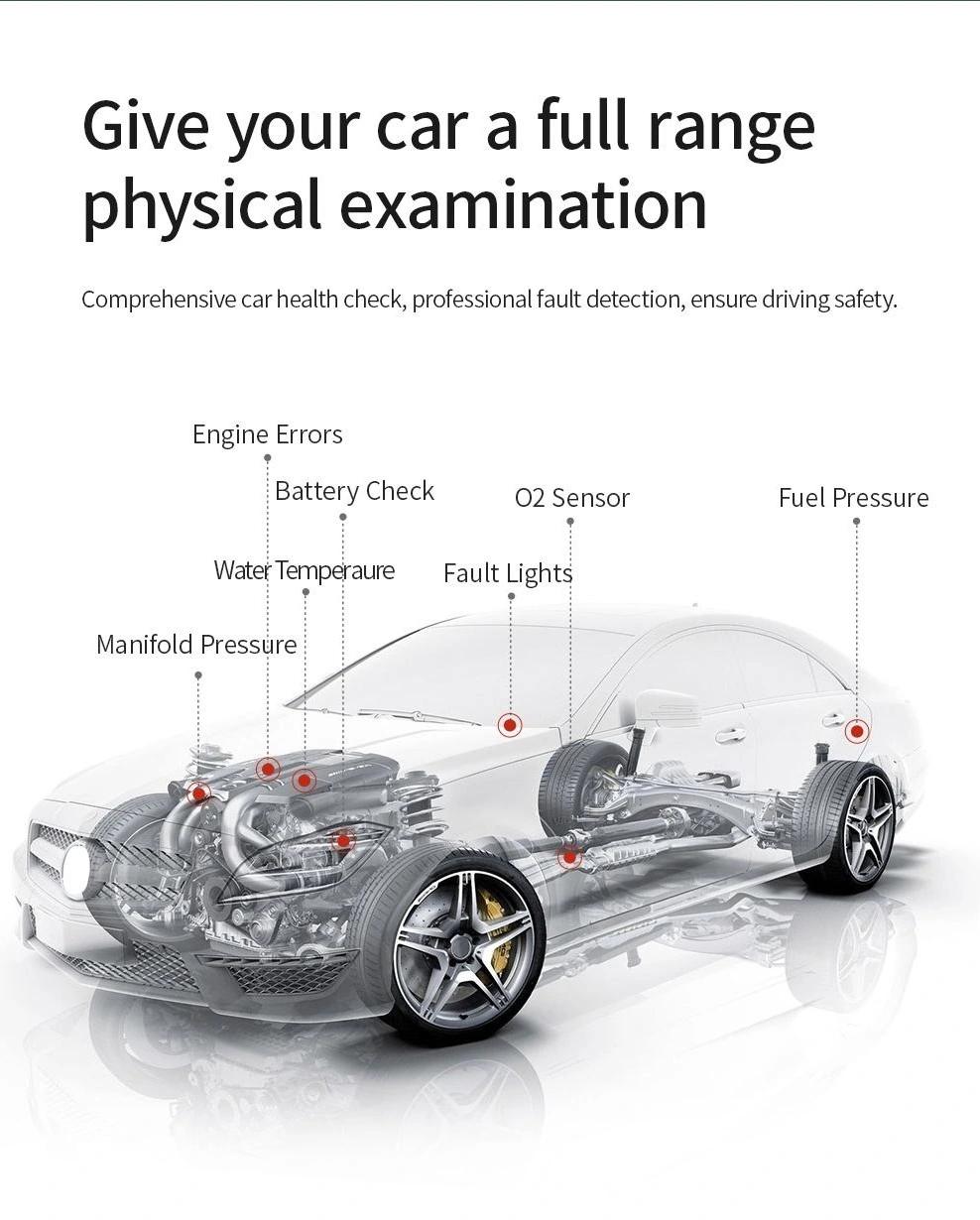

Engine Check including:
Reading Codes: Show the detailed description of the Diagnostic Trouble Code (DTCs).
Erasing Codes & Reset: Turns off Check Engine Light (MIL), clears codes and resets monitors.

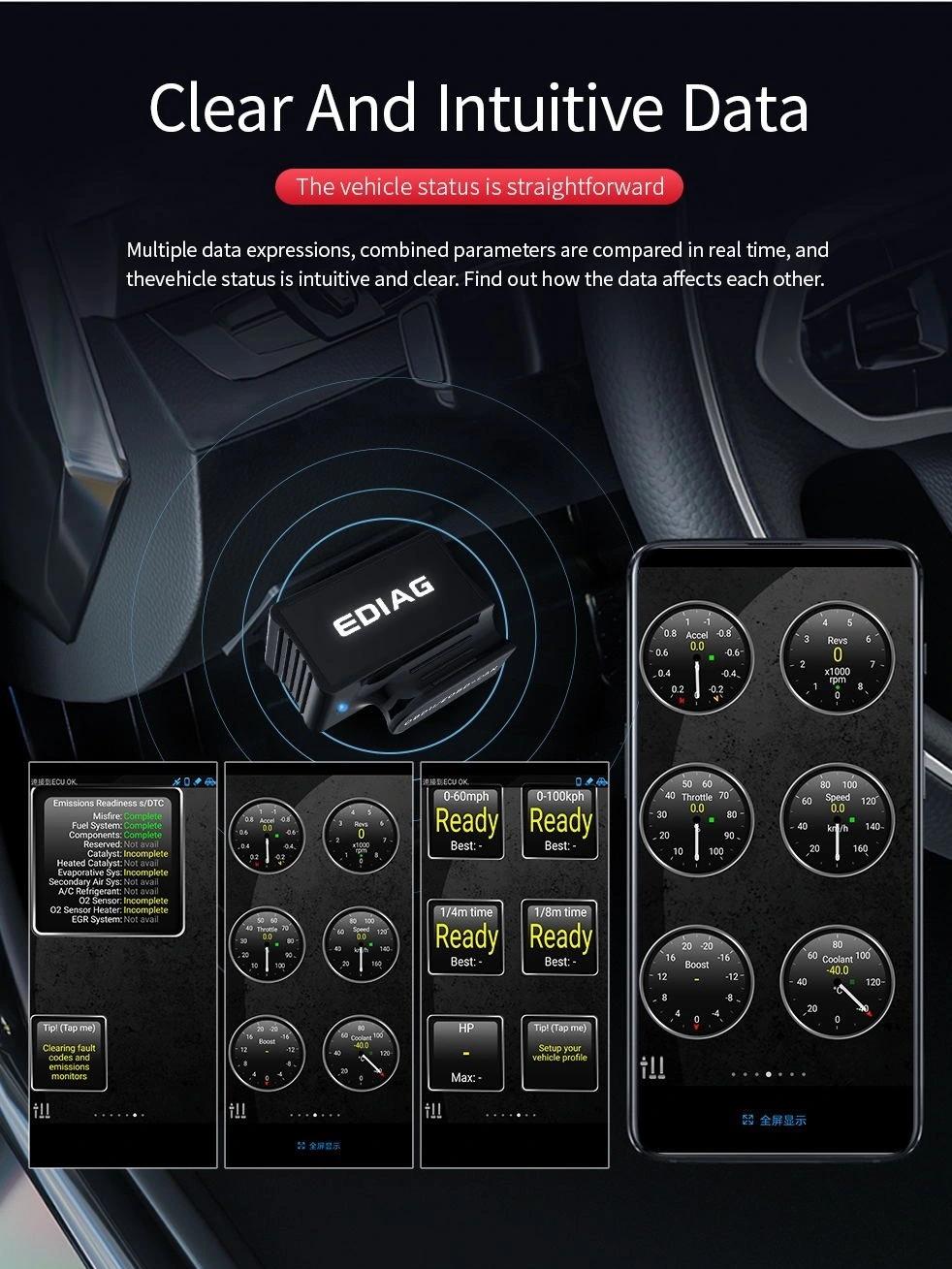

Read Live Data Stream: Show the information of continuous ECU/PCM data stream from a vehicle in live graphic (waveform) display.
View Freeze Frame Data: Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.
O2 Sensor Test: Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle's on-board computer.
I/M Readiness Status: Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.


Vehicle Coverage:Support Car Models for OBDII diagnostic functions on most of OBDII Vehicles
(Note: EDIAG P03 only Support 12V Gasoline/petrol cars, Does not support 24V Diesel vechicles or Truck )

American Car :
Need Standard OBD2 Protocols from 2000 to now
for Chrysler , for Ford, for GM, For Jeep ...


European Car :
Need Standard OBD2 Protocols from 2003 to now
For Alfa romeo , for SAAB ,for Acura , for Opel , for Audi for Seat , for Peugeot , for Renault
For Bentley , for Skoda , for Daewoo , for Benz , for Daihatsu , for Land Rover , for BMW , for Vauxhall , for Citroen , for Volvo , for Fiat , for VW , for Ford , for Jaguar...


Japanese/Korean Car:
Need Standard OBD2 Protocols from 2006 to now
for KIA, for Isuzu, for Honda , for Mitsubishi, for Hyundai , for Dacia , for Lexus , for Mazda, for Nissan, for Subaru , for Suzuki, for Toyota...


Chinese Car:
Need Standard OBD2 Protocols from 2009 to now.


EDIAG P03 supports engine full OBDII diagnostic functions and supports 7 Kinds of OBDII protocols as follows.
1.ISO9141-2(5 baud init,10.4Kbaud)
2.ISO14230-4 KWP(5 baud init,10.4 Kbaud)
3.ISO14230-4 KWP(fast init,10.4 Kbaud)
4.ISO15765-4 CAN(11bit ID,500 Kbaud)
5.ISO15765-4 CAN(29bit ID,500 Kbaud)
6.ISO15765-4 CAN(11bit ID,250 Kbaud)
7.ISO15765-4 CAN(29bit ID,250 Kbaud)


Bluetooth 3.0 version-----supports Android phone/PC----connect via bluetooth.
It CAN NOT work on IOS, if you need an item which work on IOS, pls buy our WIFI EDIAG P03.


For your information :
For your vehicle to be OBD II compliant it must have a 16-pin DLC ( Data Link Connector ) under the dash and the Vehicle Emission Control Information Label must state that the vehicle is OBD II compliant

This hardware can match much other software still! But most of them are not free!
Works for Windows98/ME/2000/XP/Vista & 7!
This tool does not match abs and airbag system!

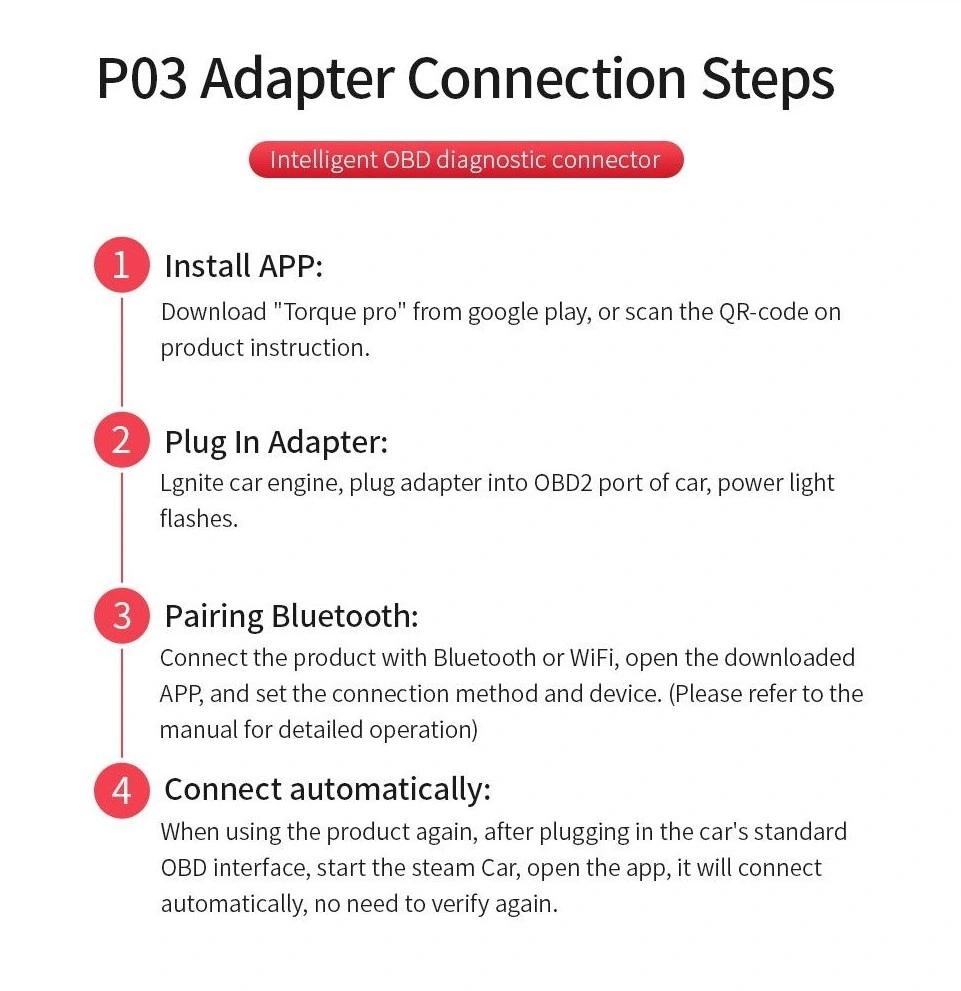

How to connect with the Phone and Software?
1.Android phone system requirement: Android 4.0-4.4 or higher
2.Software Installation: After insertion of ELM327 Install APP:Install---Continuous click "Next" continue the next installation---Click "Done" Install software
3.Connect Bluetooth:
1)Turn on the Bluetooth switch
2)Find "OBDII" and connect it,the password is: 1234 or 0000
3)Enter the Torque,and set the connection way:Bluetooth,then Choose Bluetooth Device: OBDII

Connection Failure selfcheck on phone :
1.Car is not supported.
2.Engine is not ignited.
3.You need confirm the connection way as below.

Click Menu button setting bluetooth Connection:
Exit Torque,and re-run the software.Successful connection.

It is based on bluetooth 3.0, and CANNOT support IOS (bluetooth 4.0).
Please use Android System  V4.0 to latest version, and so on.

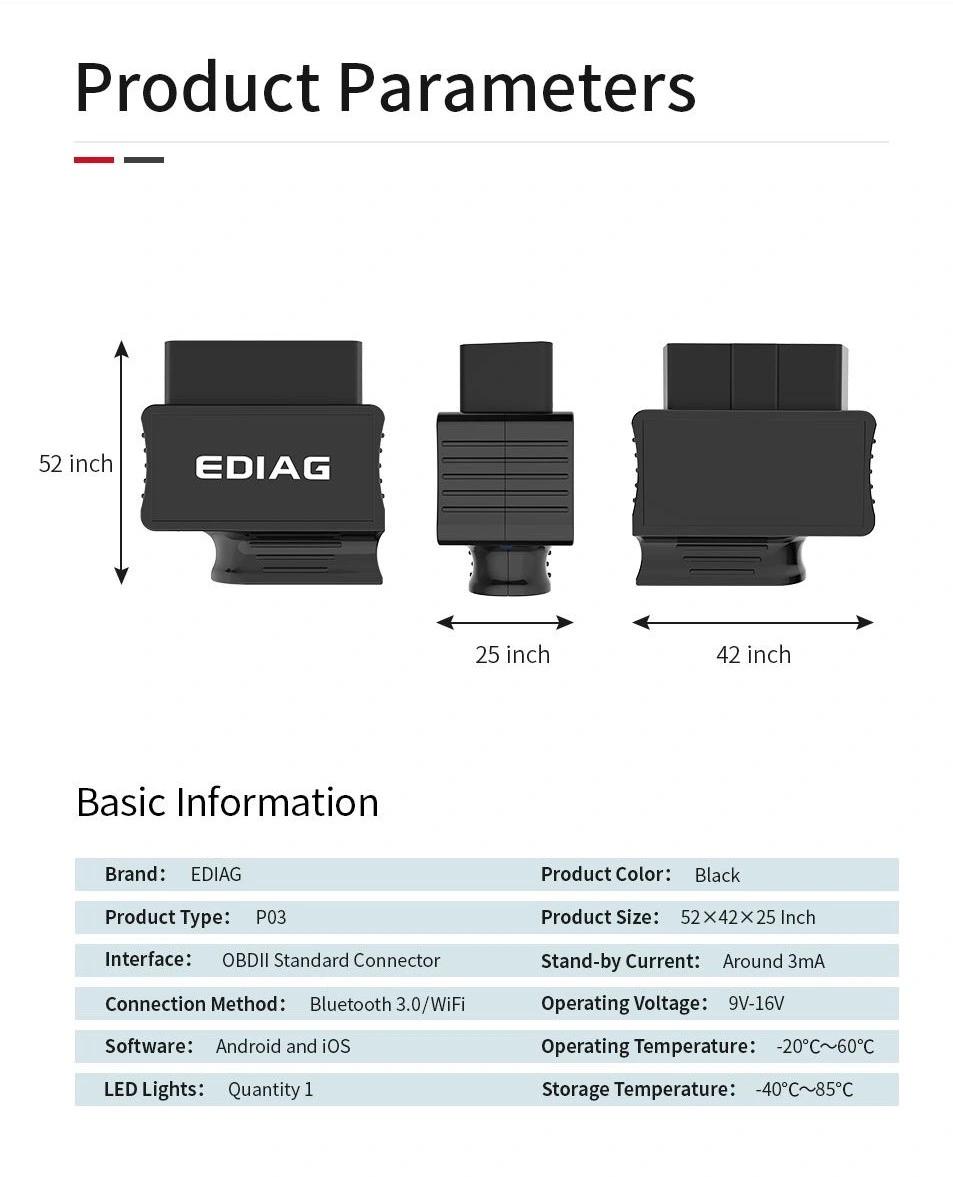

Specifications :

Type	code readers & car scanner	Voltage	9V-16V
Output	Bluetooth 3.0	Current	around 3mA
Operation System	Android Phone/PC	Applicable scope	5-10m
Material	plastic	Item size	52*42*25inch
Product Color	black	Item weight	0.1kg
Components	LED light	Total weight	around 0.15kg
Item Version	V1.5	Certifications	RoHS,CE,FCC

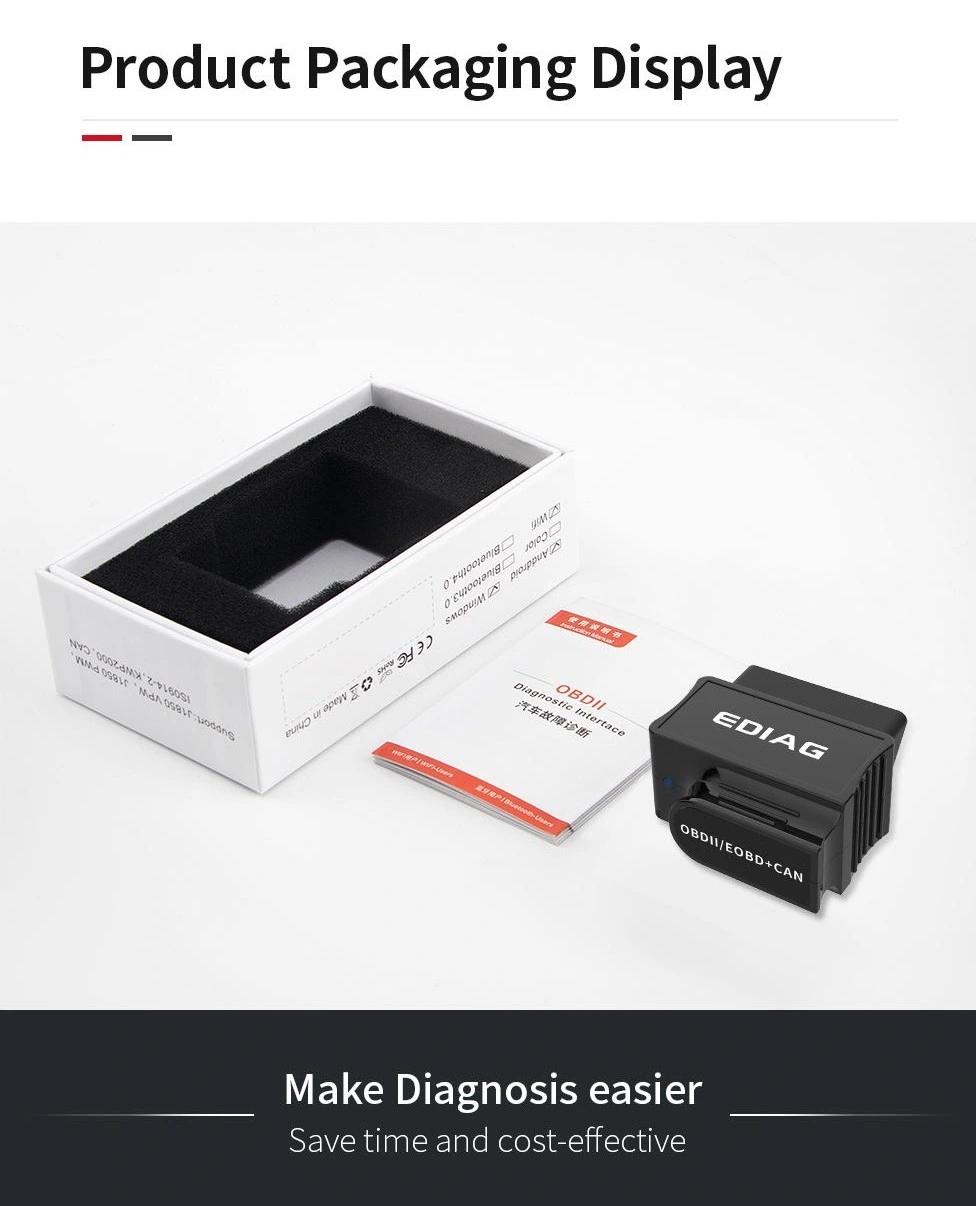

Packing List :
A.1* EOBD/OBD2 Bluetooth diagnostic connector.
B.1* CD.



*This one can't support Diesel vechicles.
*Can do most of OBDII gasoline cars,but can't support all OBDII cars.
*Ediag P03 can do MOST of the OBDII vehicles, but it CAN NOT do all models.
