Industrial Auto Coating Equipment/ Large Painting Booth
Qingdao Hua Yushun Commercial Co., Ltd.- Warranty：24 Month
- Type：Coating Production Line
Base Info
- Model NO.：CP-200505
- Certification：CCC, CE, GS, SGS
- Substrate：Sandwich Panel
- Brand：Captain
- Coating：Painting
- Airflow Direction：Fully Undershot-type
- Heating Mode：Diesel
- Paint Mist Treatment：Dry-type
- Condition：New
- Inside Dimension：20000X5000X5000 mm(Lxwxh)
- Outside Dimension：20150X6500X5500mm(Lxwxh)
- Pit：2 Rows of Pits, 18000X760mm(Lxw)
- Main Door：4-Folds, 4000X4500mm(Wxh)
- Escape Door：2 Units, 800X2000 mm (Wxh)
- Room Body：75EPS Panel, 0.5 Steel
- Lighting System：Ceiling Lights: 104PCS, Side Lights: 128PCS
- Intake Fan：8X7.5kw Centrifugal Fans
- Exhasuting Fan：4X11kw Centrifugal Fans
- Heating System：4 Units Riello Rg5s Diesel Burners
- Transport Package：Export Container ,Pallet ,Disassembly with Carton
- Specification：CE, SGS
- Trademark：OEM,Captain
- Origin：Jiangsu, China.
- HS Code：8424899990
- Production Capacity：96sets,Month
- Package size per unit product：11000.00cm * 2350.00cm * 2600.00cm
- Gross weight per unit product：7980.000kg
Description
G3 grade glass fiber floor filter, exhaust active carbon filter.

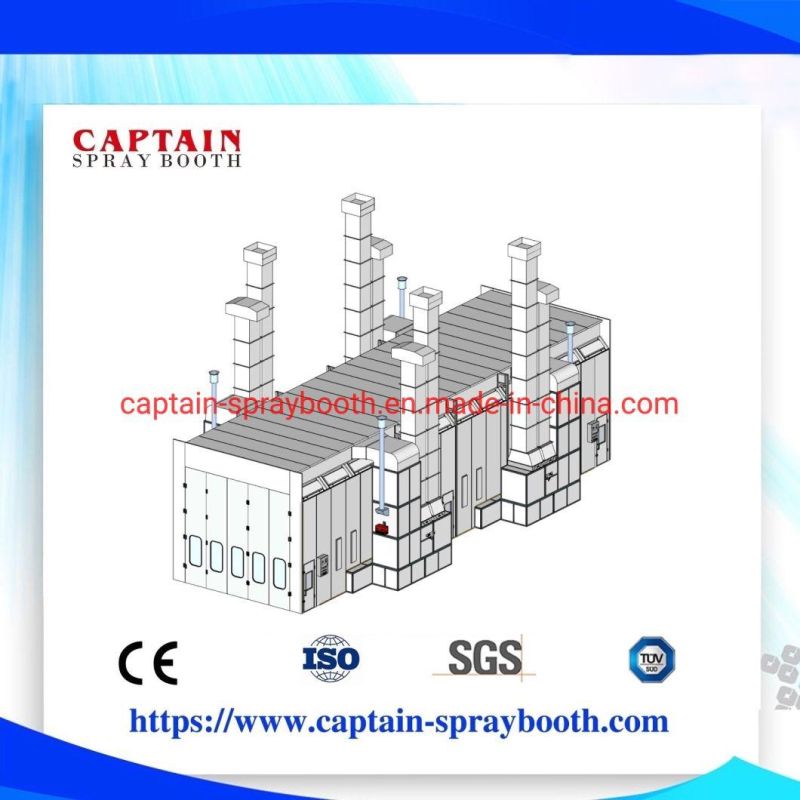

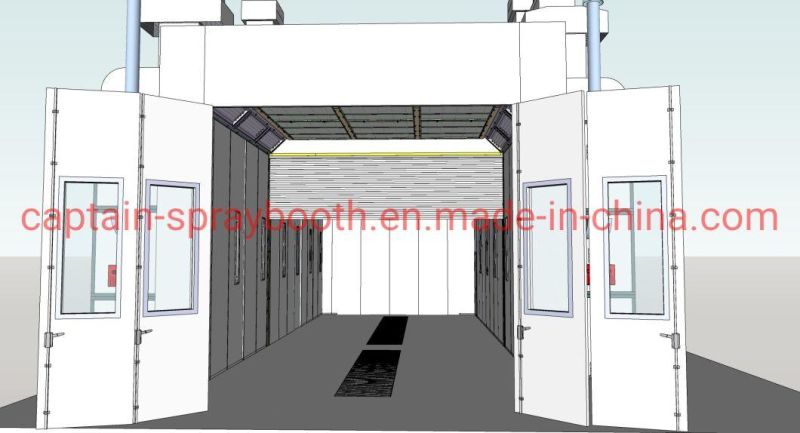

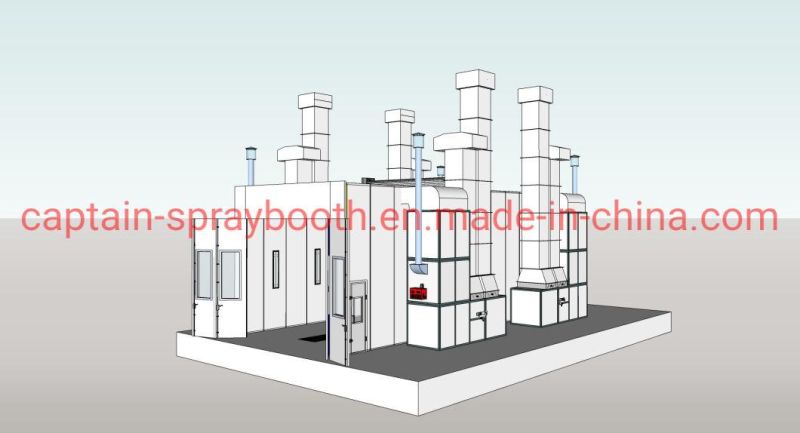

Design drawing :

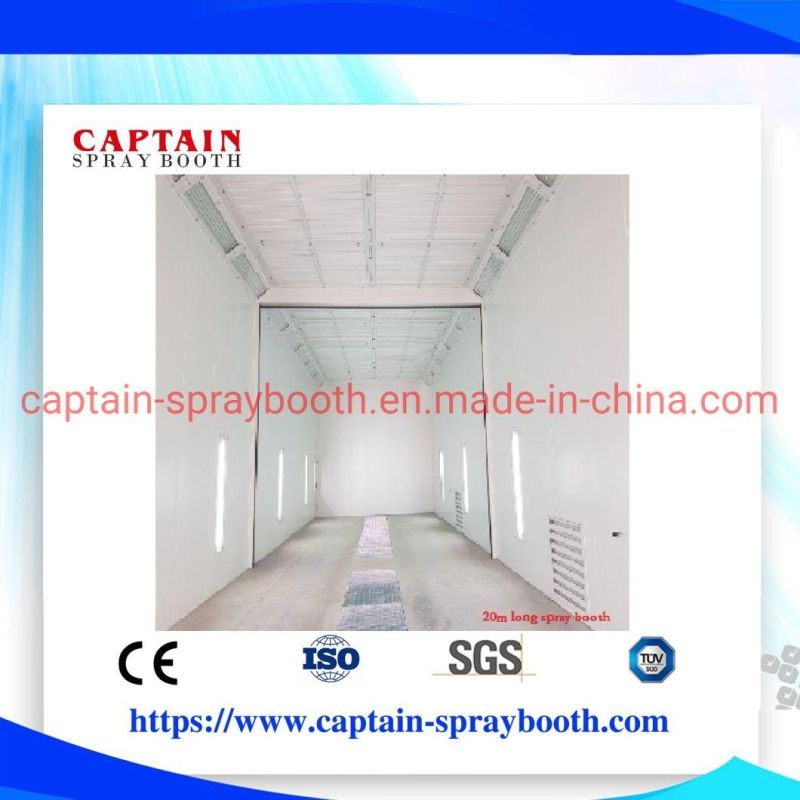

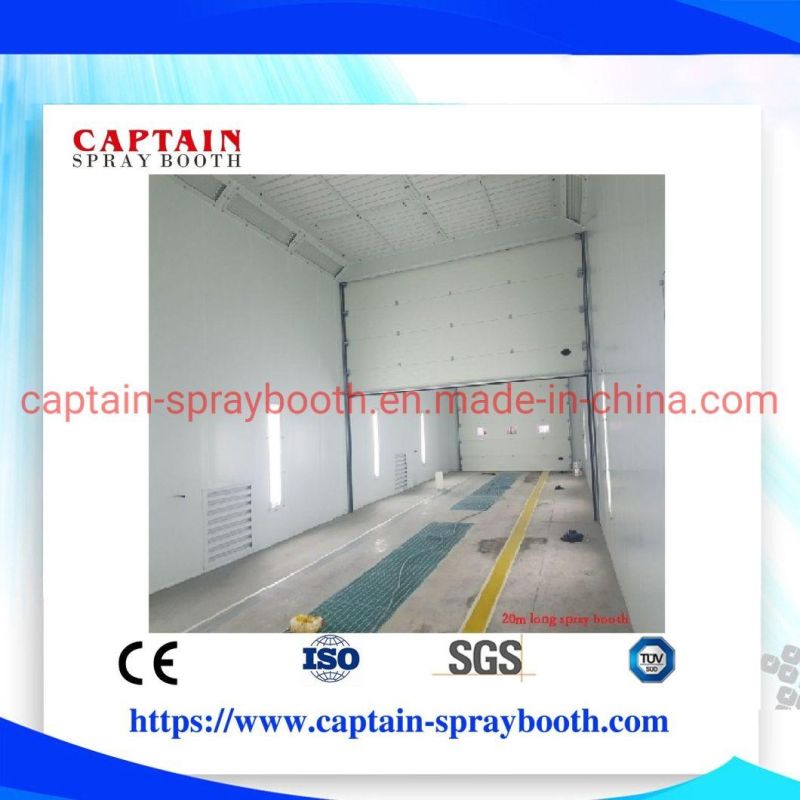

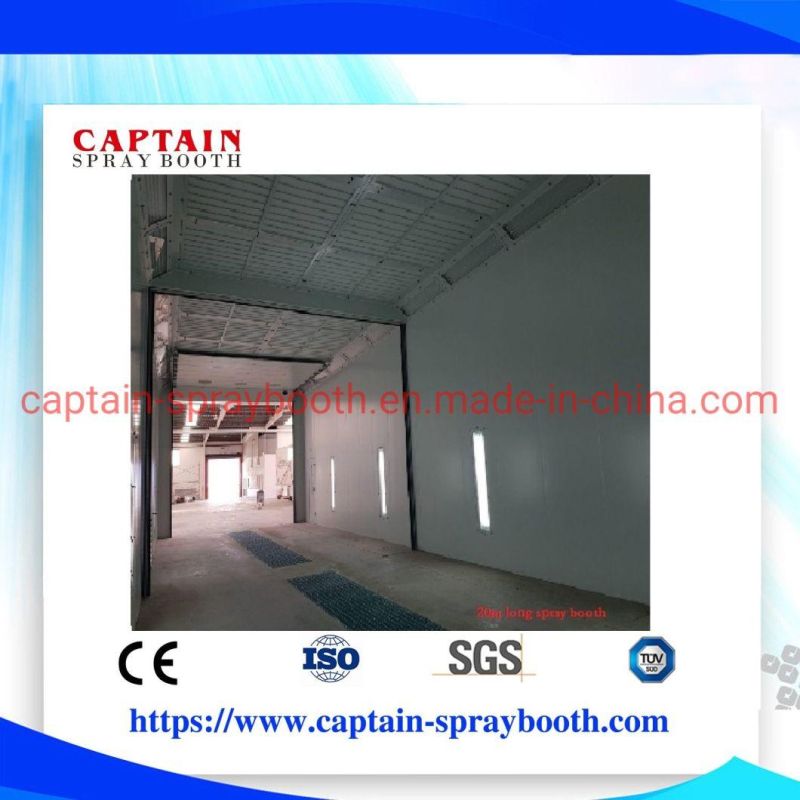

Inside view:

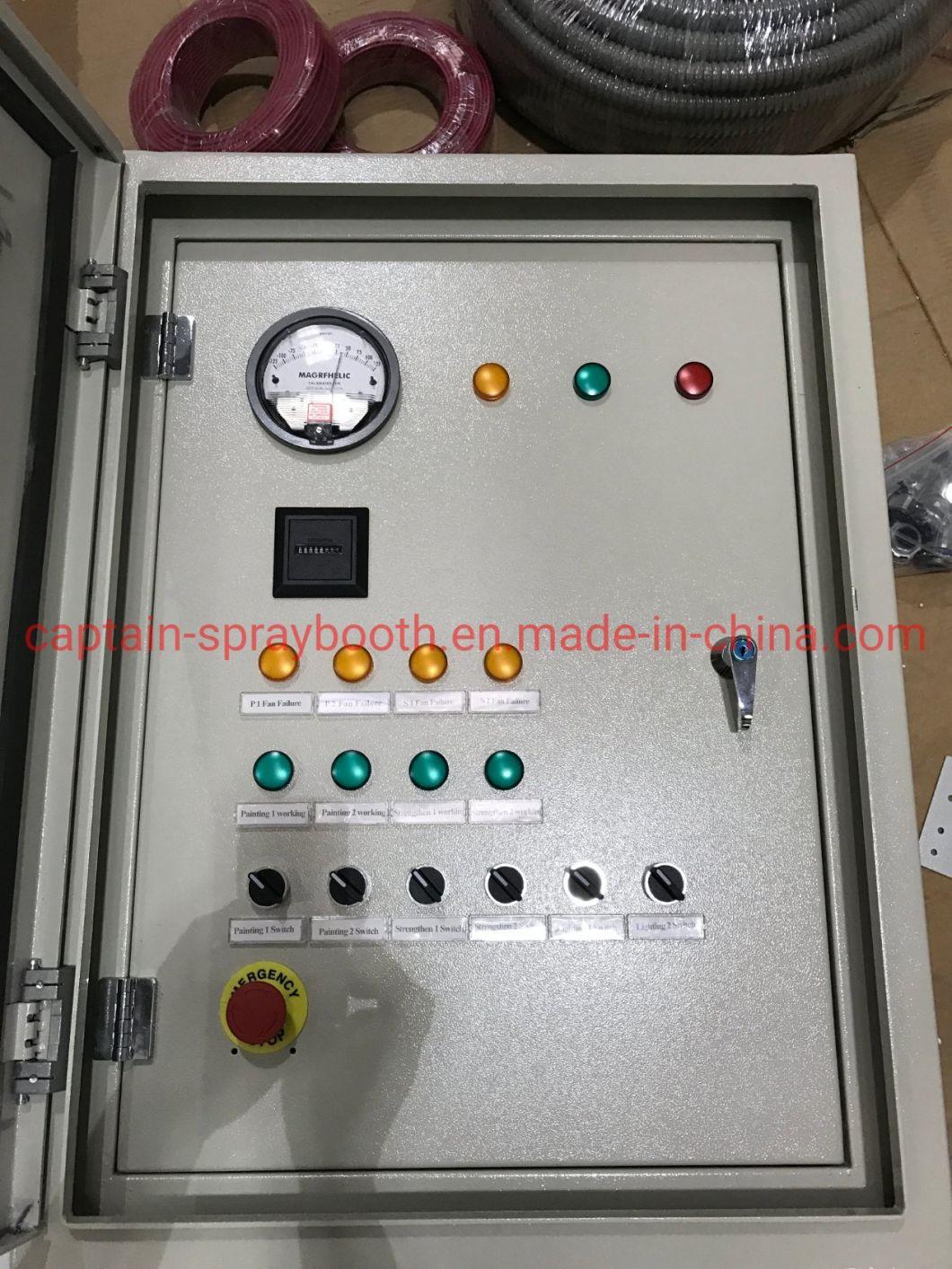

Control box:
Materials:

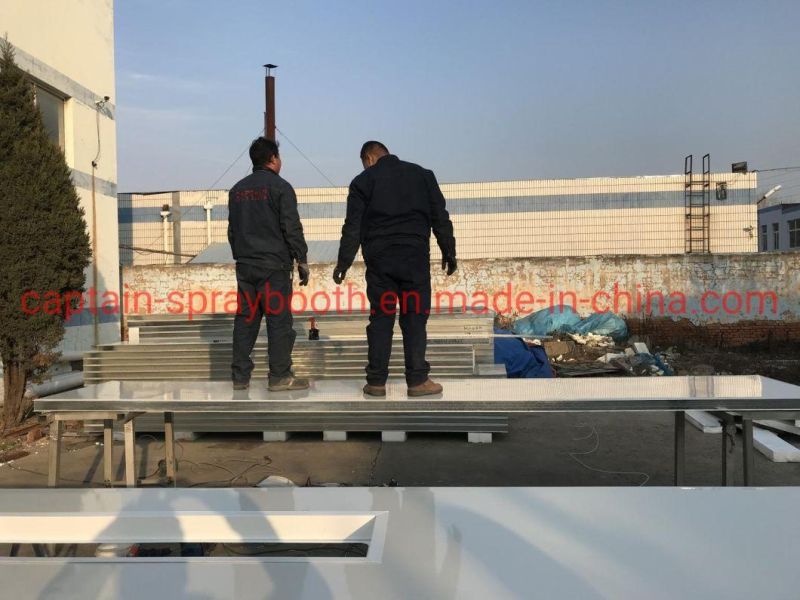

Installation:

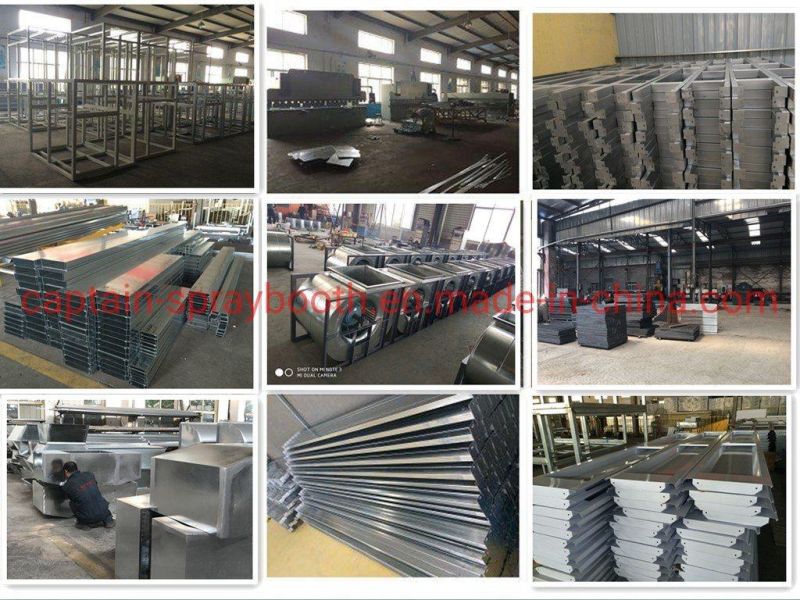

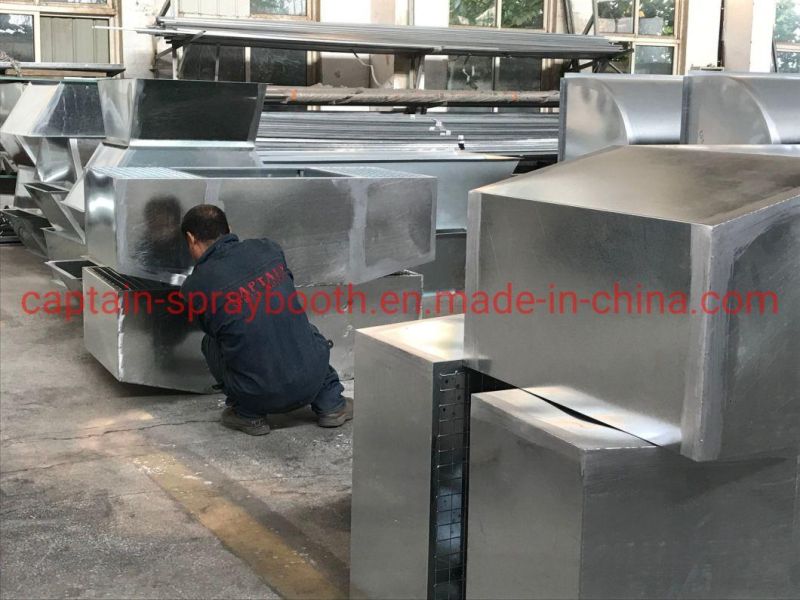

Our workshop:
A. During painting, spray booth can offer a sealed environment with cleanness, safety and excellent lighting for the painting operation of all kind of components and different products
B. During baking, drying time, temperature and humidity in spray booth can be set according to different paint materials to achieve a perfect high-quality spraying and baking for your cars.
C. Spray booth makes spraying and baking operation with no limits of all kinds of whether, thus ensuring physical fitness of operators and absolute safety of equipments.
1. White, orange. Blue
2. For automobile
3. Complete steel assemble Basement and floor
Car painting, Automobile Baking, Portable Auto Spray Booths
1. Italian Riello RG5S diesel burner

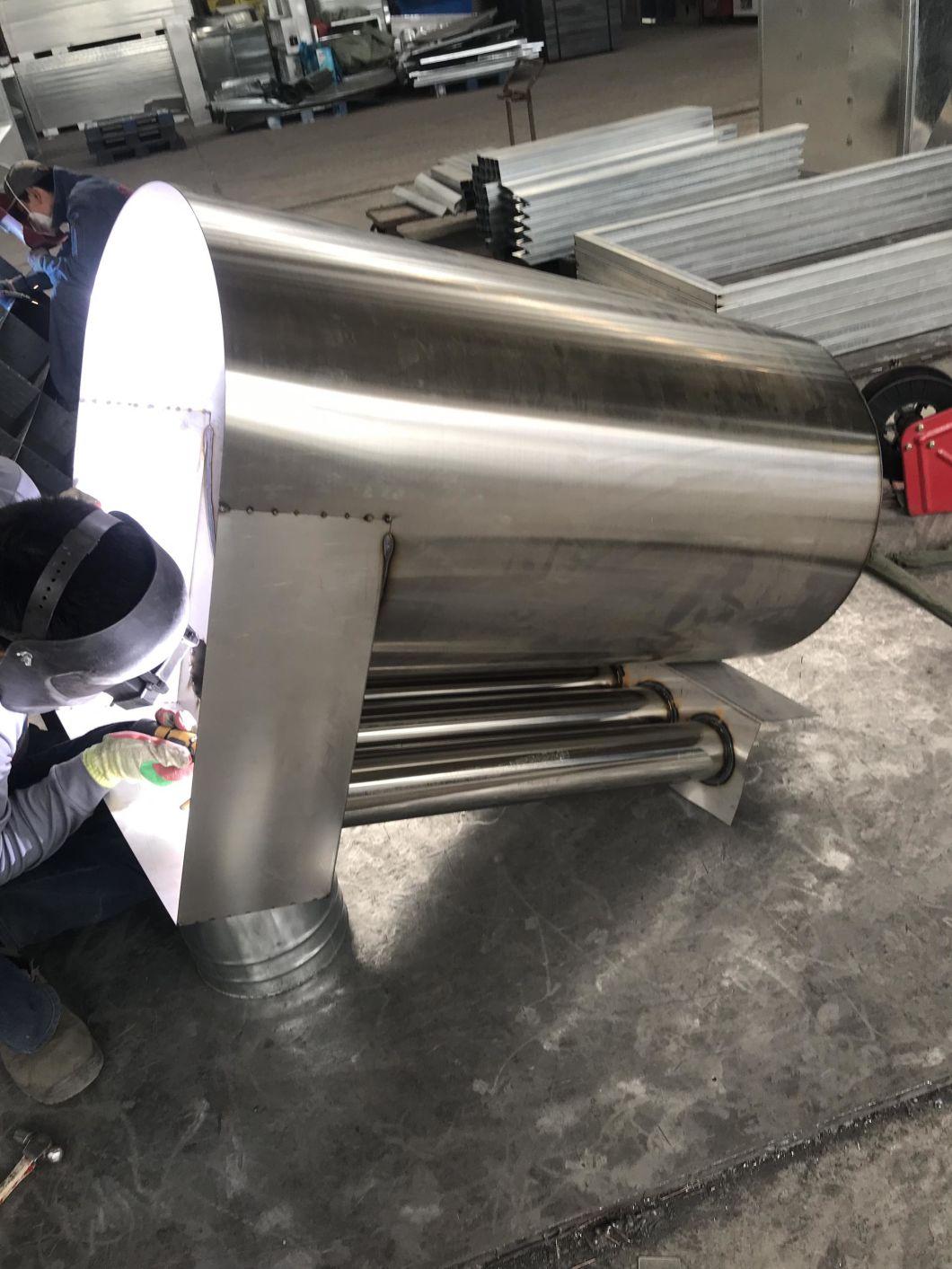

2. SUS304 Stainless steel heat exchanger
3. Anti-flame and Heat-Insulation
Turbo Fan Electrical Heat Downdraft Auto Spray Booths For Automobile Painting, Maintenance
1) For car painting and baking
2) maintains a high level of safety and performance together with top quality construction and materials
3) Various systems of environmental protection are optional for customers
4) A wide range of colors available: White, red, marine blue, gray, orange
5) Trustworthy durability of each parts
6) Good after-sales service
Packaging & Delivery
Packaging Detail: Export professional packages. Our packages are professional. We use the iron bracket package and it can fix the products and prevent them from broken. Moreover, we will label every components and it is easy for the customers to distinguish
Delivery Detail: To effect shipment within 7 days after deposit
