• Model NO.：IT-701
• Coating：Powder Coating
• Airflow Direction：Rear Semi Downdraft
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Brightness：>1200lux
• Empty Loaded Air Speed：0.69m,S
• Air Exchange Times：6 Times , Minute
• Voltage：380V,50Hz,3pH
• Power：18kw
• Noise：<78dB
• Transport Package：Polyfoam and Metal Frame
• Specification：7000*4000*2800MM
• Trademark：INFITECH
• Origin：China
• HS Code：8419899090
• Production Capacity：500sets,Year

INFITECH standard spray booth IT-701-semi downdraft

DESIGN STANDARD

BS EN 13355: 2004 + A1: 2009

BS EN 60204: 2006 + A1: 2009

INTERNAL DIMENSIONS

7000 X 4000 X 2800mm (L X W X H)

EXTERNAL DIMENSIONS

9170 X 4110 X 3460mm (L X W X H)

ENTRANCE DOOR

3400 X 2700 mm (W X H), 1 set

PERSONNEL DOOR

800 X 2000 mm (W X H), 1 set

SIDEWALL LIGHTING

6 sets, each 2 X 18W, 216W total

CEILING LIGHTING

8 sets, each 6 X18W, 864W total

BRIGHTNESS

>1,200LUX

INTAKE SYSTEM

 Direct-type turbine fan, 7.5KW motor, SIEMENS

EXHAUST SYSTEM

 Direct-type turbine fan, 7.5KW motor, SIEMENS

AIR VOLUME

28,000m³/h

EMPTY LOADED AIR SPEED

+/-0.69m/s

AIR EXCHANGE TIMES

6 times/min

HEAT EXCHANGER POWER

232KW

BURNER

RIELLO diesel burner RG5D

RATED POWER

18KW

Features

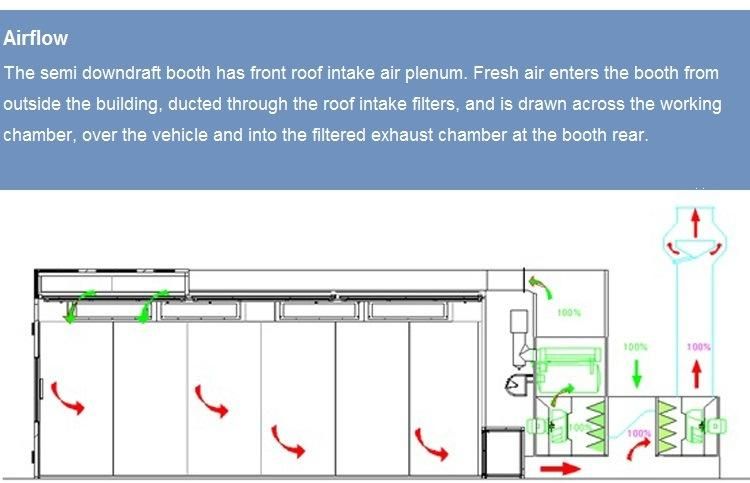

Airflow
• Rear semi downdraft for spray and cure
• 7.5kW intake and exhaust motors, SIEMENS

Construction
• White pre-coated galvanized steel
• Dual-skin insulated panels
• 600mm high front top plenum

Doors
• 4-wing entry door
• Personnel door

Lights
•Sidewall: 6 sets, 2x18W, 216W total
•Ceiling: 8 sets, 6x18W, 864W total

Heat
• RIELLO diesel burner RG5D
•232kW heat exchanger

Controls
•Control panel

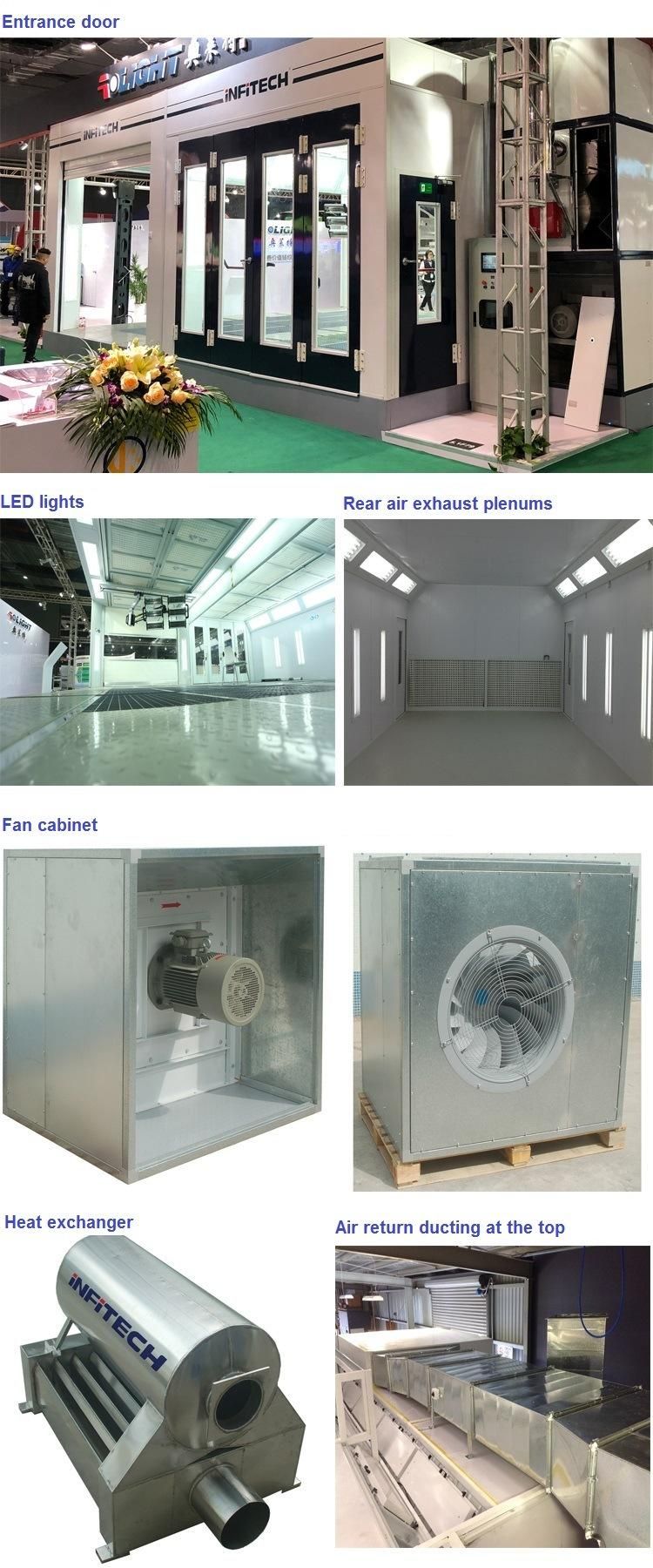

Product details





Why choose Infitech?

 1. Quality Control

We carry out strict quality control to ensure product quality, from supplier selection, incoming inspection, in-process inspection to pre-delivery inspection.

We listen to what our customers say and always look for ways to improve our product quality through continuous improvement.

2. ODM & OEM Ability
We can provide ODM & OEM services. We especially pride ourselves in project design and customized spray booth projects.

3. Parts Availability

We use international standard electric components and consumables.

And we keep stock of spare parts and make sure they are available whenever you need.

4. Good Warranty
Customer satisfaction and product quality are our first priority. We offer 2-year warranty for main components and attentive after-sales service.

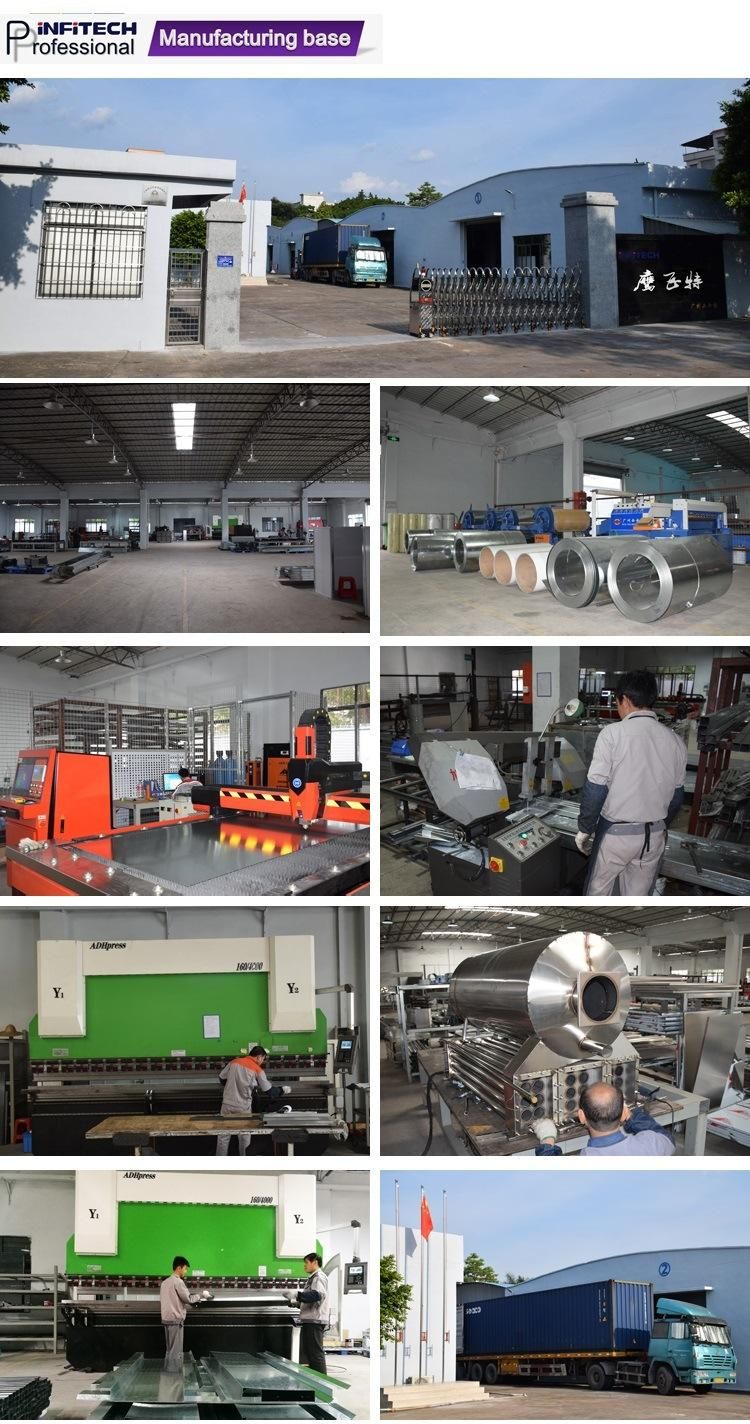

Guangzhou Infitech is professional manufacturer of spray booth. What we supply is not only limited to manufacturing, but the whole solution from initial design and layout, technical consultation, manufacturing through to installation and maintenance. We pride ourselves in delivering customized products that suit your individual needs, both in terms of size and performance.

Trade show

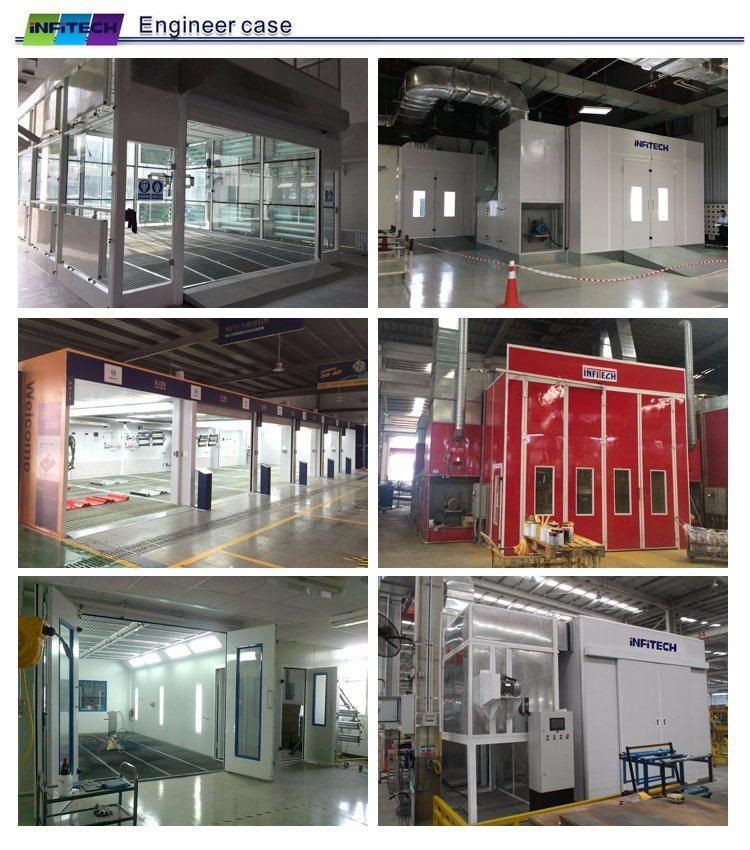

Engineering case

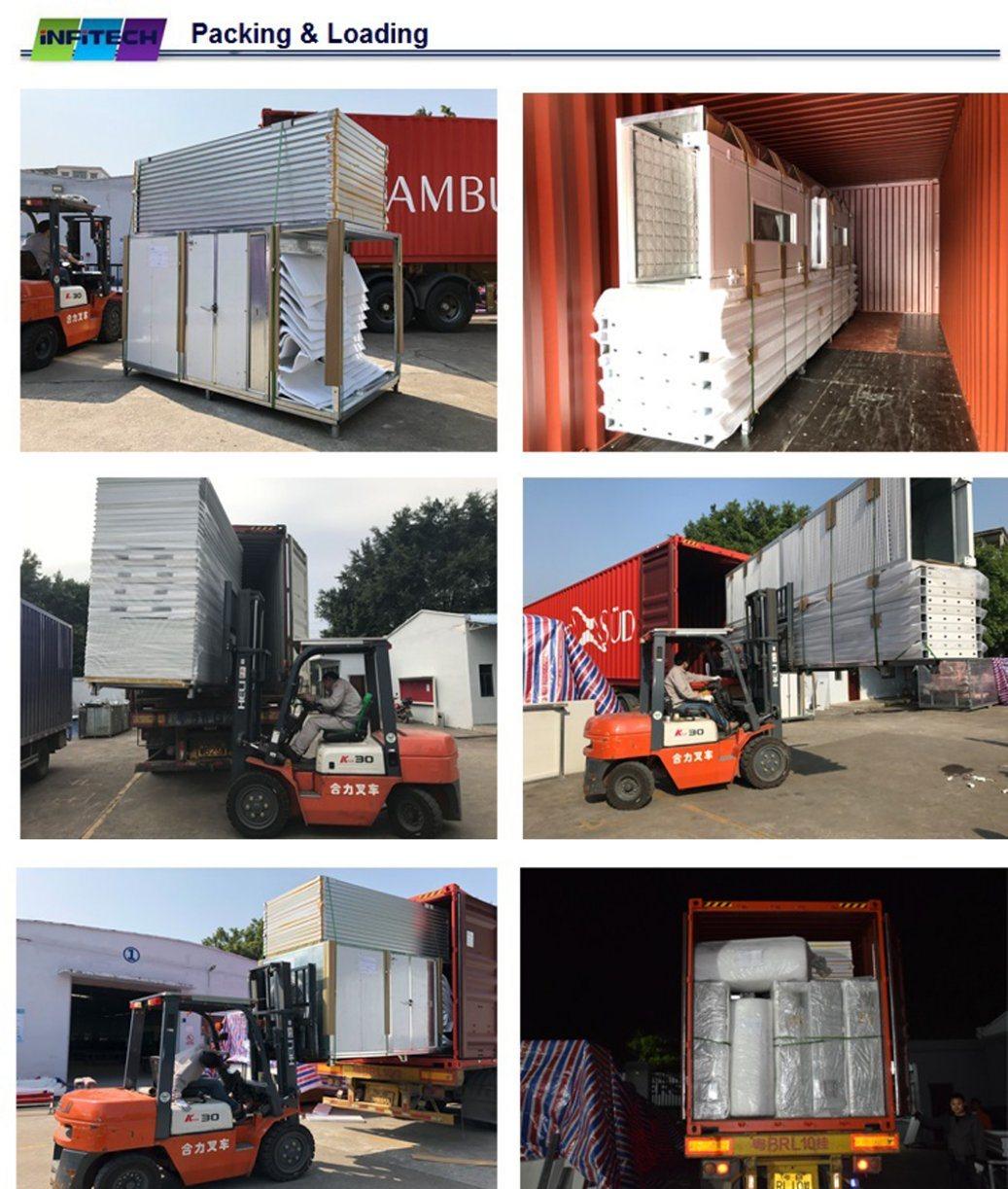

Packing and loading:


FAQ

1. Q: Are you manufacturer or trading company?

A: We are professional manufacturer, with abundant experience in providing pre-sales technical support, project design, product manufacturing, installation & maintenance guidance and after-sales service. With INFITECH, you can always have reliable consultative approaches whenever you need.

2. Q: Can you put my brand name (logo) on these products?
A: Yes. We have experience and capabilities to professionally tailor to your individual needs.

3: What certificates do you have?
A: We've got CE certificate for our spray booth product.

4. Q: What is your product quality?
A: We carry out strict quality control, from supplier selection, incoming inspection, in-process inspection to final inspection before ex-work.

We carefully examine every aspect of every order from design and layout, production, packing to delivery.

5. Q: What is your warranty?
A: Our warranty is 24 months after commissioning. We attend to every request/query from the user during the installation, commissioning, operation and maintenance processes. Warranty is for main components. Consumables are not included in warranty.

6. Q: What is the delivery time?
A: For standard products, the production lead time is 25 days after receiving the advance payment.

For customized products, we will need to check according to the specific condition.

7. Q: How to install and maintain the spray booths?

A: Our spray booths are designed for easy installation and maintenance. We will provide you with detailed installation manual/operation manual/maintenance manual.

Installation/commissioning guidance is also available.

8. Q: What about the availability of the electric components and consumables?

A: We use international standard electric components and consumables. Meanwhile, we keep stock of spare parts and make sure they are available whenever you need.

Welcome to contact us for business! :-)
