10m 2.5t Full Rise Pit Mounted Hydraulic Scissor Car Lift High Rising

Shandong Lift Machinery Co., Ltd.
  • Type：Four Cylinder Hydraulic Lift
  • Lifting Capacity：2T
  • Driving Type：Hydraulic
  • Certification：CE, ISO
  • Driving Motor Number of Mechanical Lift：1
  • Double Cylinder Lift Type：Planer-type

Base Info

  • Model NO.：SJG2.5-10
  • Shearing Lift Type：Big Shear Type
  • Condition：New
  • Brand：Sdlift
  • Design：Scissor
  • Application：Home Garage Scissor Car Lift
  • Lift System：Hydraulic System
  • Power Supply：220V,240V,380V,415V (as Request)
  • Material：High Strength Manganese Steel
  • Color：Red, Grey, Yellow, Blue, or as Your Optional
  • Motor：From Italy or Chinese Famous Brand
  • Transport Package：Iron Case or Plywood Case Package
  • Trademark：SDLIFT
  • Origin：Shandong China
  • HS Code：84289090
  • Production Capacity：1000 Set Per Year

Description

- The Hydraulic Scissor Car Lift can be used to lift car with different levels, suitable for car moving between stairs, from basement to first floor, to second floor, or to third floor.- Operation is easy. There are 2 sets control system installed on the Hydraulic Scissor Car Lift , 1 control box below, and 1 hand controller on safety rail that can be operated on work platform.


Advantages:

Hydraulic lifting system, the far-end control and multi-control points at the different floors could be realized hierarchical control.Stop anywhere at the pre-concerted and accurate location point.It can work under any condition, great load capacity, safe and reliable. There are sensitive overload protection devices locking device for falling protection.


Parameter:

Load capcity2500kgsLift height10mPlatform size5500mm x 2500mmPower380v / 50hz/ 3ph / 7.5kwLift systemhydraulic motor pump systemLift Structurehigh strength Mn steel scissors structure



Safety:
1. The platform equipped with antiskid plate to prevent slipping, it is enough safe when it works.
2. The work table would equipped the guardrail to guarantee the safety.
3. The lift has hydraulic overload protective organization to ensure that equipment will not lift when the load beyond its rated load capacity.
4. The machine equipped single control solenoid valves to prevent the platform dropping if power failure. You can open the manual dropped valve to lower the platform to the home position.


Configuration:
1) Platform Material: rectangular tube +6mm checkered iron
2) Scissor material:  high strength Manganese Steel.
3) Hydraulic system: 380V/7.5Kw
4) High Precision Hydraulic Cylinder
5) Piston Rod: hard chromium plating surface.
6) High-pressure oil pump
7) Hydraulic oil: summer 46#, winter 32#
8) Controller: 1 control box below, 1 hand controller above platform

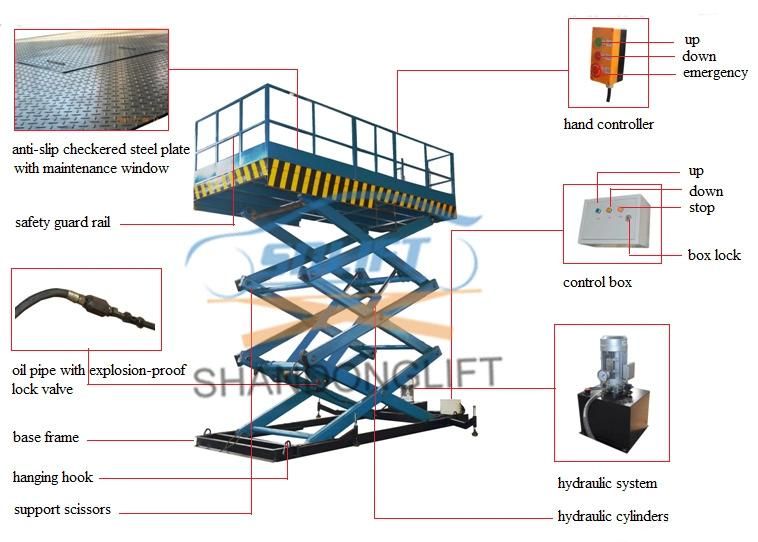

Product's details showing:
10m 2.5t Full Rise Pit Mounted Hydraulic Scissor Car Lift High Rising

Our Services:

1. All the machines will be full tested before shipment2. The total machine guarantee is 24 months3. 24 Hours technical support, email, telephone or video online4. User-friendly english manual for machine using and maintaining5. Several sets wearing parts will be free for you


Company Information:
Shandong Lift Machinery Co.,Ltd is real manufacturer engaged in research, development, manufacturing, sale and service of aerial work equipment from 4m to 21m. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in interior and exterior building decorations, workshops, docks, stations, supermarkets, halls, etc.

FAQ:
- Delivery Time:
5-25 days after we receive your order
- MOQ:
1 unit
- Trade term:
FOB / CIF to your nearest seaport
- Application field:
Construction, shipyard, industrial, airport, municipal garden or others
