Car Auto Spray Painting Booth with Intake and Exhaust Fan
Zouping Hongyuan Eco-Friendly Mechanical Technology Co., Ltd.- After-sales Service：Available
- Warranty：12months
- Type：Spray Booth
- Certification：CE, SGS, ISO
- Substrate：Steel
- Brand：Hongyuan
Base Info
- Model NO.：HY-CB55A
- Coating：Painting
- Airflow Direction：Fully Undershot-type
- Heating Mode：Gas Burner
- Paint Mist Treatment：Dry-type
- Condition：New
- Color：Red, Blue, White
- Panel：50,75mm EPS Foam Panel
- Grate：5rows
- Ramp：2pieces
- Heating System：Gas, Diesel, Oil, Used Oil, Electric
- Filter System：4-Stage Filtration System
- Upper Light：Available
- Side Light：Optional
- Control Box：English Panel
- Standard Voltage：380V,3f&220V,1f@50Hz
- Control：Automatic
- Drawing：Available
- User Manual：Available
- Related Product 1：Large Instrial Truck Paint Spray Booth
- Related Product 2：Folding Retractable Paint Spray Booth
- Transport Package：Proper Packing Suitable for Sea Shipment
- Specification：25cbm for a 20ft container loading.
- Trademark：Hongyuan
- Origin：Shandong, China
- Production Capacity：100 Set Per Month
Description
Basic Info.
Model NO. HY-CB55A Coating Painting Airflow Direction Fully Undershot-type Heating Mode Gas Burner Paint Mist Treatment Dry-type Condition New Color Red, Blue, White Panel 50/75mm EPS Foam Panel Grate 5rows Ramp 2pieces Heating System Gas, Diesel, Oil, Used Oil, Electric Filter System 4-Stage Filtration System Upper Light Available Side Light Optional Control Box English Panel Standard Voltage 380V/3f&220V/1f@50Hz Control Automatic Drawing Available User Manual Available Related Product 1 Large Instrial Truck Paint Spray Booth Related Product 2 Folding Retractable Paint Spray Booth Transport Package Proper Packing Suitable for Sea Shipment Specification 25cbm for a 20ft container loading. Trademark Hongyuan Origin Shandong, China Production Capacity 100 Set Per MonthProduct Description
Introduction of the Car Auto Spray Painting Booth with Intake and Exhaust Fan1. full-down draft paint booth:
2. semi-down draft paint booth:
3. side-down draft paint booth:
4. cross-draft paint booth:
Quick Specification of the Car Auto Spray Painting Booth with Intake and Exhaust Fan
| Model | HY-CB55A |
| Outside Size(mm) | 7000(L)*4000(W)*3400(H) |
| Inside Size(mm) | 6900(L)*3900(W)*2700(H) |
| Front Door(mm) | 3000*2600(W*H) |
| Side Door(mm) | 600*1800(W*H) |
| Total power | 15.5kW |
| Voltage status | 380V/3ph&220V/1ph@50Hz |
| Wall Panel | 50mm EPS foam panel |
| Ceiling panel | Galvanized steel |
| Basement&floor | Raised metal-base (300mm high) with complete grating floor. |
| Intake | Two set of fan, motor: 4kW. |
| Exhaust | One set of fan, motor: 5.5kW. |
| By-pass | Pneumatic damper from spraying to baking cycle |
| Heating System(GAS) | GAS burner, Italy Riello one-stage oil burner for option. |
| Filter System | 4 stages of filters: Pre-filter, ceiling filter, floor paint-stop filter, extract paint-stop filter |
| Lighting | Upper lights, 8units, 4*36W each. |
| Control System | 1set. |
Picture of the Car Auto Spray Painting Booth with Intake and Exhaust Fan
Details show of Car Auto Spray Painting Booth with Intake and Exhaust Fan

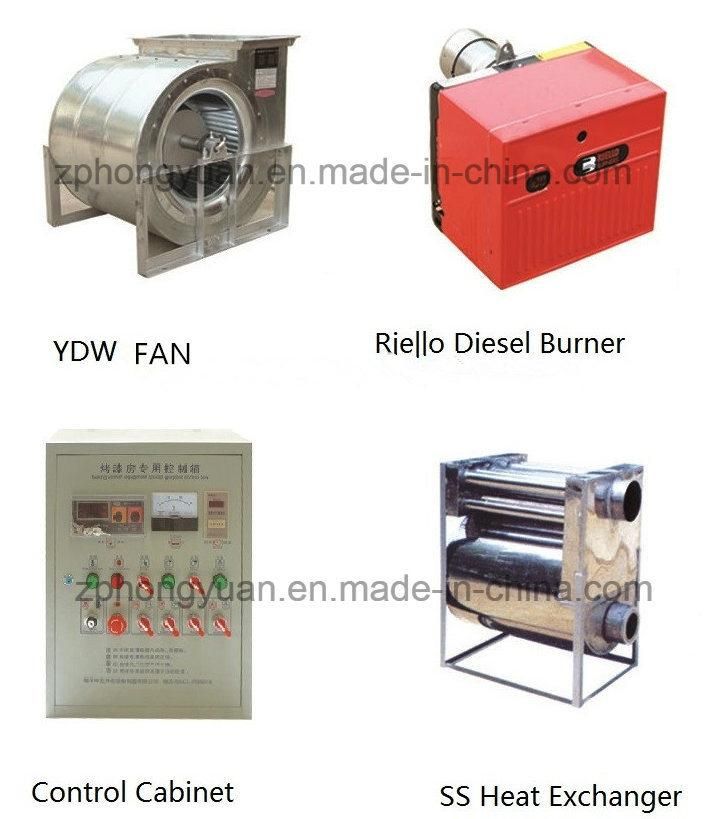

Parts show of Car Auto Spray Painting Booth with Intake and Exhaust Fan
Production area and equipment for Car Auto Spray Painting Booth with Intake and Exhaust Fan
Project case for paint booth
Package Show of Car Auto Spray Painting Booth with Intake and Exhaust Fan
Project case for paint booth
Certificate of our product and company
Our Team is serving you at any time
