Spray Paint Machine Automotive Spray Booths for Sale
Zouping Hongyuan Eco-Friendly Mechanical Technology Co., Ltd.- After-sales Service：Available
- Warranty：12months
- Type：Auto Paint Spray Booth
- Certification：CCC, CE, CSA, GS, UL, SGS, ISO
- Substrate：Steel
- Brand：Hongyuan
Base Info
- Model NO.：HY-CB40B
- Coating：Painting
- Airflow Direction：Lateral Undershot-type
- Heating Mode：Diesel
- Paint Mist Treatment：Dry-type
- Condition：New
- Color：Red, Blue, White
- Panel：50,75mm EPS Foam Panel
- Grate：5rows
- Ramp：2pieces
- Heating System：Gas, Diesel, Oil, Used Oil, Electric
- Filter System：4-Stage Filtration System
- Upper Light：Available
- Side Light：Optional
- Control Box：English Panel
- Standard Voltage：380V,3f&220V,1f@50Hz
- Control：Automatic
- Drawing：Available
- User Manual：Available
- Related Product 1：Large Truck Paint Spray Booth
- Related Product 2：Folding Retractable Paint Spray Booth
- Transport Package：Proper Packing Suitable for Sea Shipment
- Specification：25cbm for a 20ft container loading.
- Trademark：Hongyuan
- Origin：Shandong, China
- Production Capacity：100 Set Per Month
Description
Basic Info.
Model NO. HY-CB40B Coating Painting Airflow Direction Lateral Undershot-type Heating Mode Diesel Paint Mist Treatment Dry-type Condition New Color Red, Blue, White Panel 50/75mm EPS Foam Panel Grate 5rows Ramp 2pieces Heating System Gas, Diesel, Oil, Used Oil, Electric Filter System 4-Stage Filtration System Upper Light Available Side Light Optional Control Box English Panel Standard Voltage 380V/3f&220V/1f@50Hz Control Automatic Drawing Available User Manual Available Related Product 1 Large Truck Paint Spray Booth Related Product 2 Folding Retractable Paint Spray Booth Transport Package Proper Packing Suitable for Sea Shipment Specification 25cbm for a 20ft container loading. Trademark Hongyuan Origin Shandong, China Production Capacity 100 Set Per MonthProduct Description
Introduction of the Spray Paint Machine Automotive Spray Booths for Sale1. full-down draft paint booth:
2. semi-down draft paint booth:
3. side-down draft paint booth:
4. cross-draft paint booth:
Quick Specification of the Spray Paint Machine Automotive Spray Booths for Sale
| Model | HY-CB40B |
| Outside Size(mm) | 7000(L)*4000(W)*3400(H) |
| Inside Size(mm) | 6900(L)*3900(W)*2700(H) |
| Front Door(mm) | 3000*2600(W*H) |
| Side Door(mm) | 700*2000(W*H) |
| Total power | <17kW |
| Voltage status | 380V/3ph&220V/1ph@50Hz |
| Wall Panel | 50mm EPS foam panel |
| Ceiling panel | Galvanized steel |
| Basement&floor | Raised metal-base (300mm high) with complete grating floor. |
| Intake | two set of fan, motor: 4kW. |
| Exhaust | One set of fan, motor: 4kW. |
| By-pass | Pneumatic damper from spraying to baking cycle |
| Heating System(Oil) | Italy Riello one-stage oil burner. |
| Filter System | 4 stages of filters: Pre-filter, ceiling filter, floor paint-stop filter, extract paint-stop filter |
| Lighting | Upper lights, 8units, 4*36W each. |
| Control System | 1set. |

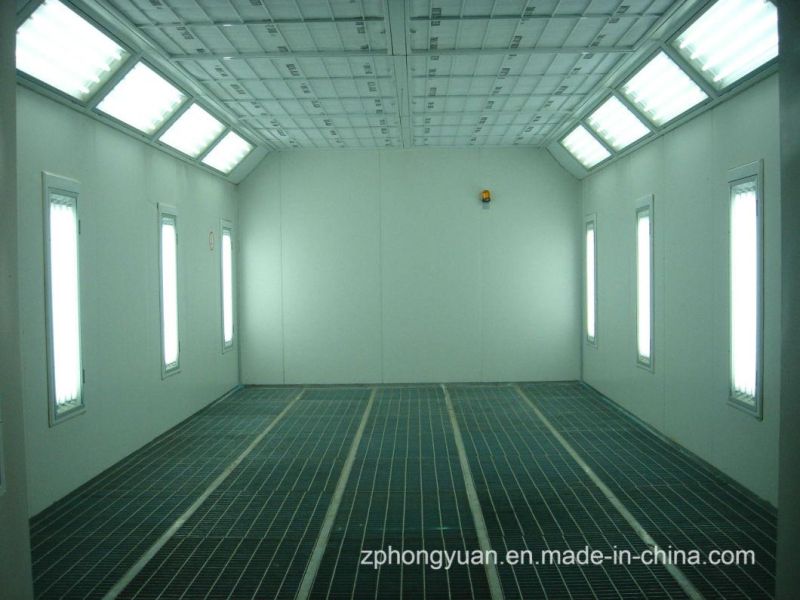

Picture of the Spray Paint Machine Automotive Spray Booths for Sale
details show of Spray Paint Machine Automotive Spray Booths for Sale

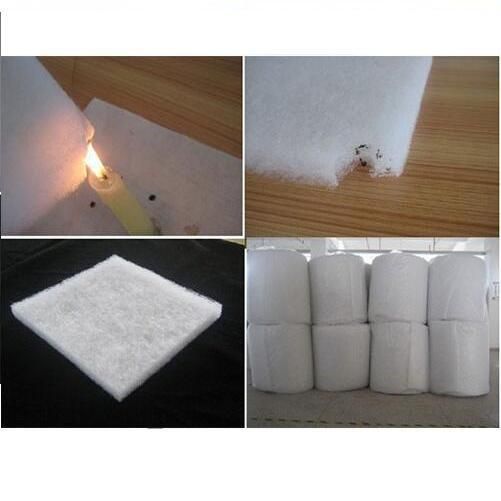

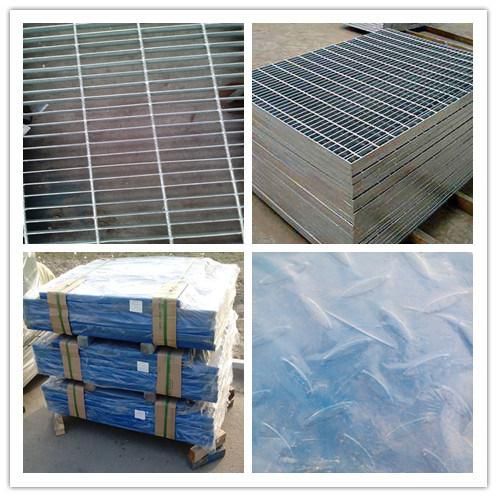

parts show of Spray Paint Machine Automotive Spray Booths for Sale
Production area and equipment for Spray Paint Machine Automotive Spray Booths for Sale
Package Show of Spray Paint Machine Automotive Spray Booths for Sale
Project case for paint booth
Certificate of our product and company
