Hydraulic Car Parking Lift Machine for Home Parking
Shandong Lift Machinery Co., Ltd.- Type：Double Cylinder Hydraulic Lift
- Lifting Capacity：2T
- Driving Type：Hydraulic
- Certification：CE
- Driving Motor Number of Mechanical Lift：1
- Double Cylinder Lift Type：Planer-type
Base Info
- Model NO.：SJG3-3
- Shearing Lift Type：Big Shear Type
- Condition：New
- Brand：Sdlift
- Design：Scissor
- Power：220V, 240V, 380V or Other
- Install：Underground
- Type of Products：Hydraulic Scissor Car Lift
- Color：Optional
- Motor：Customer Required Brand or Chinese Famous Brand
- Safety Device：Explosion Proof Lock Valve, Emergency
- Lift Height：3000mm
- Lift Laoding Capacity：3000kg
- Name：Car Parking Lift
- Transport Package：Iron Case or Plywood Case Package
- Specification：CE
- Trademark：SDLIFT
- Origin：China Shandong
- HS Code：84289090
- Production Capacity：5000set Per Year
Description
The parking machine can be customized as your detailed size.
Configuration:
1) Platform Material: rectangular tube + checkered iron
2) Scissor material: high strength Manganese Steel.
3) Hydraulic system: 380V/5.5Kw or others
4) High Precision Hydraulic Cylinder
5) Piston Rod: hard chromium plating surface.
6) High-pressure oil pump
7) Hydraulic oil: summer 46#, winter 32#
8) Controller: 1 control box below, 1 control panel above platform

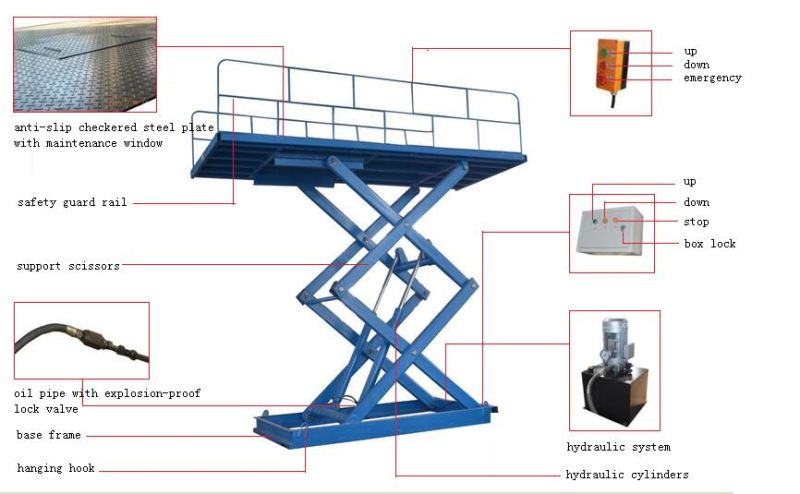

Parts showing:
Safety:
1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs.
2) The safety rails to guarantee safety of the cars above the platform.
3) The limit switch system helps parking machine to stop at accurate position.
4) Electricity leakage protection device is equipped on, all electric components are CE certified.
5) All the parking machine are passed 1.2 times loading test before leaving factory.
Our services:
1) We can design the customerized parking machine as per your requirement.
2) The most suitable parking machine will be recommended to you once we got your requirement.
3) Shipment can be arranged from our port to your destination port.
4) Operation video can be sent to you if needed.
5) User-friendly English manual for machine installation using and maintenance.
6) 2 year warranty for whole machine without man-made faults.
7) We will send you parts for free if there are any non-human factors faults during warranty time.
8) Supply 24-hours technical assistance by email, telephone or other communication online.
9)We could reply you in 2 hours after received your any questions even on
weekend and holiday. Engineers are available to your country if necessary.
