• Condition：New
• Plenum (Height)：600mm
• Side Walls：50mm Rock Wool Panels
• Brightness：>700lux
• Noise：<78dB
• Warranty：2 Years
• Inverter：Schneider
• Grids Carrying Capacity：900kg,Wheel
• Extraction Area：18m2
• Air Volume：18,000m3,H
• Rated Power：10kw
• Ramp：Pneumatic Ramp
• Empty Loaded Air Speed：0.18m,S
• Transport Package：Cargo Loaded on Steel Frame Handled by Forklifts
• Specification：6900 X 4000 X 2800mm(L X W X H)
• Trademark：INFITECH
• Origin：Guangzhou, China
• HS Code：8419899090
• Production Capacity：1000 Sets,Year

Basic Info.

Condition New Plenum (Height) 600mm Side Walls 50mm Rock Wool Panels Brightness >700lux Noise <78dB Warranty 2 Years Inverter Schneider Grids Carrying Capacity 900kg/Wheel Extraction Area 18m2 Air Volume 18,000m3/H Rated Power 10kw Ramp Pneumatic Ramp Empty Loaded Air Speed 0.18m/S Transport Package Cargo Loaded on Steel Frame Handled by Forklifts Specification 6900 X 4000 X 2800mm(L X W X H) Trademark INFITECH Origin Guangzhou, China HS Code 8419899090 Production Capacity 1000 Sets/Year

Product Description

Car Preparation Area with Electric Soft Curtain Door
1.INTRODUCTION
The solution comes standard with dual prep bays.
There are wall panels on both sides and electric soft curtains in the front to create relatively closed work areas for preparation work.
Standard as the other prep bays, it comes with controlled ceiling plenum of 600mm, 1*5.5kw exhaust fan unit and electric/tool cabinets at the rear of the station.

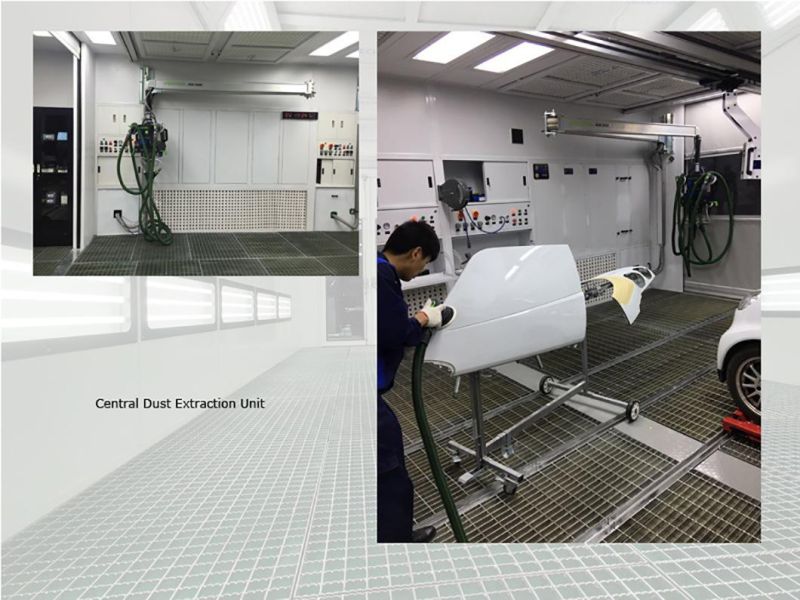

Central dust extraction device, infrared heating fixtures and floor conveying system can be added to upgrade the dual prep bay solution depending on your actual application.


2.SPECIFICATIONS

ITEMS	SPECIFICATIONS
Product	Car Prep Bays for Auto Body Repair
Design standard	BS EN 13355: 2004+A1:2009 BS EN 60204: 2006+A1:2009
Internal dimensions	6900 X 4000 X 2800mm(L X W X H)
External dimensions	8270 X 4110 X 3260mm (L X W X H)
Airflow	Downdraft
Plenum (height)	600mm
Extraction	Through pit in the ground
Extraction area	18m2
Grids carrying capacity	900kg/wheel
Entry/Exit	Electric soft curtain, 3900x2650mm, 1 set
Divider	Electric soft curtain, 6000x2650mm, 1 set
Side walls	50mm rock wool panels
Rear Walls/Top panels	Single layer galvanized steel, powder coated
Ceiling lights (LED)	8 sets, each 4 X 18W, 576W total
Brightness	>700LUX
Filters	High efficiency ceiling filter, floor filter, exhaust filter
Exhaust unit	Direct-type turbine fan, 1X5.5KW, SIEMENS motor
Air volume	18,000m3/h
Empty loaded air speed	0.18m/s
Electrical and tool cabinets	Integrated in the rear wall
Inverter	SCHNEIDER inverter
Rated power	10KW

3.CUSTOM OPTION

1. Dry vacuum sanding system

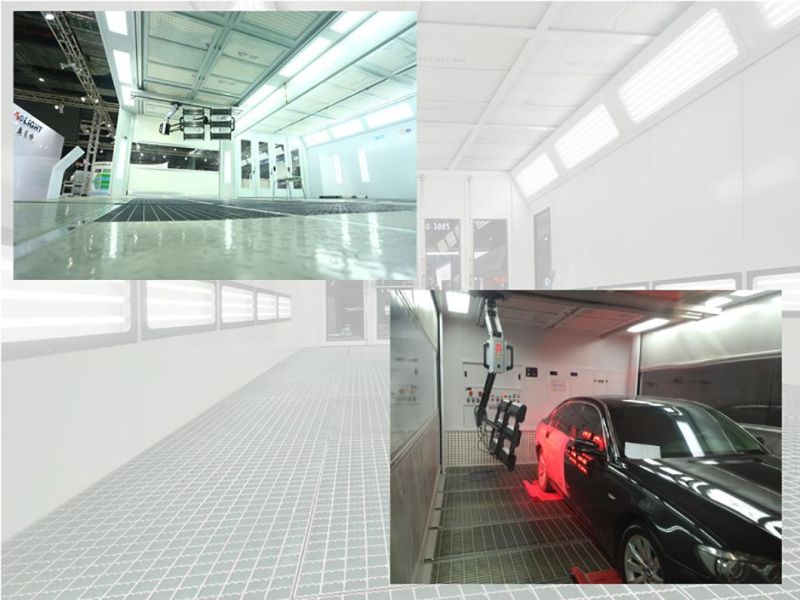

2. Overhead infrared heating lamps
3. Rear semi downdraft airflow
4. Lift integrated with the basement of the prep bays
5. Higher power exhaust fan unit: 1*7.5kw
6. Multiple prep bays according to specific workshop arrangement
7. Conveying tracks and trolleys among multiple prep bays
8. Intake fan unit
9. Customized auto body shop design

FAQQ: Can you offer prep bays with raised metal base and pneumatic ramp?A: Yes.
 Q: Can you adjust the dimensions of the prep bays according to my requests?A: Certainly. We can follow your requests to design and manufacture.
 Q: Instead of suspending the ceiling plenum, I want free-standing prep bays.A: That's okay. We will add columns to support the plenum.
 Q: What is the warranty?A: We offer 2-year warranty.
 Q: What is the airflow of car prep bay?A: Usually, there are downdraft airflow and rear semi downdraft airflow the car prep bay.
For standard car prep bay, a certain percentage of air is circulated inside the system. However, we can add intake fan unit to have 100% intake air and 100% exhaust air. This upgrading is subject to actual work process.
