• Model NO.：SL04
• Automatic：Automatic
• Standard：Standard
• Certification：CE, ISO
• Condition：New
• Outside Clamp Dimension：10"-20"
• Inside Clamp Dimensions：12"-23"
• Max Tyre Diameter：1120mm
• Max Tyre Width：3"-12"
• Bead Breaker Force：2500kg
• Turntable Rotation Speed：6.5rpm
• Working Pressure：8-10bar(116-145psi)
• Voltage：110V,220V(1pH), 380V(3pH)
• Packing Size：1100*910*1010 1280*550*450
• Net Weight/Gross Weight：246,285 72,95
• Transport Package：Export Container ,Pallet ,Disassembly with Carton
• Specification：CE, SGS, ISO
• Trademark：CAPTAIN
• Origin：Jiangsu, China.
• Production Capacity：196sets,Month

Basic Info.

Model NO. SL04 Automatic Automatic Standard Standard Certification CE, ISO Condition New Outside Clamp Dimension 10"-20" Inside Clamp Dimensions 12"-23" Max Tyre Diameter 1120mm Max Tyre Width 3"-12" Bead Breaker Force 2500kg Turntable Rotation Speed 6.5rpm Working Pressure 8-10bar(116-145psi) Voltage 110V/220V(1pH), 380V(3pH) Packing Size 1100*910*1010 1280*550*450 Net Weight/Gross Weight 246/285 72/95 Transport Package Export Container /Pallet /Disassembly with Carton Specification CE, SGS, ISO Trademark CAPTAIN Origin Jiangsu, China. Production Capacity 196sets/Month

Product Description

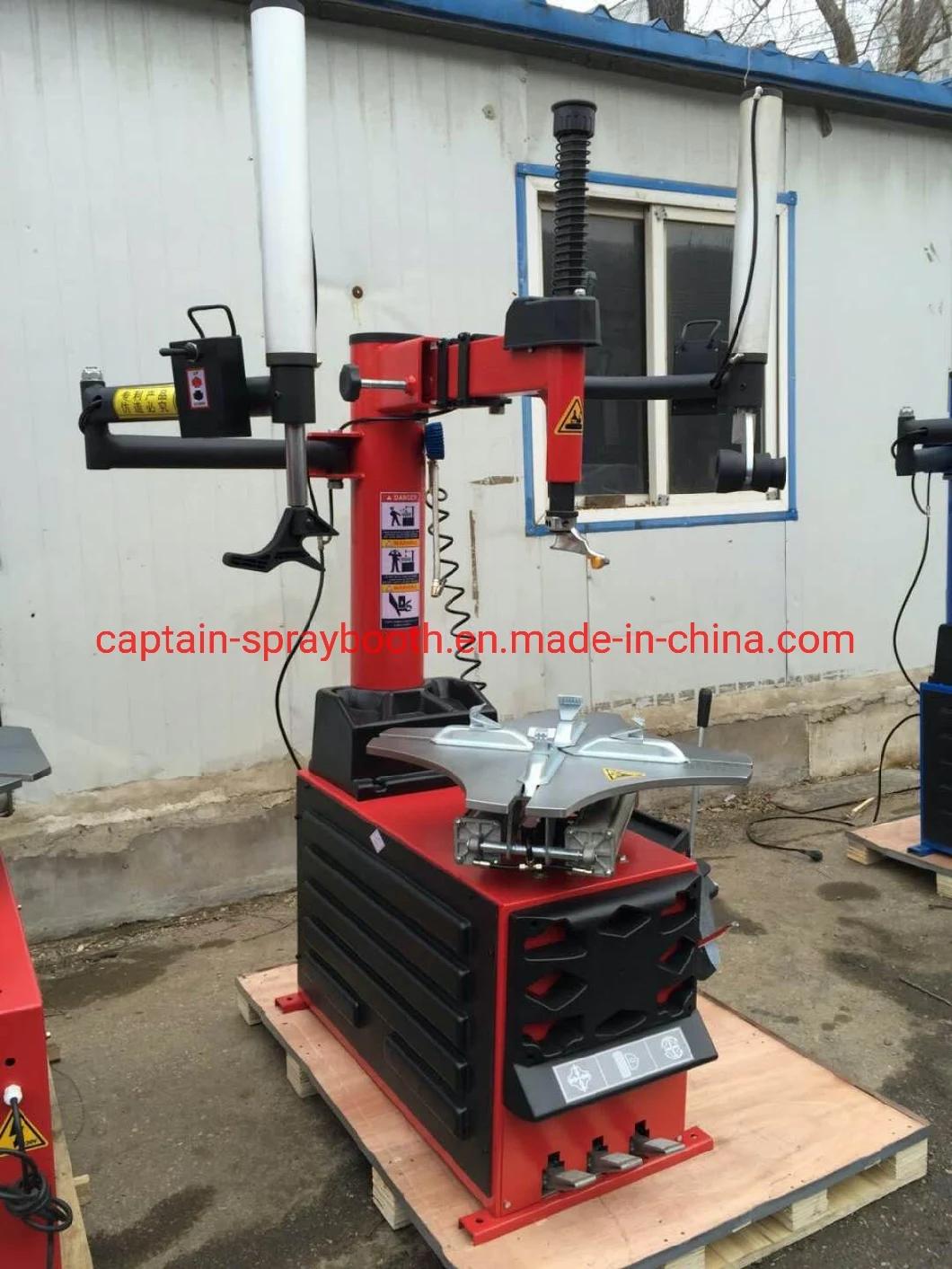

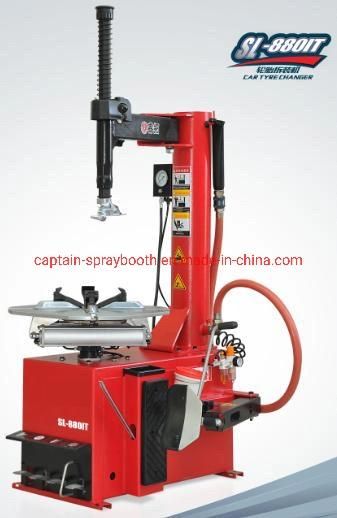

TECHNICAL SPECIFICATION SL04


Outside Clamp	10-20"
Inside Clamp	12-23"
Tire Width	3-12"
Max Wheel Diameter	1120mm

Outside Clamp:10-20"
Inside Clamp:12-23"
Tire Width: 3-12"
Max Wheel Diameter: 1120mm
Working air Pressure: 8-10 bar
Turntable Rotation Speed: 6.5rpm
Power Supply Voltage:110V/220V(1ph),380V(3ph)
Motor Power:0.75/1.1KW
Noise:<70dB
CTN.size: 1100*910*1010  1280*550*450
Net weight/ Gross weight: 246/285   72/95



Features:
1.  The equipment can be used for different purposes of demounting, mounting and inflating tyres.
2.  The machine adopts the parkerising bead breaker cylinder having bead breaker power 2500KG to bead break the tire from rim easily.
3.  Pneumatically controlled tilting system saves the effort and time of the operation. Pneumatic lift device can be smoothly and steadily in any position, so that the disassembly of tire more convenient and easy.
4.  The steel mount/demount is cast from excellent ,material with special shape and durable performance.
The supplied plastic mount/demount head with the equipment is made from special engineering plastic that has enough intensity and not damage the tyre and rim.
5.  The two clamping cylinder ensures accurate central alignment, so that the wheels can be held tightly.

6.  Moving up and down of the hexagonal column and locking of the horizontal arm is controlled by a button, which save operation time and make operation safe.
7.Human design of the mount/demount help greatly reduces work-intension of the operator, making tyre-mount and tyre-demount operations convenient and easy.
8.The quick-inflating device keeps tyre bead close to the rim tightly, avoiding over-long time inflation or difficult inflation when the gun inflator is used for the empty tyre.
9.The bead breaker shoe can be adjusted to match tyres with different widths
10.Mount/demount help device and quick-inflating device features simple operation and
reliability. It is a great help in car repair garage and tyre dealers.
Captain Spray Booth
Is a professional leading factory in China, who is specializing in manufacture kinds of paint spray room system. And also offering full garage equipments, such as

The garage equipment series include different kinds of small machines

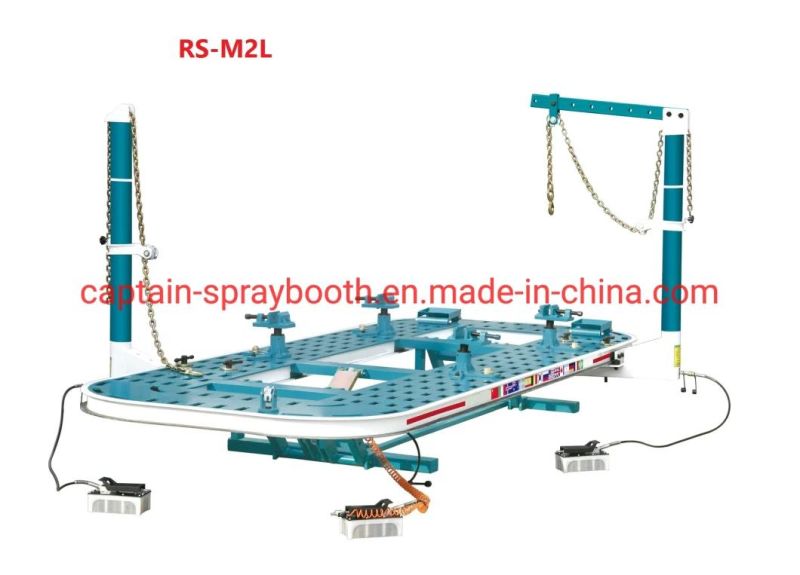

car body straightening bench

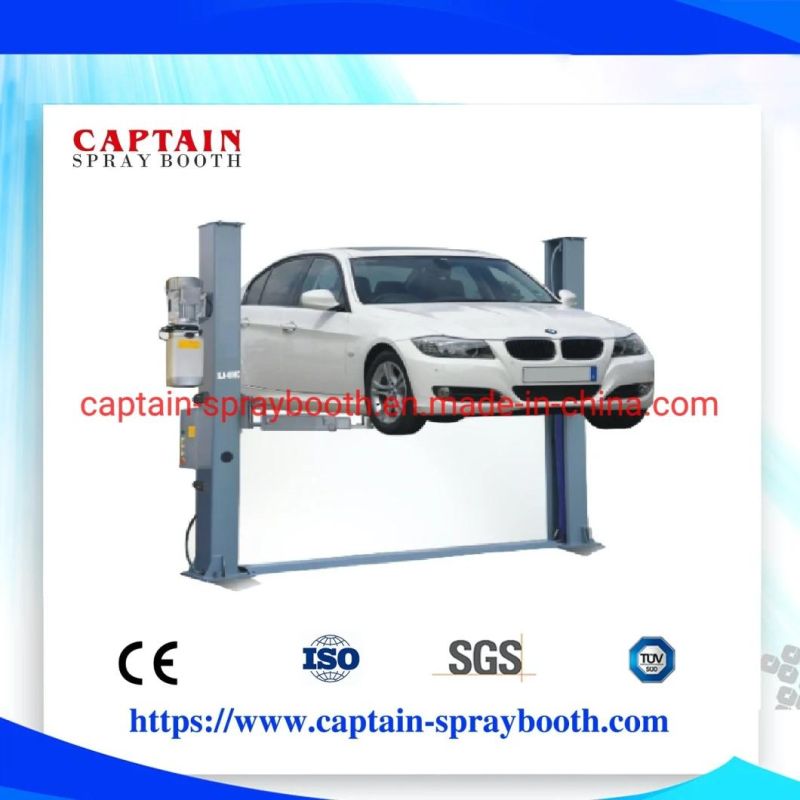

car lift

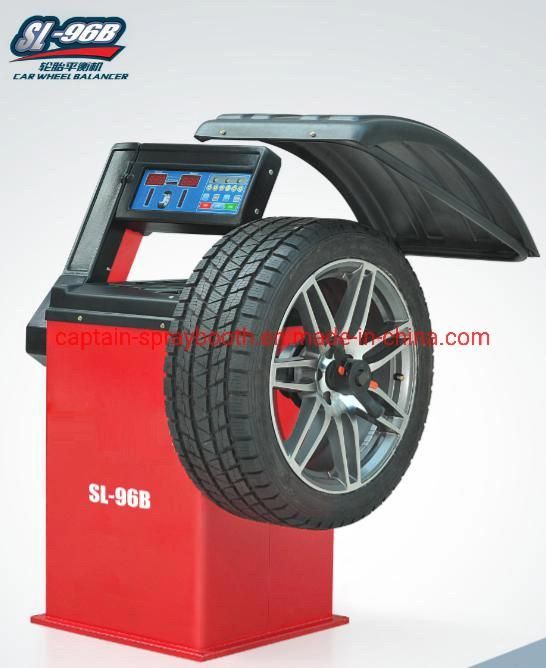

wheel balancer

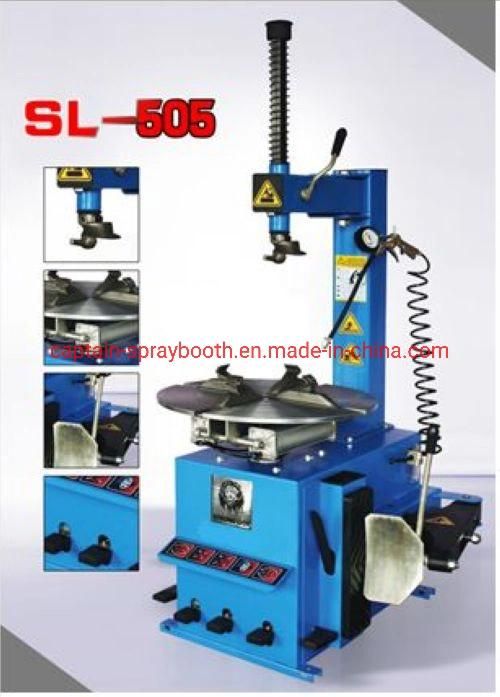

tyre changer

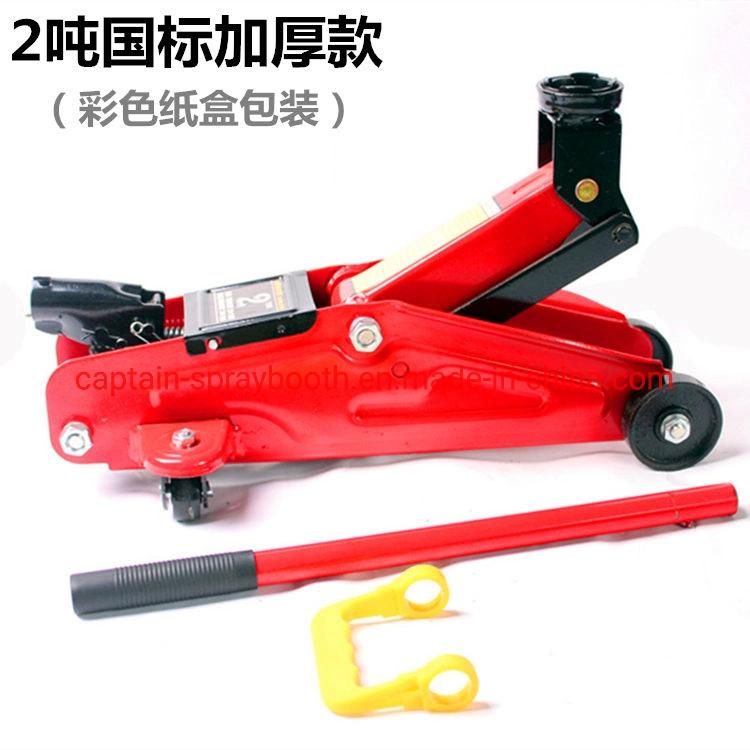

hydraulic floor lift

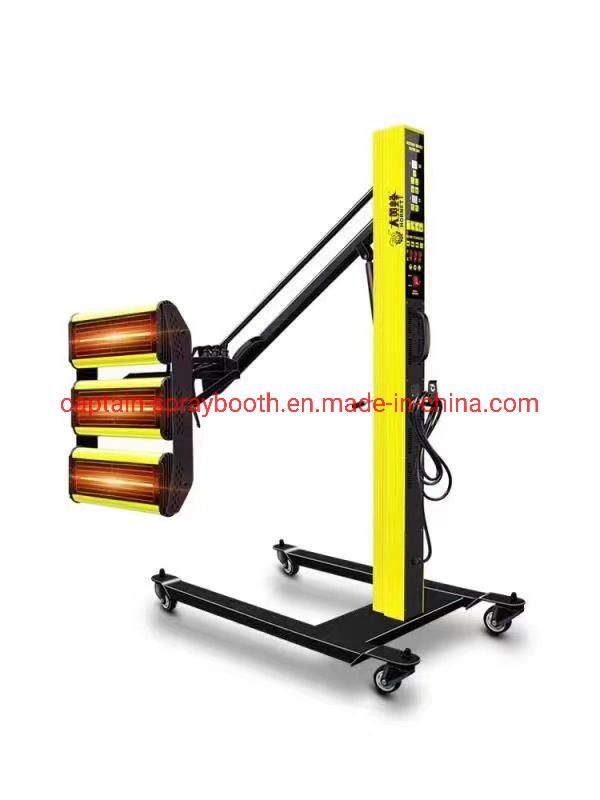

infrared lamps

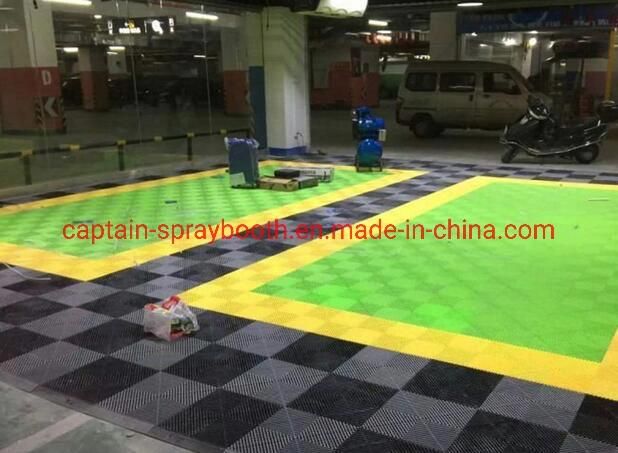

PVC floor tile

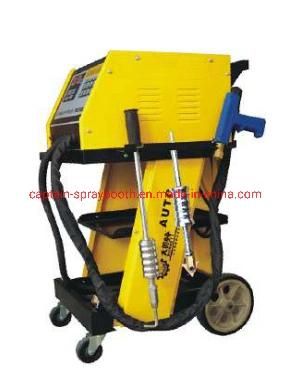

panel beating machine

griding machine

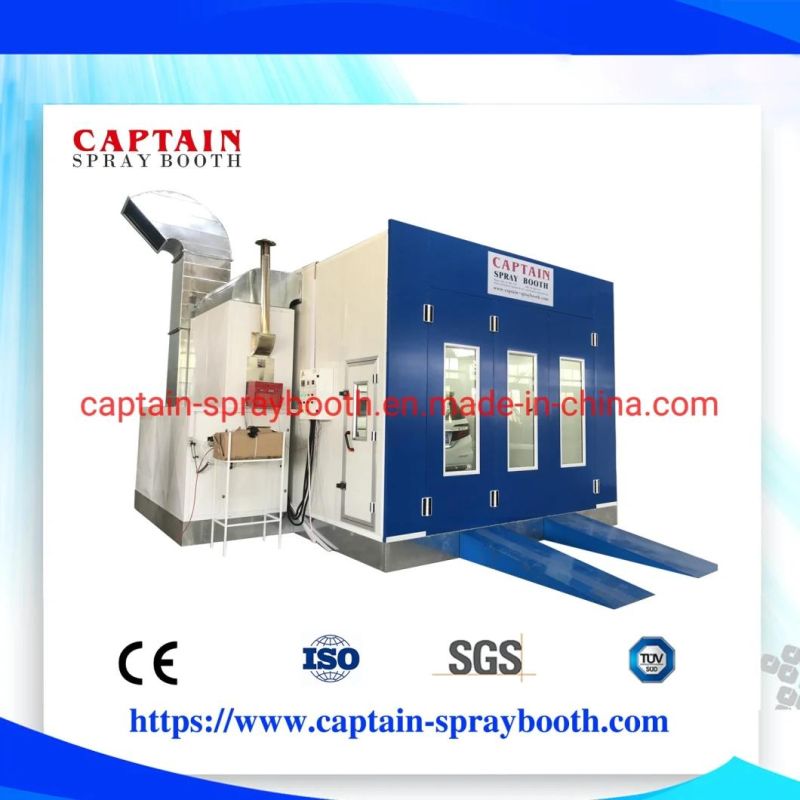

auto spray booth

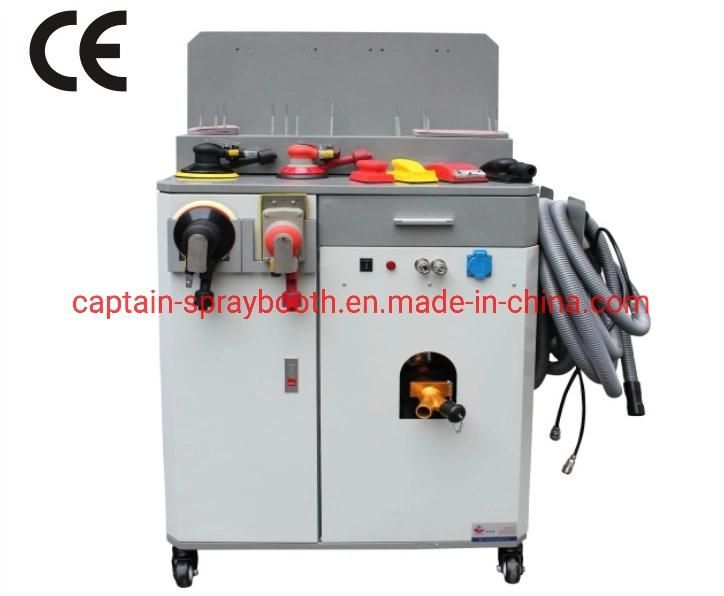

preparation bay

mixing room






Services We Supply

Customized service

More Than 90% Of Our Spraying Booth Is Customized.

1. We can design the machines according your requirements. At the same time, our engineers will give you our professional suggestions.

2. We can give you free technical support and consultation such as design your factory, make the factory layout drawing and so on.

After-sales service

1. Our fast and professional after service engineer team can go to your factory and install the machine, give you the operating guidance, and train your employees until they can operate the machine well.

2. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.

3. We provide 2 years warranty.


Captain Advantages

*The same price higher quality, the same quality lower price! ! !
*2 years quality warranty! ! !
*Fast and stable supply capability! ! !
*Personalized design to meet customer various needs! ! !


Competitive Price and High Quality Spraying Booth with Perfect Service Is From Here.
