Home Built Basement to Ground Floor to Floor Car Cargo Elevator
Qingdao Mutrade Co., Ltd.- Type：Double Cylinder Hydraulic Lift
- Lifting Capacity：≥5T
- Driving Type：Hydraulic
- Certification：CE, ISO
- Driving Motor Number of Mechanical Lift：1
- Double Cylinder Lift Type：Hydraulic Cylinder
Base Info
- Model NO.：VRC
- Shearing Lift Type：Big Shear Type
- Condition：New
- Brand：Mutrade
- Design：Four Post or Scissor
- Height (mm：4000 - 6000
- Width (mm)：2000 - 3500
- Length of Platfrom：4000-6000 mm (on Request)
- Width of Platform：2000 - 3500 mm (on Request)
- Lifting Height：2500 - 5000 mm (on Request)
- Capacity：2000 - 5000 Kg (on Request)
- Power Supply：380V 60Hz 3p
- Finished Treatment：Spray Paint
- Production Time：28 Days
- Warranty：5 Years Structure and 1 Year Part
- Transport Package：Standard Exporting Package
- Specification：CE,ISO9001
- Trademark：Muparking,OEM
- Origin：Qingdao, China
- HS Code：84289020
- Production Capacity：1000 Units,Month
Description
Details

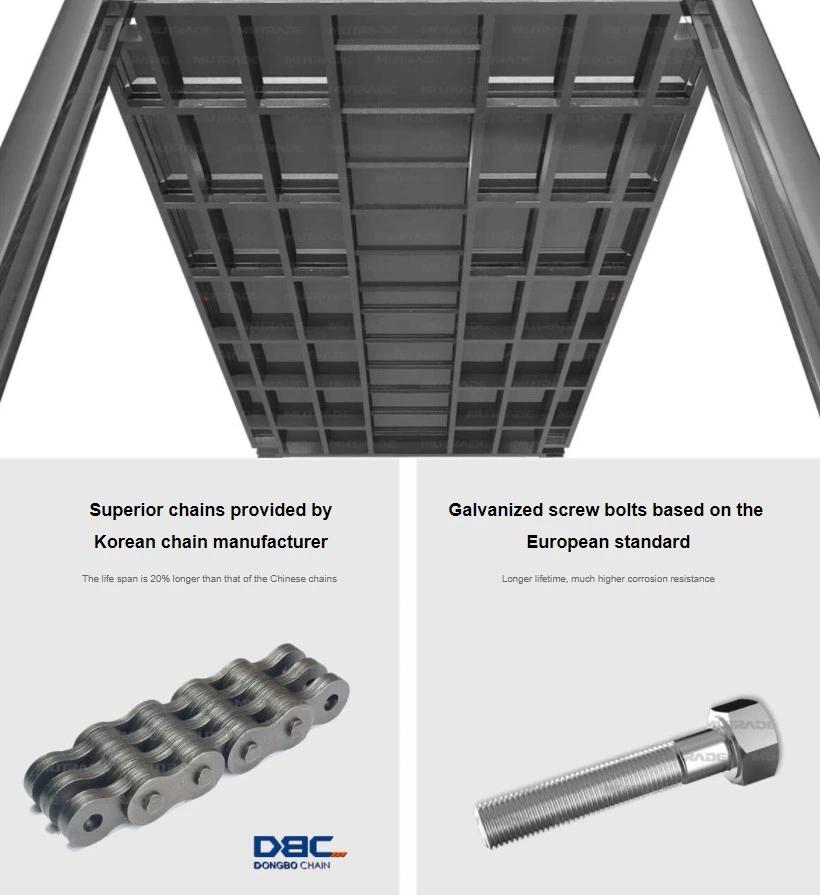

Twin chain system ensure safety

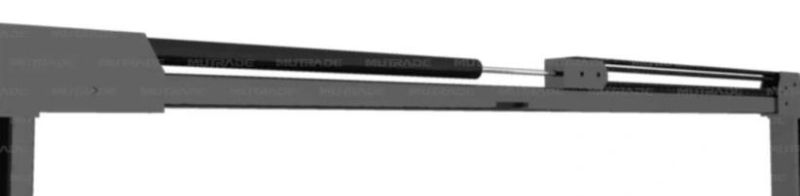

Hydraulic cylinder + steel chains drive system
New design control system
The operation is simpler, the use is safer, and the failure rate is reduced by 50%.

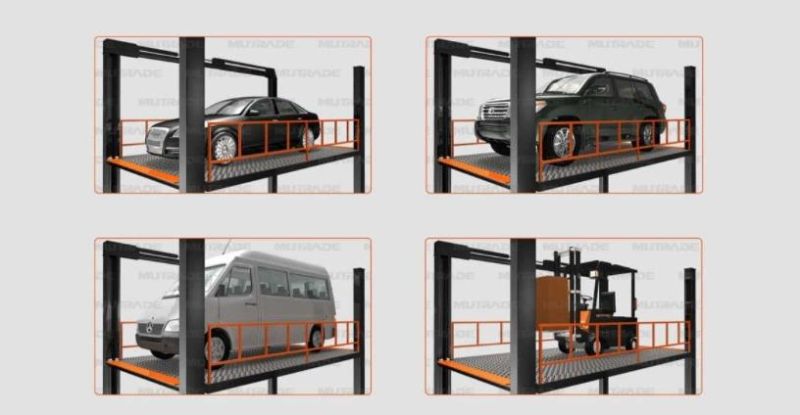

Suitable for varies of vehicles
The special re-enforced platform will be strong enough to carry all type of cars

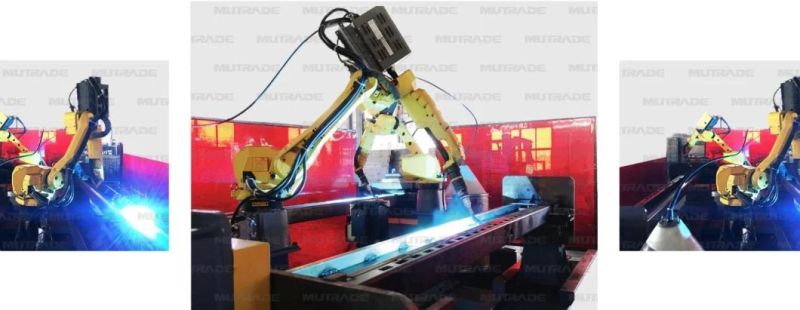

Laser cutting + Robotic welding
Accurate laser cutting improves the accuracy of the parts, and
automated robotic welding makes the weld joints more firm and beautiful

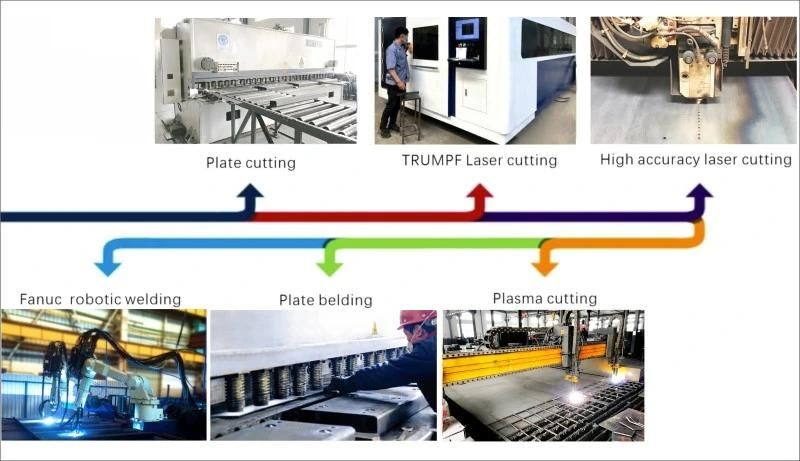

Production Process
Q&A
1. Is this product can be used indoor or outdoor?
FP-VRC can be installed both indoor and outdoor as long as the site dimensions are enough.
2. What is the surface finishing for this product?
It's paint spray as standard treatment, and optional aluminum steel sheet can be covered above for better water-proof and looking.
3. What is the power requirements? Is single phase acceptable?
Generally speaking, a 3-phase power supply is a must for our 4Kw motor. If the usage frequency is low (less than one movement per hour), a single phase power supply can be used, otherwise it may lead to motor burnt out.
4. Can this product still operate if electricity failure happens?
Without electricity the FP-VRC cannot work, so a back-up generator may be needed if electricity failure happens often in your city.
5. What is the warranty?
It's five years for main structure and one year for moving parts.
6. What is the production time?
It's 30 days after prepayment and final drawing confirmed.
7. What is the shipping size? Is LCL acceptable, or it must be FCL?
As FP-VRC is a fully customized product, the shipping size depends on the specications you need.
As there are some electrical parts and hydraulic parts, and the packages for components are in different shapes, LCL cannot be used. 20 feet or 40 feet container is necessary as per the lifting height.
Company overview
Qingdao Mutrade Co., Ltd. is one of the earliest professional mechanical parking equipment providers in China. We are committed to provide the most suitable and cost-effective parking equipment to our clients all over the world. We warmly welcome your visit!
