• Model NO.：MS908CV
• Update Method：by Internet
• Type：Diagnostic Scanner
• Software Update：1 Year Free Update
• Protocols：SAE J1939; SAE J1708; Manufacturer Custom J1939; M
• Touchscreen：9.7 Inch LED Capacitive Touch Screen with 1024X7
• System：Android 7.0 OS
• Processor：2.3GHz + 1.7GHz Octa-Core
• Battery：11000 mAh 3.7 V Lithium Polymer Battery Charging V
• Camera：Rear-Facing, 5.0 Megapixel, Af with Flashlight
• Memory：2GB RAM and 32GB Onboard Memory
• Connection：WiFi
• Coverage：95% Vehicle Coverage
• Advanced Vcmi 5-in-1 Device：Vci
• Features：ECU Programming & Coding
• Service Functions：25+ Service Functions
• Housig：Strong Plastic Housing with Protective Rubber Bo
• Availale：Ready Stock
• Transport Package：Carton Package
• Trademark：Autel
• Origin：China
• HS Code：9031809090
• Production Capacity：500PCS,Month

Basic Info.

Model NO. MS908CV Update Method by Internet Type Diagnostic Scanner Software Update 1 Year Free Update Protocols SAE J1939; SAE J1708; Manufacturer Custom J1939; M Touchscreen 9.7 Inch LED Capacitive Touch Screen with 1024X7 System Android 7.0 OS Processor 2.3GHz + 1.7GHz Octa-Core Battery 11000 mAh 3.7 V Lithium Polymer Battery Charging V Camera Rear-Facing, 5.0 Megapixel, Af with Flashlight Memory 2GB RAM and 32GB Onboard Memory Connection WiFi Coverage 95% Vehicle Coverage Advanced Vcmi 5-in-1 Device Vci Features ECU Programming & Coding Service Functions 25+ Service Functions Housig Strong Plastic Housing with Protective Rubber Bo Availale Ready Stock Transport Package Carton Package Trademark Autel Origin China HS Code 9031809090 Production Capacity 500PCS/Month

Product Description

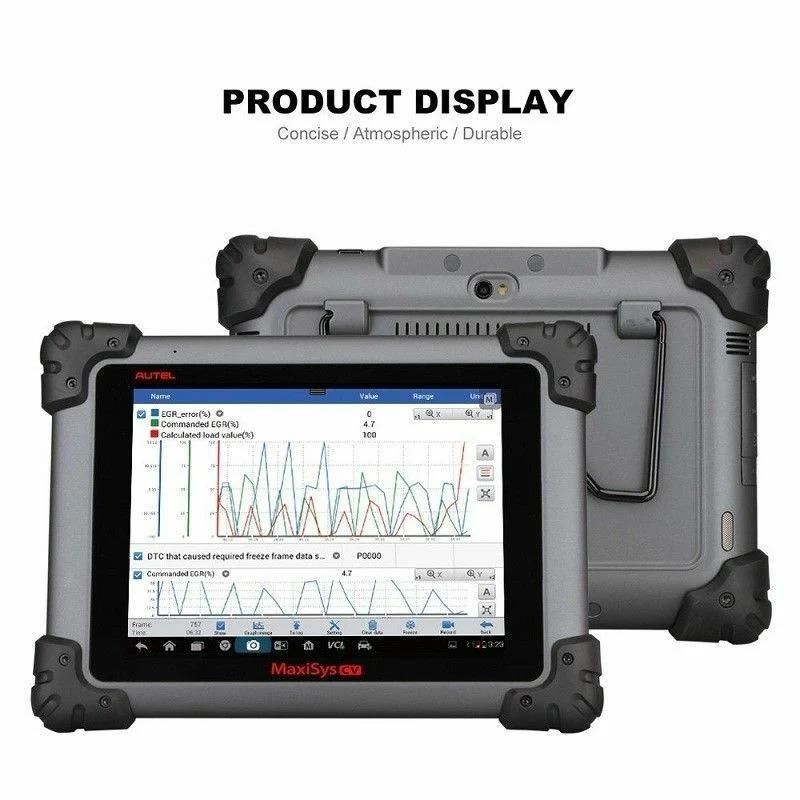

Autel Maxisys 908CV Features:

• Hardware
• Extraordinarily powerful Cortex-A9 quad-core processor
• 9.7" 1024x768 LED-backlit glossy Multi Touch capacitive display with IPS technology
• Internal reliable and fast 32GB Solid State Drive for better performance
• Built-in 5-megapixel rear camera with autofocus and flashlight
• Dual-band (2.4 GHz & 5.0 GHz) 802.11n Wi-Fi to access your favorite web resources

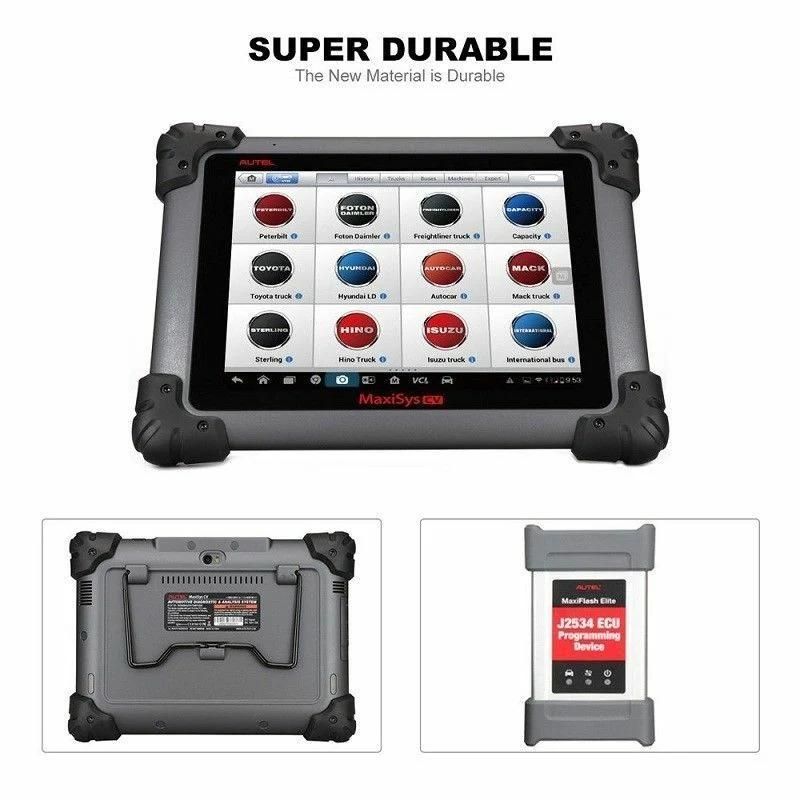

• Unique shop tough ergonomic design features strong rubber protection and housing
• Built-in rechargeable lithium-ion battery for up to 8 hours of continuous operation
• USB, audio and auxiliary ports make it easy to connect accessories

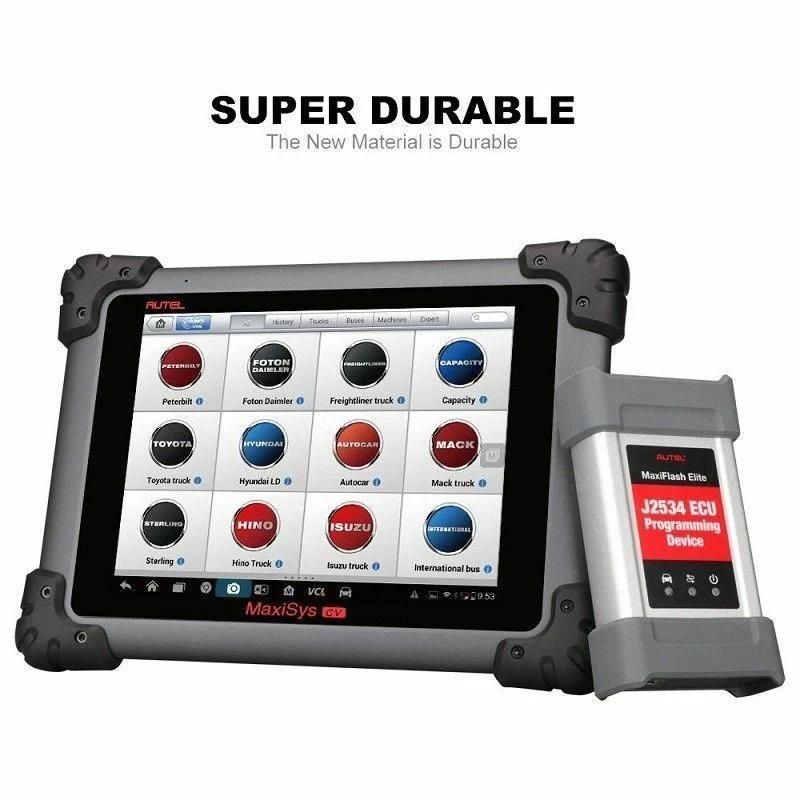

• The VCI connects to the main unit wirelessly with up to 230 meters working range

•



• Software
• Open source Android Operating System for fast boot-up and multitasking
• Easy and intuitive navigation makes finding what you need simple and fast
• Extensive vehicle coverage for more than 80 US, Asian and European commercial vehicle makes and machines
• Complete capabilities for codes, live data, actuation tests, adaptations and ECU coding
• Displays live data in text, graph, analog and digital gauge for easy data review and analysis
• Configures display options, sets triggers, records and playbacks results with one touch
• Records and playbacks live data to pinpoint troubles of sensors and components
• Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes
• Remote technical support for convenient demonstration, training and increased customer satisfaction
• Prints out recorded data anytime and anywhere with Wi-Fi technology
• Automatic Wi-Fi updates available in new software releases

Autel Maxisys 908CV Specification:



Operating System	Android™ 4.0, Ice Cream Sandwich
Processor	Samsung Exynos Quad-Core Processor 1.4GHz
Memory	2GB RAM & 32GB On-board Memory
Display	9.7 inch LED capacitive touchscreen with 1024x768 resolution
Connectivity	Ethernet: RJ45 Ethernet Connection WiFi (802.11 a/b/g/n) USB: 2.0  BT v.2.1 + EDR  SD Card (Support up to 32GB)  HDMI
Camera (rear)	Rear-facing, 5.0 Megapixel, AF with Flashlight
Sensors	Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output	Microphone Dual Speakers  4-Band 3.5 mm stereo/standard headset jack
Power and Battery	11000 mAh 3.7 V lithium-polymer battery Charging via 12 V AC/DC power supply
Input Voltage	12 V (9-24 V)
Power Consumption	6.5 W
Operating Temp	-10 to 55°C (14 to 131°F)
Storage Temp	-20 to 70°C (-4 to 158°F)
Housing	Strong plastic housing with protective rubber boot
Dimensions	300 mm (11.81") x 220 mm (8.66") x 50 mm (1.97")
Weight	NW: 1.42 kg (3.13 lb.), GW: 8.052 kg (17.75 lb.)
Protocols	SAE J1939; SAE J1708; Manufacturer customized J1939; Manufacturer customized J1708; KWP; VPW; UDS-CAN; CDL
