• Model NO.：CAPTAIN-FCL3500
• Driving Motor Number of Mechanical Lift：2
• Double Cylinder Lift Type：Planer-type
• Shearing Lift Type：Big Shear Type
• Condition：New
• Brand：Captain
• Design：Four Post
• Height：1500mm
• Sec. Lifting Height：350mm
• Lifting Time (Loaded)：50s
• Lowering Time (Loaded)：30s
• Power Supply Voltage：220V, 1pH or 380V,
• Motor Power：3.0kw
• Overall Width：3097mm
• Distance Between Post：2241mm
• Width Between Platforms：900mm
• Overall Length：5415mm
• Transport Package：Export Container ,Pallet ,Disassembly with Carton
• Specification：CE, SGS, ISO
• Trademark：Captain,OEM
• Origin：Shandong, China.
• Production Capacity：196sets,Month

Basic Info.

Model NO. CAPTAIN-FCL3500 Driving Motor Number of Mechanical Lift 2 Double Cylinder Lift Type Planer-type Shearing Lift Type Big Shear Type Condition New Brand Captain Design Four Post Height 1500mm Sec. Lifting Height 350mm Lifting Time (Loaded) 50s Lowering Time (Loaded) 30s Power Supply Voltage 220V, 1pH or 380V, Motor Power 3.0kw Overall Width 3097mm Distance Between Post 2241mm Width Between Platforms 900mm Overall Length 5415mm Transport Package Export Container /Pallet /Disassembly with Carton Specification CE, SGS, ISO Trademark Captain/OEM Origin Shandong, China. Production Capacity 196sets/Month

Product Description

Specifications

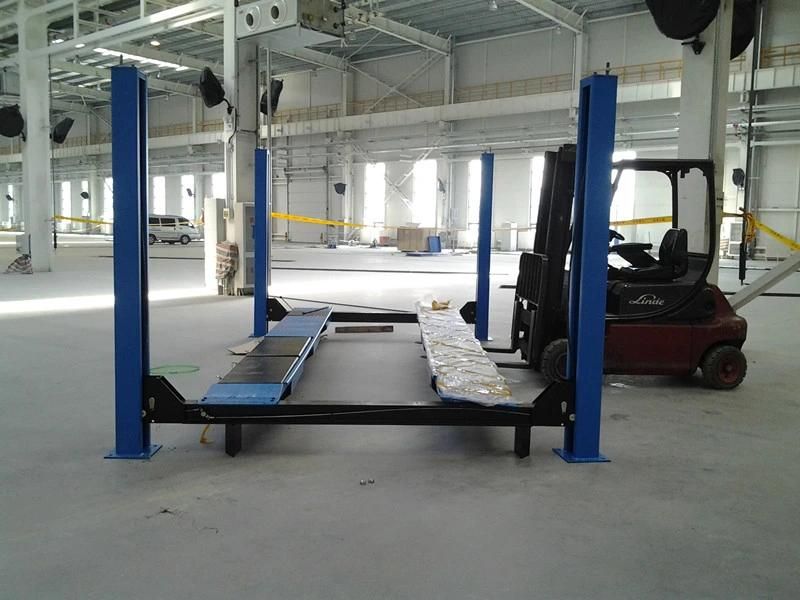

Model: CAPTAIN-FCL3500 4 Post alignment lift with Electric release 3.5tons
Come with Rolling jacks and Side Slipping plate.

Lifting Capacity	3500Kg (8000lbs)
Sec. Lifting Capacity	2000Kg
Lifting Height	1500mm
Sec. Lifting Height	350mm
Lifting Time (Loaded)	50s
Power Supply Voltage	220V, 1pH or 380V, 3pH
Motor Power	2.2kw
Overall Width	3097mm
Distance Between Post	2241mm
Lowering Time (Loaded)	30s

Other Specification

Distance Between Post: 2241mm

Width Between Platforms: 900mm

Width of Each Platforms: 508mm

Length of Platform: 4300mm

Overall Length: 5415mm

Overall Height: 2020mm

Ramp width: 490mm

Ramp length: 880mm

Net Weight: 1050Kg Gross Weight: 1100Kg

Packing Dimension:

4700*650*670MM and 1000*600*600MM

Cubic Meter: 3.00cbm

Shipping: 9 pieces / 20' container

                  18 pieces / 40' container


Captain Spray Booth(Qingdao Hua Yushun Commercial Co., Ltd)
Is a professional leading factory in China, who is specializing in manufacture kinds of paint spray room system. And also offering full garage equipments, such as

Car care equipment.

Car spray&baking room system

Bus spray&baking room system

Furnitue spray&baking room system

Industrial painting&baking room system

High temperature baking room system

Customized spray&bake booth and Offer car spray baking booth accossories


Services We Supply

Customized service

More Than 90% Of Our Spraying Booth Is Customized.

1. We can design the machines according your requirements. At the same time, our engineers will give you our professional suggestions.

2. We can give you free technical support and consultation such as design your factory, make the factory layout drawing and so on.

After-sales service

1. Our fast and professional after service engineer team can go to your factory and install the machine, give you the operating guidance, and train your employees until they can operate the machine well.

2. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.

3. We provide 2 years warranty.


Captain Advantages

*The same price higher quality, the same quality lower price! ! !
*2 years quality warranty! ! !
*Fast and stable supply capability! ! !
*Personalized design to meet customer various needs! ! !


Competitive Price and High Quality Spraying Booth with Perfect Service Is From Here.
