• Model NO.：HY-CB55B
• Coating：Painting
• Airflow Direction：Fully Undershot-type
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Color：Red, Blue, White
• Wall Panel：50mm EPS Panel
• Ceiling Panel：Galvanized Steel
• Intake Fan：2set
• Exhaust Fan：1set
• Heat Converter：Stainless Steel
• Burner：Gas or Diesel, Oil, Waste Oil Burner
• Filter：4-Stage Filtration System
• Upper Light：Available
• Side Lights：for Option
• Control：Automatic
• Drawing：Available
• User Manual：Available
• Related Product 1：Large Truck Paint Spray Booth
• Related Product 2：Furniture Paint Spray Booth
• Transport Package：Standard Package for Sea Shipment
• Specification：25 cbm for FCL
• Trademark：Hongyuan
• Origin：China
• Production Capacity：100 Set Per Month

Basic Info.

Model NO. HY-CB55B Coating Painting Airflow Direction Fully Undershot-type Heating Mode Diesel Paint Mist Treatment Dry-type Condition New Color Red, Blue, White Wall Panel 50mm EPS Panel Ceiling Panel Galvanized Steel Intake Fan 2set Exhaust Fan 1set Heat Converter Stainless Steel Burner Gas or Diesel, Oil, Waste Oil Burner Filter 4-Stage Filtration System Upper Light Available Side Lights for Option Control Automatic Drawing Available User Manual Available Related Product 1 Large Truck Paint Spray Booth Related Product 2 Furniture Paint Spray Booth Transport Package Standard Package for Sea Shipment Specification 25 cbm for FCL Trademark Hongyuan Origin China Production Capacity 100 Set Per Month

Product Description

Introduction of the Car Auto Spray Booth with 50mm EPS Foam Panel
1. full-down draft paint booth:
2. semi-down draft paint booth:
3. side-down draft paint booth:
4. cross-draft paint booth:

Quick Specification of the Car Auto Spray Booth with 50mm EPS Foam Panel

Model	HY-CB55B
Outside Size(mm)	7000(L)*4000(W)*3400(H)
Inside Size(mm)	6900(L)*3900(W)*2700(H)
Front Door(mm)	3000*2600(W*H)
Side Door(mm)	650*2000(W*H)
Total power	<17kW
Voltage status	380V/3ph&220V/1ph@50Hz
Wall Panel	50mm EPS foam panel
Ceiling panel	Galvanized steel
Basement&floor	Raised metal-base (300mm high) with complete grating floor.
Intake	TWO set of fan, motor: 4kW.
Exhaust	One set of fan, motor: 5.5kW.
By-pass	Pneumatic damper from spraying to baking cycle
Heating System(Oil)	Italy Riello one-stage oil burner
Filter System	4 stages of filters: Pre-filter, ceiling filter, floor paint-stop filter, extract paint-stop filter
Lighting	Upper lights, 8units, 4*36W each.
Control System	1set.

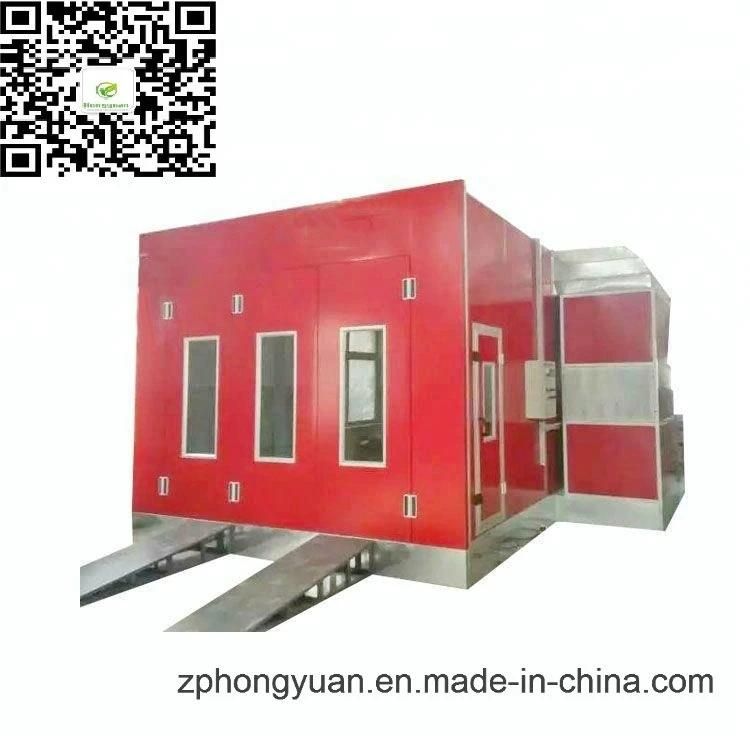

Picture of the Car Auto Spray Booth with 50mm EPS Foam Panel



Details show of Car Auto Spray Booth with 50mm EPS Foam Panel



Parts show of Car Auto Spray Booth with 50mm EPS Foam Panel



Production area and equipment for Car Auto Spray Booth with 50mm EPS Foam Panel


Package Show of Car Auto Spray Booth with 50mm EPS Foam Panel

Project case for paint booth



Certificate of our product and company

Our Team is serving you at any time


Send us Inquiry for more info about Car Auto Spray Booth with 50mm EPS Foam Panel
