• Model NO.：JS-EP96
• Input：Quick Charge(5V,2.4A,9V,2A)
• Output：12V 10A(12V Car Electronic Products)
• Jump Starter：12V
• Start Current：200A
• Peak Current：400A
• Lifetime：>1000cycles
• Full Charging Time：3 Hours
• Transport Package：Carton 1PC,Carton
• Specification：470*270*200mm 6KG,PC
• Trademark：B-KING
• Origin：China
• HS Code：85044019
• Production Capacity：100000PCS,Month

Basic Info.

Model NO. JS-EP96 Input Quick Charge(5V/2.4A,9V/2A) Output 12V 10A(12V Car Electronic Products) Jump Starter 12V Start Current 200A Peak Current 400A Lifetime >1000cycles Full Charging Time 3 Hours Transport Package Carton 1PC/Carton Specification 470*270*200mm 6KG/PC Trademark B-KING Origin China HS Code 85044019 Production Capacity 100000PCS/Month

Product Description

Emergency Truck Jump Starter with Electric Jack +Air Inflator (3 in 1)

Item No.: JS-EP96

Selling point:
Electric jack+ air inflator+ car jump starter(3 in 1)

Main functions:


Product highlights:
12000mAh Big capacity
12V 400 Amps jump start engine size up to 4.0gasoline
Built-in air inflator
Built-in electric jack
Quick charge input,charging time<3 hours
ABS housing in V0 Anti-fire grade
12V10A Supply power for 12V devices
Reverse -charge Protection: No reverse charging back to CarKu unit After the vehicle started.
Reverse Polarity Protection: No damage happened while the clamps are connected in wrong
terminals.
Short-Circuit Protection: Prevent short-circuit occuring while two clamps are connected.
Over-discharge Protection: Effectively prevent over-discharge of the battery in the jump starter.
Over-charge Protection: Effectively prevent over-charge of the battery in the jump starter.
Over-temperature Protection: Automatically stop working when the temperature is getting too
high.

Jump starter Product Specification

Battery Capacity	12000mAh (44.4Wh)
size	389*226*154.5mm
weight	5600g
Input	Quick Charge(5V/2.4A,9V/2A)
Output	12V 10A(12V car electronic products)
Jump Starter	12V
Start Current	200A
Peak Current	400A
Operating Temp.	-20ºC~60ºC
Lifetime	>1000cycles
Full charging time	3 hours
start engine displacement	Diesel:2.5L, gasoline:4.0L

Air inflator Specification

Operating voltage	DC 12V
Max pressure	150PSI
Max current	10A
Flow	35L/min
Length of air hose	0.65m

Jack Specification

Rated power	150W
Operating voltage	12V
Max current	13A
Max loading(car weight)	3T
Height Range	135-365mm/155-450mm

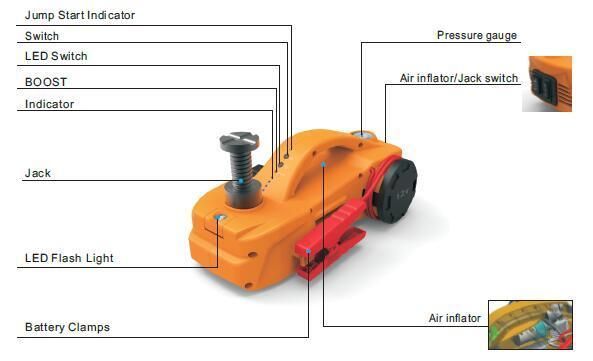

Product details:

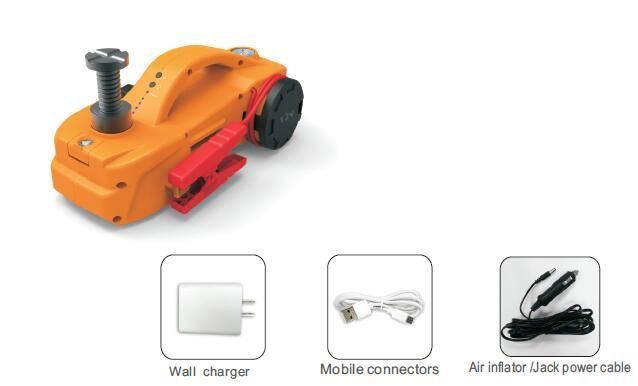

Product accessories:

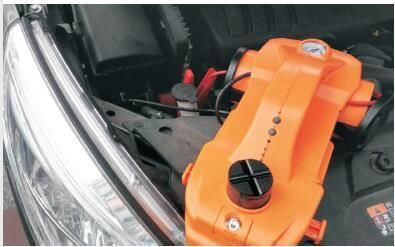

Jump Start Vehicle Instruction:
1.Make sure that the numbers of indicators is not less than 3 ones.
2.Connect the RED clamp to the vehicle's battery positive (+) terminal and connect the BALCK clamp to the vehicle's battery
negative (-) terminal.
3.Start the vehicle.
4.When the vehicle is started, remove the jumper cable from Jump Starter and disconnect RED and BALCK clamps
from the vehicle battery. Leave the vehicle's engine running.
