• Model NO.：JZJ-FB-15
• Coating：Painting
• Airflow Direction：Diesel Oil, Gas, or Electricity
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Color：Sea Blue, Red, Orange, White
• Control System：Micro Computer
• Heating System：Electricity, Diesel Oil or Gas
• Inside Dimension：15 * 5 * 5
• Transport Package：Normal Package Suit for Ocean Shipping

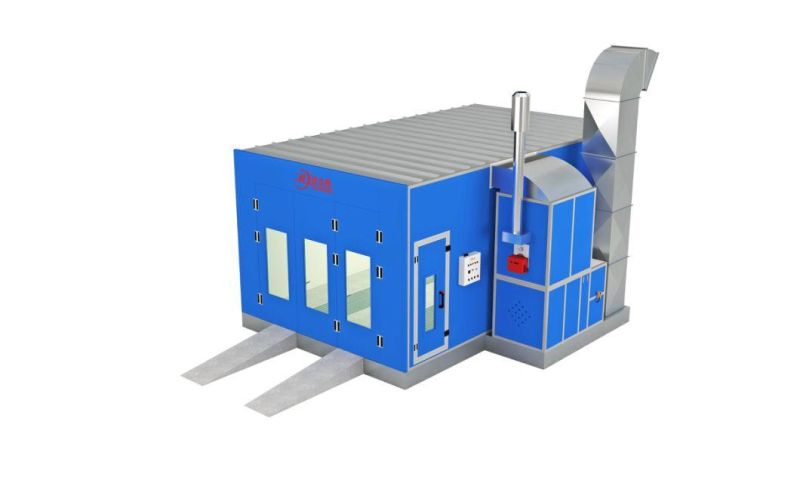

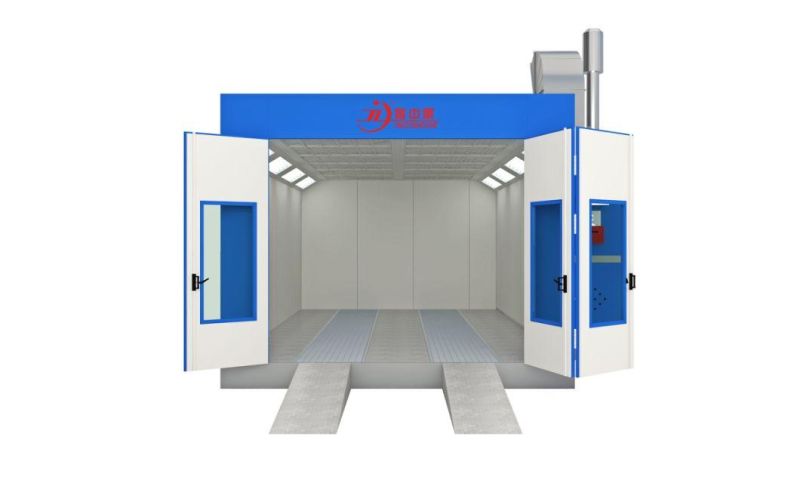

• Specification：15*5*5m spray booth
• Trademark：JZJ
• Origin：Yancheng Jiangsu
• HS Code：8419899090
• Production Capacity：2000 Sets , Year

Outside Dimension (mm)15156*6906*5800(L*W*H)Inside Dimension(mm)15000*5000*5000(L*W*H)Front Door(mm)4000*4500(W*H)Service door (mm)1800*650(W*H)Total Power65KWCabin systemWall panel  75mm EPS sandwich panel, steel sheet thickness: 0.5mmCeiling panel50mm rock-wool panel.Windows4mm safety tempered glassAir Make-up SystemAir Inlet fan system4*7.5kw centrifugal belt-drive fan, proof-explosion motor.Exhausted fan system2 *15kw centrifugal belt-drive fan, proof-explosion motor.Ai capacity for fresh air22000m3/h *4Air capacity for exhausted air19500m3/h *2Air Flowing speed0.25m/s in empty boothAir Control methodOne manual damper for exhausted systemExhausted ducting6meters straight ducting, one 90°elbow for each unit fan system.Purification SystemPre-filterG3 gradeCeiling filterEU5 / F5Floor filtergreen fiber glass filter / G3 gradeExhausted fan FiltersPocket filter or M green fiber glass filter.Heating SystemHeat ExchangerSUS304 material, argon arc welding.Heating burner:       2 sets Riello RG5S diesel oil burner(gas burner for option)   Heating productivity                            260000Kcal/h/ burnerSpray to baking switch20N BELIMO brand electrical damperChimney ducting6 meters stainless ducting for each heating systemMax heating temperature80ºCfuel consumption10-15L /vehicleLighting SystemCeiling lights18 Units, each 4 x 36W Philips lamps, Total 2592 WSide lights22 Units, each 4 x 36W Philips lamps, Total 1584 WIllumination900LUXControlling systemMicro-computerized programming systemSpraying & baking switch, lighting switch, emergency stop, breakdown alarm, failure alarm, pressure gauge
Q: Which Port of loading?
A: Mainly ship from Ningbo port / Shanghai Port/Guangzhou Port.

Q: What is your MOQ?
A: All the products can be mixed in one container with low MOQ 1pcs.

Q: What is the Lead Time?
A: Normally it needs 20-25 days.

Q: What is the Payment Terms?
A: T/T/ 30% deposit before production and 70% before delivery.

Our Service
1. 24 months warranty time
2. Customization accepted
3. OEM accepted
4. Detailed installation drawings and video will be provided. If needed, we also have special experienced installing staff can go abroad to help customers install and check spray booth.
5. Prompt after-sale service. We have established perfect after-sale service system. If needed, our staff will arrive in 72 hours to repair products.
