• Model NO.：IT-W701A
• Paint Mist Treatment：Dry-type
• Condition：New
• Product Name：Infitech Customized Car Spray Booth Oven with Wate
• Keyword：Spray Booth Oven
• Voltage：415V, 50Hz, Your Special Voltage Is Acceptable
• Illumination：> 1000lux
• Intake/Exhaust System：7.5kw, 970rpm, 415V, 50Hz, Explosion-Proof Motor
• Equipment Empty Loaded Air Speed：+,- 0.28m,S
• Noise：<78dB
• Burner Model：Riello Diesel Burner Rg5d
• Rated Power：18kw
• Warranty：2years
• Transport Package：Polyfoam and Metal Frame
• Specification：7000 X 4000 X 2800mm
• Trademark：INFITECH
• Origin：China
• HS Code：8419899090
• Production Capacity：500 Sets , Year

Basic Info.

Model NO. IT-W701A Paint Mist Treatment Dry-type Condition New Product Name Infitech Customized Car Spray Booth Oven with Wate Keyword Spray Booth Oven Voltage 415V, 50Hz, Your Special Voltage Is Acceptable Illumination > 1000lux Intake/Exhaust System 7.5kw, 970rpm, 415V, 50Hz, Explosion-Proof Motor Equipment Empty Loaded Air Speed +/- 0.28m/S Noise <78dB Burner Model Riello Diesel Burner Rg5d Rated Power 18kw Warranty 2years Transport Package Polyfoam and Metal Frame Specification 7000 X 4000 X 2800mm Trademark INFITECH Origin China HS Code 8419899090 Production Capacity 500 Sets / Year

Product Description

INFITECH Meet Australian Standard Car Paint Chamber With Water-Based System

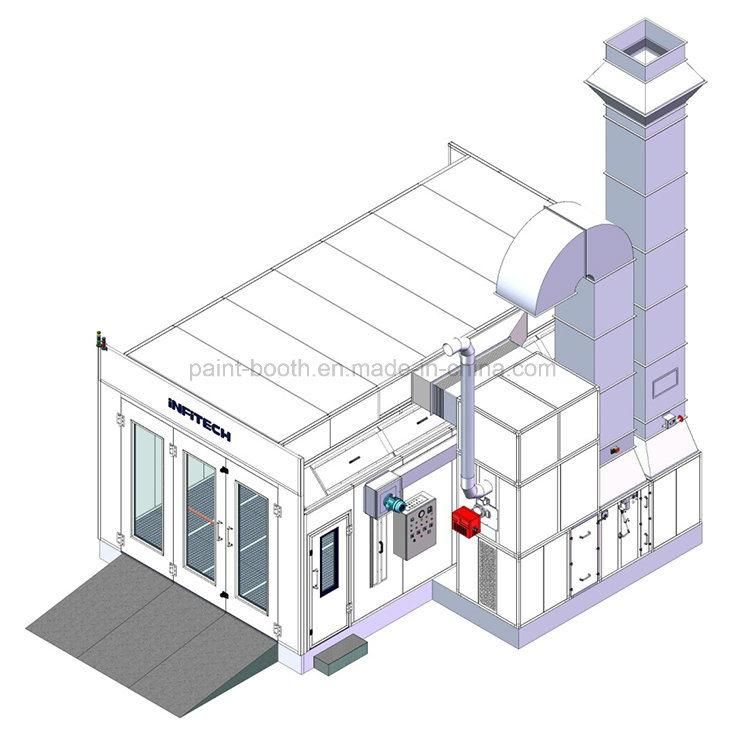

Production Design


Pruduct description
Technical parameters

Design standar	AS/NZS 4114.1:2003
Internal dimensions	7000 X 4000 X 2800mm (L X W X H)
External dimensions	7110 X 5870 X 3810mm (L X W X H)
Drive-in-ramps	3 pieces; size: 2000 X 1030 X 320mm, diamond structure
Plenum height	600mm
Wall panel	50mm dual-skin insulated panels filled with heat resistant rock wool
Top panel	50mm dual-skin insulated panels filled with heat resistant rock wool
Entrcan door	Manual door, 3 wing entry door (2 + 1 structure)
Size	3200 X 2700mm (W X H)
Personnel door	2 sets 800 X 2000 mm (W X H)
Door description	With safety glass observation window
Sidewall lighting	LED lamp accessible from outside the booth
Quantity and power	6 sets of light fixtures, each 2 X 18W, 216W total
Ceiling lighting	LED lamp accessible from outside the booth
Quantity and power	8 sets of light fixtures, each 4 X 18W, 576W total
Brightness	> 1000Lux
Filtration system	Pre-filter, Ceiling filter, Floor filter, Exhaust filter
Intake/Exhaust system	Direct-type turbine fan,7.5KW, 970rpm, 415V, 50Hz, explosion-proof motor, SIEMENS
Parameter of fan	28,000m3/h, 650pa
Empty loaded air speed	+/- 0.28m/s
Noise	<78db
Heating system	Stainless steel 0Cr25Ni20 (SUS310)
Heat exchanger power	232KW
Temperature increase capability	25° C (from -5°C to 20°C in painting phase)
Max. working temperature	80°C
Heating time	5-8 minutes (from 20°C to 60°C in baking phase)
Burner model	RIELLO diesel burner RG5D
Control system	Standard Y/Δ step-down start control system
PLC programmable logic controller	PLC control, higher reliability, lower failure rate
Pressure detection	Pressure gauge indicates pressure inside the booth.
Features	Painting, heating painting, flash-off, baking, lighting, emergency stop switch, failure indication, baking delay stop protection, motor overload and over-current protection, with stack light
Safety device	Front door pressure sensor, safety door pressure sensor, exhaust air fan limit switch, filter blockage detection switch, fan and heating system interlock control, over-temperature alarm indication
Rate power	18KW
Special item	Water-based paint drying system Features: - The blowers (of the water-based system) take clean air from the top plenum directly, ensuring that the air volume of the booth is kept at 28,000m3/h and maintaining the balance of the inlet airflow and outlet airflow. - It expedites the air velocity of the internal cycle in the flash and baking phase. The air velocity around the vehicle is greatly accelerated, and the effect of fast drying is achieved. - It helps greatly improve the painting efficiency, and achieve the aim of cost-effectiveness and production efficiency improvement.

Entrance door
3200 X 2700mm (W X H)
Manual door, 3 wing entry door (2 + 1 structure)
Containing frame, with safety glass observation window

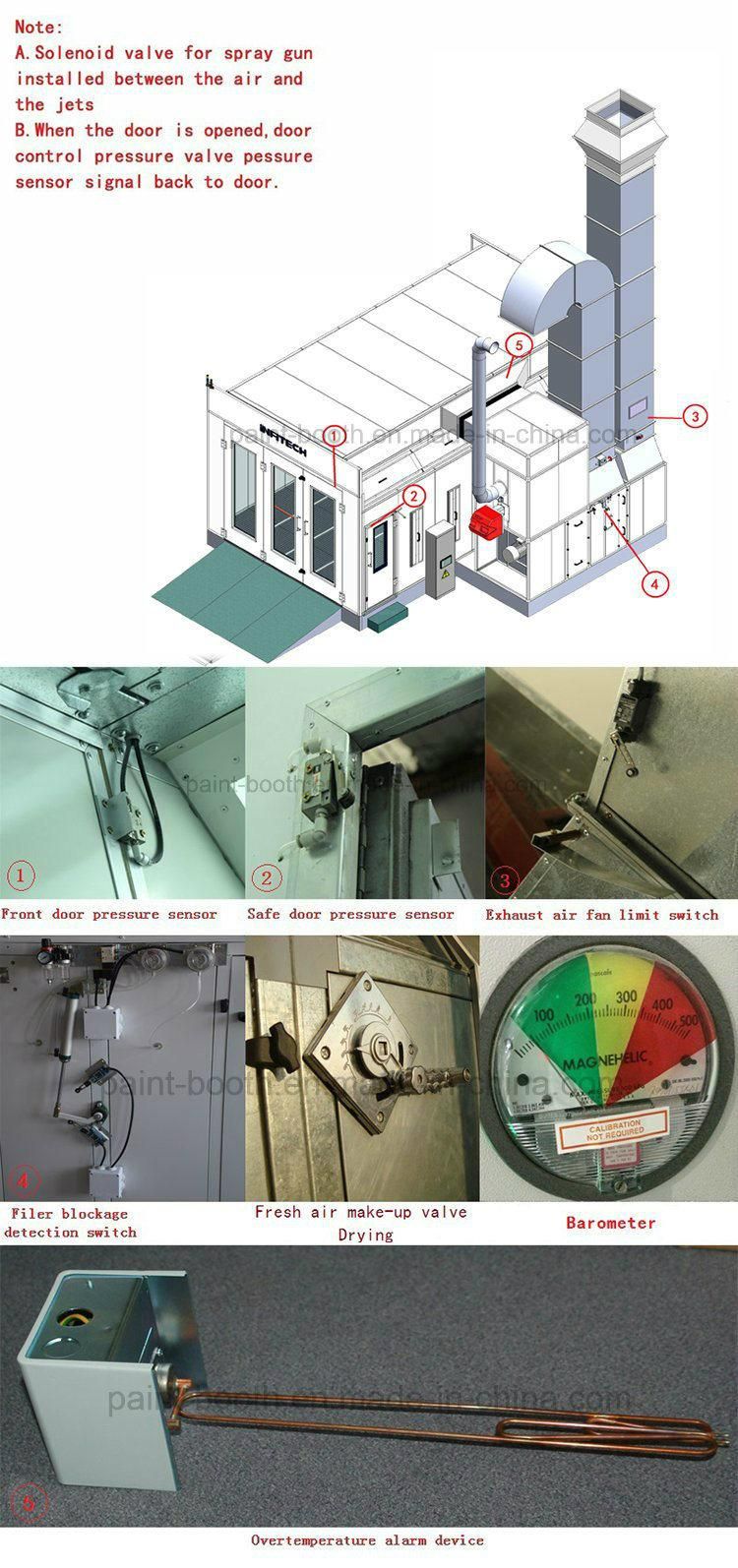

Safety device
Cabin structure
- "Π" beam made from 80 x 80 square tubes.
- "Π" beams: linked and reinforced by 80 x 80 or 80 x 40 square tubes, evenly distributed along the cabin.
 Lighting system
- Accessible from outside the boot- Money saving energy efficient T-8 fixtures- Sealed fixtures fitted with tempered glass- IP55 protection grade, light fixtures fully meet EU standards- 23 degree angled ceiling lights + vertical sidewall lights
Basement
- Assembly structure, with adjustable support foot which fits less than 30mm height ground unevenness- Plug-in type grid structure, full grids.
- Fiber-glass paint-stop filter (laid under the grids)

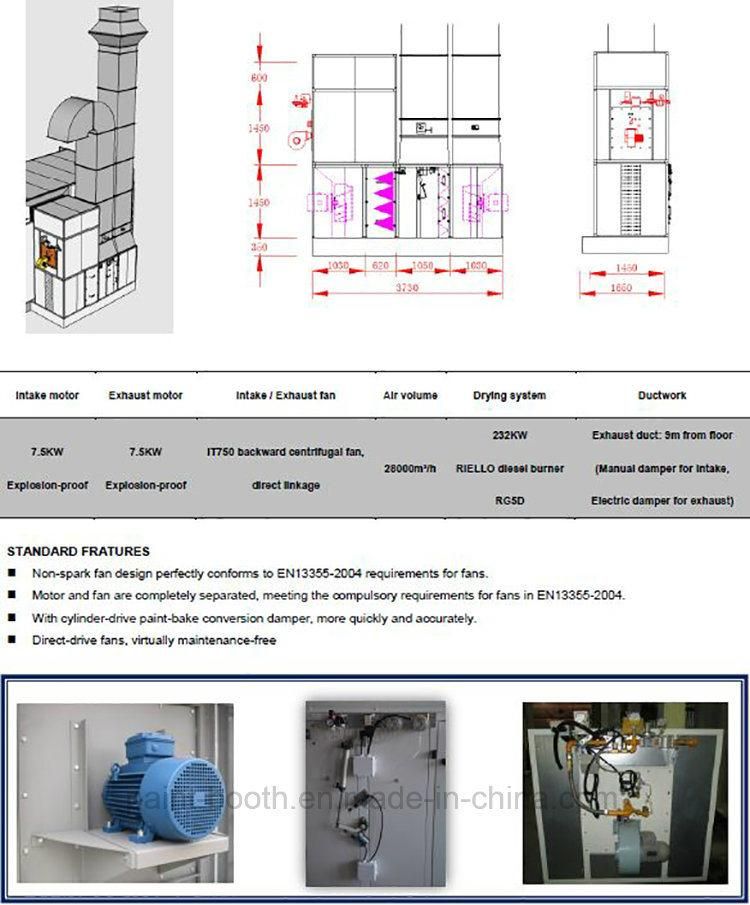

Intake&Exhaust system

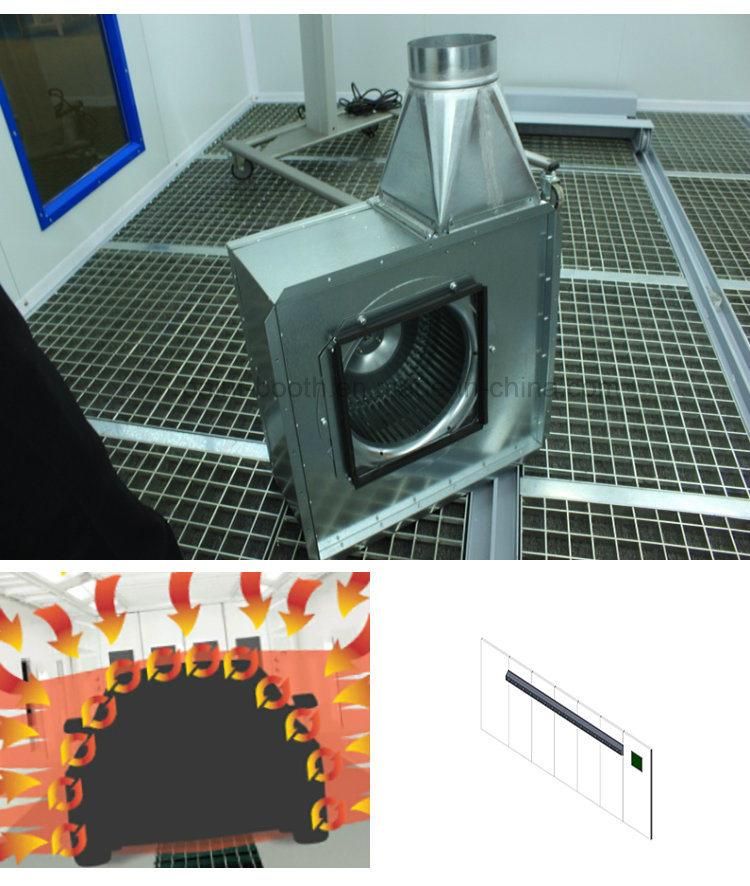

 Water-based paint drying system
- Reduce the leveling time- Reduce the curing time.
- Accelerate solvent volatilization (before the start of baking cycle)

Control system
- Main optional components: SIEMENS, OMRON, etc.
- Control board conforms to EN602041-2006.
- Control order conforms to EN133552004.
- Control box conforms to IP55 protection grade.

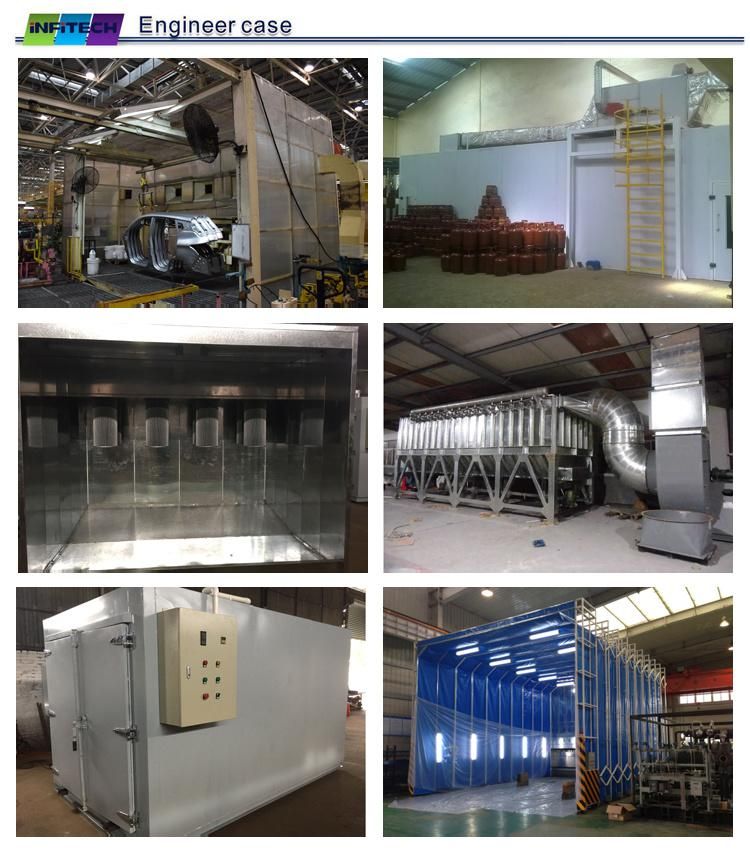

Engineering case

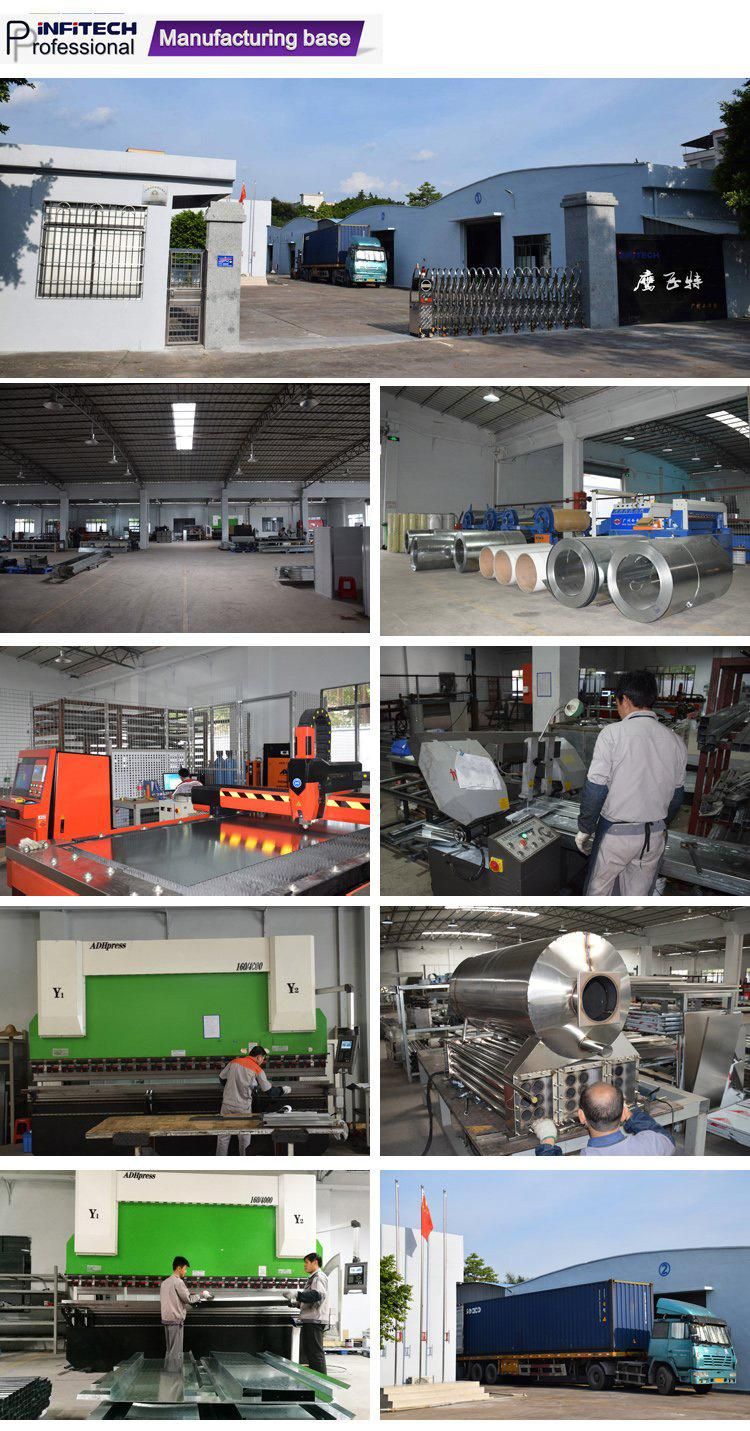

Company introduction
Guangzhou Infitech is professional manufacturer of customized European standard spray booths in China. We stick to European standard for spray booth since the business started. What we supply ranges from initial design and layout, technical consultation, manufacturing through to installation and maintenance. We pride ourselves in delivering customized products that suit your customers' individual needs.
