• Model NO.：IT-L10
• Paint Mist Treatment：Dry-type
• Condition：New
• Plenum (Height)：600mm
• Extraction：350mm
• Extraction Area：40m2
• Grids Carrying Capacity：900kg,Wheel
• Walls：50mm Rock Wool Walls
• Brightness：>1,500lux
• Air Volume：35,000m3,H
• Empty Loaded Air Speed：0.24m,S
• Heats：410kw Direct Fired Burner
• Maximum Working Temperature：80 Celsius
• Controls：CE Standard
• Inverter：Schneider
• Noise：<78 dB
• Stack Light：Yes
• Transport Package：Cargo Loaded on Steel Frame Handled by Forklifts
• Specification：10000 X 4000 X 3000mm (L X W X H)
• Trademark：INFITECH
• Origin：Guangzhou, China
• HS Code：8419899090
• Production Capacity：1000 Sets,Year

Basic Info.

Model NO. IT-L10 Paint Mist Treatment Dry-type Condition New Plenum (Height) 600mm Extraction 350mm Extraction Area 40m2 Grids Carrying Capacity 900kg/Wheel Walls 50mm Rock Wool Walls Brightness >1,500lux Air Volume 35,000m3/H Empty Loaded Air Speed 0.24m/S Heats 410kw Direct Fired Burner Maximum Working Temperature 80 Celsius Controls CE Standard Inverter Schneider Noise <78 dB Stack Light Yes Transport Package Cargo Loaded on Steel Frame Handled by Forklifts Specification 10000 X 4000 X 3000mm (L X W X H) Trademark INFITECH Origin Guangzhou, China HS Code 8419899090 Production Capacity 1000 Sets/Year

Product Description

Ce Standard Energy-Saving Spraying Paint Booth for Automobile

1.FEATURESIT-SUPER-L10 Direct Gas Fired Heating Spray Booth1.Internal dimensions: 10000*4000*3000mm, downdraft airflow2.Internal pneumatic ramp, 2000mm long, save workshop space3.Raised metal basement, no need for floor excavation4.2*11kw high efficiency intake & exhaust fan unit5.Direct gas fired heating system, Eclipse direct fired burner    Calorific value can be as high as 480,000kcal/h
    Reduced heating time, improved efficiency, and energy-saving6.Shadowless workspace7.Easy-to-use control
2.SPECIFICATIONS

ITEMS	SPECIFICATIONS
Model	IT-SUPER-L10 Direct Gas Fired Heating Spray Booth
Design standard	BS EN 13355: 2004+A1:2009 BS EN 60204: 2006+A1:2009
Internal dimensions	10000 X 4000 X 3000mm (L X W X H)
External dimensions	10110 X 5760 X 4010mm (L X W X H)
Airflow	Full downdraft
Plenum (height)	600mm
Extraction	Through 350mm raised metal basement
Extraction area	40m2
Grids carrying capacity	900kg/wheel
Entrance door	3400x3250mm (WxH), 1 set
Service door	800x2000mm(WxH), 2 sets
Walls	50mm rock wool walls
Ceiling lights (LED)	14 sets, each 6 X 18W, 1,512W total
Sidewall lights (LED)	12 sets, each 2 X 18W, 432W total
Brightness	>1,500LUX
Filters	Bag filter, high efficiency ceiling filter, floor filter, exhaust filter
Intake/Exhaust unit	Direct-type turbine fan, 2x11KW, CE motor
Air volume	35,000m3/h
Empty loaded air speed	0.24m/s
Heats	Direct gas fired heating system, 410kw direct fired burner
Calorific value	400,000kcal/h
Maximum working temperature	80ºC
Controls	CE standard control box
Inverter	SCHNEIDER inverter
Stack light	Yes
Voltage	380V, 50Hz, 3ph
Rated power	30KW

3.DETAILS

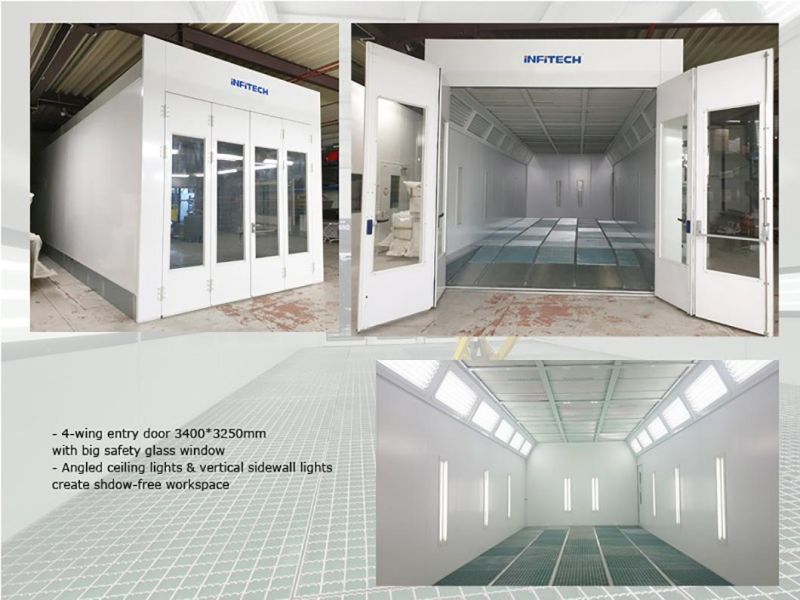

ENTRY DOOR & LIGHTS

• Manual entrance door, 4-wing, big tempered glass windows, with panic latch
• Ceiling lights and sidewall lights, illumination: over 1,000lux

OPTION

• Electric entry door
• Explosion-proof lighting fixtures

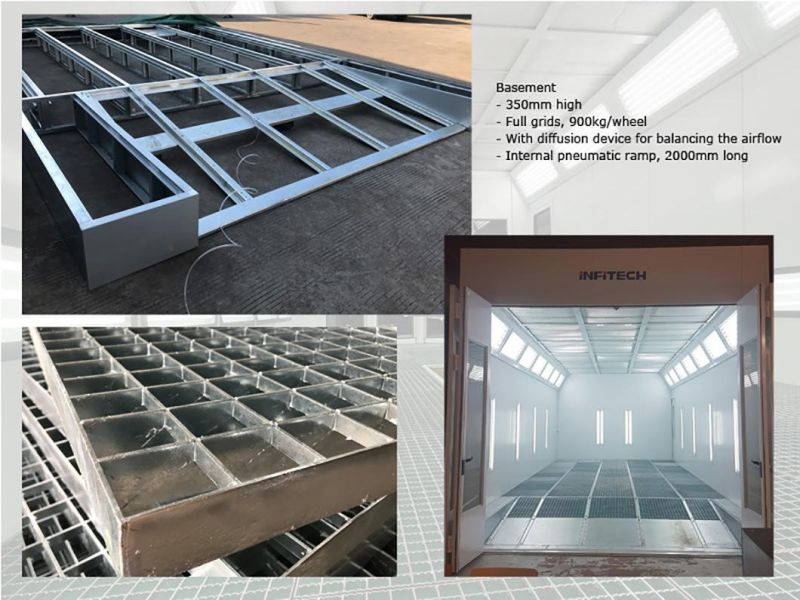

BASEMENT

• 350mm raised metal basement
• Full size grids, 900kg/wheel
• Pneumatic ramp with 3 pneumatic bags

The ramp can be lifted after driving the vehicle to the inside of the spray booth

OPTION
Infitech can provide different types of basement to suit your personalized needs and requirements.

• Metal basement sunken in the ground
• 800mm deep pit  **requiring floor construction
• 2 rows of pit     **requiring floor construction

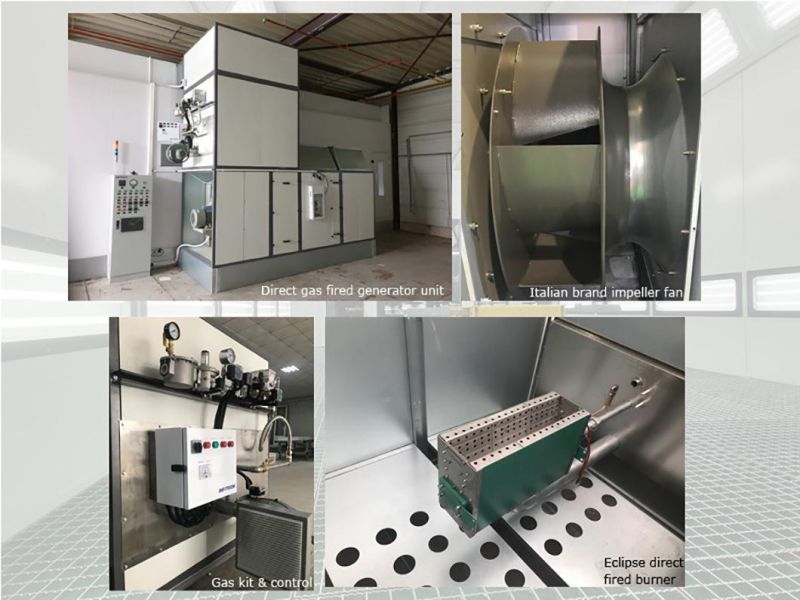

AIR MAKEUP UNIT

• 2*11kw direct gas fired generator unit
• Air volume: 35,000m³/h
• Eclipse direct fired burner

OPTION

• Traditional indirect gas heating comes with heat exchanger
• Traditional diesel burner
• Electric heating

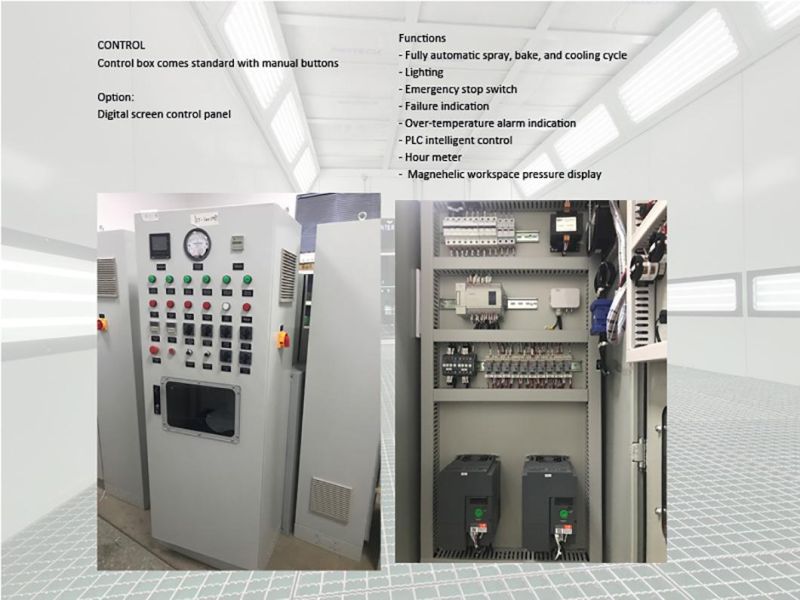

CONTROL
Easy-to-use control with manual buttons


FILTERS

Item	Specification
Pre-filter	Bag filter
Ceiling filter	High efficiency F5 grade filter
Floor filter	Fiberglass paint stop filter
Extract filter	Activated carbon filter

FAQQ: Except spray booth, what other equipment do you supply?A:
Mixing room
Prep stationAuxiliary equipment (infrared lamps, lift in combination with prep station or spray booth, central dust extraction unit integrated with prep station)Other auto body repair equipment such as bench, steel and aluminum welder, dent puller.Meanwhile, kindly note that Infitech can help do whole auto body workshop design and layout for you. Feel free to send your inquiries through.
 Q: How to maintain the spray booth?A: You will be supplied with detailed maintenance manuals, which you can follow to carry out daily, monthly and annual maintenance.
 Q: OEM is available?A: Yes.
 Q: How long is the warranty for your spray booth?A: Infitech offers 2-year warranty for the spray booth from the date the booth is accepted by user.
 Q: How do I proceed with the installation of the spray booth?A: You will be supplied with the packing list, installation drawing, installation instructions, wiring diagram and product manuals.
On the delivered cargo, they are marked with labels on the components. The label numbers corresponds with those on the packing list and installation drawing. Follow the drawing to find out the right components, and proceed with installation according to the installation steps provided. If any questions, you can also contact us directly for more instructions.
Upon special request, Infitech can also send one or two technicians to help guide the installation at site depending on the projects.
 Q: How long can I get the spray booth?A: Usually the production lead time for standard spray booth is 35 days. And the shipping schedule is 6 weeks or so depending on which port the cargo is delivered to.
