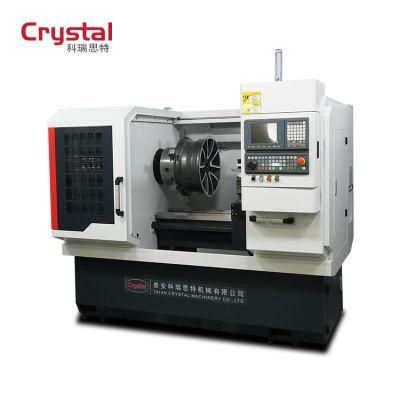

4th Generation Flat Bed Diamond Cutting CNC Alloy Wheel Rim Repair Lathe Machine Awr28h
Taian Crystal Machinery Co., Ltd.- CNC System：Syntec
- Repairing Alloy Wheel：Max 28"
- Max. Swig Over Bed：770mm
- Max. Swig Over Cross Slide：500mm
- Max.Turning Length：1000mm
- Size of The Three-Jaw Chuck：10′
Base Info
- Model NO.：AWR28H
- Range of Spindle Speed：20-1800rpm
- Spindle Bore：72mm
- Stations of Tool Carrier：4 Position
- Net Weight：2200kgs
- Transport Package：Standard Wood Packing
- Specification：CE
- Trademark：Crystal
- Origin：Taian City, Shandong Province, China
- HS Code：8458110090
- Production Capacity：30sets,Month
Description
ITEMS
AWR28H
Max. swig over bed (mm) (inch)
Φ770 (30'')
Max. Size of alloy wheel (mm) (inch)
Φ720 (28'')
Adjustable stroke of carrier in X direction (mm)
100
Cross slide travel (mm)
390
Width of the rail (mm)
300
Length of the rail (mm)
1300
Size of the three-jaw chuck (inch)
12'
Range of spindle speed (rpm)
50~2000
Spindle speed control
Automatic
Spindle bore (mm)
Φ82
Taper of spindle bore
1:20(Φ90)
Max. size of tool post
25×25mm
Stations of tool carrier
4 position
Min. setting unit of motor
(Z) long 0.001mm,
(X) cross 0.001mm
Moving speed of post
(Z) long 8m/min,
(X) cross 6m/min
Motor power
7.5KW
Machine base (cast iron base)
Whole
Machine size (L×W×H) (mm³)
2140 ×1600×1860
Net weight
2200kgs
