Ce Standard Infitech Car/Auto Preparation Station (IT EX-UNIT 6900)
Guangzhou Infitech Mechanical and Electrical Equipment Co., Ltd.- Type：Spray Booth
- Certification：CE
- Substrate：Steel
- Coating：Powder Coating
- Paint Mist Treatment：Dry-type
- Condition：New
Base Info
- Model NO.：IT EX-UNIT 6900
- Product Name：Infitech Auto Preparation Station It Ex-Unit 6900
- Key Word：Auto Preparation Station
- Exhaust Fan：4kw, Direct-Type Turbine Fan
- Rated Power：4 Kw
- Warranty：2 Years
- Transport Package：Polyfoam and Metal Frame
- Specification：6900 x 4000 x 2800 mm
- Trademark：INFITECH
- Origin：China
- HS Code：8419899090
- Production Capacity：500 Sets,Year
Description
Basic Info.
Model NO. IT EX-UNIT 6900 Product Name Infitech Auto Preparation Station It Ex-Unit 6900 Key Word Auto Preparation Station Exhaust Fan 4kw, Direct-Type Turbine Fan Rated Power 4 Kw Warranty 2 Years Transport Package Polyfoam and Metal Frame Specification 6900 x 4000 x 2800 mm Trademark INFITECH Origin China HS Code 8419899090 Production Capacity 500 Sets/YearProduct Description

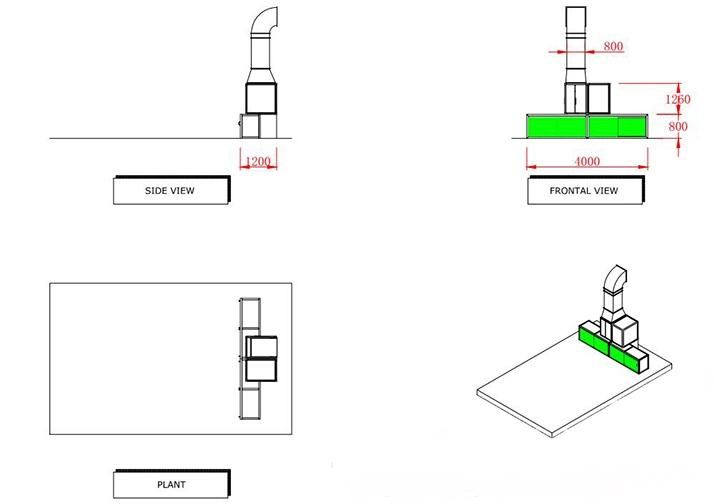

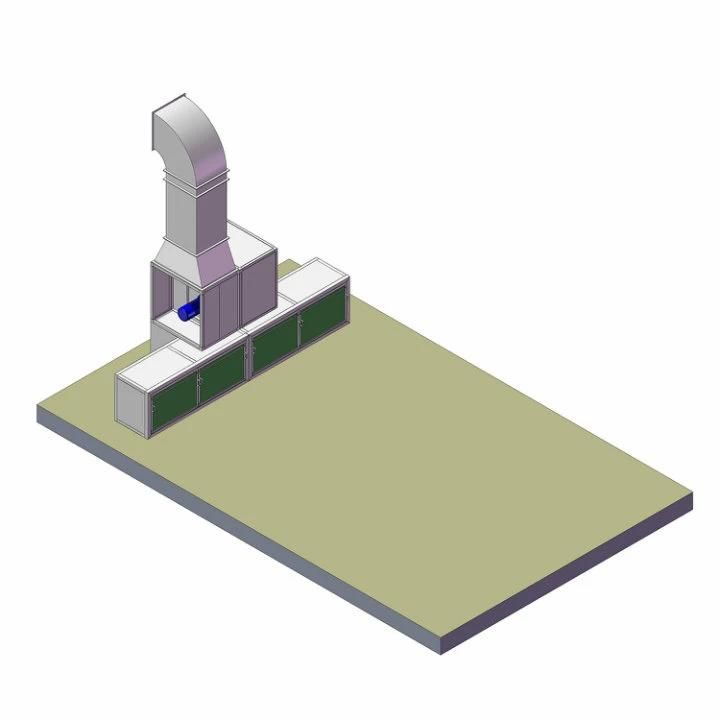

CE STANDARD INFITECH CAR/AUTO PREPARATION STATION IT EX-UNIT 6900
Basic information
| DESIGN STNDARD | BS EN 13355:2004+A1:2009 BS EN 60204:2006+A1:2009 |
| DIMENSIONS | |
| Internal Dimensions | 6900 X 4000 X 2800 mm(L x W x H) |
| External Dimensions | 8200 X 4110 X 2800 mm(L x W x H) |
| BASEMENT | |
| Base design | No base, with rear air exhaust plenum chambers (with filters) |
| Air exhaust plenum description | Frame structure, size:2000*800*660mm |
| Filter area | 3.2 m2 |
| FILTRATION SYSTEM | |
| Exhaust filter | Fiberglass paint arrestor filters, with features of big ventilation volume, small resistance and flame resistance, etc. |
| EXHAUST SYSTEM | |
| Exhaust fan | Direct-type big impeller turbine fan |
| Exhaust fan power and motor descriptions | 1×4KW, 960RPM, 380V, 50HZ, CE approved |
| Parameters of exhaust fan | 15,000m3/h, 650pa |
| DUCTWORK | Straight ducting:4pcs ; 90° elbow:1 pc ; Reducer:1 pc |
| CONTROL SYSTEM | Fan start, emergency stop switch, failure indication |

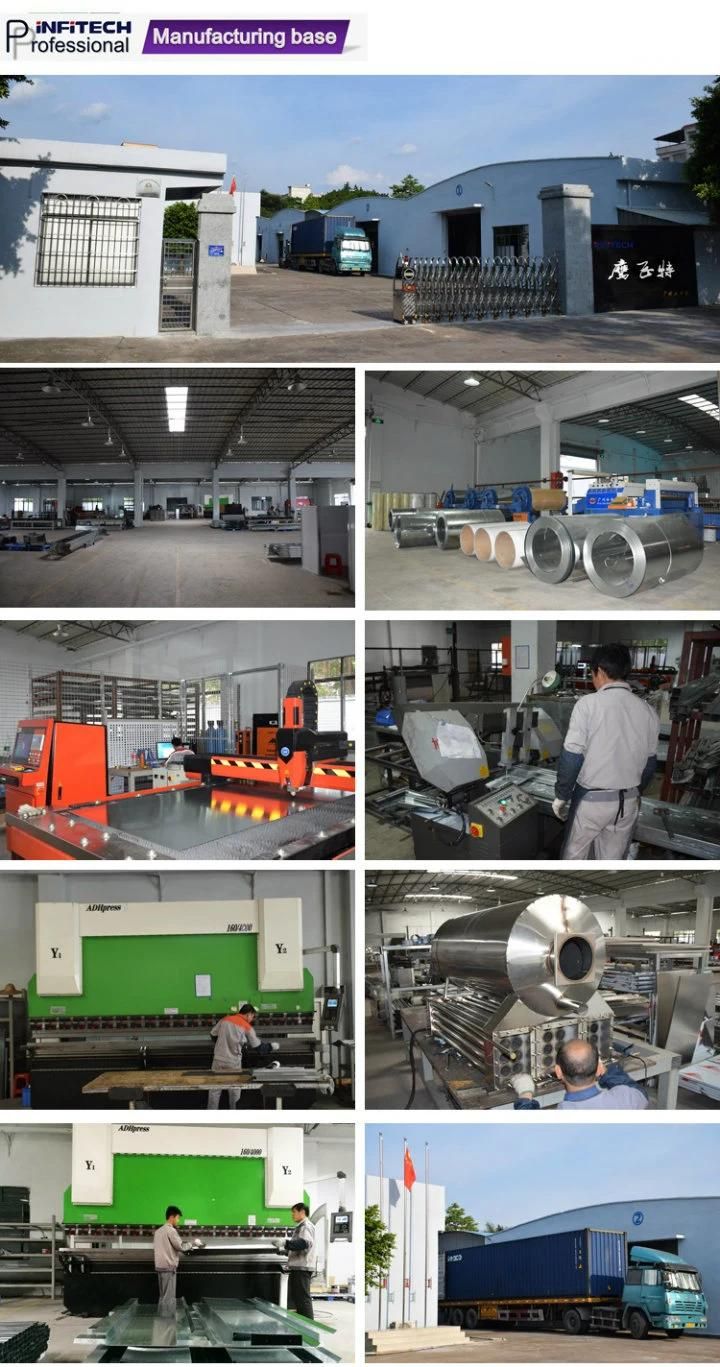

Company Introduction
Guangzhou Infitech is professional manufacturer of customized European standard spray booths in China. We stick to European standard for spray booth since the business started. What we supply ranges from initial design and layout, technical consultation, manufacturing through to installation and maintenance. We pride ourselves in delivering customized products that suit your customers' individual needs.
