• Model NO.：SJD
• Shearing Lift Type：Small Shear Type
• Condition：New
• Brand：Moral
• Design：Two Post
• Load capacity：4000kg
• Lifting height：1750mm
• Post height：2835mm
• Min height：120mm
• Clearance of post：2800mm
• Motor power：2.2kw
• Up speed：60S
• Down speed：50S
• Voltage：AC 220V,380V 50Hz,60Hz
• Warranty：12 months
• Transport Package：Standard Export Packing
• Specification：840x290x340mm
• Trademark：MORAL
• Origin：Shandong, China(Mainland)
• HS Code：842890
• Production Capacity：500pieces,Month

Basic Info.

Model NO. SJD Shearing Lift Type Small Shear Type Condition New Brand Moral Design Two Post Load capacity 4000kg Lifting height 1750mm Post height 2835mm Min height 120mm Clearance of post 2800mm Motor power 2.2kw Up speed 60S Down speed 50S Voltage AC 220V/380V 50Hz/60Hz Warranty 12 months Transport Package Standard Export Packing Specification 840x290x340mm Trademark MORAL Origin Shandong, China(Mainland) HS Code 842890 Production Capacity 500pieces/Month

Product Description

Car Tyre Repair Machine Wheel Alignment Car Wheel Alignment MoralLIFT is a professional manufacturer of LIFT TABLE with good quality and low price. We are

adhering to our priciple of " Put quality first and treat cudstomers as supremacy; People-oriented, honesty comes

first". We have good quality products, prompt telephone services and skilled maimtenance personnel for our

customers. Look forward to having opportunity to cooperate with all of you around the world!

SPECIFICATIONS




This new lock system incorporates two locking mechanisms for added safety. The double lock system is automatically activated as the lift is raised. There is no need for the operator to go to both columns and manually unlock both column locks. All lifting and lowering operations are controlled from one column post. Double safety locks built into each column operated by one release level . Two locks...one release...available only in MORAL LIFT.

PARAMETERS


Load capacity	4000kg
Lifting height	1700mm
Min height	120mm
Column height	2835mm
Width between columns	2800mm
Installation width	3450mm
Lifting time	60s
Lowering time	50s
Motor power	2.2KW
Power supply	220V/380V/400V/415V/etc

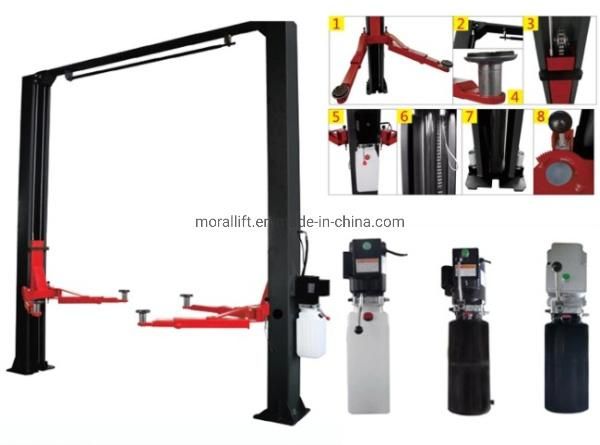

MAIN FEATRES

1) Dual hydraulic cylinders, designed and made on ANSI standard, high quality NOK seals;
2) Supersymmetric arms design with three-stages front arms and two-stages rear arms;
3) Single-point safety release, and dual safety design;
4) Clearfloor two post hoist design, provide unobstructed floor space;
5) Overhead safety shutoff device;
6) Automatic arms restraints;
7) Hydraulic power unit.

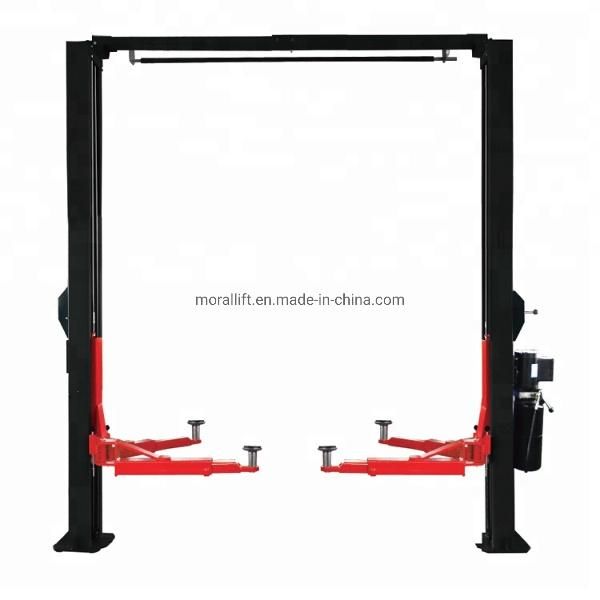

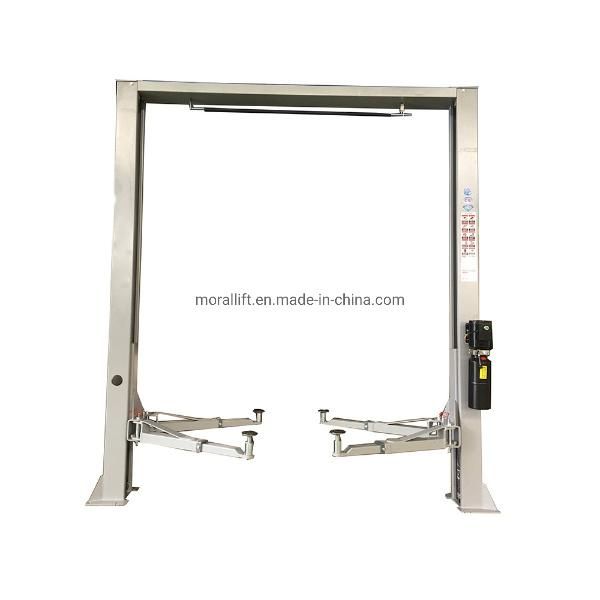

MAIN PICTURES








PACKAGE




OUR SERVICE

1) We can design the customerized as per your requirement.
2) The most suitable will be recommended to you once we got your requirement.
3) Shipment can be arranged from our port to your destination port.
4) Operation video can be sent to you if needed.
5) User-friendly English manual for machine installation using and maintenance.
6) Two year warranty for whole machine without man-made faults.
7) We will send you parts for free if there are any non-human factors faults during warranty time.
8) Supply 24-hours technical assistance by email, telephone or other communication online.
9) We could reply you in 2 hours after received your any questions even on weekend and holiday. Engineers are available to your country if necessary.
