• Model NO.：Ediag YA-101
• Color：Black
• Material：Plastic
• Update：Free Update Online
• Warranty：1 Year′s Free Warranty
• Voltage：8V-18V
• Current：Around 4000mA
• Screen Size：1.8"

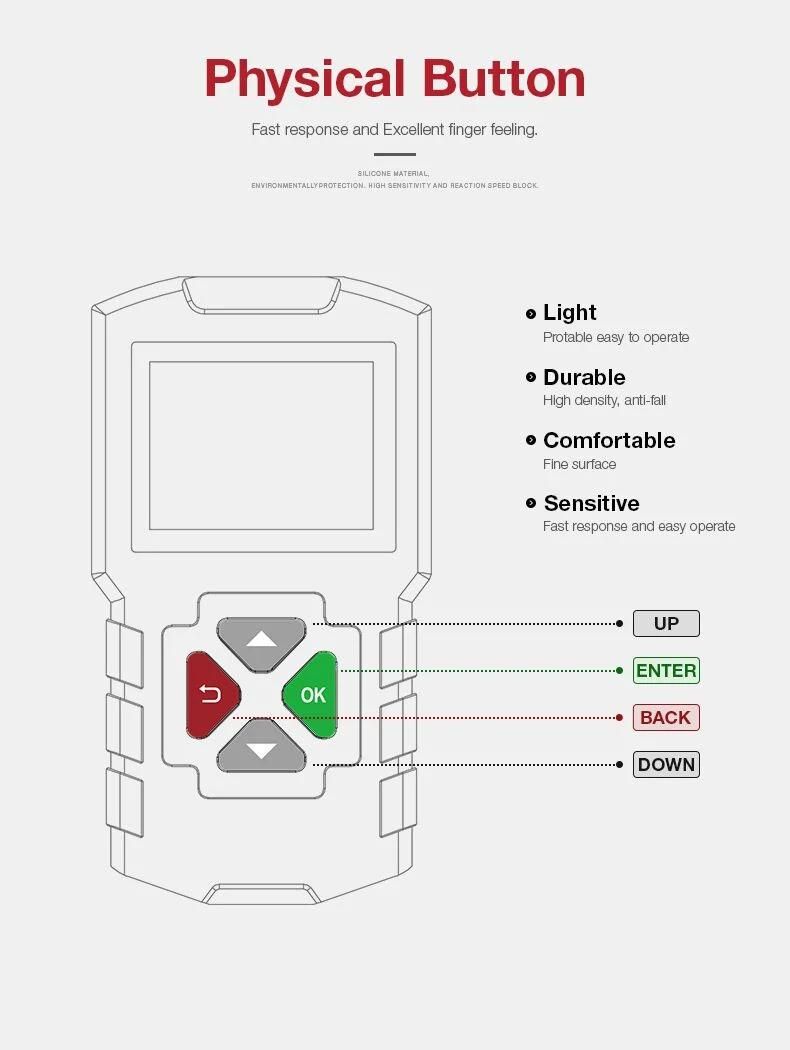

• Input Mode：Keypad Input
• Transport Package：Carton Box
• Specification：0.25kg; 4.8"*2.6"*0.8"
• Trademark：EDIAG
• Origin：China
• HS Code：9031809090
• Production Capacity：2364

Basic Info.

Model NO. Ediag YA-101 Color Black Material Plastic Update Free Update Online Warranty 1 Year′s Free Warranty Voltage 8V-18V Current Around 4000mA Screen Size 1.8" Input Mode Keypad Input Transport Package Carton Box Specification 0.25kg; 4.8"*2.6"*0.8" Trademark EDIAG Origin China HS Code 9031809090 Production Capacity 2364

Product Description

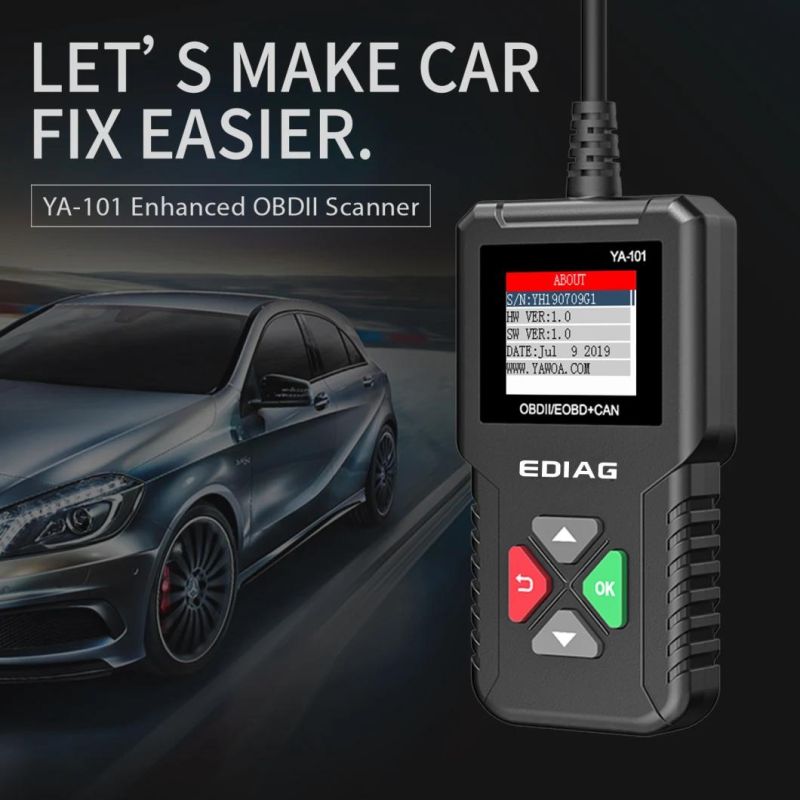

Auto Scanner EDIAG YA-101 Similar to Launch CR3008 OBDII Test

Why choose our products?
1. All products in our company are 100% original EDIAG products.
2. The lowest price in whole Made-in-China.
3.Overseas warehouse: Fast shipping & Seller paying customs tax for EU countries.
4.Countries with local free return : United States, Canada, Australia, United Kingdom, France, Spain, Germany, Russia, Brazil, Israel, South Korea, Saudi Arabia, UAE, Poland, Netherlands, Italy. ( Note: If products are blamed of any quality problem, free return service to local country will be open. )

Top 7 Reasons to Choose EDIAG YA101 :
1:Free Update Life Time: Just Put in the USB and Paste the files into Flash disk.
2:Has the Screen Capture Function (CR3001 Do not have this Function).
3:Battery Testing.
4:Find The Cause Of The Fault Code.
5:Support vehicles 1996 & newer (OBDII & CAN).
6:Multilingual Service: English ,French, Russian, Spanish, German, Italian, Portuguese, Japanese, Chinese, etc.
7:YA101 provides full OBDII/EOBD diagnostic functions and meets protocols.

Product Introduction :
EDIAG YA101 provides full OBDII/EOBD diagnostic functions and meets protocols such as ISO9141-2, ISO14230-4, SAEJ1850, and ISO15765-4.
SKU:SC103

Features:
1.Full Modes of OBDII/EOBD Test
2.Free Update for Lifetime
3.Screen Capture Function
4.Support American car after 2000,European car after 2006,Japanese car after 2008
5.Multiple Languages:English,French,Spanish,Portuguese,German,Italian,Russian,Japanese




What are the FUNCTIONS & SPECIFICATIONS list of YA101 OBDII Scanner ?

Read Codes: Reads DTCs from vehicle's computer with KOEO or KOER.

Erase Codes: Deletes DTCs from vehicle's memory.

Live Data: Live Data menu lets you view, record and playback real time PIDs data from the electronic control module. In live data menu, you can insert the selected item to front by holding pressing the  key for 3 seconds.

Freeze Frame: Displays a snapshot of operating conditions at the time of a fault.

Vehicle Info: Scan tool displays the vehicle's VIN number, Calibration ID (s) and CVN that identify the software version in the vehicles control module (s.)The tool also displays In-Use Performance Tracking of important readiness monitors.

Component Test: Tool will display a list of components and their locations on the vehicle.This function will always appear on the Main Menu .This selection will appear on the Diagnostic Menu only when the tool has a list of component locations for the currently selected vehicle.

On-Board Monitoring: Scan tool controls the operation of vehicle components, tests or systems.

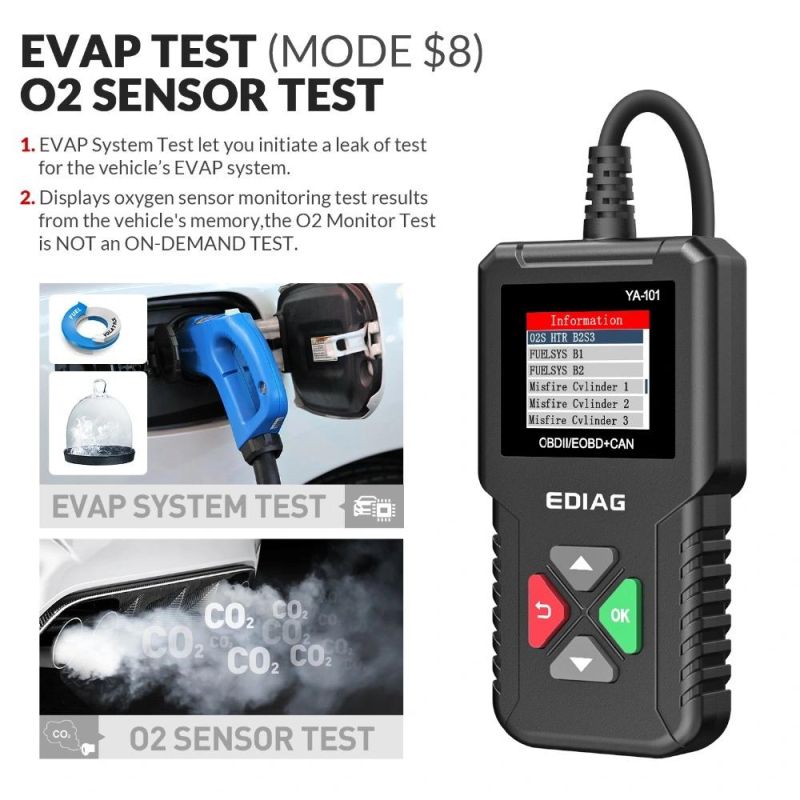

O2 Sensor Test: Displays oxygen sensor monitoring test results from the vehicle's memory,the O2 Monitor Test is NOT an ON-DEMAND TEST.

I/M Readiness: Displays a snapshot of the state of the vehicle's OBDII Monitors.

DTC Look Up: Looks up definitions of DTCs stored in scan tool, and shows the possible causes of the DTC. (NOT every DTC with possible causes reason)

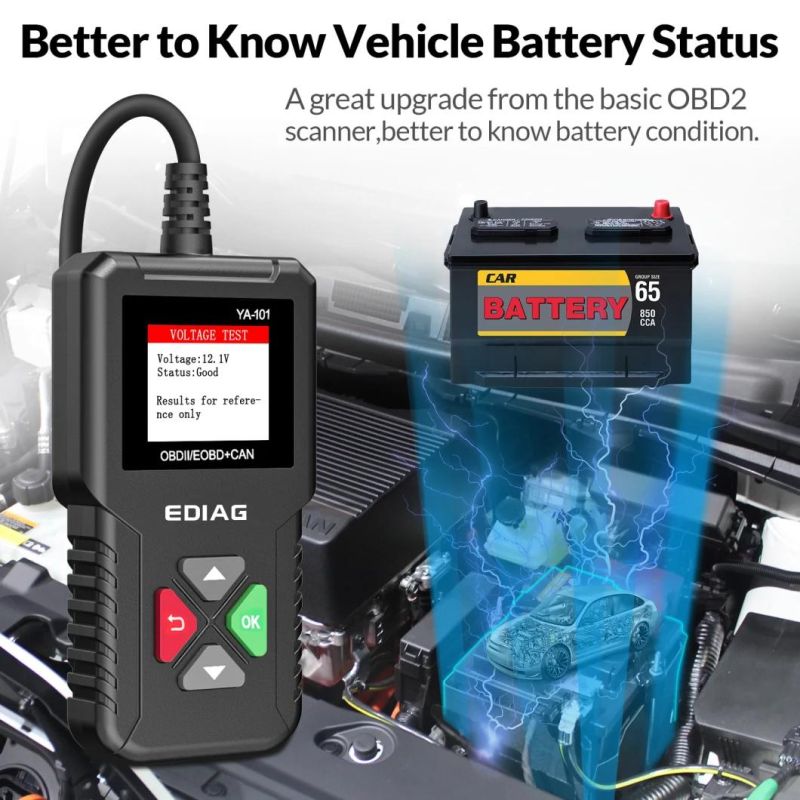

Voltage Test: This function is used to monitor the voltage present on pin 16 of the OBDII Data Link Connector.

Data Logging: Turn on /off the data log function to record the device data through vehicle.

Self-test: Display Test.  Used to check the display screen. Keyboard Test. Verifies that the keys are working correctly.

Multilingual: English,France,Deutsch,Japanese,Spanish,Italian,Russian,Portuguese,Traditional Chinese,Simplified Chinese.

Update:  Install update tool from Official webiste, and copy the newest firmware,paste to the YA101.
(http://kingbolen.en.made-in-china.com)

      NOTE:
      * To review I/M Readiness status,make sure that the ignition key is switched to ON with the engine off.
      * Not all monitors are supported by all vehicles.There are two types of l/M Readiness tests.
      * since DTCs Cleared -shows status of the monitors since the DTCs werelast cleared.
      * This Drive Cycle-shows status of monitors since the start of the currentdrive cycle.



YA101 Supports OBDII protocols car :
1.SAE J1850 PWM(41.6Kbaud)
2.SAE J1850 VPW(10.4Kbaud)
3.ISO9141-2(5 baud init,10.4Kbaud)
4.ISO14230-4 KWP(5 baud init,10.4 Kbaud)
5.ISO14230-4 KWP(fast init,10.4 Kbaud)
6.ISO15765-4 CAN(11bit ID,500 Kbaud)
7.ISO15765-4 CAN(29bit ID,500 Kbaud)
8.ISO15765-4 CAN(11bit ID,250 Kbaud)
9.ISO15765-4 CAN(29bit ID,250 Kbaud)
(Note: YA101 only Support 12V cars, Does not support 24V Truck )



What is the car mode YA101 Work Well?

American Car : Need Standard OBDII Protocols from 2000 to now

European Car : Need Standard OBDII Protocols from 2003 to now

Japanese/Korean Car : Need Standard OBDII Protocols from 2006 to now

Chinese Car : Need Standard OBDII Protocols from 2009 to now


How to verify whether the vehicle will pass the emission test with this code reader?
After entering the I/M Readiness,there will be 10 results on the list.Misfire monitor,fuel system,component monitor,catalyst monitor,heated catalyst,EVAP system,secondary air system,O2 sensor,O2 sensor heater EGR and WVT.There will be an OK if each of them works well.(Not all vehicles have these 10 parts)


How to use YA101?
Locating Data Link Connector
1.Choose a location under driver side dash under steering wheel) and use that description in both places.
2.If unsure about location of dlc, check vehicl manual or reputable service center about location.

Connect the tool
1.If the connector is not there a label should be there indicating the where abouts of the connector.
2:If necessary,remove the cover from the DLC.
3.Turn the ignition switch to the on position.Do not start the engine.
4.Plug the OBD connector into the Data Link Connector.
5.The tool will attempt to identify the vehicle. If successful,the vehicle identified is played. If the vehicle cannot be identified,menus will be shown for you to select the vehicle manually.

Specifications:

Item Type	car code reader	Voltage	8~18V
Special Features	USB	Current	around 4000mA
Color	black	Item Weight	0.25kg
Material	plastic	Item Volume	4.8*2.6*0.8inch
Input Mode	keypad input	Screen Size	1.8inch

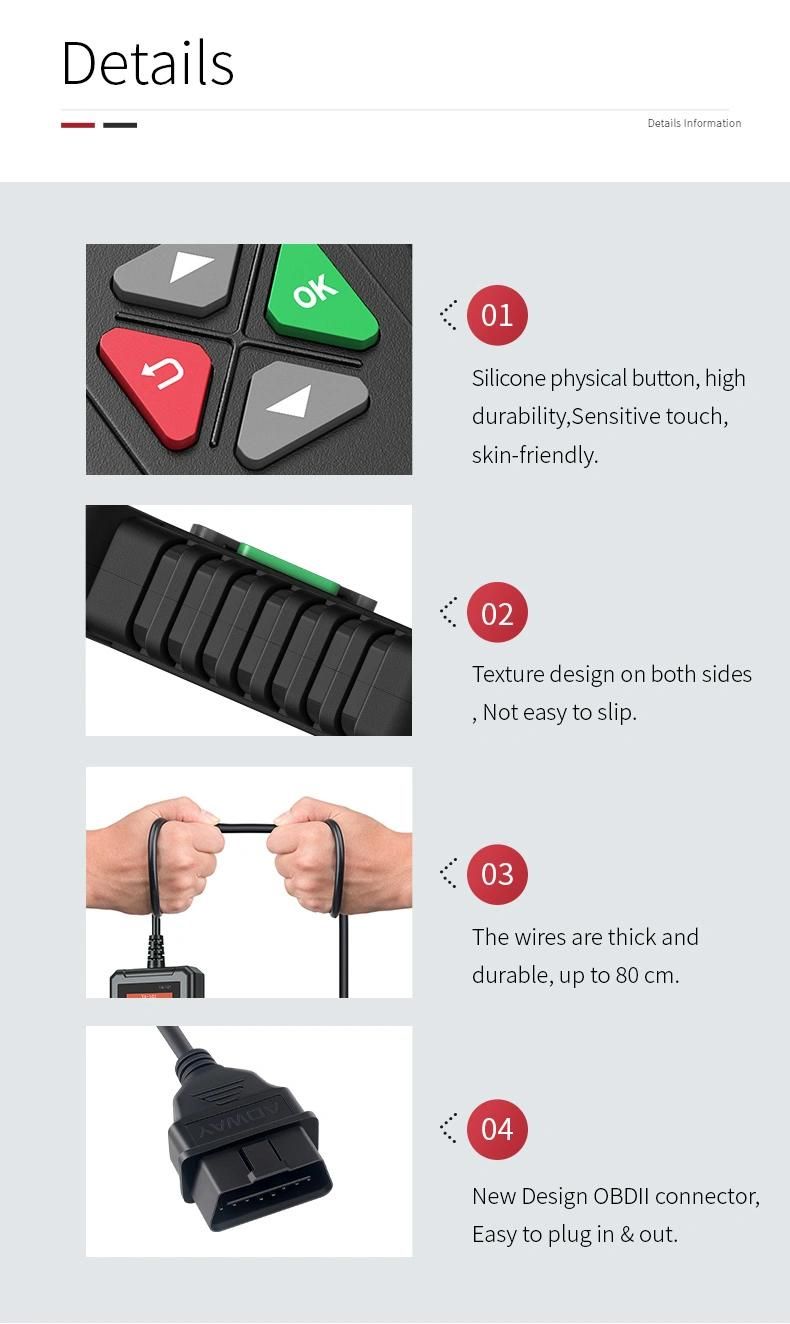

Update	free update online	Cable Length	80cm
Warranty	1 year's free warranty	Certifications	CE

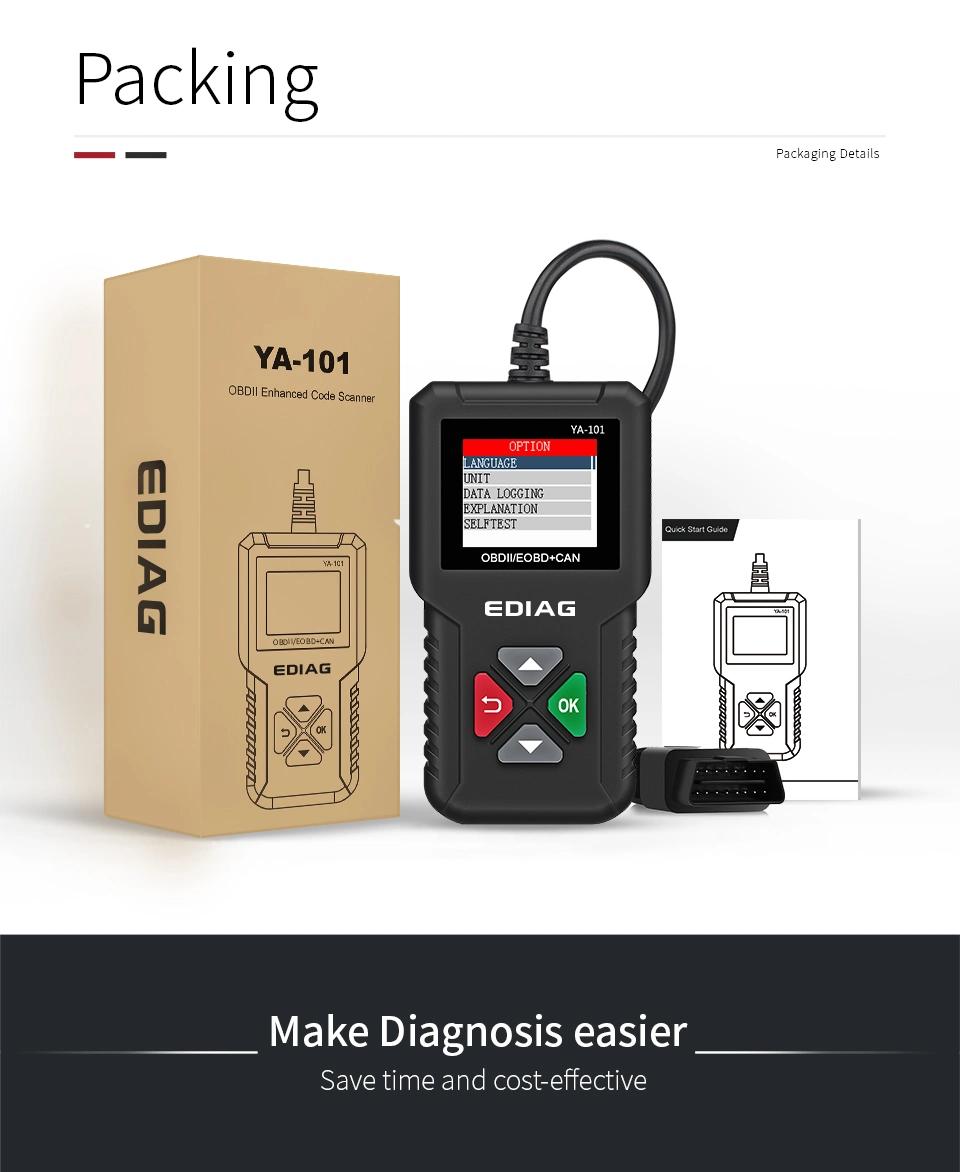

YA101 Packing List :
1pc * YA101 Code Reader
1pc * English User Manual

*This one can't support Diesel vechicles.
*Can do most of OBDII gasoline cars,but can't support all OBDII cars.
*YA101 can do MOST of the OBDII vehicles, but it CAN NOT do all models.
