in Ground Scissor Car Lift Wheel Alignment Scissor Lifter
Xi'an Amco Machine Tools Co., Ltd.- Type：Double Cylinder Hydraulic Lift
- Lifting Capacity：4T
- Driving Type：Hydraulic
- Certification：CE, ISO
- Shearing Lift Type：Big Shear Type
- Condition：New
Base Info
- Model NO.：JS420
- Brand：Amco
- Transport Package：Iron
- Production Capacity：50 Set,Month
Description
Basic Info.
Model NO. JS420 Brand Amco Transport Package Iron Production Capacity 50 Set/MonthProduct Description

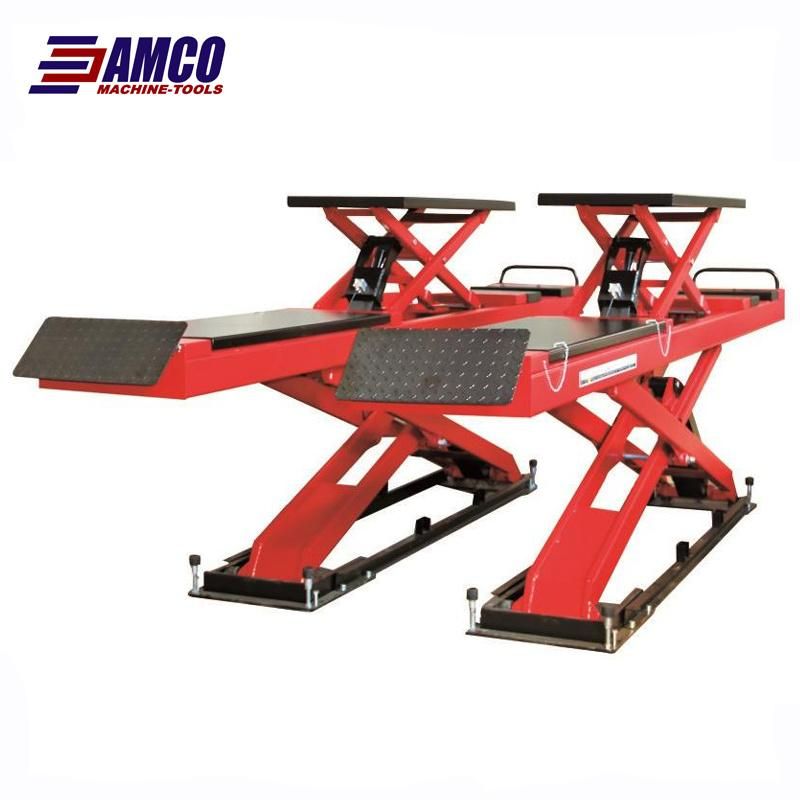

In ground scissor car lift wheel alignment scissor lifter
On-ground mounting,with rolling jack
Adjustable worktables and platforms with front recesses can accommodate different kinds of wheelbases and wheel tracks.
24V safety operating voltage.
Pneumatic lock release
Steel plate scissors which has good resistance to deformation
There is no-oil bearing inside rolling axis parts makes small noise.
Relief valve built in power pump to prevent overloading.
| Lifting capacity | 4000kg |
| Lifting height | 1700mm |
| Secondary lifting height | 450mm |
| Lift time | Up 60s down 50s |
| Length of the platform | 600mm |
| Motor power | 220V/380V 2.2kw |
| Hydraulic oil | 220kg/cm |
| Air pressure | 6-8kg/cm |
| Weight | 1780kg |
