• Model NO.：C300B
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Wall Panel Color：Orange
• Transport Package：Container Loading
• Specification：CE
• Trademark：Sunrise
• Origin：China
• HS Code：84178090
• Production Capacity：500set Per Year

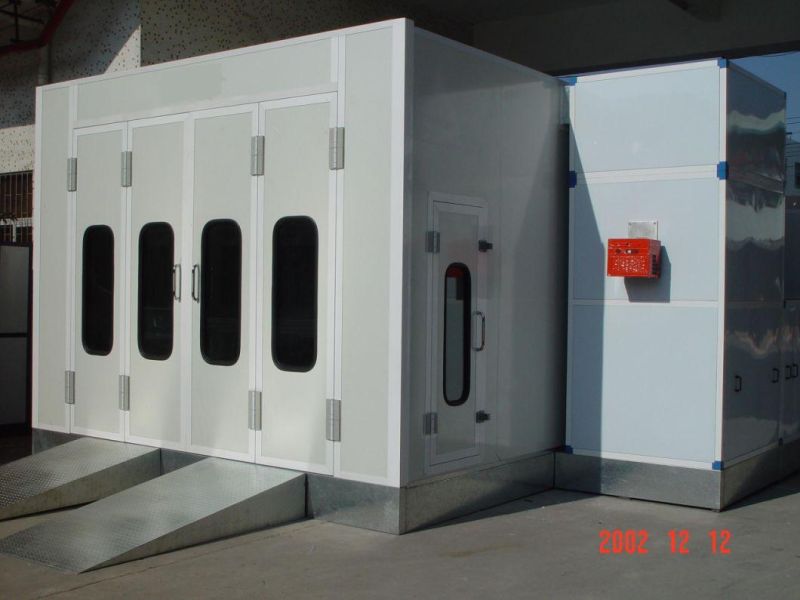

ModelC-300BInside Dimensions:7000 x 4000 x 2800mm  (Lx W xH)mmOutside Dimensions:7000x4120(5420) x 3600mm(LxWxH)Main Door:3-fold main entrance door, 3000x2700mmPersonnel Door:one personnel door, 800x2000mm (WxH),

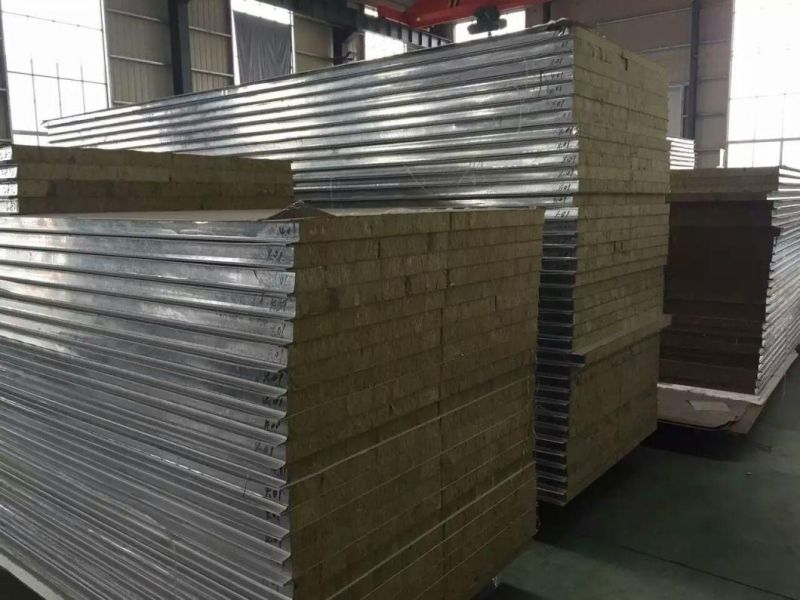

with pressure latchWall Panels:Pre-painted steel sheet,                                                                                                                              double skinned with 60mm thick  polystyrene insulationRoof Panels:Zinced steel sheet, single layerBasement & Floor:300mm high raised metal-base
with 2 drive in ramps (each 750x2000mm),

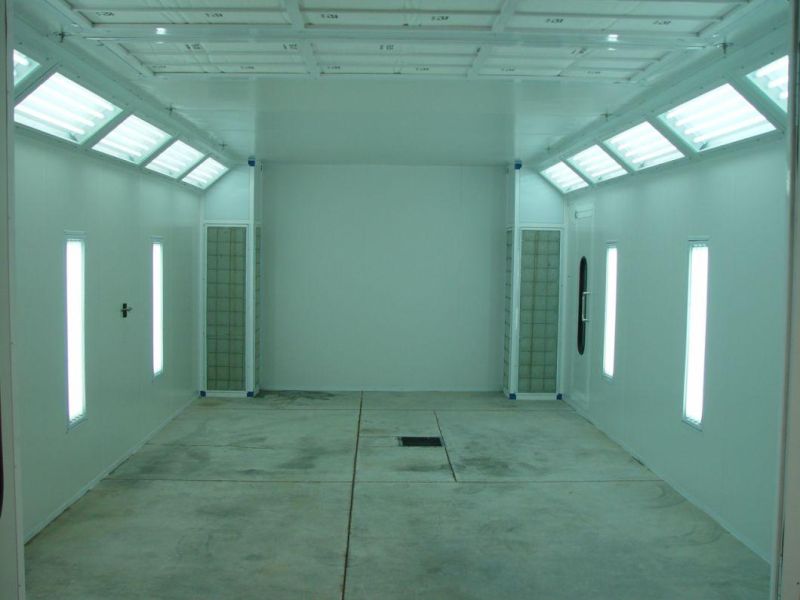

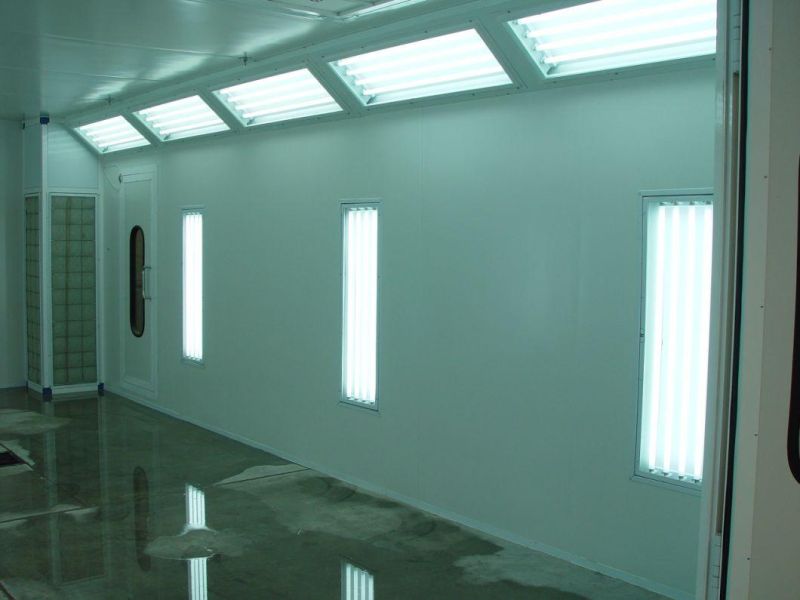

3 rows gratings and 2 rows indented platesLighting:8 units upper inclined lights, each with 4x36w light tubes.

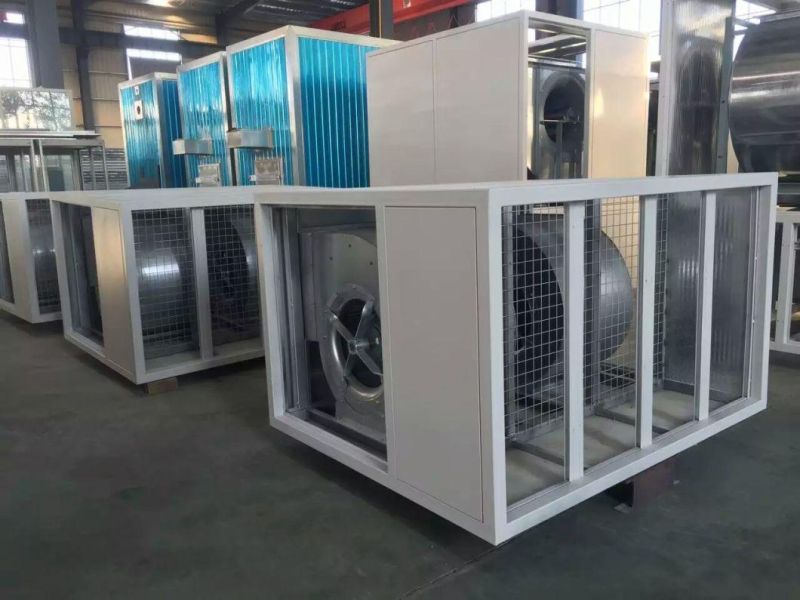

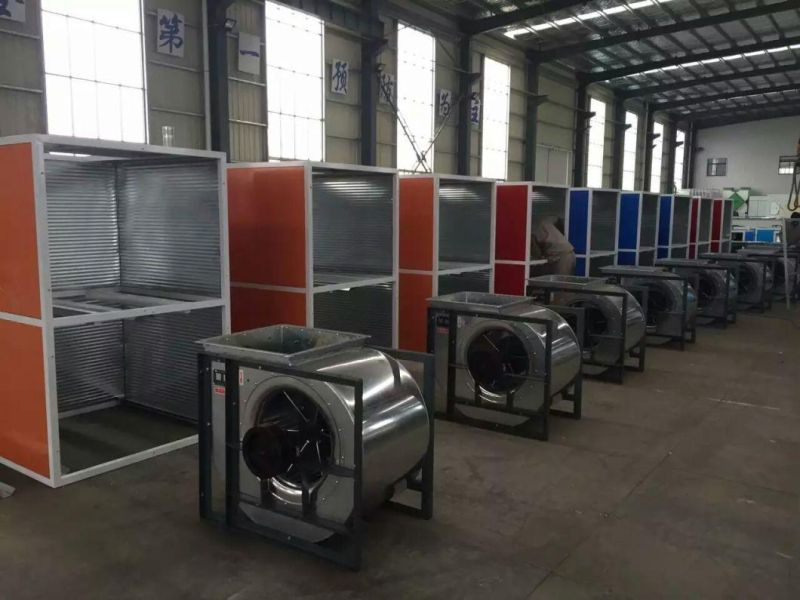

  6 units 4x36w vertical side wall lights;                       Air Plant Structure:Aluminum frame structure, colored steel plateIntake:1 backward inclined turbo fan,
capacity 25000cmh,
direct drive, 1x7.5kw motor,
manual air flow damperExtract:1 backward inclined turbo fan,
capacity 25000cmh,
 direct drive, 1x7.5kw motor,
motorized air flow damperHeating System:Stainless heat exchanger,                                                                                                                                                         80 degree working temperature.
 Italy Riello RG5S oil burner, capacity 260000Kcal/hBy-pass:Pneumatic damper from spraying to baking cycleFilter System:4 sorts of filters:
prefilter, ceiling filter,
floor paint-stop filter, extract paint-stop filterControl System:Reliable components, digital temperature readout,
spray and bake temperature settings, bake timer,
spray and bake switch, pressure gauge, emergency stop,
safety thermostat.
We supply following equipments as well:

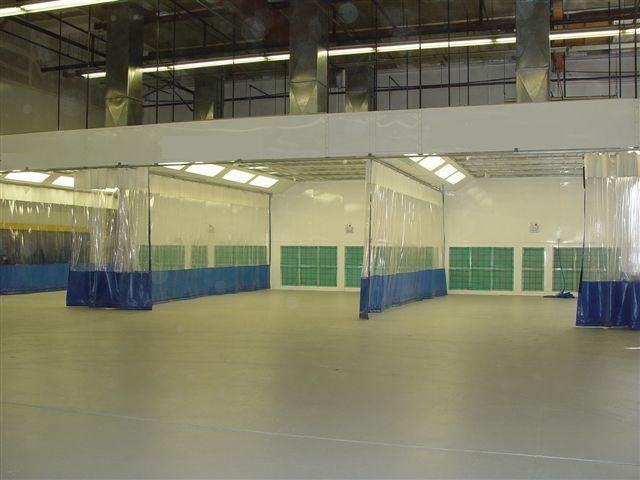

Industrial spray booth
Bus/truck spray booth
Powder coating booth

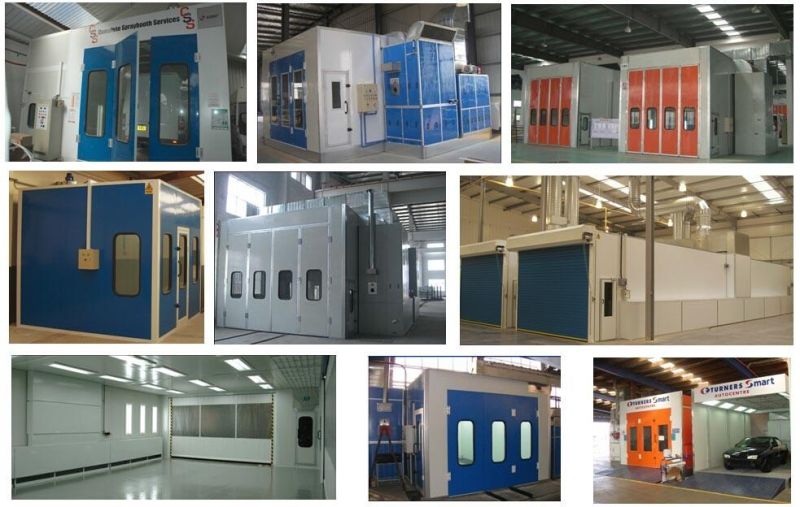

CASES:
