• Model NO.：AA-TC188
• Inner Clamping：13.5 " - 24"
• Outer Clamping：12 " - 21.5
• for Motorcycles：14.5 " -26"
• Maximum Tire Diameter：39.5 ′"
• Maximum Wheel Width：13"
• Air Pressure：120 - 145 Psi
• Transport Package：Plywood Case
• Specification：CE
• Trademark：AA4C
• Origin：China
• HS Code：8458990000
• Production Capacity：1000units,Month

Basic Info.

Model NO. AA-TC188 Inner Clamping 13.5 " - 24" Outer Clamping 12 " - 21.5 for Motorcycles 14.5 " -26" Maximum Tire Diameter 39.5 ′" Maximum Wheel Width 13" Air Pressure 120 - 145 Psi Transport Package Plywood Case Specification CE Trademark AA4C Origin China HS Code 8458990000 Production Capacity 1000units/Month

Product Description

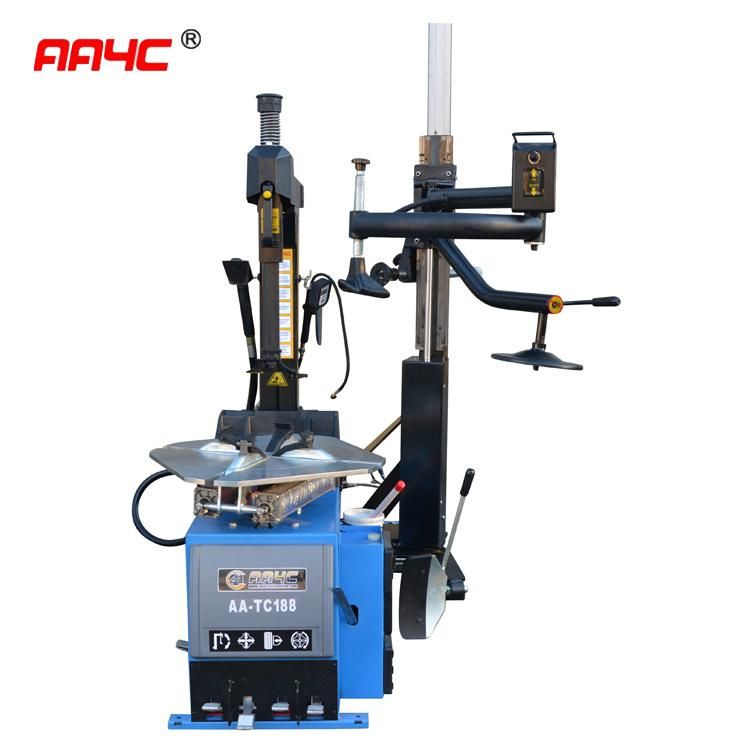

1. It is an automatic tire changer with an air-operated tilt back column.
2. The Pneumatically operated tower automatically swings back to allow the operator to position the tire on the turntable.
3. Optional assistant arm is ideal choice for servicing low profile tires.
4. It comes with bead seations and Rubber bead breaker protection are standard.
5. Optional Plastic head is very useful to avoid damaging expensive rims.

Specifications:
Rim Steel, Aluminum, Alloy
Inner clamping 13.5 " - 24"
Outer clamping 12 " - 21.5"
With optional adapters
For ATV: 9" - 18"
For Motorcycles: 14.5 " -26"
Maximum tire diameter: 39.5 '"
Maximum Wheel width: 13"
Bead breaker Pneumatic,: 8" pistom, 5500lb force
Air pressure: 120 - 145 PSI
Power supply: 110V, 220V, 380V, 50/60HZ
Working noise: < 70 DB
Weight: 350 KG
Limited warranty: 1 year parts only









1.AA4C have full range of garage equipments.
You can buy  most items  in AA4C  related to garage equipments to save your energy to purchase everywhere.

2.AA4C main products :
1)car lifts(1 post ,2 post ,4 post,scissor lift,etc)
2)tire changer(car tire changer,truck tire changer,semi-automatic,full-automatic)
3)wheel balancer(car wheel balancer,truckwheel balancer,semi-automatic,full-automatic)
4)Wheel alignment(commercial ccd Wheel alignment,commercial zigbee wheel alignment,3D wheel alignment, truck wheel alignment)
5)Our featured product rim straightening machine is the most popular in a lot of countries.
Other products such as spraybooth,cleaning machine,brake lathe,tire vulcanzier,Nitrogen inflator,A/C handling machine,fuel injector cleaning machine,welding
machine,hydraulic tools,etc...... Pls visit our website aa4cautomotive.en.made-in-china.com for more items!

3.Easy way to submit the order !
You can submit the order list in our website ,after we get the list ,we will issue the PI to you to save your time!

4.AA4C quality management:
To guarantee high quality and efficient management, we have passed ISO9001 quality management system certificate and the CE certification. All of our
products are 100% inspected before shipment.Our whole manufacturing processes are under a very serious and strict system in our company.

5. AA4C services:
To meet the every demand of customer is our goal. We are standing by for any question of customer. We try to make our service fast, efficient and satisfied.

6.AA4C products warranty:
We provide 12 months trouble-free warranty and online support for all of our machines. We will provide the service forever. We are standing by for any of the quality problems.


Our service
1. 1%  of  order amount free parts for replacement.
 2.  1 year warranty since conatiner arrive port of destination .
 3.  2 post lifts, alignment lifts, parking lifts, mid-rise lifts, scissor lifts, and high-rise lifts are warranted for five (5) years on structural components and one (1) year on electric or air / hydraulic power units and cylinders effective since date of  arrive port of destination.
4. Any parts which broken for quality reason will be replaced via courier within 1 week.
If any question you can find 24 hours 365 days at:
Mob: +8618017229377



FAQ

1. Why should I choose AA4C car lift?
There are several reasons you should strongly consider purchasing AA4C  Lift:
Top raw materials from only the finest plants
Only professional cost-effective equipment
Low prices with high quality revenue producing products
Increase productivity for your customers( Your customers gain more, they will enjoy buying from you.)
The best customer service. Quick reply within 24 hours and more.
Great Warranty

2. How safe are your 2 post car lift?
Our 2&4 post lifts have been tested and CE certified for safety . They also meet the American
and Australian Standard.

3. Should I keep repair and replacement parts in stock?
Yes, most all commonly required repair and replacement parts should always keep in stock.

4. What type of fluid is required for my 2 post car lift?
We recommend use of a SAE10 hydraulic fluid that meets an ISO 32 specification, approximately 3 gallons / 12L are required.

5. Are AA4C car lift designed for commercial use?
All of our lifts can be used in commercial applications without any problems.

6. Do you offer any custom designs?
Yes,AA4C provide OEM/ODM services to top range partners.Produce a superior product for you by your designs.
