Swing Arm Car Tyre Changer Tc980s
Xi'an Amco Machine Tools Co., Ltd.- Structure：Vertical
- Power Source：Electric
- Type：Simple Disassembly
- Standard：Standard
- Certification：CE, ISO
- Condition：New
Base Info
- Model NO.：TC980S
- Transport Package：Wooden Case
- Specification：SGS
- Trademark：AMCO
- Origin：Shaanxi Xi′an
- Production Capacity：30set,Month
Description
Basic Info.
Model NO. TC980S Transport Package Wooden Case Specification SGS Trademark AMCO Origin Shaanxi Xi′an Production Capacity 30set/MonthProduct Description

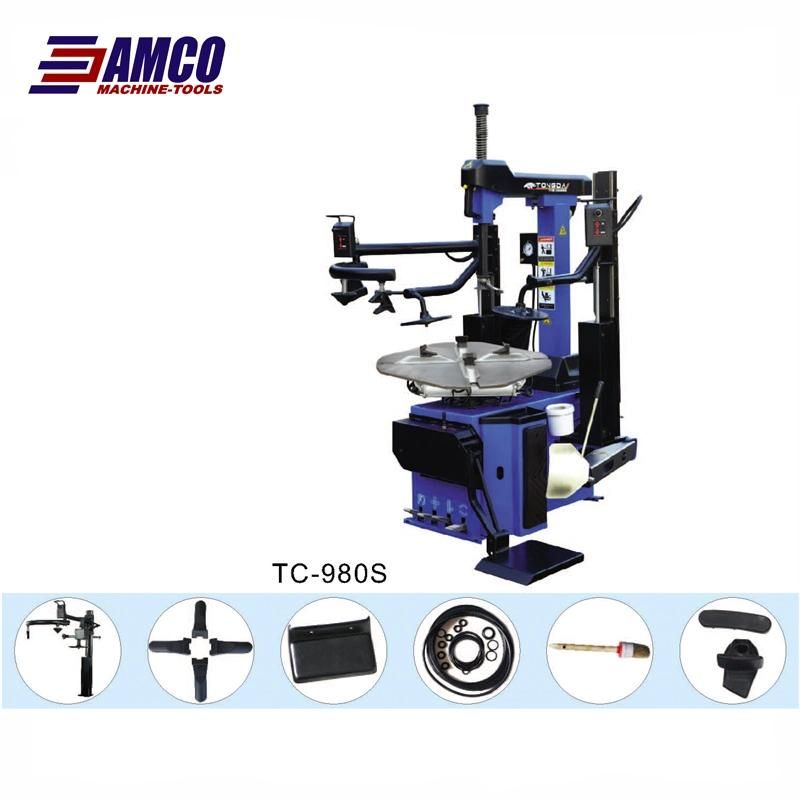

Swing Arm Car Tyre Changer TC980S
1.With self-centering function;
2.Clamping system with stepping function;
3.Tilting back tower and pneumatic locking system
4.Angles of mount/demount tool can be adjusted and calibrated;
5.The high quality polymer mounts/dismounts tool prevents the rim from damage
6.Plastic protector special for mounts/dismounts tool.
7.Wheel lift (Optional)
8.Adapter for motorcycle (Optional)
9.Bead seating inflation jets are integrated in the clamping jaws insuring quick and safe inflation (Optional)
10.Wear -resistant washer (Optional)
11.Portable air filling tank (Optional)
12. Optional colors
| Power supply/ Motor power | 110V/220V/380V (0.75/1.1Kw) |
| Air supply | 8-12bar (0.8-1.2Mpa) |
| Rim Clamping range (External) | 12 -24 (305-610mm) |
| Rim Clamping range (Internal) | 14 -26 (355-660mm) |
| Bead breaker force | 5500Lb (2500Kg) |
| Max. Wheel diameter | 43 (1100mm) |
| Max. Wheel width | 15 (381mm) |
| Noise | <70dB |
| N.W/G.W | 309kg/428Kg |
