• Model NO.：WL-D-880
• Brand：Xinder
• Design：Single Post
• Model：Wl-D-880
• Max Lifting Height：880mm
• Safety Capacity：350 Kg
• Plaftform Dimension：1150*720,1250*820mm
• Certificate：Ce
• Volt：24V or 12V
• Operation：Electric and Hydraulic Control
• Own Weight：135kg
• Packing Size：1240*600*1400mm
• Gross Weight：185kg
• Transport Package：Wooden Case
• Specification：1150*720,1250*820mm
• Trademark：xinder
• Origin：China
• HS Code：8428909090
• Production Capacity：1000 Sets,Month

Basic Info.

Model NO. WL-D-880 Brand Xinder Design Single Post Model Wl-D-880 Max Lifting Height 880mm Safety Capacity 350 Kg Plaftform Dimension 1150*720/1250*820mm Certificate Ce Volt 24V or 12V Operation Electric and Hydraulic Control Own Weight 135kg Packing Size 1240*600*1400mm Gross Weight 185kg Transport Package Wooden Case Specification 1150*720/1250*820mm Trademark xinder Origin China HS Code 8428909090 Production Capacity 1000 Sets/Month

Product Description

Introductions:

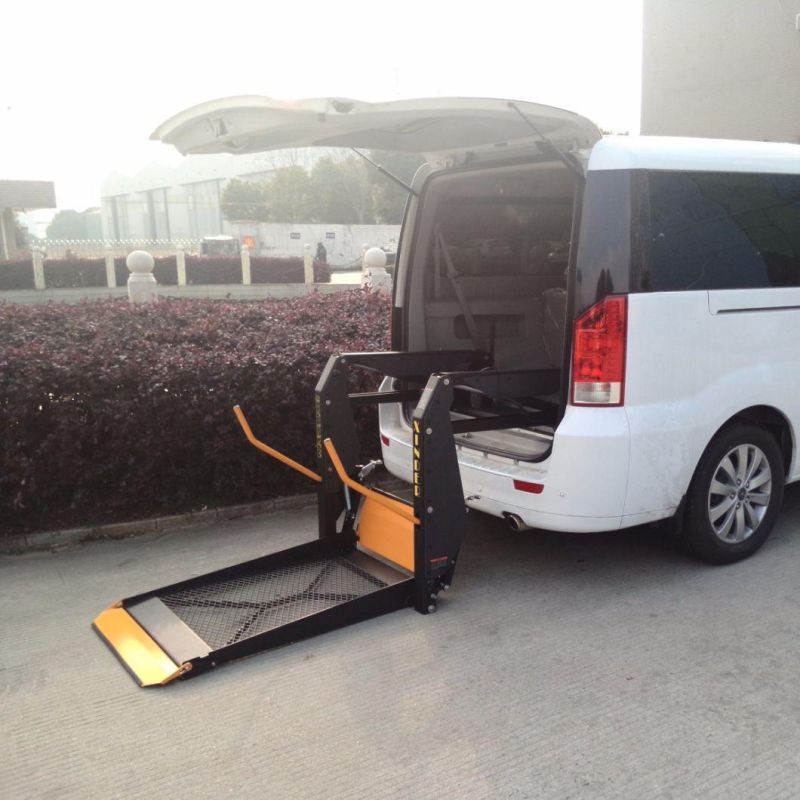

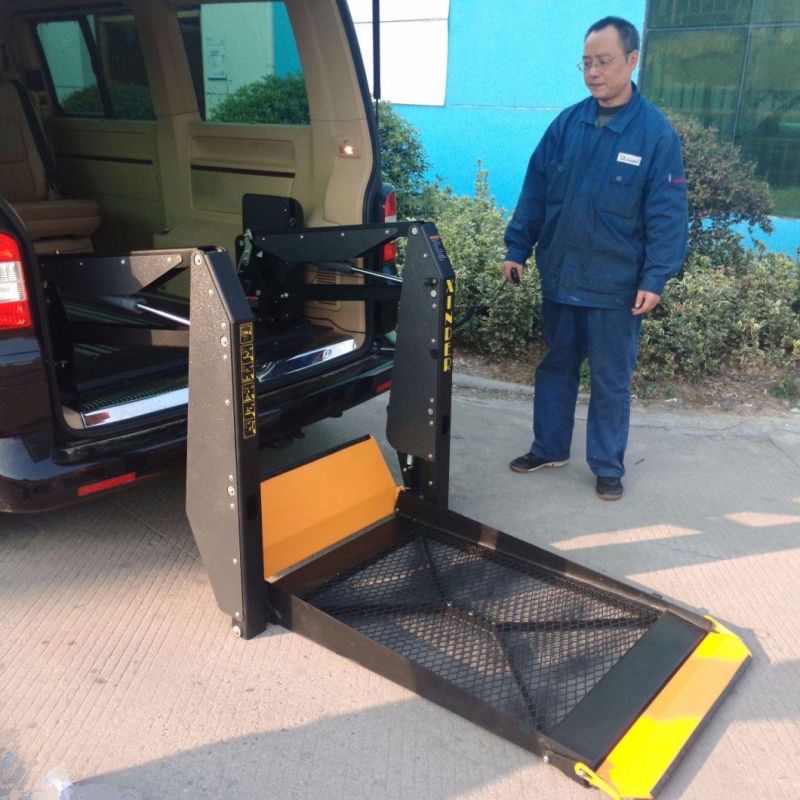

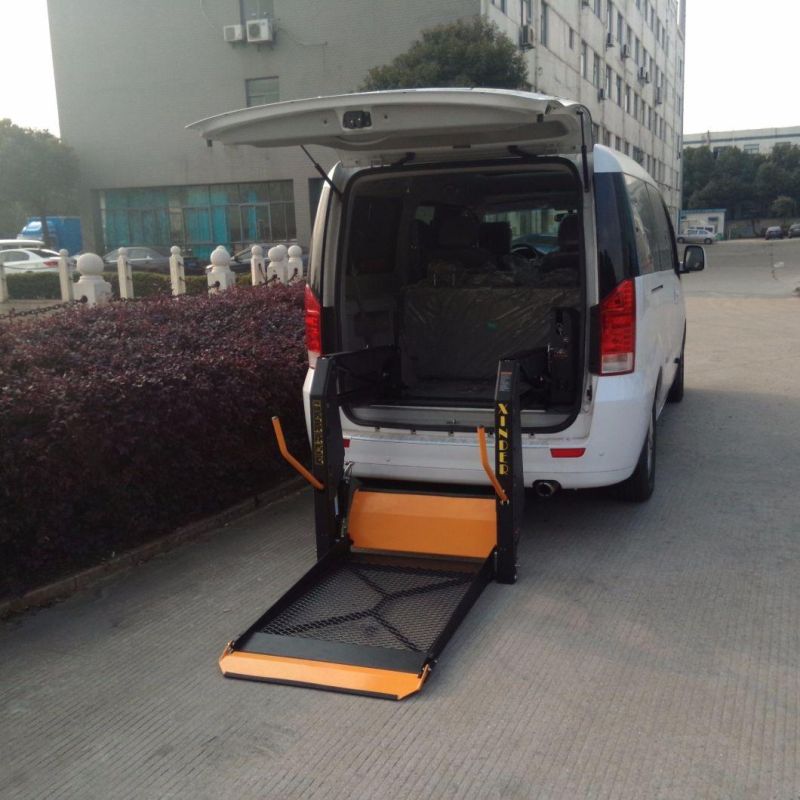

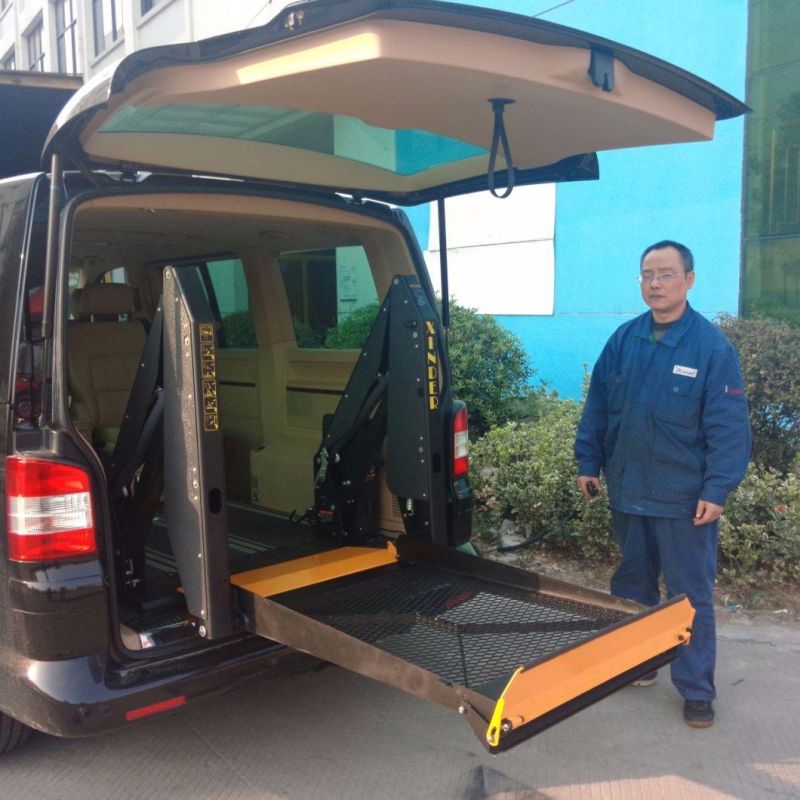

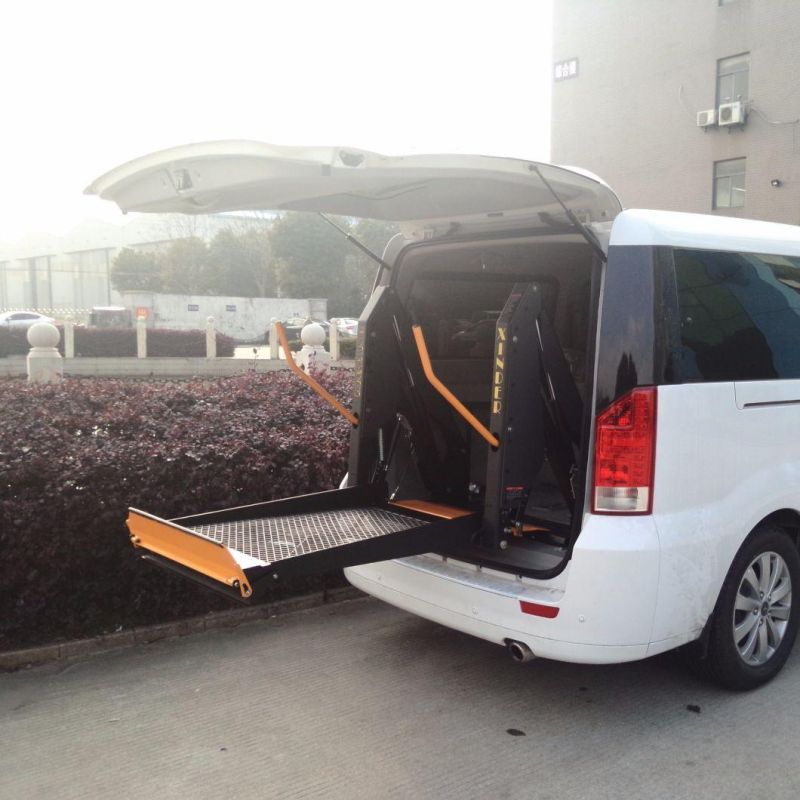

This series wheelchair lift is to provide car-adaptation solutions for people with reduced or limited mobility.

It is designed to help wheelchair occupant to get on van while seated on his wheelchair.

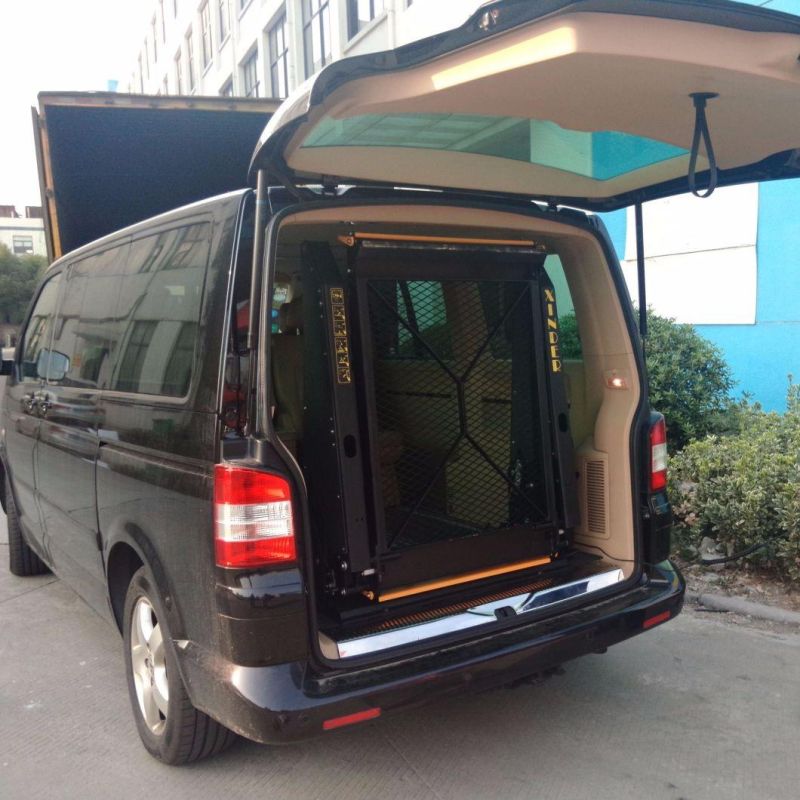

This wheelchair lift can be installed at the rear door or side door.

Powered by hydraulic system, the movement of lifting, lowering and folding are fully automatic.

This lift is operated by a wired remote control or by your mobilephone.

It also can be operated manually for emergency.

It is CE certified.

Loading capacity is 350kg.



Advantages:

• Solid platform provides additional safety;

• Mechanical auotomatic roll stops;

• Warning sound during working;

• Powerful hydraulic system ensures smooth and stable movements;

• Equip with handrails to offer increased comfort and security;

• Anti-skid platform;

• Manual backup function;

• Self-locking device;

• Can be controlled by your mobilephone (option);



Technical Specifications:

• Volatge: 12Vdc or 24Vdc;

• Power: 800W;

• Loading capacity: 350kg;
