• Driving Motor Number of Mechanical Lift：0
• Double Cylinder Lift Type：Thin Plate Type
• Shearing Lift Type：0
• Condition：New
• Brand：Cherish
• Design：Two Post
• Color：Customer′s Request
• Lock Release：Manual or Electric
• Operation：Button
• Certificate：CE
• Lifting Height：1889mm
• Overall Height：2765mm
• Width Between Posts：2690mm
• Rise/Drop Time：45s,40s
• Power：2.2kw
• Parking Vehicles：2
• Type of Cylinder：Single Stage Hydraulic Cylinder
• Operate Mode：Button,Remote Key(Optional)
• Control Mode：Electrical Control,PLC Control
• Surface Treatment：Powder Coated,Hot Galvanized
• Control Box：Normal Control Box,Water-Proof Control Box
• Transport Package：Standard Exporting Package
• Specification：2776*2791mm
• Trademark：Cherish
• Origin：China
• HS Code：84289020
• Production Capacity：1000sets,Month

Basic Info.

Driving Motor Number of Mechanical Lift 0 Double Cylinder Lift Type Thin Plate Type Shearing Lift Type 0 Condition New Brand Cherish Design Two Post Color Customer′s Request Lock Release Manual or Electric Operation Button Certificate CE Lifting Height 1889mm Overall Height 2765mm Width Between Posts 2690mm Rise/Drop Time 45s/40s Power 2.2kw Parking Vehicles 2 Type of Cylinder Single Stage Hydraulic Cylinder Operate Mode Button/Remote Key(Optional) Control Mode Electrical Control/PLC Control Surface Treatment Powder Coated/Hot Galvanized Control Box Normal Control Box/Water-Proof Control Box Transport Package Standard Exporting Package Specification 2776*2791mm Trademark Cherish Origin China HS Code 84289020 Production Capacity 1000sets/Month

Product Description

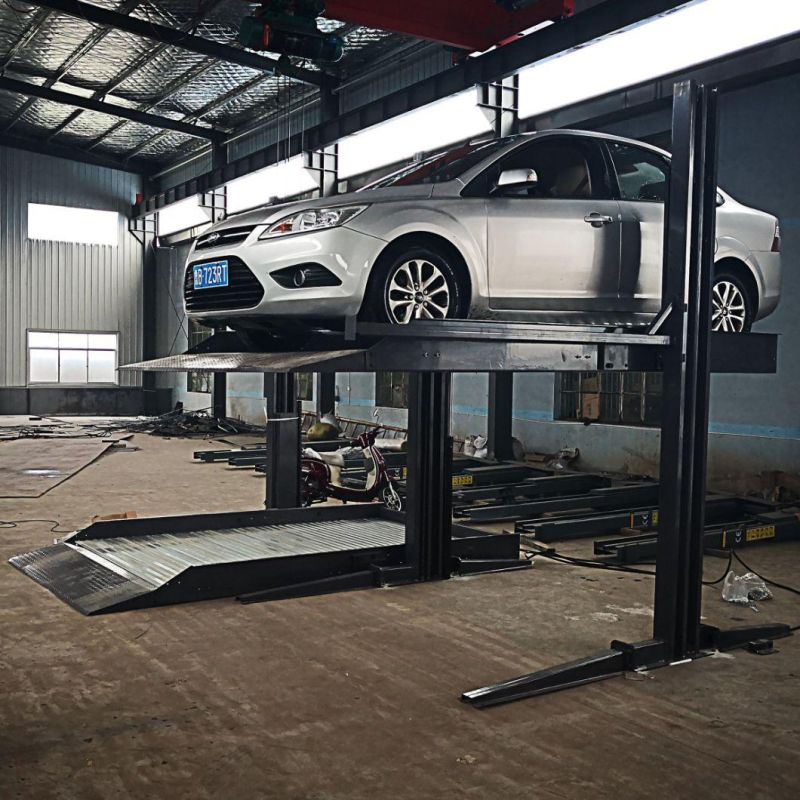

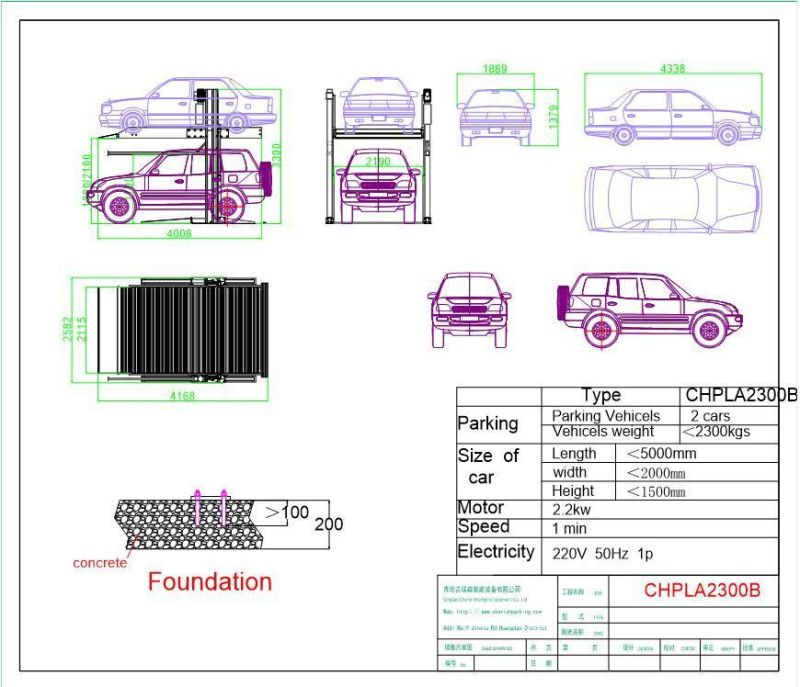

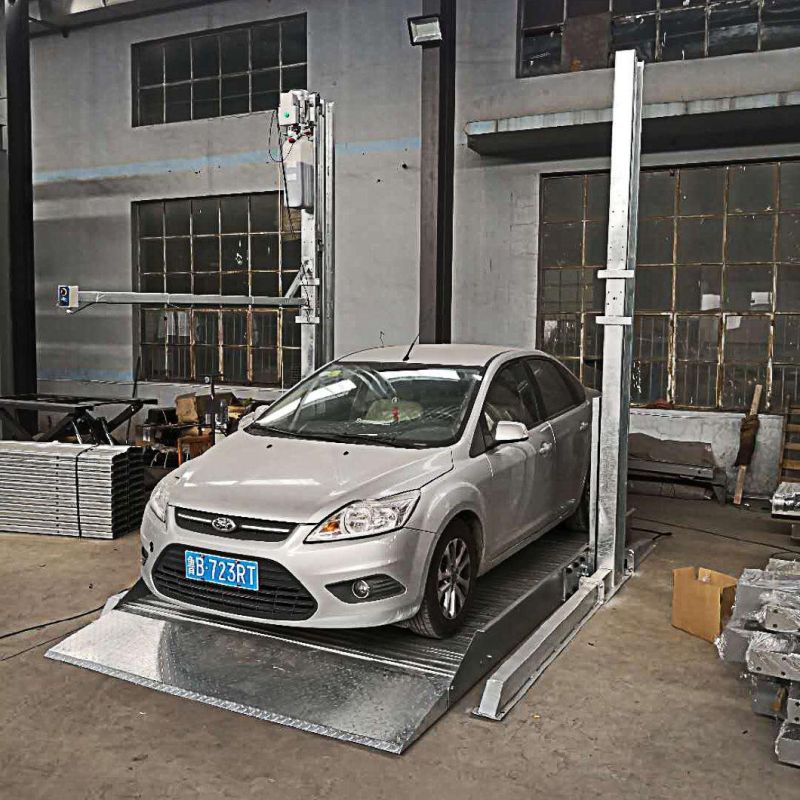

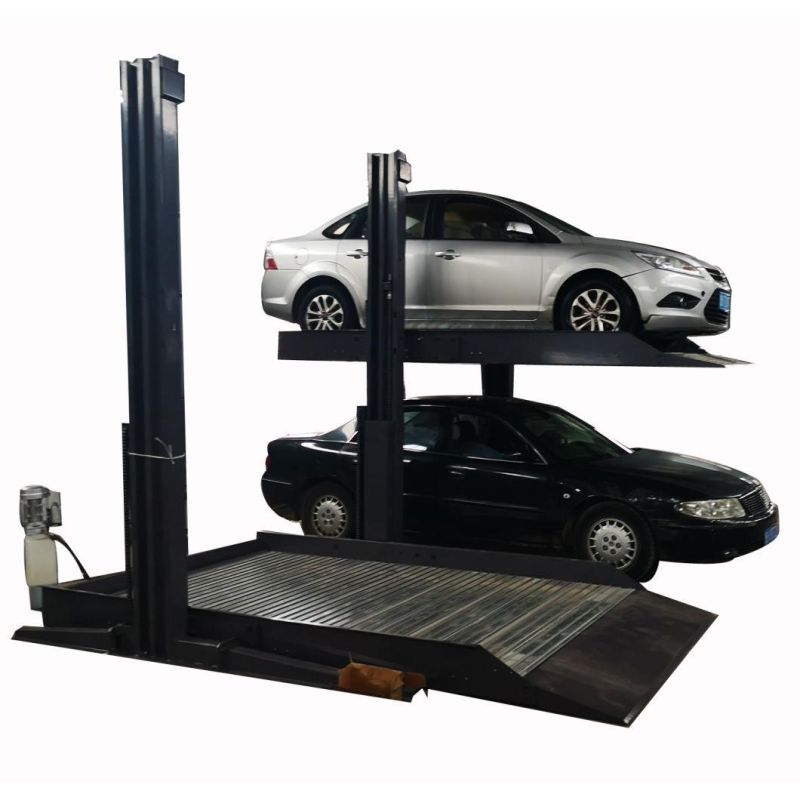

CHPLA2300A/B CHPLA2700   TWO POST PARKING LIFT

1. CE certified according to EC machinery directive 2006/42/CE.
2. Two cylinders and two chains,twice as fast as ordinary models.
3. Hydraulic driven, Chain-equalization system.
4. Single unit or share common post for multiple connected units.
5. Optional electrical or manual lock release system.
6. Powder spray coating surface treatment for indoor use hot galvanizing for outdoor use.
7. Optional manual pump on power unit in case of power off.
8. Optional 24v control box, solenoid valve and electromagnet

Feature:


MODEL	CHPLA2700	Load capacity	2300/2700kg
Lifting height	2100mm	Usable platform width	2100mm
Available car size	5000x1850x2050mm	Certification	CE by TUV
Power	2.2/3 kw	Drive mode	Hydraulic
Lifting/lowing time	50/45 s	Surface treatment	Powder coating
Operation	Key switch	Warranty	10 years for structure, 2 years for parts
Lock device	Dynamic	Lock release	Electric auto release

Cherish engages in car parking lifts and parking systems since 2017. It is located in Qingdao, the east coast of China. We are committed to manufacturing, innovating, customizing, and installing various car parking equipment.
By supplying high-quality products, the most cost-effective parking solutions, better installation guidance service, and better after-sale service, Cherish has won the trust and praise of customers from all over the world.
Our products range includes:
Car lifts:
1. Single post car lift;
2. Two post car lift;
3. scissor lift.
Car parking lifts:

1. Single post car parking lift
2. Two post parking lift
3. Tilting car parking lift
4. Scissor car parking lift
5. Four post parking lift
6. Underground car parking lift

Puzzle parking systrem
If you are in face of any car parking problem, we are worthy to be chosen and trusted, because CHERISH is the reputation of ourselves and our customers.
Please remember our name: Qingdao Cherish Intelligent Equipment Co., Ltd. Your Reliable Parking solution and equipment supplier.

FAQ

Q1. Can you produce according to the samples?

A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.



Q2. What is your sample policy?

A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.



Q3.How long is the warranty period?

A:Steel structure 5 years,all spare parts 1 year.



Q4: How do you make our business long-term and good relationship?

A:1. We keep good quality and competitive price to ensure our customers benefit ;

  2. We respect every customer as our friend and we sincerely do business and make friends with them,
     no matter where they come from.



Production time:
20-30 days after received the prepayment.

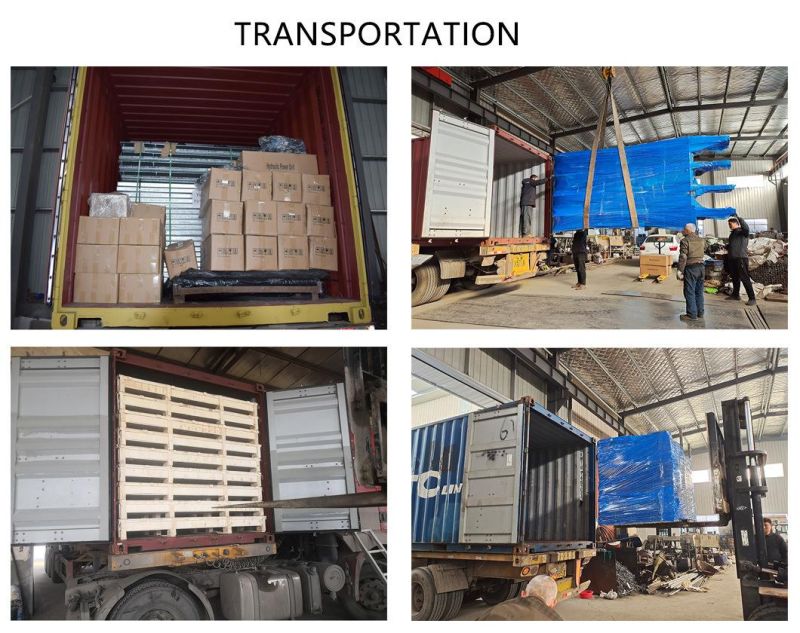

20' container load:10-12 sets; 40' container load: 20-24 sets.

Our website:
http://cherishparking.en.made-in-china.com
http://cherishparking.en.made-in-china.com/

I hope that you can give the chance to introduce our products and cooperate with you .
