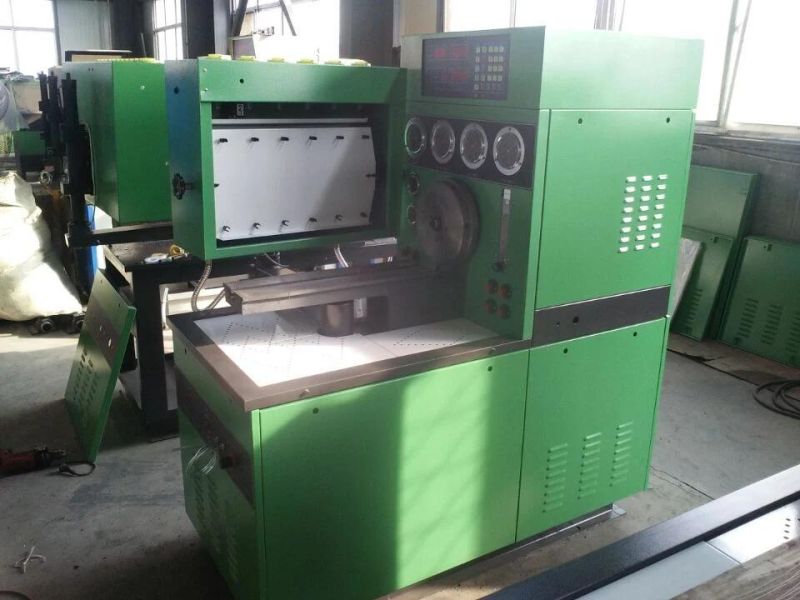

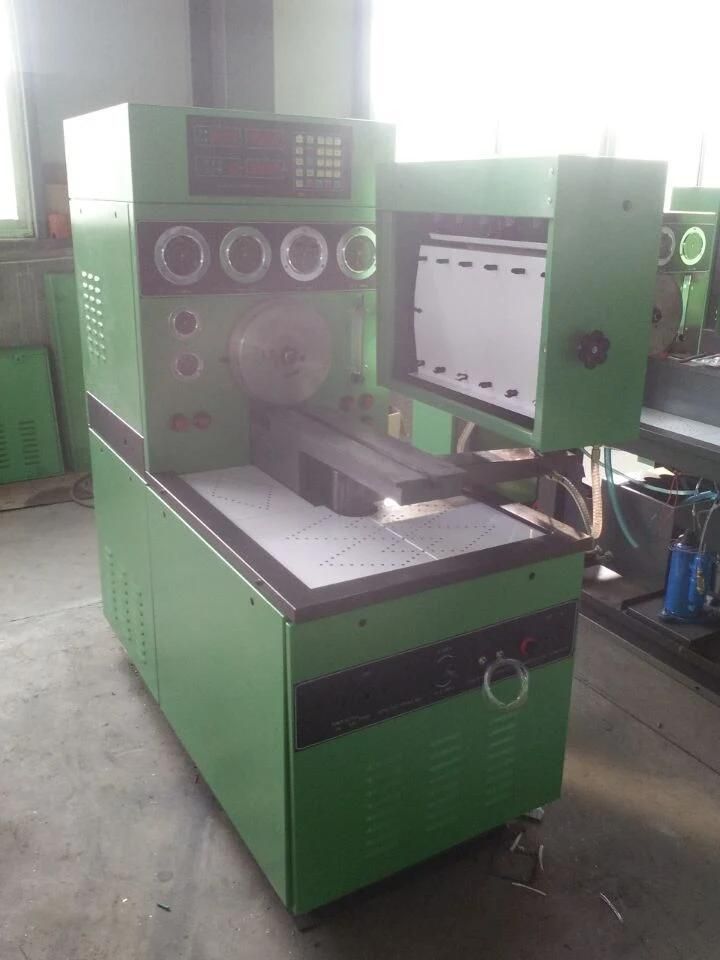

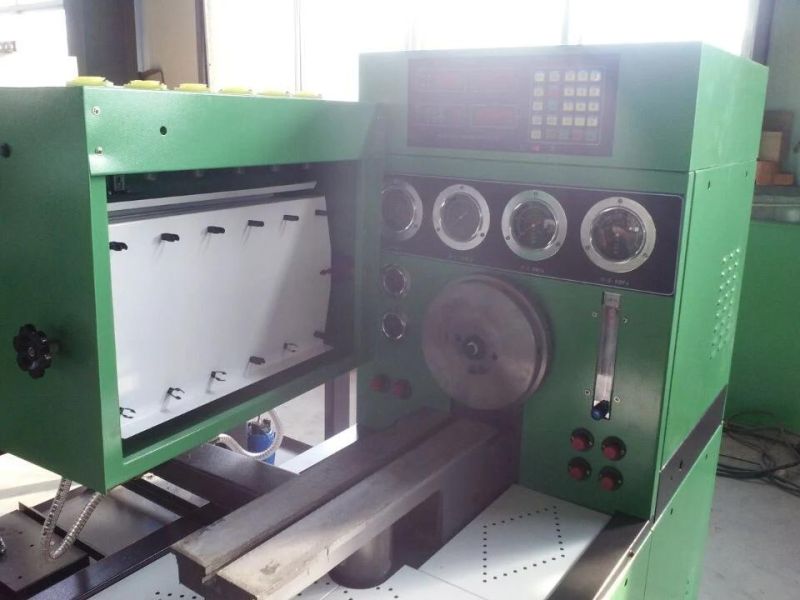

6cylinder 5.5kw Mini Size Test Bench
Hubei Fotma Machinery Co., Ltd.- Testing Equipment Type：Car Fault Detector
- Certification：CE, ISO
- Update Method：by Email
- Condition：New
- Standard：Standard
- Test Equipment：Common Rail Injector Tester Bench
Base Info
- Model NO.：12PSDW055C
- Brand：Fotma 12psdw
- Function：Testing Common Rail Injector, Bosch, Denso, Delphi
- Color：Blue, Yellow, Green
- Warranty：1 Year
- Test Data：More Than 1000PCS Test Data
- Cylinder：6 Cylinder
- Transport Package：Plywood Box
- Specification：CE, ISO
- Trademark：FOTMA
- Origin：China
- HS Code：9031809090
- Production Capacity：100unit,Month
Description
Specifications
No.
Items
Data
1
Main motor output power(kw)
7.5,11,15,18.5
2
Frequency Converter
Delta
3
Stroke Counting (Rpm)
50-9999
4
Standard injectors
ZS12SJ1
5
Power of fuel pump motor (kw)
0.75
6
Scope of rotate speed (r/m)
0~4000
7
Number of cylinders
12
8
Height of principal axis center (mm)
125
9
Filter oil precision of test bench(μ)
4.5~5.5
10
Volume of big and small volumetric cylinder(ml)
150 45
11
Volume of fuel tank(L)
40
12
DC power supply
12/24V
13
Low pressure of fuel oil pressure(Mpa)
0~0.6
14
High pressure of fuel oil pressure(Mpa)
0~6
15
Pressure Gauge for VE Pump (Mpa)
0-1.6
16
Pressure Gauge for VE Pump (Mpa)
0-0.16
17
Control temperature of fuel (°C)
40±2
18
Flywheel inertia(kg*m)
0.8~0.9
19
Scope of rack bar stroke(mm)
0~25
20
Measuring range of flow meter(L/m)
10~100
21
DC electrical source(V)
12 24
22
Positive pressure of air supply(Mpa)
0~0.3
23
Negative pressure of air supply(Mpa)
-0.03~0
24
Dimension of Packing ( L*W*H(m ))
2.42*1.14*1.73
25
Gross weight of Test bench( kg)
850-900
26
Color
GREEN, BLUE or any color
