• Condition：New
• Standard：Standard
• Transport Package：Carton Box
• Specification：51cm*38cm*14cm
• Origin：China
• Package size per unit product：51.00cm * 38.00cm * 14.00cm
• Gross weight per unit product：6.500kg
• Lead Time：1 days (1 - 3 Pieces) 2 days (4 - 5 Pieces) To be negotiated ( > 5 Pieces)

Basic Info.

Condition New Standard Standard Transport Package Carton Box Specification 51cm*38cm*14cm Origin China

Packaging & Delivery

Package size per unit product 51.00cm * 38.00cm * 14.00cm Gross weight per unit product 6.500kg Lead Time 1 days (1 - 3 Pieces)
2 days (4 - 5 Pieces)
To be negotiated ( > 5 Pieces)

Product Description

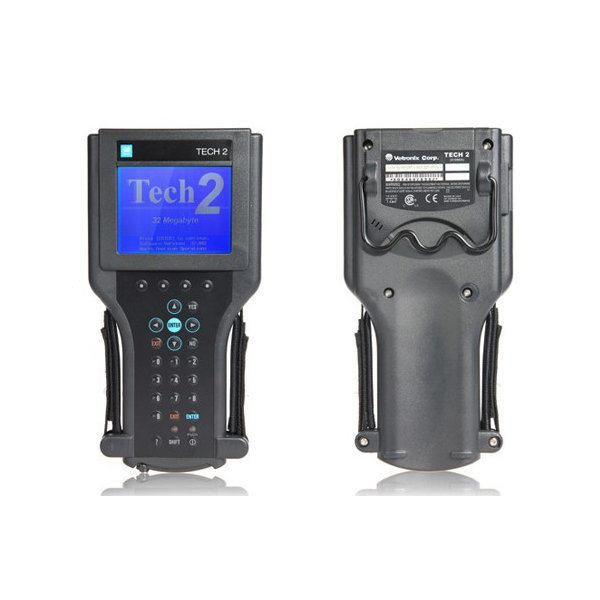

GM Tech2 GM Scanner-CANdi & TIS with Latest Version till 2014



Highlights of GM Tech2:
1.It's with best quality. The differnece from the normal quality is only the VCI quality.
2.It supports GM/SAAB/OPEL/SUZUKI/ISUZU/HOLDEN Expert/Australia Holden if you select it with all softwares before you place order.
3.TIS2000 do till 2008 year for GM  and Opel car programming cars.
4.TIS2000 for SAAB support for SAAB car programming before 2008 year.
5.The software is the latest till 2014.
6.For Opel software update to newest V167,support 1997-2014 year.
7.For Holden software update to V149 version,support 1999-2013 year.

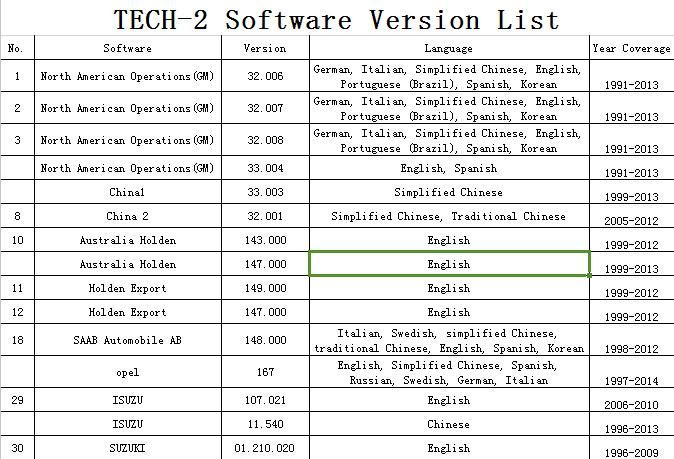

Software Listing :
GM
GM-English         33.004 1991-2014
GM-Spanish         33.002 1991-2014
GM-Germany          32.007 1991-2013
GM-Japanese           32.006 1991-2013
GM-French             32.007 1991-2013
GM-Italiana           32.007 1991-2013
GM-Portuguese         32.002 1991-2013
GM-Korean             32.002 1991-2013
GM-China               32.002 1991-2013

OPEL
OPEL-English      Newly Update to V180  1997-2014
OPEL-Italian       Newly Update to V180   1997-2014
OPEL- Polski       Newly Update to V180   1997-2014
OPEL- German    Newly Update to V180   1997-2014
OPEL- Turkish     Newly Update to V180   1997-2014
GM Tech2 Card Opel Software Update to V180 Support Cars from the Year 1997 to 2014

SUZUKI
SUZUKI-English   01.210.020

SAAB
SAAB-English    148.000

ISUZU
ISUZU-English  CAN-BUS V180 2006-2015 (CAN-BUS support car models after 2010)
ISUZU-English  K-Line  11.680  1996-2014 (K-line support car models from 1996 to 2014)

Holden
Holden-English 149.000  1999-2013 (For North American Area Only)
Holden-English   147.000  1999-2012 (For Australia)

ISUZU-English   K-Line  11.62   1996-2013 (K-line support car models from 1996 to 2011)



GM Tech2 Description:
The Tech-2 is the same tester GM Technicians use to diagnose GM vehicles. The Vetronix Tech 2 comes with Authentic GM software and provides support for on-board diagnostics on all GM systems 1992 thru 2014.
Car model supported: GM/SAAB/OPEL/SUZUKI/ISUZU/HOLDEN Expert/Australia Holden

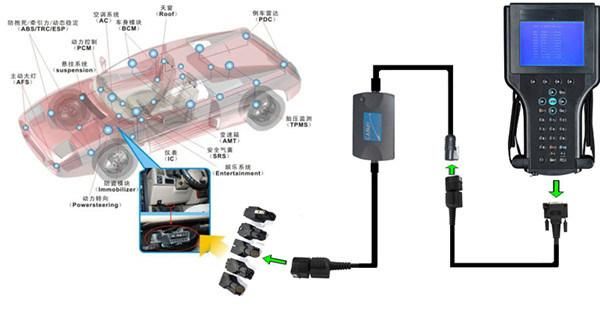

GM Tech2 Connection with Candi interface Picture

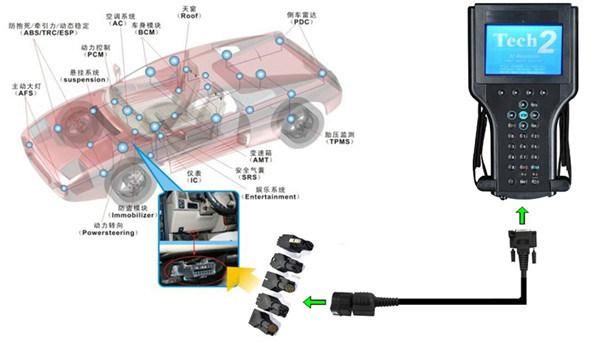

GM Tech 2 Connection without Candi interface picture



GM Tech2 Specification:
1) Authentic software for GM in the Tech 2 Flash means the most comprehensive diagnostic software available for latest model vehicles for GM.
2) Support for on-board diagnostics on all systems 1992 thru current year for GM.
3) Removable hardware modules provide insurance against scan tool obsolescence.

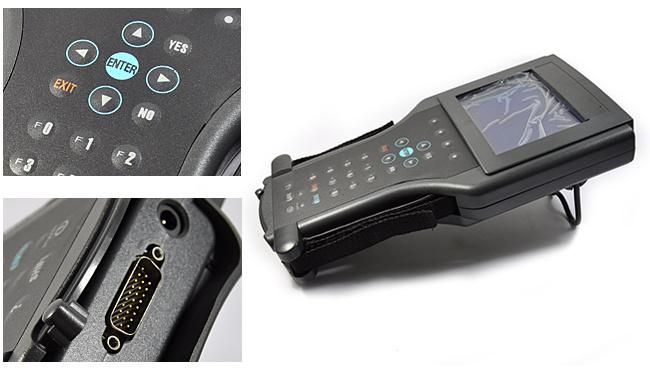

4) Large, easy-to-read backlit screen.
5) RS232 & RS485 ports provide the avenue to connect future devices to your Tech 2 Flash.
6) Ability to capture stored DTCs, Freeze Frame, and Failure Record for later review.
7) Ability to view the status of vehicle diagnostic tests as they run.
8) Bi-directional The authentic GM 1992-current year software will provide full bi-directional control when performing power train, chassis, and body diagnostics.
9) Vetronix Tech 2 Specifications
10) Dimensions: 12
11) Microprocessor: 32 bit,16 MHz

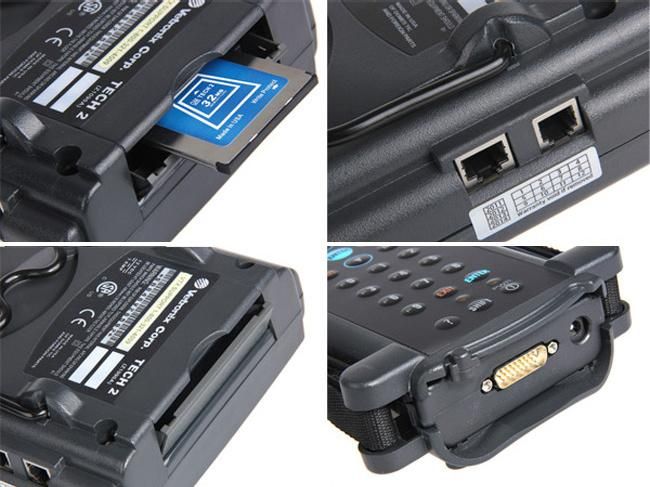

12) Memory: 32 MB flash type II PCMCIA. Type III slot available for future expansion.
13) Communications: Integral RS232 communication port.
14) Screen: 3.8.8 backlit monochrome with full graphics capability: 320,40 pixels. Displays up to 9 vehicle parameters at once .Download Tech2 Brochure (5.2 Mb)

GM Tech2 Features
1) Authentic GM software in the Tech 2 Flash means the most comprehensive diagnostic software available for late model GM vehicles.
2) Support for on-board diagnostics on all GM systems 1992 thru 2011.
3) Removable hardware modules provide insurance against scan tool obsolescence.
4) Large, easy-to-read backlit screen.
5) RS232 & RS485 ports provide the avenue to connect future devices to your Tech 2 Flash.
6) Ability to capture stored DTCs, Freeze Frame, and Failure Record for later review.
7) Ability to view the status of vehicle diagnostic tests as they run.
8) Bi-directional The authentic GM 1992-current year software will provide full bi-directional control when performing power train, chassis, and body diagnostics.

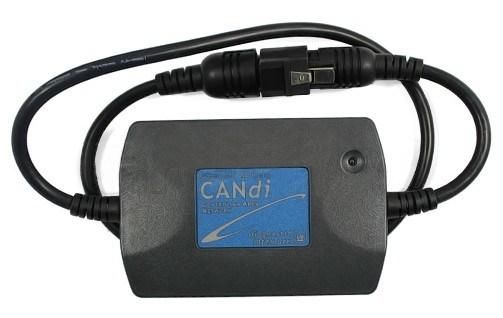

An industry change in protocol from OBD II to Controller Area Network (CAN) has begun. In order to perform diagnostics on a vehicle that uses the CAN interface; you will need the Tech 2 Flash and a CAN diagnostic interface module. The module connects between the Tech 2 Flashs diagnostic link cable and the OBD adapter. Once the module is connected, it can be used on all GM vehicle applications,even those vehicles using other platforms such as OBD I and OBD II.

The Following GM Vehicles Utilize The CAN Interface
05 Buick Allure (3.6L)
05 Buick LaCrosse (3.6L)
05 Buick Rainier (5.3L)
04-05 Buick Rendezvous (3.6L)
04-05 Cadillac CTS (3.6L)
04-05 Cadillac SRX (3.6L / 4.6L)
04-05 Cadillac XLR (4.6L)
05 Cadillac STS (3.6L / 4.6L)
05 Chevrolet Cobalt (2.2L)
05 Chevrolet Corvette (6.0L)
05 Chevrolet Equinox (3.4L)
05 Chevrolet TrailBlazer (5.3L)
05 Chevrolet SSR (6.0L)
04 Chevrolet Malibu (Body/Chassis only)
05 Chevrolet Malibu (3.5L)
05 GMC Envoy (5.3L)
05 Pontiac G6 (3.5L)
05 Pontiac GTO (6.0L)
05 Pontiac Pursuit (2.2L)

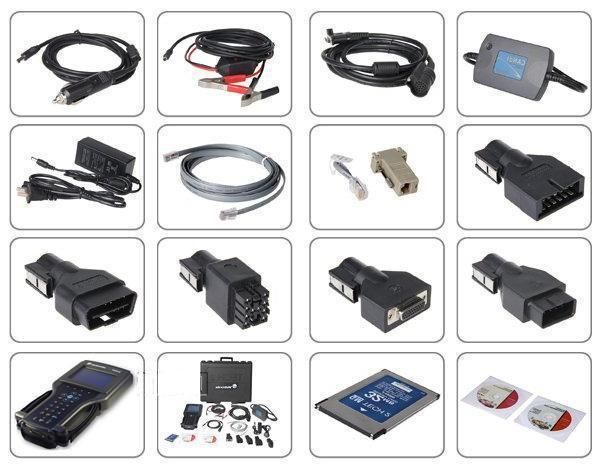

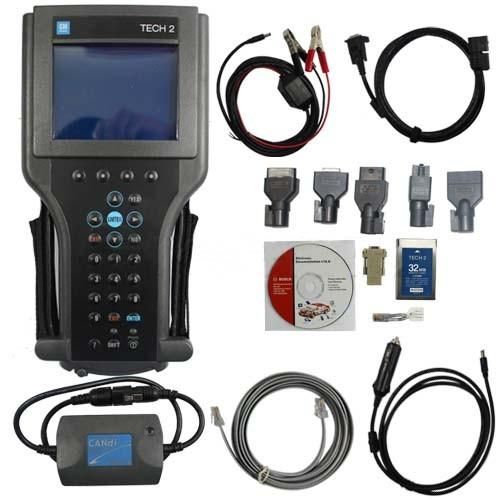

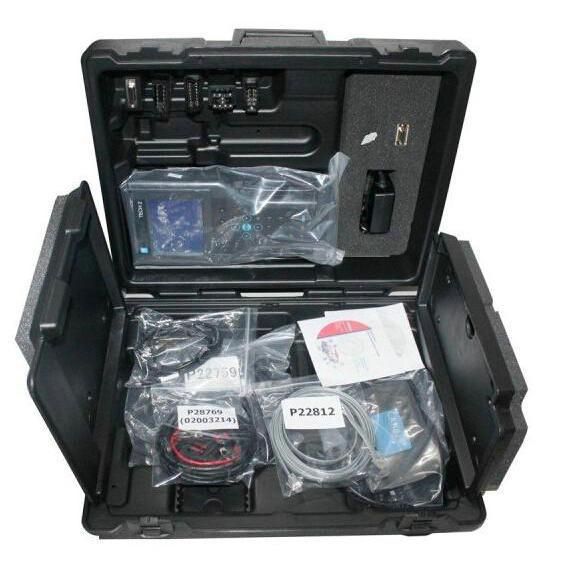

GM Tech2 Package List:
Tech-2 Flash Tester
32 MB PCMCIA Card with GM OE Applications
CAN diagnostic interface module(CANdi) and instruction sheet download (199.2 kb)
RS232 cable and user manual
RS232-DB9 adapter
DLC Cable, DLC Loopback Adapter
12V Cigarette Lighter Power Cable

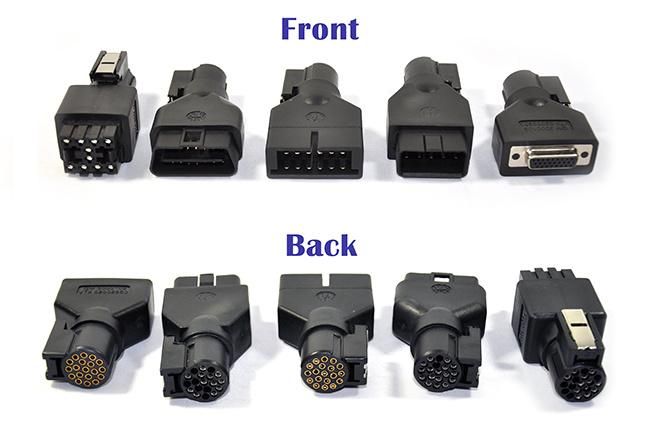

SAE 16/19 Adapter
NAO 12/19 Adapter
Battery Power Cable

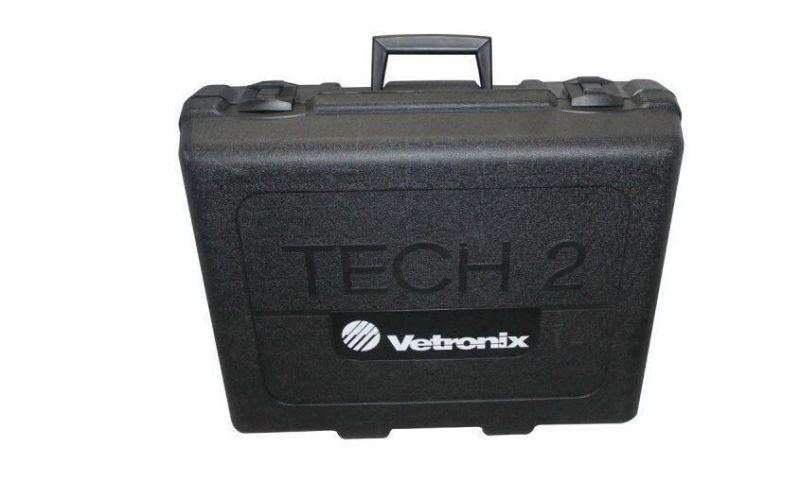

Storage Case
TIS 2000 CD



GM Tech2 FAQ:
Q1: Does GM tech2 Support Coding?
A1: Yes, it does, but you need to buy an additional TIS2000, TIS2000 support cars programming until 2007 year.

Q2: Can TECH2 support key coding and electronic control unit programming for all OPEL and Isuzu?
A2: GM tech2 diagnostic scanner can't support key programming; as for electronic control unit programming, you need to additionally buy a GM TECH2 and a TIS2000, but TIS2000 only support GM and Opel, not support Isuzu.

Q3: GM TECH2 contains Saturn software?
A3: yes, Saturn software is included in the GM software English and support from 1991 to 2010 year.

Q4: Is GM TECH2 available on my Cadillac year 1996?
A4: Yes, GM TECH2 diagnostic tool works with Cadillac.

Q5: Does GM Tech 2 work with Australian Holden 1998?
A5: GM tech2 diagnostic scanner is only compatible with North American Holden, and our software for Holden only work with Holden from 1999-2012.
