Wheel Balancing Used Auto Workshop Equipment and Machine
Yingkou Yuanmech Machinery Co., Ltd.- Warranty：14 Months
- Balancing Type of Wheel：Off-Car Type
Base Info
- Model NO.：B657
- Balancing Range：Small Size Wheel
- Design Type：Horizontal Type
- Function：Dynamic Balance, Static Balance, Wheel Balance, Motorcycle Balance, Well Balanced, Auxiliary Implicit Procedure, Calibration Procedure
- Working Noise：<70db(A)
- Condition：New
- Product Name：Wheel Balancing Used Auto Workshop Equipment
- Power：250W
- Balancing Speed：200 R,Min
- Motor Power：110V,220V,240V, 50Hz,60Hz
- Rim Diameter：10-28"
- Max Wheel Diameter：1000mm
- Max. Wheel Weight：70kg
- Rim Width：1.5-20"
- Calibration Wheel：15" Steel Rim Wheel
- Max Wheel Weight：70kg
- Machine Weight：N.W:105kg G.W:120kg
- Packing Size：1000*650*1160mm

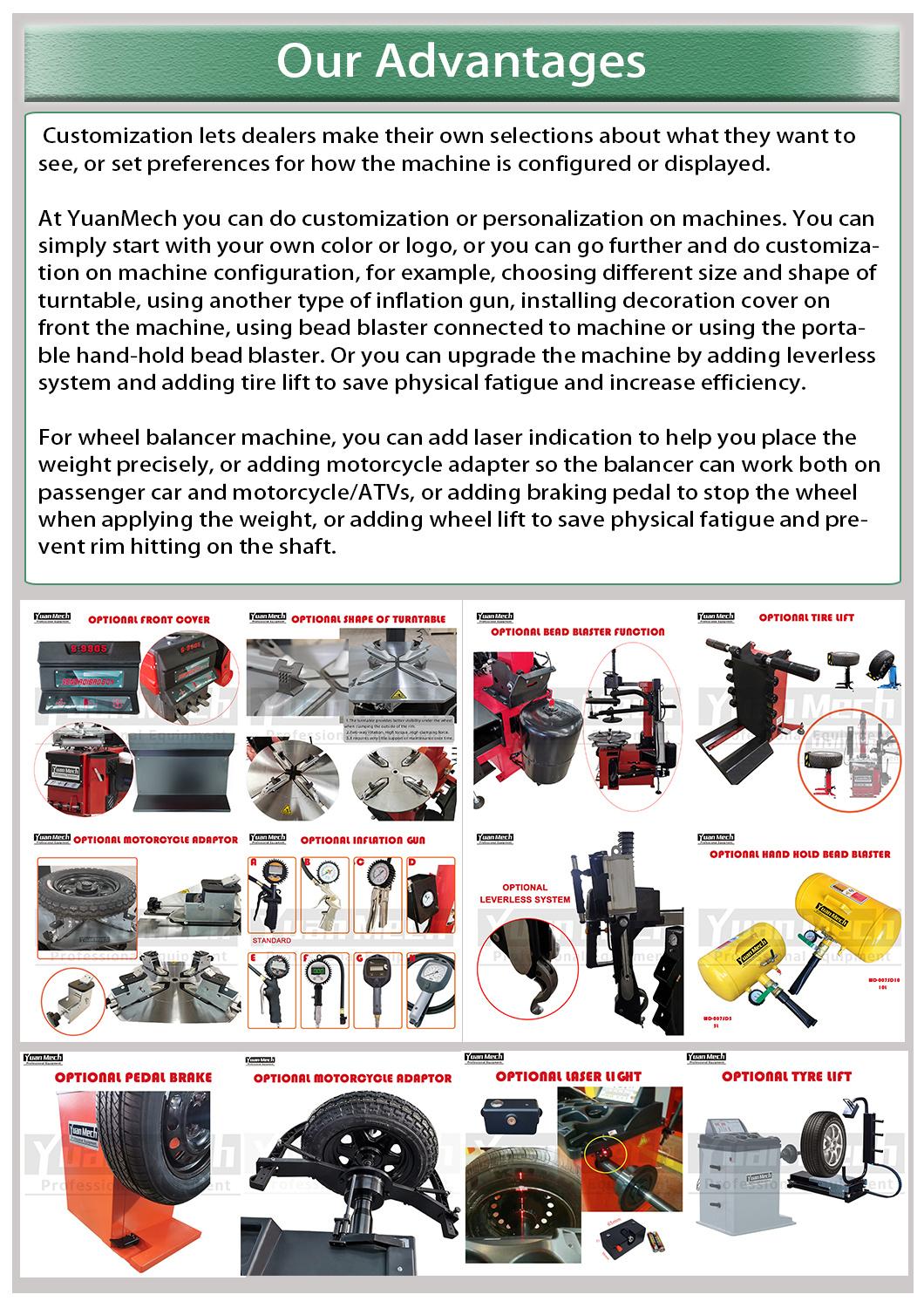

- Optional Specifications 1：Optional Pedal Brake
- Optional Specifications 2：Optional Laser Light
- Optional Specifications 3：Optional Motorcycle Adaptor
- Transport Package：Plywood
- Specification：1000*650*1160mm
- Trademark：YuanMech
- Origin：Yingkou, Liaoning, China
- HS Code：9031100090
- Production Capacity：3000PCS,Month
Description
1. Why is filter-regulator (FRL) so important?
It dry the air so there is no moisture inside pneumatic components. It lubricates the rubber seals to extend its service life. In general FRL is important to maintain long service life of the machine.
2. Why sometimes the balancer is accurate in DYNAMIC but not in ALU?
Because in Dynamic it's easy to place the weight in correct position.
But in Alu there is possibility that the stick on weight is placed at wrong position, especially when the weight is asked at inner plane. (Please contact us if you have more questions on this topic)
3. How does the wheel balancer work? What are the functions of the main components?
Piezoelectric sensor get "vibration" signal and send it to CPU. Encoder board get "position" signal and send it to CPU. CPU calculate imbalance based on these signals, wheel dimensions and balancing mode. (Please contact us if you have more questions on this topic)
