• Model NO.：CTZZ-3
• Measuring Range of Wheel Load (Kg)：0-1500
• Weighing Plate Dimensions：800*500
• Transport Package：Metal Frame
• Specification：CE
• Trademark：AA4C
• Origin：China
• HS Code：8479899990
• Production Capacity：100units,Month

Basic Info.

Model NO. CTZZ-3 Measuring Range of Wheel Load (Kg) 0-1500 Weighing Plate Dimensions 800*500 Transport Package Metal Frame Specification CE Trademark AA4C Origin China HS Code 8479899990 Production Capacity 100units/Month

Product Description

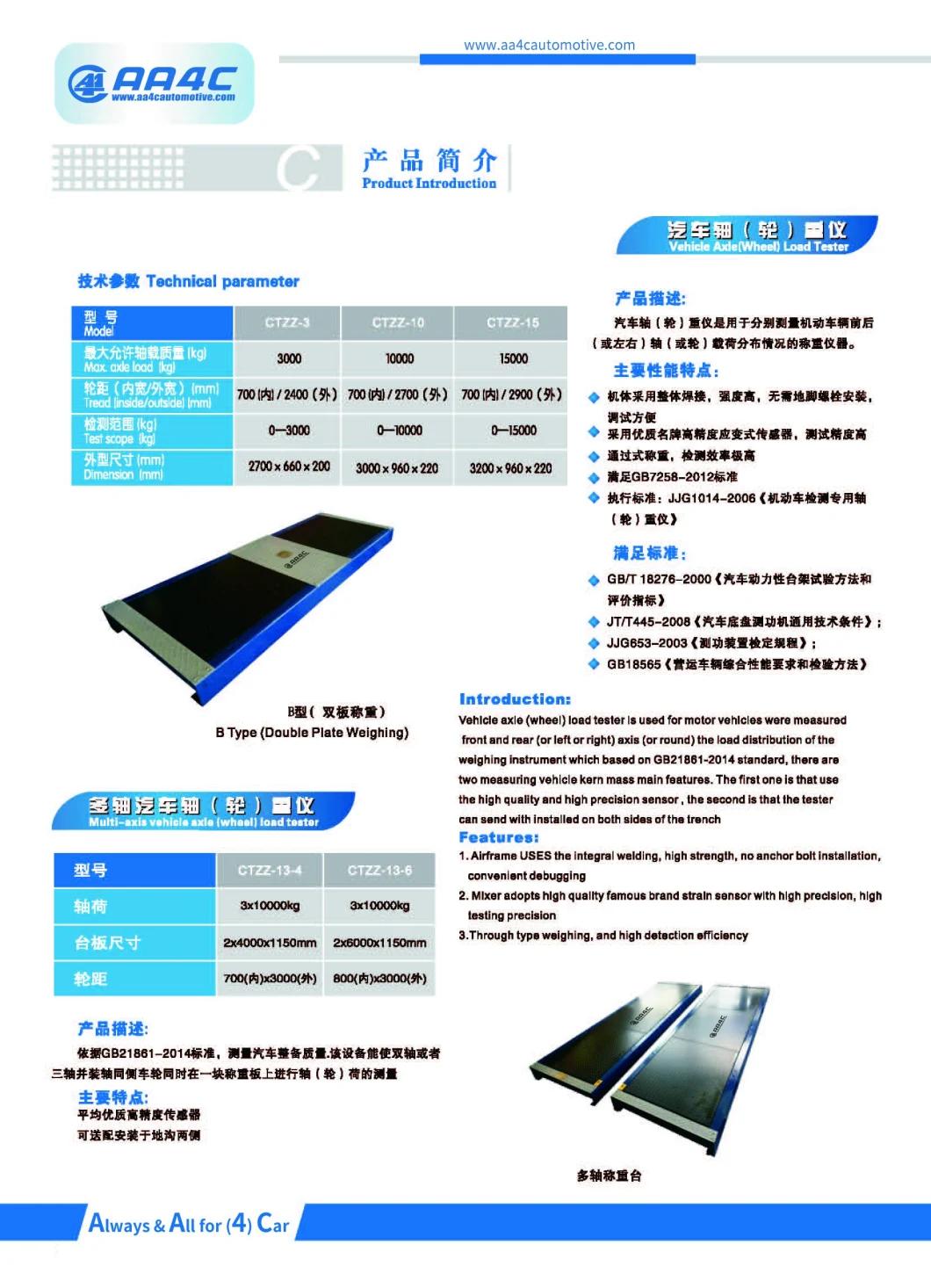

AA4C Vehicle axle (wheel) load tester

Technical parameters

Model	CTZZ-3	CTZZ-10	CTZZ-15
Max. passing axle load (kg)	3000	10000	15000
Measuring range of wheel load (kg)	0-1500	0-5000	0-7500
Weighing plate dimensions	800*500	1000*800	1100*800
Tread(inside/outside)mm	700/2400	700/2700	700/2900
Installation dimensions (mm)	2700×660×200	3000×960×220	3000×960×220

 Product description:
 Vehicle Axle (Wheel) Load Tester is to measure the wheel load of a vehicle, the measured weighing value is an important factor for calculation of the brake efficiency


Main features:

1. Extra-strong structure boby. The body is welded as a whole with high strength and durability,
2. No anchor bolt is required for installation, so it is convenient and quick for installation and debugging
3. Anti-slanting weighting design. Accurate and stable measure
4. It can measure the wheel mass, axle load mass and vehicle mass
5. High quality brand-name high-precision strain type sensor, high test accuracy

Quick drive-through testing mode ,which can make the detection efficiency extremely
