• Update Method：by Internet
• Condition：New
• Standard：Standard
• Transport Package：Carton Box
• Specification：42cm*35.5cm*13cm
• Origin：Korea
• Package size per unit product：19.00cm * 22.00cm * 21.00cm
• Gross weight per unit product：3.800kg

Basic Info.

Update Method by Internet Condition New Standard Standard Transport Package Carton Box Specification 42cm*35.5cm*13cm Origin Korea

Packaging & Delivery

Package size per unit product 19.00cm * 22.00cm * 21.00cm Gross weight per unit product 3.800kg

Product Description

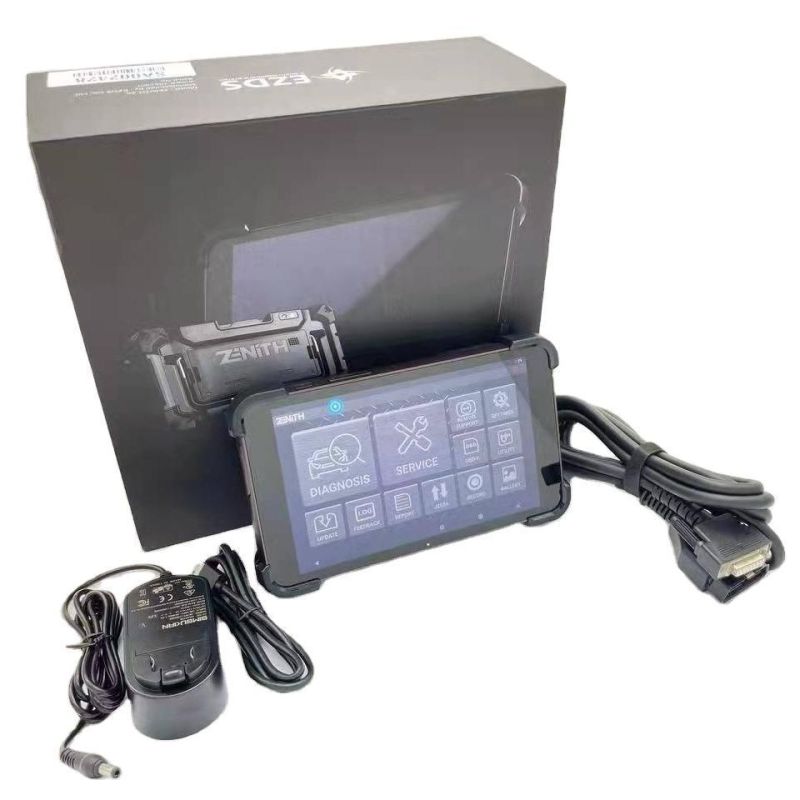

Original Basic Version G-Scan Z - ZENITH Z5 Scan Tool Support Cars And Trucks One Year Free Update Online



Introducing our first autmotive diagnostic scan tool inZ series. In combination of our vast diagnostics software and world's best industrial tablet, Z5 will give you adiagnostic confidence.





FEATURES



Fast Performance CPU: A powerful octa-core processor for optimum diagnostic performance and fast operation to perfectly manage workshop conditions.

Smart Operating System: Based on Android 9 OS providing quick boot-up, multi-tasking, fast networking and enhanced system security.



Eyellumicate™ 8" LCD: Eyellumicate™ Display LCD provides a crystal clear view both indoors and out,offering field-optimized display under bright workshop environment.

Eyellumicate™ Display Technology: Eyellumicate™ Display technology enhances touch functionality and allows technicians to perform tasks with work gloves on under any harsh workshop conditions.



Service Function: Diagnostic software programmed by engineers with automotive technicians in mind. Regularand urgent on-demand software updates bring diagnostic confidence to the user.

J2534 Pass-thru: Zenith Z5 functions as a J2534 'PassThru' device for programming the ECUs for multiple carlines.



24V Commercial Vehicles: Zenith Z5 hardware accepts power & signals of a 24V system, and supports Bidirectional communications with commercial trucks and buses.



Wireless Connectivity: Robust connectivity allows for smart updates, quick feedback, Teamviewer Support, Bluetooth printing, browsing and much more.



Post Diagnostic Report: An intuitively designed diagnostic report function for fast and easy creation of the report on pre and post scan results.



Lightweight, Robust Design: Compact, yet rugged. Ergonomic size to hold in one hand for long periods of time. Zenith Z5 is a light weight scan tool (680g or 1.5 lbs) with sleek, ruggedized design.





Simple, Yet Intuitive Layout: Zenith Z5 offers a simple iconic main menu for easier and quick access to desired functions. With 3 available display modes, the user cancustomize the theme and button locations.



Service Function: Time is money. Z5 offers shortcuts to the most frequently used functions in the workshops to save time for technicians to navigate through the original menu layout.

Auto Selection: Zenith Z5 offers option to automatically detect the vehicle information including the VIN number,model year, model name, engine type, and other necessary information that are retrieved.





Quick System Search: 'System Search' option automatically scans all the vehicle systems, reports fault codes, and provides access to advanced diagnostic functions in each system detected.





Data Log & Feedback System: In a case ofcommunication or function error, a user can log the bi-directional data transmission between the tool and vehicle control systems. This log can be sent to the software development team via the log capture & transfer function. The data log files received will be analyzed, feedback will be passed on, and a patch fileupdate provided, if necessary, often within 24 hours of receiving the report, during working days. (Exceptions
may apply).





Pre & Post Diagnostic Report: Z5 offers easy creation of diagnostic report with Pre-scan and Post-scan result. Not only you can save the reports as a PDF file in the internal/external memory, with the help of its advanced network connectivity, you can print the report directly with a wireless printer or send them to a desired E-mail address.





J2534 Pass-thru: 'System Search' option automatically scans all the vehicle systems, reports fault codes, and provides access to advanced diagnostic functions in each system detected.



Fast & Responsive Graphing Mode: Z5 offers a fast and intuitive graphing mode which instantly self-adjusts maximum and minimum scale, enabling the users to observe and compare live data more efficiently.







Full Text Description: No more acronyms and cutting of significant texts. Z5 offers the long-text DTC descriptions in full screen, so you get all the information you need.





Smart Update: Z5 offers a quick and easy software update process with its strong network connectivity. Previous or latest software versions for each carline canbe quickly downloaded directly from the server, as per the user's preference.



Vehichle List:





PRODUCT SPECIFICATIONS



Category	Specifications
CPU	Octa Core Processor @ 2.0 GHz
Operating System	Android 9
System Memory	Internal 32GB, RAM 3GB
External Memory	Micro SD Card
LCD	8.0 inch FHD (1920 x 1200)
Input Devices	Capacitive Touch Screen, 3 Hard Keys (Power, Volume +, Volume -)
Camera	8 megapixel auto-focus with LED flash
Sound	Loud Speaker | 1 Microphone; 3.5 pi standard audio jack
Rechargable Battery	Li-ion 3.8V 3200mAh
Operating Voltage	DC9 ~ 30V
Sensors	Ambient Light, Proximity, Gyroscope, Accelerometer
Dimension	225 x 136 x 33mm
External Port	USB 1ea, USB C 1ea
Network	RJ45 Ethernet, WiFi 802.11 a/b/g/n, Bluetooth 4.2

AC/DC Adapter

Category	Specifications
Input Power	100 ~ 240V AC
Frequency	50 / 60 Hz
Input Currenty	1.5 A
Output Voltage	12V DC
Output Current	3.2 A

Supported Communication Protocols

CAN (High speed, Low speed, Single)

ISO-9141, ISO-9141-CARB, KWP-2000

SAE-J1708, SAE-J1587

J1850(PWM/VPW)

Melco Pull-Down



CONTENTS

1pc x Zenith Z5 Main Body
1pc x Main Cable for Zenith Z5
1pc x AC/DC Adapter
1pc x Quick Manual
