• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Door Width(M)：3.0
• Door Height(M)：2.66
• Air Flow (M3/H)：30000
• Lighting System：Upper Light and Side Light
• Filters：High Efficiency Filter
• Color：Red Blue Orange White
• Usage：Car Painting Baking
• Vehical Suited：Saloon Car
• Warranty：Yes
• Heating System：Riello Brand Diesel Burner
• Transport Package：Iron Frame Packing and Carton Packing
• Specification：20GP
• Trademark：GUANGLI
• Origin：Guangzhou, China
• HS Code：84198990
• Production Capacity：10, 000 PCS,Year

Basic Info.

Heating Mode Diesel Paint Mist Treatment Dry-type Condition New Door Width(M) 3.0 Door Height(M) 2.66 Air Flow (M3/H) 30000 Lighting System Upper Light and Side Light Filters High Efficiency Filter Color Red Blue Orange White Usage Car Painting Baking Vehical Suited Saloon Car Warranty Yes Heating System Riello Brand Diesel Burner Transport Package Iron Frame Packing and Carton Packing Specification 20GP Trademark GUANGLI Origin Guangzhou, China HS Code 84198990 Production Capacity 10, 000 PCS/Year

Product Description

Guangli Factory High Quality Automatic Powder Coating Car Spray Paint Booth with CE
Description

GuangLi Spray booth Feature

--Wall panel :sandwich style,δ=50mm,rock wool.(Polystyrene is optional)
--Basement:steel structure,full grids.
--Ramp:2pcs of grids.
--Door:3 pcs of front door without aluminum side cover.1 pc of emergency door with pressure lock.
--One 11kw intake fan and one 11kw exhaust fan.
--Water soluble paint with hot-air acceleration system: 1set.
--4m straight exhaust ducts,one 90° bend,and one 60°bend,5m straight chimney and 2 small bends.
--Electrical VCD as optional.One pressure meter.
--Spraying/baking transition damper,automatically air controlled.
--Heat exchanger:stainless steel.RIELLO /RG5S Burner.
--Roof filter:6 pcs of filter,mounted above support frame,which is made of steel and podwer coated.
--5pcs of floor filter and 2pcs of air mouth filter .
--Upper light:10sets,4*40w per set.side lights:8sets,4*40w.
--Control box: imported components,overload,overheat,phase-lacking,phase-lacking protection,engine Y/△ start.
--Automatically stop when preset time is up.
--Constant temperature spraying.

Model	GL7-CE
External size (m)	7.0x5.6x3.6
Internal size (m)	6.9x3.9x2.7
Entrance width(m)	3.0
Entrance height(m)	2.66
Fan capacity( m 3 /h )	30000
Inside No-load air speed (m/s)	0.3-0.5
Drying Temperature	60-80
Oil consumption (L/unit)	6-8
Power (kw)	26
Suitable Automobile Type	Saloon Car

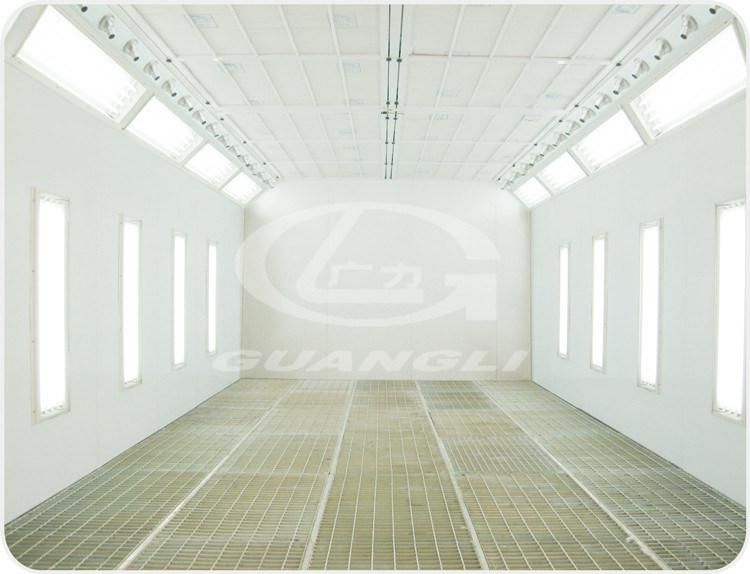

Spray Booth Details' Show

Company Profile
GZ GUANGLI EFE CO.,LTD is a  professional spray booth and car lift manufacturer in China wtih  more than 22 years technical and production experience.

Founded in 1994, Guangli has our own enterprise headquarters,which covers 58,000M²of grounding area and 36,000M²of building area.

GZ GUANGLI EFE CO.,LTD is the first and the largest auto spray booth manufacturer in China, having a good reputation among Chinese auto-maintenance enterprise. The sales volume of spray booth ranks top in this field over years.

Equipment

We have imported a Full-auto production line and many facilities from Europe, owning the most advanced production equipment in China.

Exhibition



Service after the Sale

Our relationships with our customers don't stop once the product has been installed. Guangli offers many options for service and maintenance, and provides a full line of replacement parts and filters to ensure your products operate at peak efficiency.

FAQ
1.Q:Are you Manufacturer or Trading company?
A:We are a professional manufacturer with our own export department.
2.Q:Where is your company located? How can I visit there?
A:Our company is located in Guangzhou.All clients, from home and abroad, are warmly welcomed to visit us.
3.Q:How about the quality of the products?
A:With the advanced machines, strong and professional R&D team and material
sources,our products are excellent in performance and craftsmanship.
4.Q:Can we customize our product?
A:Yes,you can.Customized material and standard are acceptable. We can provide
 different standards according to your market and favor.
5.Q:What's the MOQ for each items?
A:We accept one piece/set each time.
6.Q:What's the delivery time?
A:If the product you ordered is our standard configurations, it's 7 workdays.

Why Choose Us
1.More than 20-year experience in Spray booth and car lift field.
2.Superb unique technology and Automatic production line.
3.Large order can be placed.
4.Advanced equipment and exquisite workmanship.
5.Durable and reliable.
6.Excellent pre-sales and after-sales service.
