• Model NO.：BY-15-5
• Brand：Baoyue
• Coating：Painting
• Airflow Direction：Fully Undershot-type
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Types：Truck Paint Booth
• Color：Orange
• Voltage：1X220V,3X380V,50Hz
• Purification：≥95%
• Noise Db (a)：≤70
• Air Capacity：3000m3,H
• Free Air Speed：≥0.3m,S
• Frequency of Air Change：≥294 Time ,H
• Safety：with Pressure Emergency Door
• Max Heating Productivity：520000kcal,H
• Transport Package：Standard Export Package
• Specification：CE
• Trademark：Bauyues
• Origin：Guangdong, China
• HS Code：8419899090
• Production Capacity：30set,Month

Intake and Exhaust
system
 Inlet: 2×11KW turbo fan, air capacity for each fan: 30000m3/h.Outlet: 2×11KW turbo fan, air capacity for each fan: 30000m3/h.. Manual damper, 16m ducts, 2
pcs  900 bend, 2 pcs 300 bend, 2 pcs intake hoop.Heating system2 sets Italy RIELLO RG5S diesel burner, stainless steel heat exchanger, pneumatic damper
actuates from spraying to baking cycle. Max. heating productivity: 520000kcal/h, max
temperature: 80°C, 8pcs chimney, 2 pcs bendPurification system Pre-filter (pocket type), ceiling filter, fibreglass filter, activated carbon filter (pocket type).Roof50mm EPS panel.Control systemSpraying, heat spraying, baking, time setting, lighting switch, failure indicator, thermostat, power
supply switch, emergency stop, hour meater, temperature limiter, all motors is reduced voltage
starting.Total power50KW (Power supply 1×220V, 3×380V, 50HZ)

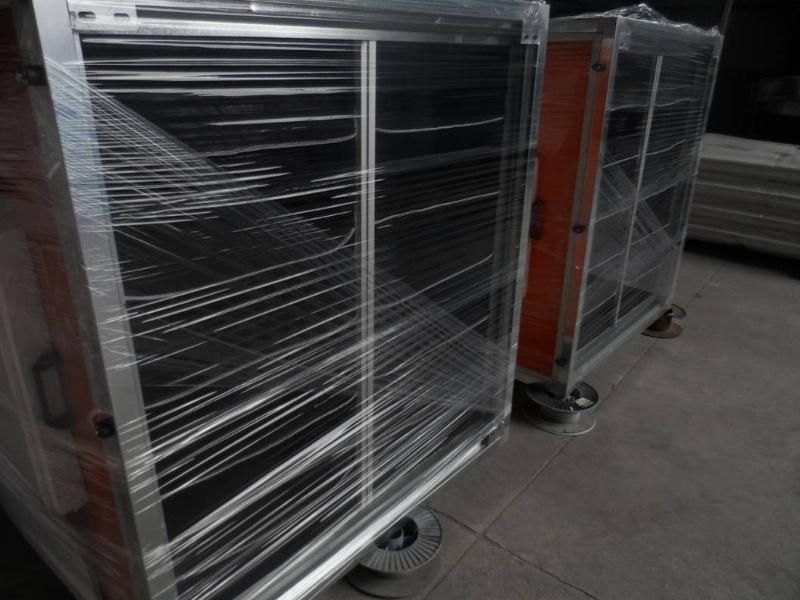

Parts details:




What customer saying:

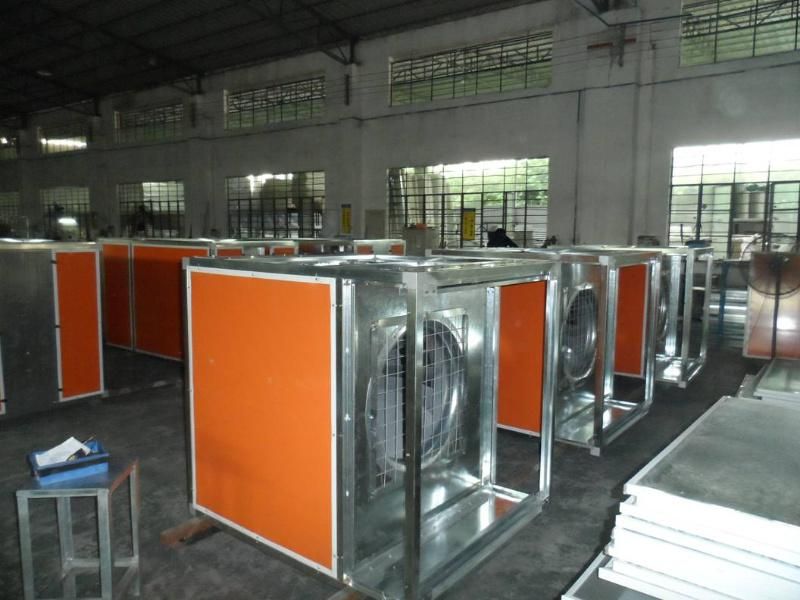

 Factory show:

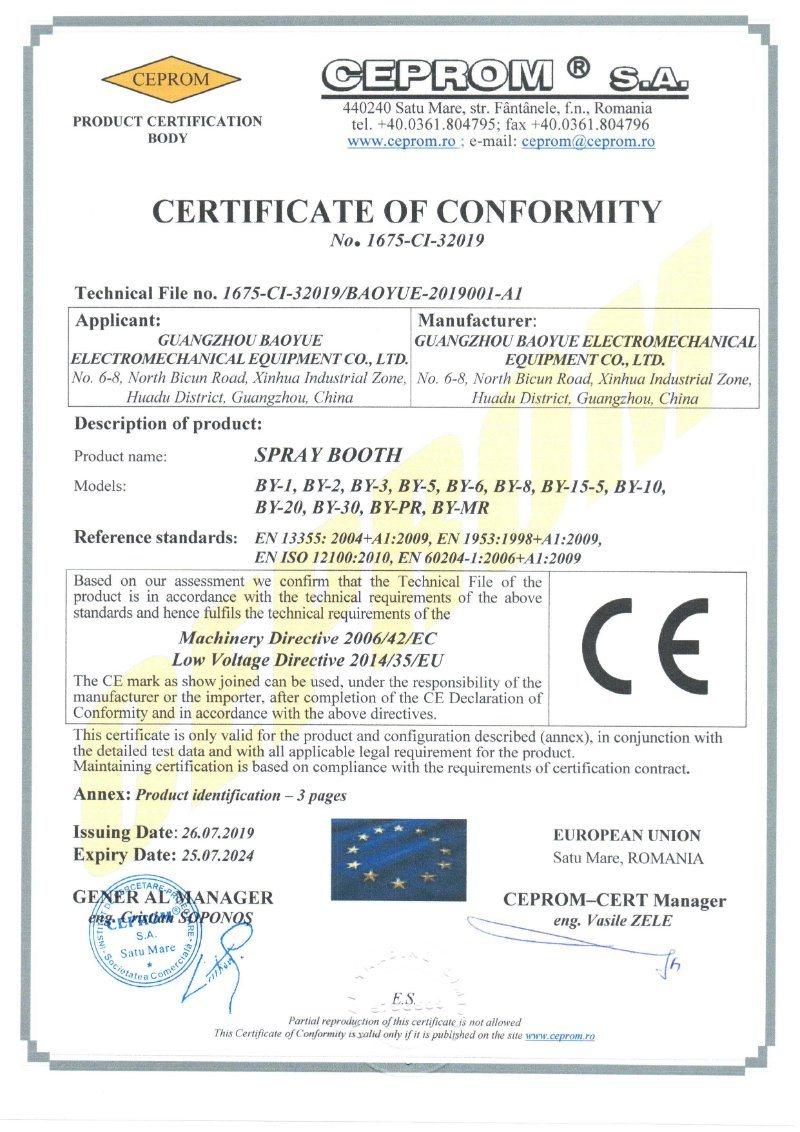

Certificate:
