• Model NO.：WLD8400
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Model：Wld8400
• External Size：7000X5450X3480mm
• Internal Size：6900*3900*2800mm
• Air Flow：30000m3,H
• Air Speed：0.3-0.5m,S
• Total Power：21kw
• Vehicle Suited：Saloon Car,Jeep,SUV
• Transport Package：Export Standard
• Specification：Standard Type
• Trademark：WeiLongDa
• Origin：Guangzhou, China
• HS Code：8419899090
• Production Capacity：2, 000 Sets ,Year

Basic Info.

Model NO. WLD8400 Heating Mode Diesel Paint Mist Treatment Dry-type Condition New Model Wld8400 External Size 7000X5450X3480mm Internal Size 6900*3900*2800mm Air Flow 30000m3/H Air Speed 0.3-0.5m/S Total Power 21kw Vehicle Suited Saloon Car/Jeep/SUV Transport Package Export Standard Specification Standard Type Trademark WeiLongDa Origin Guangzhou, China HS Code 8419899090 Production Capacity 2, 000 Sets /Year

Product Description

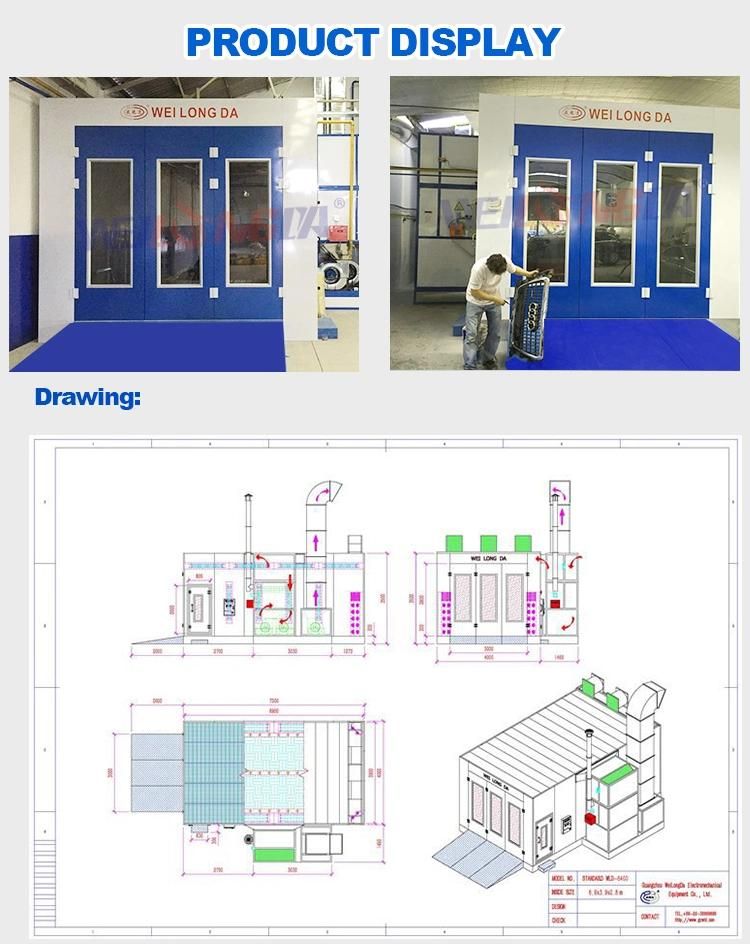

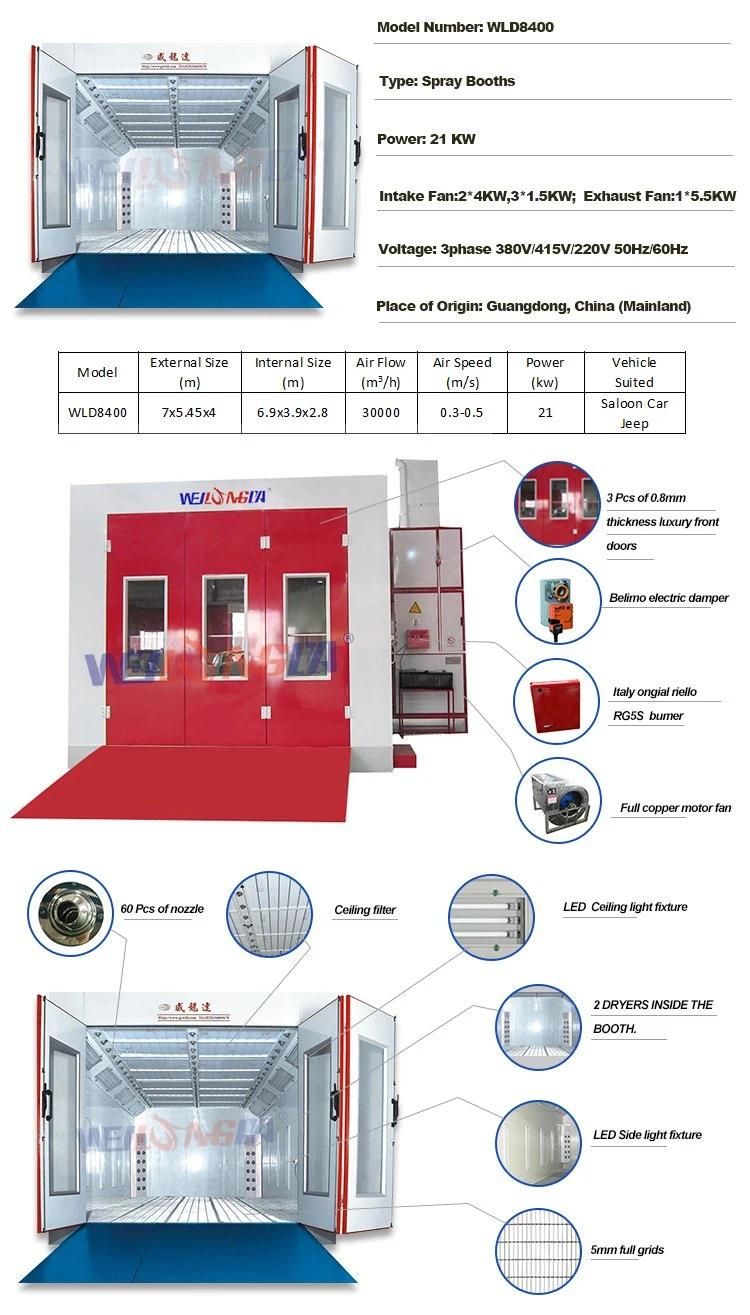

CE Car Auto Water Based Paint Spray Tan Booth Wld8400 Specifications:
Wallboard: Sandwich style EPS (epispastics polystyrene) 50mm thickness. Colorful steel skin boards 0.426mm thickness. Galvanized steel roof panel.
Basement: Galvanized steel sheet and square steel pipe construction. Whole grids with floor filter. Full ramps.
Door: 3 pcs of luxury front doors with 0.8mm thickness colorful steel skin. Size: 3000(w) x 2750(h). 1 pc of emergency door.Watching window with aluminum frame.
Air Circulation System: 2x4kw intake fan, 1x5.5kw exhaust fan. BELIMO 20N electric damper.
Water Based Paint Drying System: 60 units ceiling nozzles with 3 sets of centrifugal fans and 2 sets of dryers inside the booth for Water Based Paint.
Burner: Italy Riello RG5S diesel burner, 260000Kcal/h. The heating time 4-5min(20-60.C). Max. temperature at 80.C. Fuel consumption is 5-6kg/vehicle.
Heat Exchanger: Made of stainless steel. The heat exchange rate reaches 85%.
Lighting System: Ceiling light has 24 pcs of 16w LED lamps. Side light has 16 pcs of 16w LED lamps. 900 Lux.
Air Purification: Dual filtering structure. The primary filter can capture granules larger than 10μm. Ceiling filter capture granules bigger than 5μm. The air cleanliness in the working environment can reaches 98%.
Pollution Control System: Multi-layer fiberglass filter.
