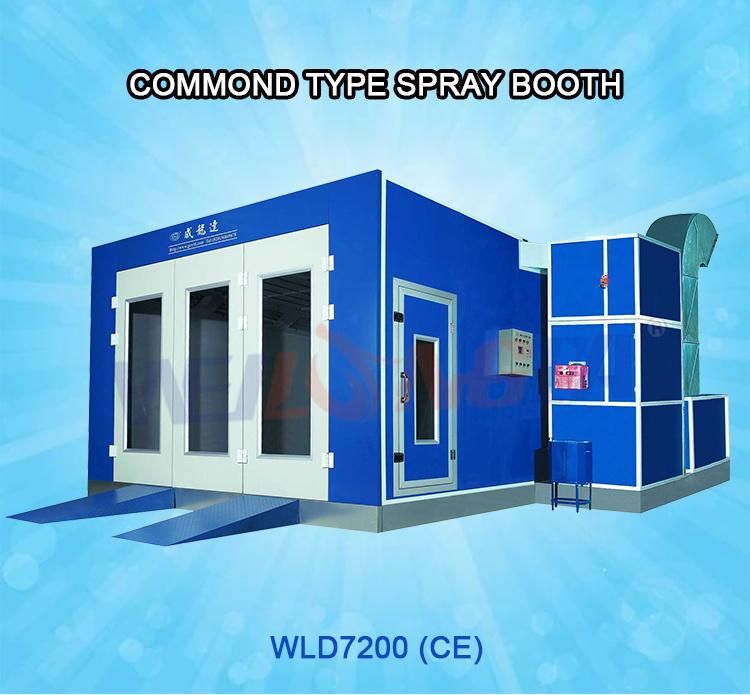

• Model NO.：WLD7200
• Coating：Painting
• Airflow Direction：Fully Undershot-type
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Model：Wld7200
• External Size：7000*5450*3480mm
• Internal Size：6900*3900*2800mm
• Air Flow：24000m3,H
• Air Speed：0.3-0.5m,S
• Power：10
• Vehicle Suited：Saloon Car,Jeep,SUV
• Delivery Time：7-10 Days
• Heating System：Diesel Burner
• Voltage：380V,220V 3pH AC 50-60Hz
• Color Choice：Red,Orange,White,Blue
• Wall Panel：EPS, Rock and PU for Optional
• Fan Type：Centrifugal Fan,Turbo Fan Optional
• Control Panel：Digital and Intelligent Control Panel
• Air System Position：Right,Left, Can Be on The Top of Spray Booth
• Transport Package：Export Standard
• Specification：Common Type
• Trademark：WeiLongDa
• Origin：Guangzhou, China
• HS Code：84193990
• Production Capacity：2, 000 PCS,Year

Basic Info.

Model NO. WLD7200 Coating Painting Airflow Direction Fully Undershot-type Heating Mode Diesel Paint Mist Treatment Dry-type Condition New Model Wld7200 External Size 7000*5450*3480mm Internal Size 6900*3900*2800mm Air Flow 24000m3/H Air Speed 0.3-0.5m/S Power 10 Vehicle Suited Saloon Car/Jeep/SUV Delivery Time 7-10 Days Heating System Diesel Burner Voltage 380V/220V 3pH AC 50-60Hz Color Choice Red,Orange,White,Blue Wall Panel EPS, Rock and PU for Optional Fan Type Centrifugal Fan,Turbo Fan Optional Control Panel Digital and Intelligent Control Panel Air System Position Right,Left, Can Be on The Top of Spray Booth Transport Package Export Standard Specification Common Type Trademark WeiLongDa Origin Guangzhou, China HS Code 84193990 Production Capacity 2, 000 PCS/Year

Product Description

1. We are real factory in paint booth industry since  2000,
2. Ipped with our updated manufacturing facilities.
3. Wcome to visit our factory for test and discussion paint booth

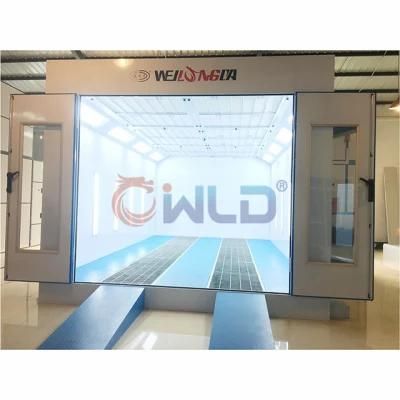

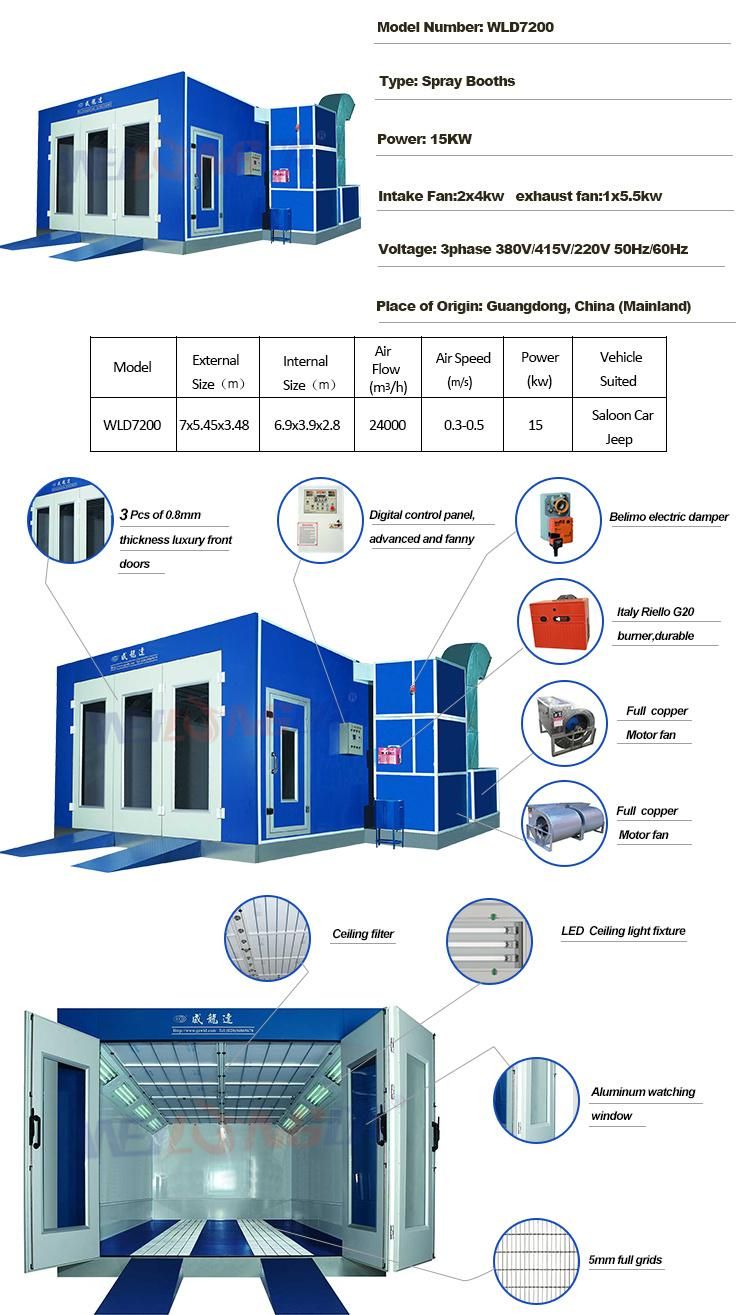

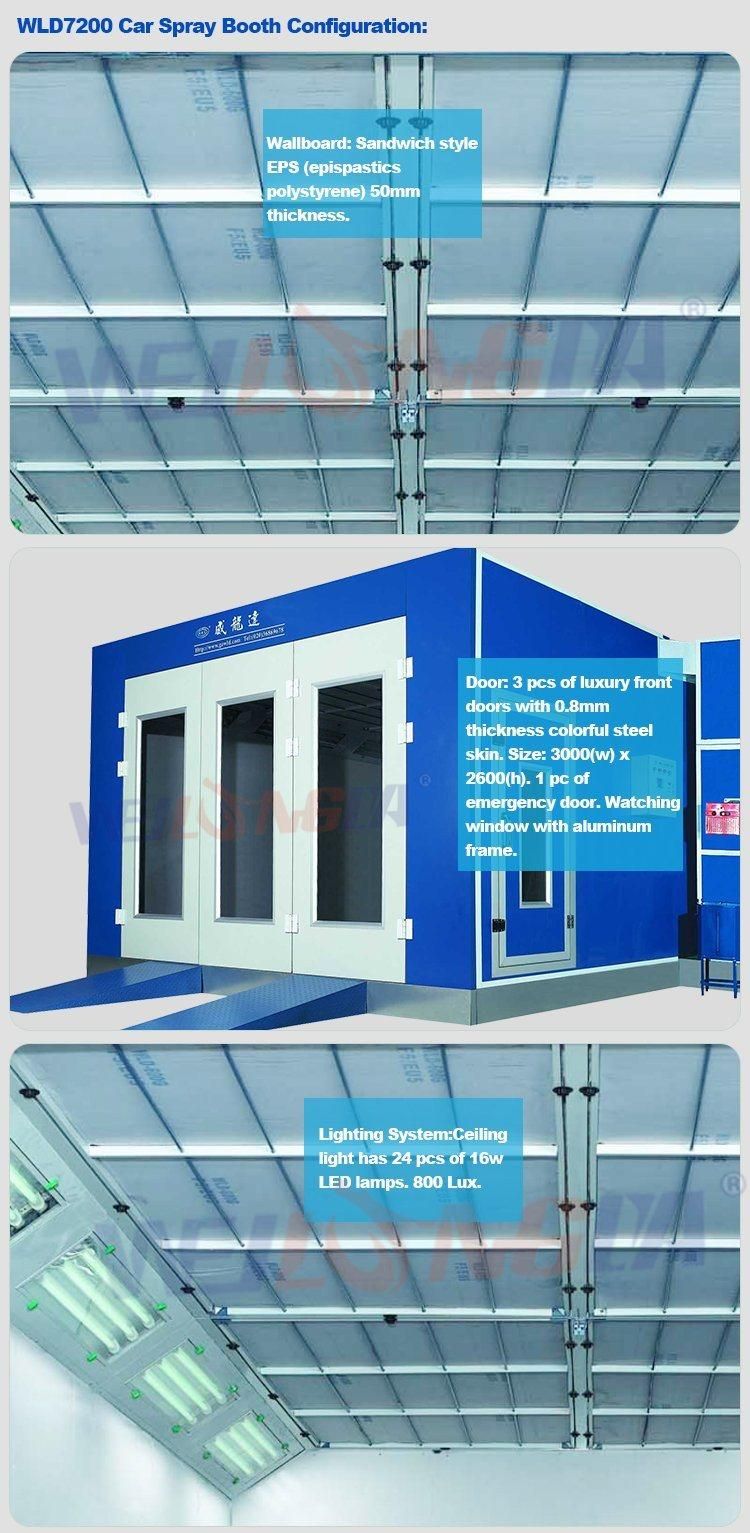

WLD7200 Painting Room Price /Wholesale Auto Repair Equipment Supplier :  Wallboard: Sandwich style EPS (epispastics polystyrene) 50mm thickness. Galvanized steel roof panel. Basement: Galvanized steel sheet and square steel pipe construction. 2 rows of grids with floor filter & 3 rows of checkered plates. 2 pcs of ramps. Door: 3 pcs of luxury front doors with 0.8mm thickness colorful steel skin. Size: 3000(w) x 2750(h). 1 pc of emergency door. Watching window with aluminum frame.Air Circulation System: 2x4kw intake fan, 1x5.5kw exhaust fan. BELIMO 20N electric damper.Burner: Italy Riello G20 diesel burner, 200000Kcal/h. The heating time 5-7min(20-60^.C). Max. temperature
at 80^.C. Fuel consumption is 4-5kg/vehicle.Heat Exchanger: Made of stainless steel. The heat exchange rate reaches 85%. Lighting System: Ceiling light has 24 pcs of 16w LED lamps. 800 Lux.Air Purification: Dual filtering structure. The primary filter can capture granules larger than 10μm. Ceiling filter capture granules bigger than 5μm. The air cleanliness in the working environment can reaches 98%.Pollution Control System: Multi-layer fiberglass filter.




why choose weilongda?

1. verified 17 years original big factory,covers more than 18,000 square meters. we don't rent a workshop or factory to manufacture. we built the factory by ourself,so we never move to other places,then you can find us very easily at any time.

2. quality first and service highest are the principle and belief in our weilongda members. we are sincere and honest in the business.

3. we own the biggest product showroom in china; welcome to visit our factory at any time.

4. professional engineer and technician team to make sure perfect product structure,design and layout.

5. with excellent attitude and service,our experienced export sales team members provide good solution for your standard or customized requirements and make sure smooth shipping for your goods.

6. powder coating technology is applied in the production for many parts of the our products,such as beams,frames,cabinets,and basement etc,very antirust,durable and beautiful.

7. high quality raw materials,good facilities and skilled workers to make sure high quality products in the production. quality control system is carried out in the whole production process.

8. good after-sales service.

9. specially verified by famous germany tuv rheinland,more reliable. please watch our tuv video and read tuv report to know more about us.
