• Model NO.：BT-5515
• Working Width：2200mm
• Working Height：580mm
• Transport Package：in Pollywood
• Trademark：Auto Care
• Origin：Yantai, China
• HS Code：84798190
• Production Capacity：100 Sets,Month

Platform length5600mmPlatform width2200mmPlatform height580mmTower pulling capacity95KNPneumatic pressure0.8MPATower working range360°Platform lifting capacity3500KGMax. hydraulic pressure69MaTips: We can produce the car bench as your requirements.

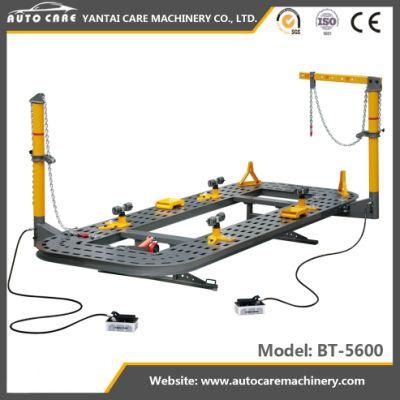

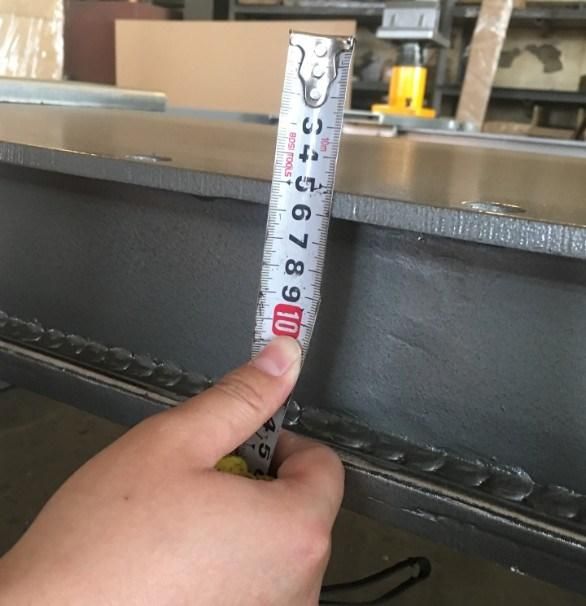

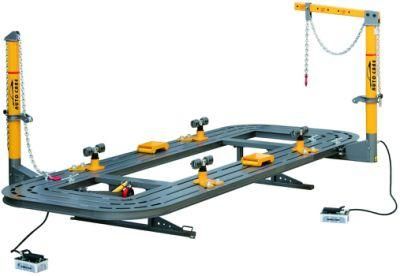

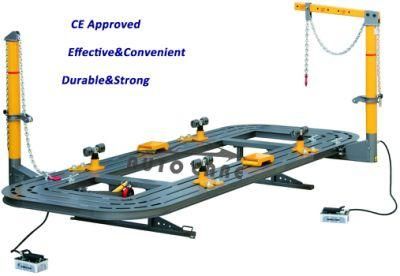

Details of Car Bench AT-5600:1Q345 steel plate for main bench. Platform beam is made by 18# channel steel with rib plate stuffed. The bottom plate with 10mm plate welded. Platform inside is filled with all rib plate, to guarantee the strength of the platform when stretching.2

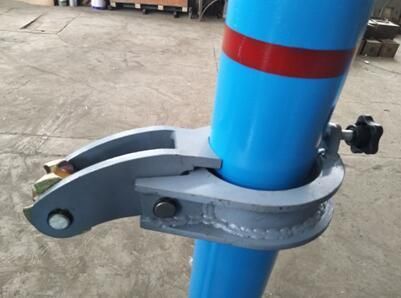

With olecranon guide ring, easy Locking with the tower when it working, to avoid loosing and sliding up of the guide ring because of long time use.3

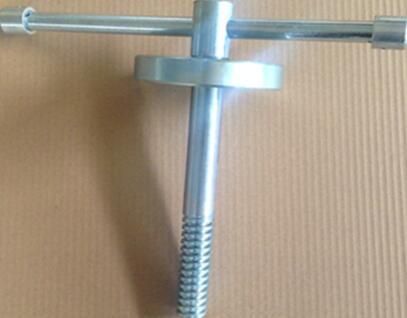

The length of the bolt is shorter and make it fixed smoother. Bolts is made of 45# steel after quenching, galvanized surface, to ensure that it has high strength and abrasion resistance.4
"-" type tower-bearing design,  with two reasonable rolling bearings, more reasonable and durable, also avoid towers off.5
The activity wheel is more thicker with unique structural design to ensure moving the tower more smoothly with long-life use. when stretching, the tower is not easy to deformation.6

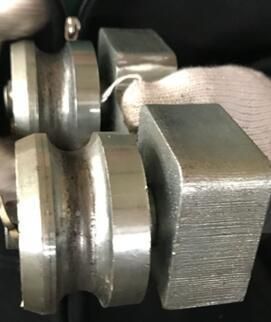

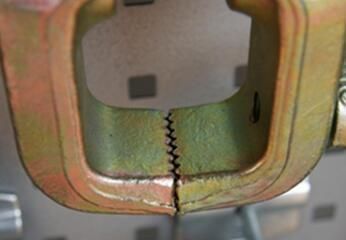

Treated with high-frequency hardening and unique processing technology. The jaws are completely staggered, to a greater extent which increasing the contact surface, clamping more firmly.
For more details, please contact with us directly,
