• Model NO.：YSY3.5
• Shearing Lift Type：Big Shear Type
• Condition：New
• Brand：Amco
• Design：Two Post
• Loading Time：40-50s
• Height Overall：3726mm
• Width Overall：3425mm
• Width Between Columns：2815mm
• Transport Package：Wooden Case
• Specification：CE, ISO
• Trademark：AMCO
• Origin：Shaanxi
• Production Capacity：20-30 Set, Month

Basic Info.

Model NO. YSY3.5 Shearing Lift Type Big Shear Type Condition New Brand Amco Design Two Post Loading Time 40-50s Height Overall 3726mm Width Overall 3425mm Width Between Columns 2815mm Transport Package Wooden Case Specification CE, ISO Trademark AMCO Origin Shaanxi Production Capacity 20-30 Set/ Month

Product Description

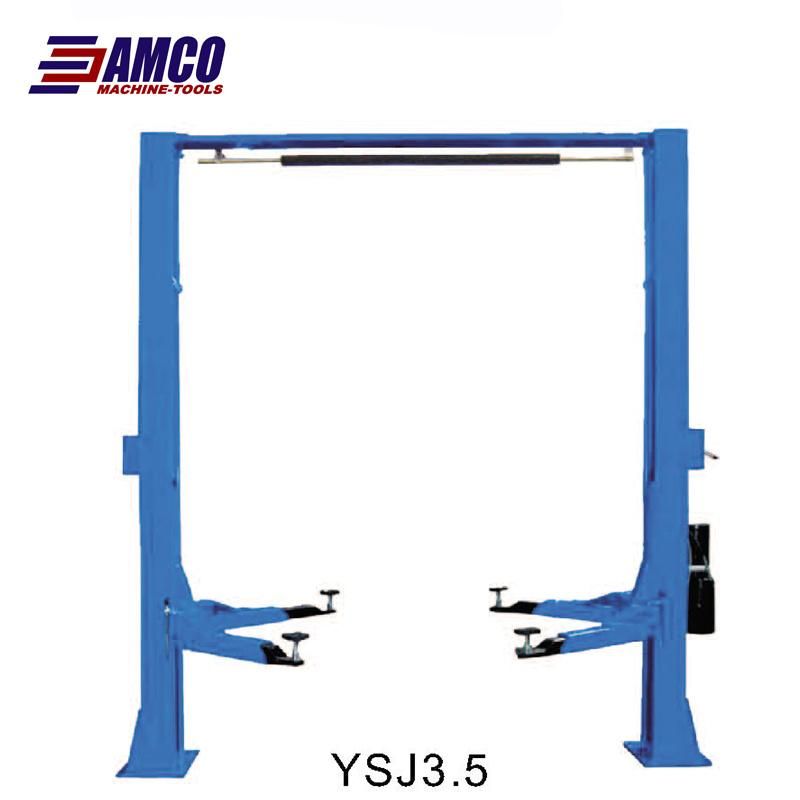

TWO POST GANTRY LIFT YSY3.5
1,4200kg clear floor 2-post-auto/car lift.

2,Two cylinder driving system.It ascents and descents smoothly.

3,Double safety locks.

4,Chain lifting system.

5,Cable synchronization.

6,The pump unit could be installed on either of columns.

7,A wide drive-through clearance.

8,220V/380V,the power supply is available for convenient use.



TECHNICAL DATA:

Model	YSY3.5
Loading capacity	3500kg
Max.Loading height	1900mm
Loading time	40-50s
Height overall	3726mm
Width overall	3425mm
Width between columns	2815mm
Drive- through clearance	2400mm
Min.Height	95mm
Power supply	220V/380V

                                                                              Packing size :2.89*0.53*0.94(m)
                                                                                                   0.9*0.4*0.4(m)
