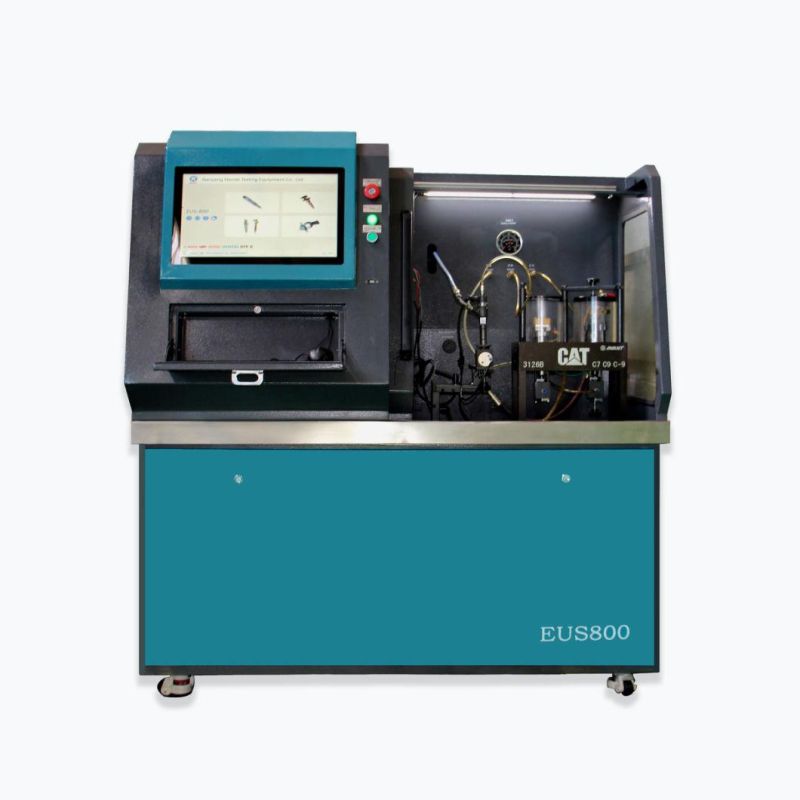

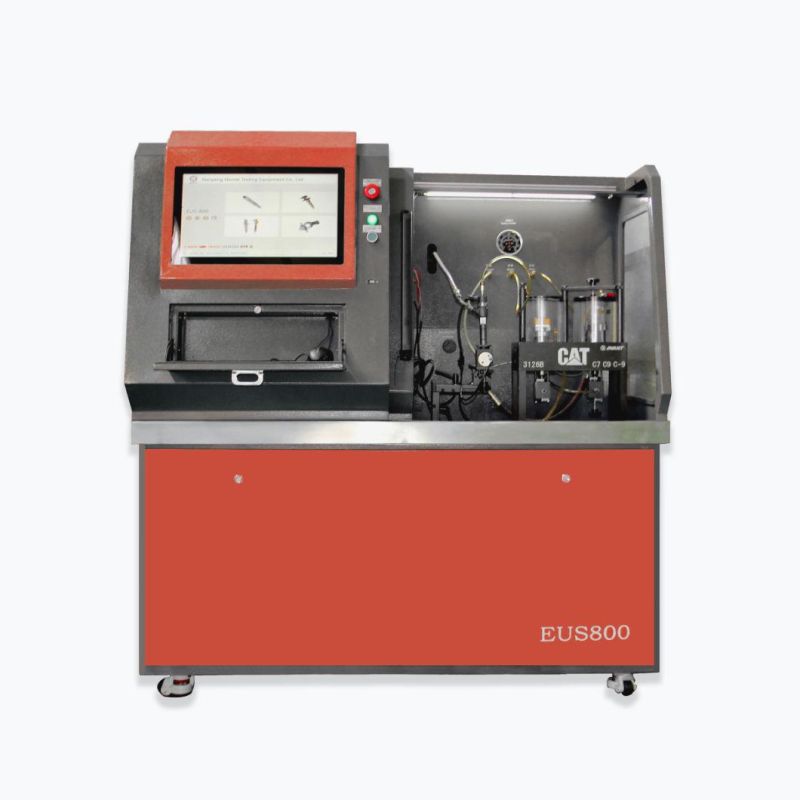

• Model NO.：EUS800
• Standard：Standard
• Transport Package：Plywood Case
• Specification：5.5KW
• Trademark：Nanyang Nantai
• Origin：China, Nanyang
• HS Code：9031200090
• Production Capacity：1000 Sets One Year.

Basic Info.

Model NO. EUS800 Standard Standard Transport Package Plywood Case Specification 5.5KW Trademark Nanyang Nantai Origin China, Nanyang HS Code 9031200090 Production Capacity 1000 Sets One Year.

Product Description

Function and characteristic:
Automatically test all kinds of solenoid valve injector and piezo electric injector
Automatically test the performance of injector solenoid valve.
 Bosch IMA coding generation
User can set the fuel injection current curve, injection time and pressure.

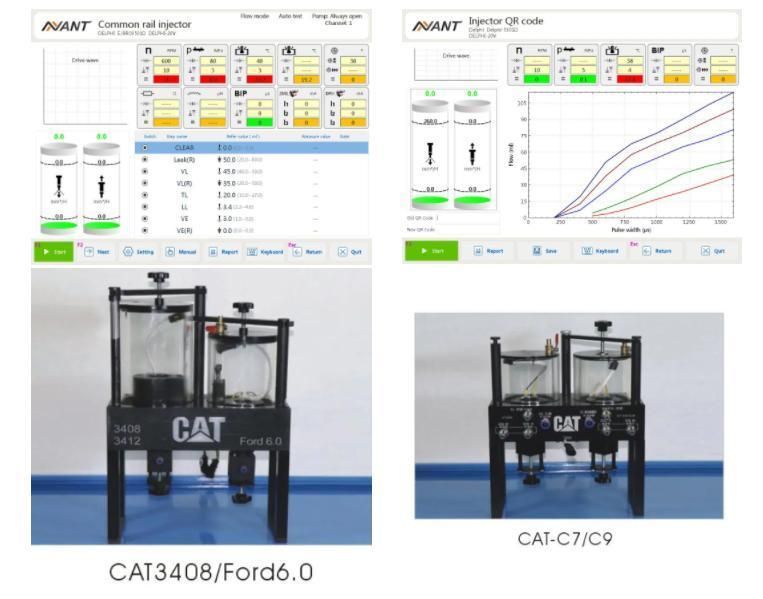

HEUI common rail injector test bench automatically test C7/C9/C-9,C3126/3408,Ford 6.0L,7.3L, 3412E/ISUZU and other HEUI (Hydraulic Electronic Unit Injection) products.
Automatically test the sealing performance, the injection fuel quantity and return volume under the status of idling, pre-injection, middle-speed, full-loaded.The maximum test pressure is 2600 bar.

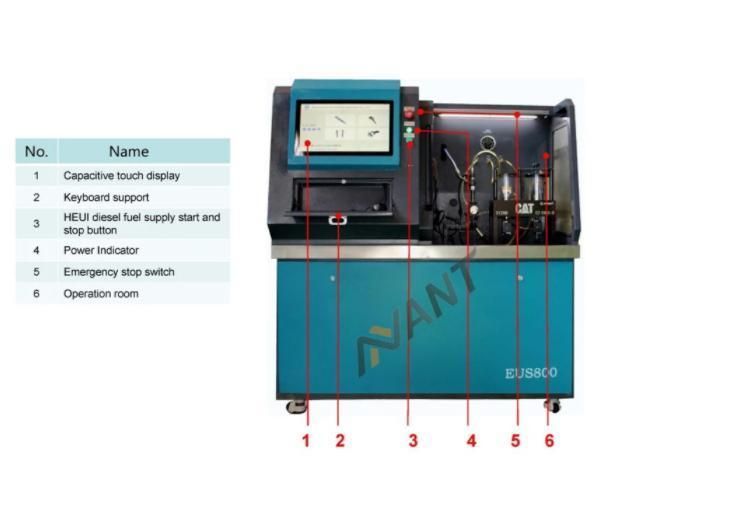

Main configuration:
Industrial air conditioner fuel tank to control temperature at 40± 2 ºC accurately.
HEUI common rail injector test bench equip with original Bosch common rail system and CP1 pump
Equipped with original German high-precision flow sensor
 Equipped with special ram pump for HEUI testing system.
 Automatically test the oil return of the HEUI
 Electrical performance test for solenoid valve

System advantage:
Industrial computer with Linux system to achieve flexible upgrading, data processing and functional expansion
Independent design for the console of high pressure and medium pressure common rail system, automatic system switching, automatic pressure regulating, automatic detection
The separation of flow sensor for high and medium pressure common rail system ensure more precise control of pressure (high pressure ± 0.5Mpa, medium pressure ± 0.2Mpa)
Bosch latest original database, HEUI medium pressure in the original data, can be scheduled to upgrade
HEUI common rail injector test bench besides original current curve data, user can set start voltage, current, hold voltage, current himself.
The drive connector of the fuel injection has the function of anti-short circuit.
 Database remote one click upgrade

Selection function
Denso, Delphi QR code;
Fuel injection response time test;
 Four injectors can be test at the same time
