• Model NO.：AA-TC99HB
• Condition：New
• Max. Wheel Diameter：44",1120mm
• Max Wheel Width：4",360mm
• Outside Clamping：11"-23"
• Inside Clamping：12"-24"
• Transport Package：Plywood Case
• Specification：CE
• Trademark：AA4C
• Origin：China
• HS Code：8479899990
• Production Capacity：100units,Month

Basic Info.

Model NO. AA-TC99HB Condition New Max. Wheel Diameter 44"/1120mm Max Wheel Width 4"/360mm Outside Clamping 11"-23" Inside Clamping 12"-24" Transport Package Plywood Case Specification CE Trademark AA4C Origin China HS Code 8479899990 Production Capacity 100units/Month

Product Description

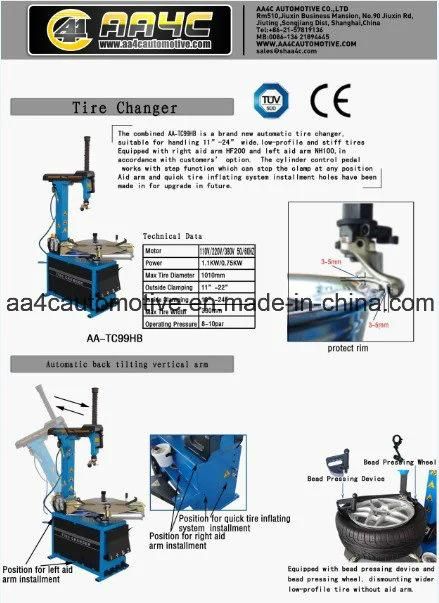

Low proile tires/pax tires tire changer





Features



1.Pneumatic back tilting post, vertical post and horizontal arm can be locked pneumatically for one time. 2.Larger an d thicker turntable, dismounting 11"-24" rim and max. tire diameter 1010mm.

3.Taller vertical arm, dismounting max. tire width 330mm.

4.Universal Switch is 40A switch with a pure silver contact bearing a large loading and durable.

5.The vertical shaft is made of S41 hexagonal steel which is strength enough when dismounting 11" ~ 24" stiff tire.

6.The foot pedal unit is punching from high quality steel

7.Clamps is casted by high quality alloy steel which tooth is hard enough and durable.

8.Dismounting head is made of special steel material, equipped with bead pressing device and bead pressing roller, dismounting low-profile tire without any aid arm.

9.Holes are ready for installment of left and right aid arm, as well as quick tire inflating system.

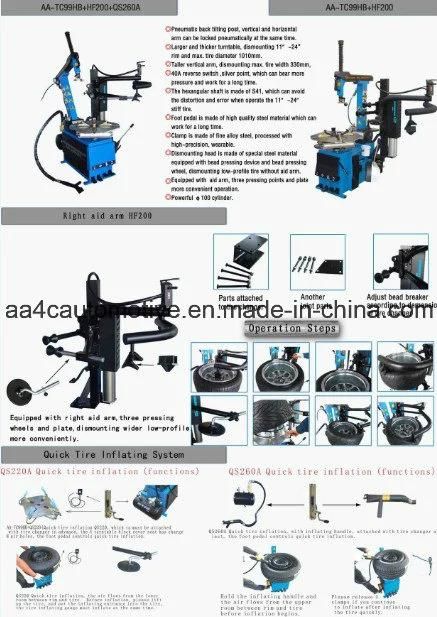

10.Equipped with right aid arm HF200, three pressing positions and tire support plate to fasten to fasten and save time to dismount flat and large tire.

11.Aid arm is powerful Φ100 cylinder.
