• Model NO.：WLD-35CBL(special for wheel aligner)
• Condition：New
• Brand：Weilongda
• Design：Scissor
• Model：Wld-35cbl (Special for 3D Wheel Alignment)
• Capacity：3500kg
• Lifting Height (Main Machine)：1660mm
• Length of Platform (Main Machine)：4300mm
• Width of Platform (Main Machine)：625mm
• Lifting Height (Sub Machine)：500mm
• Length of Platform (Sub Machine)：1460-1760mm
• Width of Platform (Sub Machine)：565mm
• Motor Power：380V,220V 2.2kw
• Pressure of Air Supply：0.4-0.6 MPa
• Transport Package：Export Standard
• Specification：CE
• Trademark：WEILONGDA
• Origin：Guangzhou, China
• HS Code：84254290
• Production Capacity：5000PCS,Year

Basic Info.

Model NO. WLD-35CBL(special for wheel aligner) Condition New Brand Weilongda Design Scissor Model Wld-35cbl (Special for 3D Wheel Alignment) Capacity 3500kg Lifting Height (Main Machine) 1660mm Length of Platform (Main Machine) 4300mm Width of Platform (Main Machine) 625mm Lifting Height (Sub Machine) 500mm Length of Platform (Sub Machine) 1460-1760mm Width of Platform (Sub Machine) 565mm Motor Power 380V/220V 2.2kw Pressure of Air Supply 0.4-0.6 MPa Transport Package Export Standard Specification CE Trademark WEILONGDA Origin Guangzhou, China HS Code 84254290 Production Capacity 5000PCS/Year

Product Description

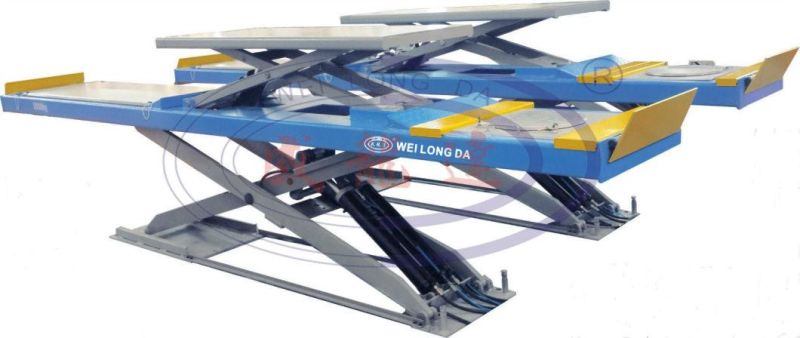

Features:
1. Built-in anti-explosive equipment in the oil tank;
2. Design and manufacture according to the introduction of Italy technology;
3. Ultra thin structure, the minimum thickness is only 205mm, can be directly installed in the ground;
4. Ultra precision auto lift for wheel aligner, adopt double layers and hidden type, small room space occupied;
5. The lengthened side slide plate, two telescopic lifting panel(for optional), suitable for different wheelbase models;
6. The stable performance of the oil level regulating device ensures the requirement of high precision and better synchronization performance;
7. Open the pneumatic rack insurance device automatically when declining. The structure is more reasonable and safe. Oilless and ultra abrasive resistance slider;
8. Adopts double hydraulic system, hydraulic lock and mechanical insurance three safety device. Dual pneumatic insurance device on the sub lift can meet different height requirements.
9. Conjoined and X structure, using high quality steel plate, made and designed by high precision CNC machine technology to overcome the defects of insufficient strength, easy rust and easy deformation etc, more reasonable structure and more safe;
10. The main hydraulic components are selected from importable parts from Japan, Germany, safe and reliable;
11. WLD-35CBL is designed for 3D wheel aligner.

Model No.	Lifting Capacity	Lifting Height (main machine)	Length of Platform (main machine)	Width of Platform (main machine)	Lifting Height (sub machine)	Length of Platform (sub machine)	Width of Platform (sub machine)	Motor Power	Pressure of air supply
WLD-35CBL (special for 3D wheel alignment)	3500kg	1660mm	4300mm	625mm	500mm	1460-1760mm	565mm	380v/220v 2.2kw	0.4-0.6 Mpa
