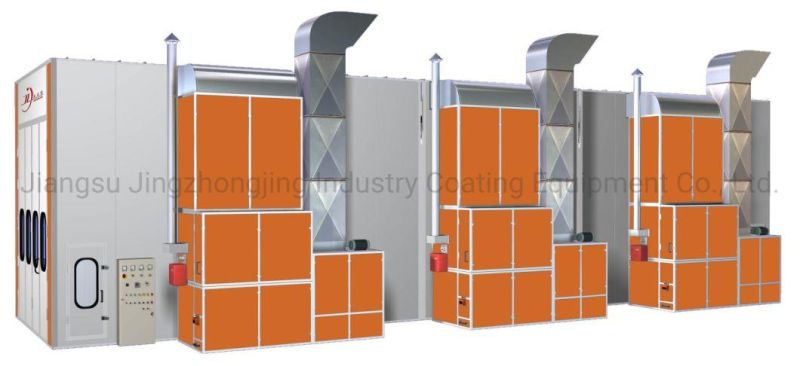

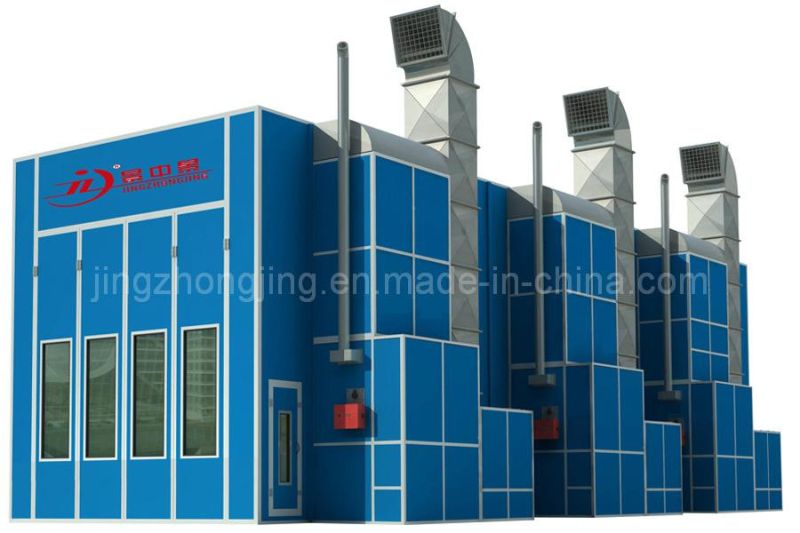

Large Paint Booth for Indoor and Outdoor Environments with Full Down Draft Air Flow
Jiangsu Jingzhongjing Industry Coating Equipment Co., Ltd.- Warranty：12 Months
- Type：Spray Booth
- Certification：CCC, CE, ISO9001
- Substrate：Steel
- Brand：Jzj
- Coating：Powder Coating
Base Info
- Airflow Direction：Fully Undershot-type
- Heating Mode：Diesel
- Paint Mist Treatment：Dry-type
- Condition：New
- Color：Sea Blue, Red, Orange, White
- Motors：Proof-Explosion Motors
- Lighting：External Lighting
- Transport Package：Consist with International Shipping Packaging.
- Specification：CE, ISO
- Trademark：JZJ
- Origin：Yancheng Jiangsu
- HS Code：8419899090
- Production Capacity：2500 Sets,Year
Description
20156*8006*5800(L*W*H) Inside Dimension(mm)20000*6000*5000(L*W*H)Front Door(mm)4800*4500(W*H)Service door (mm)1800*650(W*H)Total Power120KWCabin systemWall panel 75mm EPS sandwich panel, steel sheet thickness: 0.6mmCeiling panel 50mm rock-wool panel.Windows4mm safety tempered glassAir Make-up SystemAir Inlet fan system6*9kw centrifugal belt-drive fan, proof-explosion motor. Exhausted fan system3*18.5kw centrifugal belt-drive fan, proof-explosion motor. Ai capacity for fresh air23000m3/h *6Air capacity for exhausted air42000m3/h *3Air Flowing speed0.25m/s in empty boothAir Control methodEach exhausted fan system with One manual damper for exhausted systemExhausted ductingEach exhausted fan system with 6meters straight ducting, one 90°elbow for
each unit fan system.Purification SystemPre-filterG3 gradeCeiling filterEU5 / F5Floor filtergreen fiber glass filter / G3 gradeExhausted fan FiltersM green fiber glass filter. Heating SystemHeat ExchangerSUS304 material, argon arc welding.Heating burner: 3 sets Riello RG5S diesel oil burner(gas burner for option) Heating productivity 260000Kcal/h/ burnerSpray to baking switch20N BELIMO brand electrical damperChimney ductingEach heating system 6 meters stainless ducting for each heating systemMax heating temperature80degreesfuel consumption10-15L /vehicleLighting SystemCeiling lights26 Units, each 4 x 36W, Total 3744 WSide lights28 Units, each 2 x 36W, Total 2016W Illumination 900LUXControlling systemMicro-computerized programming systemspraying&baking switch, lighting switch, emergency stop,
breakdown alarm, failure alarm, pressure gauge
Q: What standards are you carrying out for your products?
A: We produce according to the ISO 9001 and ISO 14001 rules.
Q: How to install the machine?
A: We will arrange 1-2 engineers to your factory to guide installation and assembly.
Q: What is your international market?
A: We have exported our products to about 50 countries and regions worldwide, such as the US, France, Singapore, Australia, the Middle East, Germany, Japan, Russia, Sweden, Finland and more
Q: What is your productivity?
A: We have two production basement - Jiangsu Jingzhongjing Industry Coating Equipment Co. Ltd and Guangzhou Jingzhongjing Industrial Painting Equipment Co. Ltd. We are specialized in automobile spray booth, automobile metal collision painting line, prep-station, shower test booth, sand blasting booth, shot blasting machine and more.
Our yearly productivity is 2,500 sets spray booth, so we can send you products quickly.
Q: Do you have the right to export?
A: Yes, we are registered in the customs and gained the right to export by ourselves.
