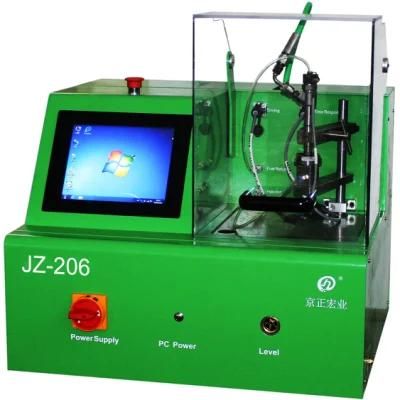

Smart Injector Common Rail Test Bench Diagnostic Machine

Wuxi Chengshunda Automobile Technology Co., Ltd.
  • Certification：CE
  • Condition：New
  • Standard：Standard
  • Update Method：by Internet
  • Type：Test Bench
  • Motor Power：2.6 Kw

Base Info

  • Model NO.：JZ-206
  • Test Range：Euro 3---Euro 6
  • Power：220V 50,60Hz
  • Rail Pressure：0-1800 Bar
  • Speed：0-1000 Rpm
  • Metering Way：Flow Sensor
  • Rail Pressure Precision：5 Bar
  • Filter Precision：< 5 Um
  • Tank Volume：8 L
  • Fuel Temperature：38-42 ′c
  • Net Weight：130 Kg
  • Transport Package：Wooden Case
  • Specification：685*730*715 mm
  • Trademark：Jing Zheng Hong Ye
  • Origin：Wuxi City, Jiangu, China
  • Production Capacity：500 Pieces,Year

Description

Hardware advantage 1. Motor power is 22 KW2. Air conditioning heat dissipation kit3. Metering valve detect the fuel flow4. Imported flow sensor from Germany 5. Equipped with Bosch genuine DRV6. Equipped with Bosch genuine CP3 pump 7. Equipped with Bosch genuine common rail tube 8. Oil tank (including heating,refrigeration,liquid level detection,temperature detection)9. Short-circuit protection, ground protection, over-pressure protection during the testing10. Equipped frequency converter to achieve testing function under different speed conditions11. Equipped precise filter before flow sensor, which can effectively keep the sensor clean and extend the flow sensor usage life Technical  ParametersOutput2.6 KWPower220V 50/60HZSpeed0~1000 RPMRail Pressure0~1800 BarRail Pressure Precision±5 BarTank Volume8 LFuel Temperature40±2ºCFilter Precision<  5μmGross Weight180 kgPacking Size880×930×910 mmSpeed Control ModelConverter Control Temperature Control SystemAir-Cooled Heat DissipationNozzle SensorImported Original Elliptical Type Flow SensorLanguageEnglish, Spanish, Russian,etcMaterialMetal PlatePaintingPowder Painting, DurableColorDark Blue/ Green (can be customized)LogoJing Zheng Hong Ye (can be customized)MOQ1 PiecePayment40%Deposit, the rest paid before deliveryWarranty Time12 monthsDelivery time30 days after prepaidShipping Packing Wooden Case

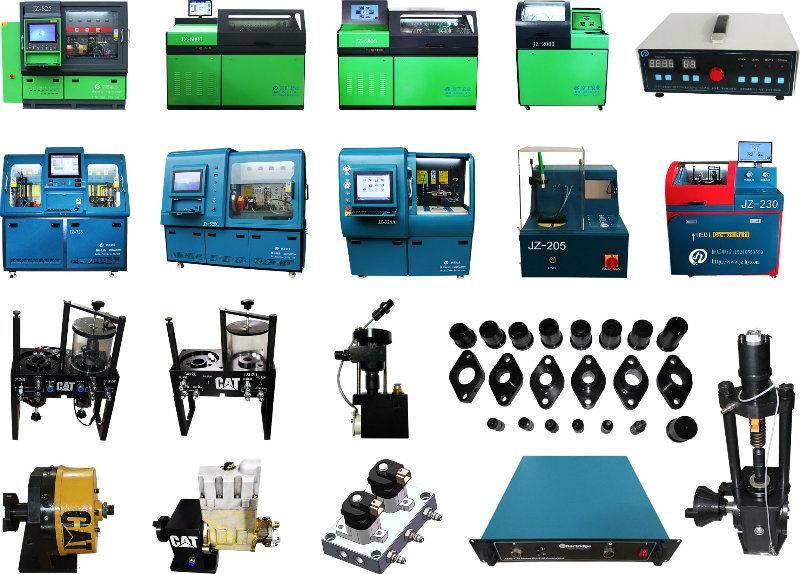

Related Products and Fixtures


Smart Injector Common Rail Test Bench Diagnostic Machine

Packing and Delivery

Smart Injector Common Rail Test Bench Diagnostic Machine

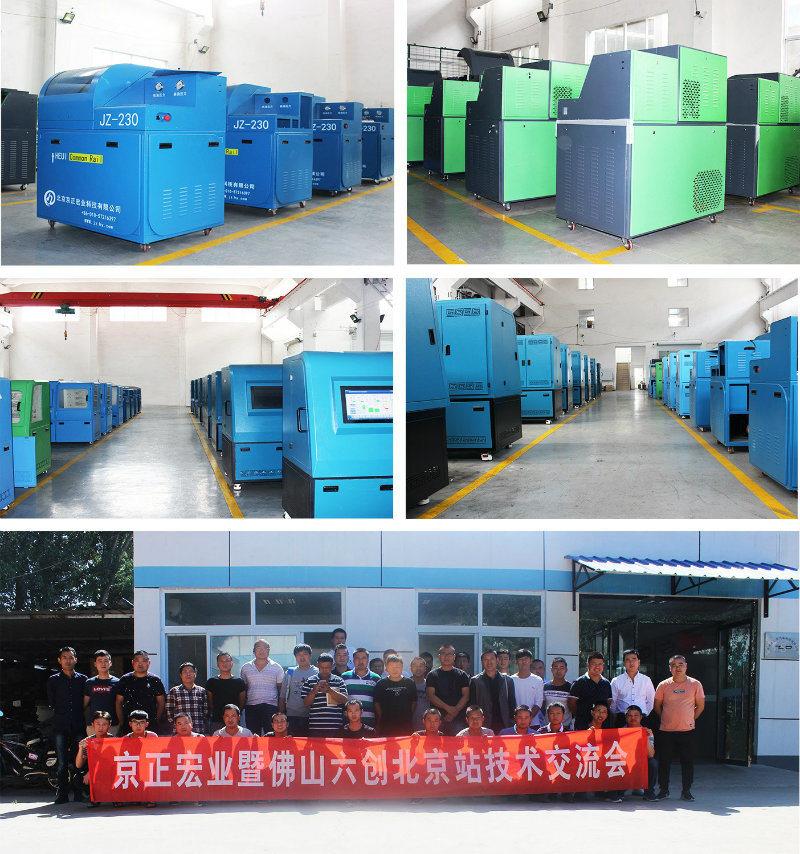

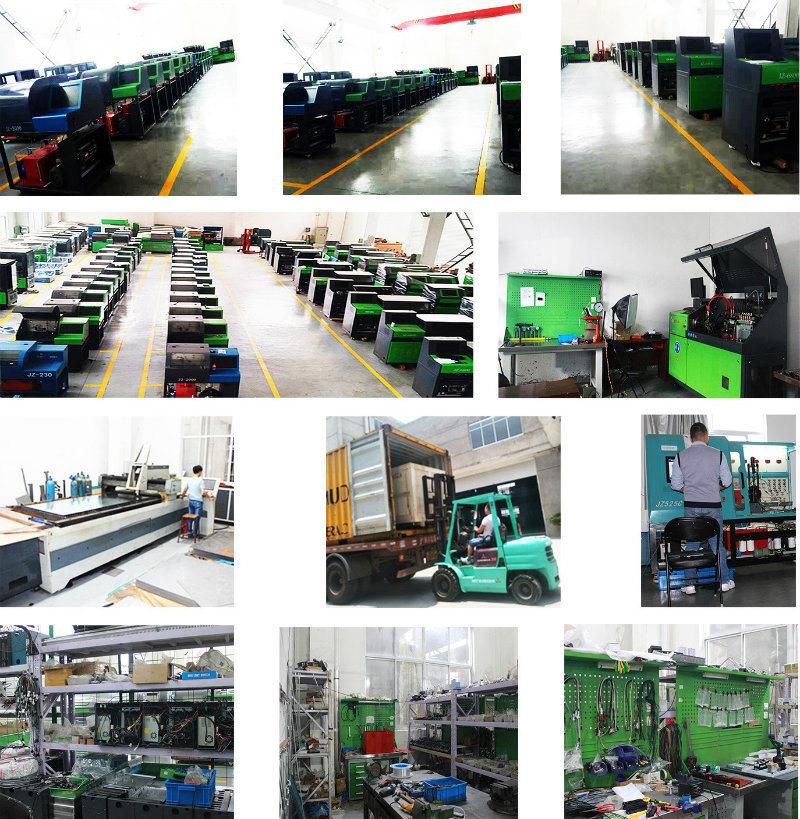

Our Company

Smart Injector Common Rail Test Bench Diagnostic Machine
Smart Injector Common Rail Test Bench Diagnostic Machine

Exhibition
Smart Injector Common Rail Test Bench Diagnostic Machine
Why Choose Us

1.  Our company has our own maintenance center with an area of 1200 square meters. It has been servicing the diesel fuel engine system for 20 years.
Rich maintenance experience, let our products pay more attention to solving the difficult problems in maintenance.
2.  Independent design and development team,and rich produce experience.
3.  Almost all important parts of the equipment are come from top suppliers in the industry.
4. Strict QC,  good pre-sale and after-sale service, Providing remote assistance services free.
5. Customized according to customer requirements, such as appearance, color, etc.
