• Condition：New
• Transport Package：Veneer Case
• Specification：2310X2100X11000mm
• Origin：Liaoning
• Production Capacity：500

Basic Info.

Condition New Transport Package Veneer Case Specification 2310X2100X11000mm Origin Liaoning Production Capacity 500

Product Description

Turck Tyre Changer:
Model: DZ-698
Rim diameter 14inch-42inch
Max. Wheel weight 1600kg
Max. Wheel width 1050mm
Max. Wheel diameter 2300mm
Hydraulic pump motor 2.2kw. 380v-3pH(220 optional)
Gearbox motor 2.2kw. 380v-3pH(220 optional)
Operation control voltage 24v
Machine weight approx 760kg
Noisy level ≤ 70dB
Temperature 0degree-40 degree
Overall dimensions (width X length) approx 2500*2000mm
Bead breaker force 3300kg
Power 220/400V/60Hz
1P/3P Optional

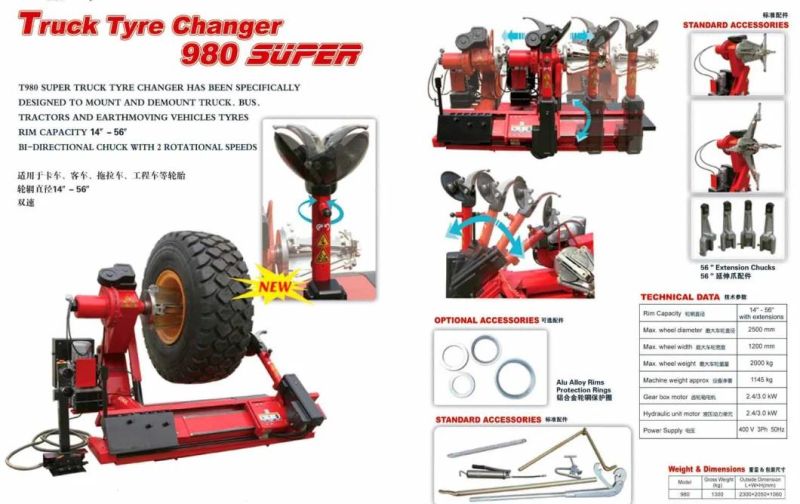

Model: DZ-980
Rim diameter 14 inch-56inch with extension
Max. Wheel weight 2500kg
Max. Wheel width 1200mm
Max. Wheel diameter 2000mm
Hydraulic unit motor 2.4/3.0KW
Gearbox motor 2.4/3.0KW
Operation control voltage 24v
Machine weight approx 1145kg
Power supply 400V 3pH 50Hz

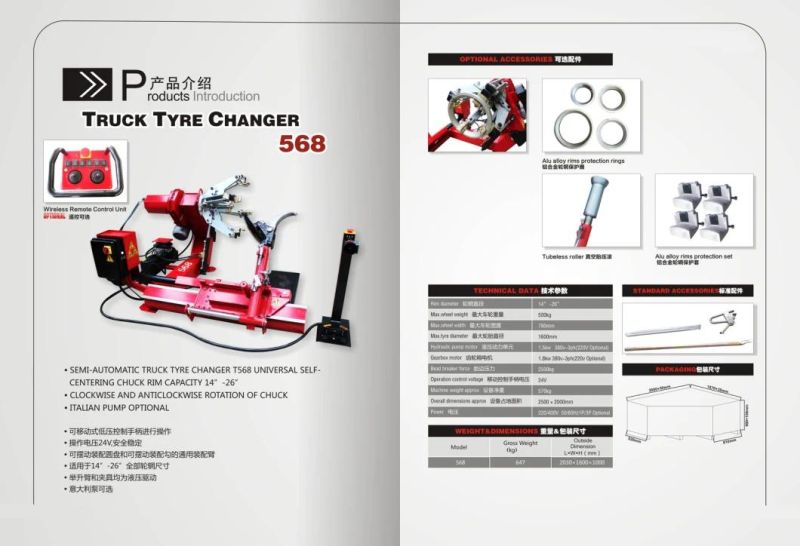

Model: DZ-568
Rim diameter 14inch-26inches
Max. Wheel weight 500kg
Max. Wheel width 780mm
Max. Wheel diameter 1600mm
Hydraulic pump motor 1.5kw. 380v-3pH(220 optional)
Gearbox motor 1.8kw. 380v-3pH(220 optional)
Bead-breaker force 2500kg
Operation control voltage 24v
Machine weight approx 570kg
Overall dimensions (width X length) approx 2000*2500mm
Power 220/400V/60Hz
1P/3P Optional
