Guangli Downdraft Auto Refinish Car Spray Paint Booth for Vehicles
GZ GUANGLI EFE CO., LTD.- After-sales Service:on Line Service
- Warranty:1 Year
- Type:Spray Booth
- Certification:CE
- Substrate:Steel
- Brand:Guangli
Base Info
- Model NO.:GL Series
- Coating:Painting
- Airflow Direction:Fully Undershot-type
- Heating Mode:Diesel
- Paint Mist Treatment:Dry-type
- Condition:New
- Colour:Bule,Grey,Orange
- Safe Door:1 Piece in The Side Wall, with Pressure Lock
- Panel Color:White
- Keep Warm Material:EPS, Rock Wool as Optional
- Manufacture:Guangli
- External Size:7.0*5.3*3.5
- Internal Size:6.9*3.9*2.7
- Door Width:3 M
- Door Height:2.66m
- Air Flow (Cubic Meter/Hour):24000
- Inside on-Load Air Speed(M/S):0.3-0.5
- Power(Kw):18
- Vehicle Suited:Saloon
- Transport Package:20 Gp Can Hold 1 PCS
- Specification:Internal Size 6.9 x 3.9 x 2.7(m)
- Trademark:GuangLi
- Origin:China
- HS Code:8419899090
- Production Capacity:2000
Description
Model NO.GL3000-A1 ( CE standard)External Size7.0*5.3*3.5(m)Internal Size6.9*3.9*2.7(m)Wall panel colour Whitewall panel keep warm materialRock Wool, thickness:50mmWall panel colour steelThickness:0.426mm with metal edge cover
Door :Enter size3*2.66(m)Structure3 folded sheet metal process without framecolourorange, or blue or greyFront horizontal panel and front vertical panelsWhiteMaterial Rock woolSafe doorwhite; 2000*800(mm), 1 piece in the side wall, with pressure lock
with one pc of ramp for safe door and with LED exit light

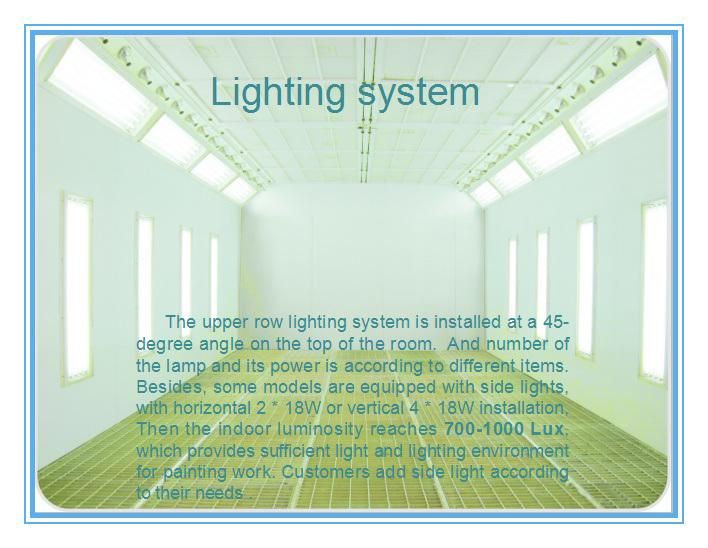

Light system:Top light(2) sides*(5) sets* (4) pcs, LED 18W/piece
-With tempering glass cover
-With aviation connetor
-with full frame for light box for ensurring the sealSide light(2)sides*(4)sets*(2)pcs, LED 18W/piece
-with tempering glass cover
-with aviation connector
-with full frame for light box for ensuring the sealGenerator:ColorWhite, Iron frame with Aluminum angelBurnerItaly Riello diesel burner G20Intake Fan1 set of 7.5 kw with M style pre-filter With explosion-proof impellerExhaust Fan1 set of 7.5 kw without pre-filterFan capacity(30000)M3/hDuct&Chimney ductWith 5m exhaust duct.

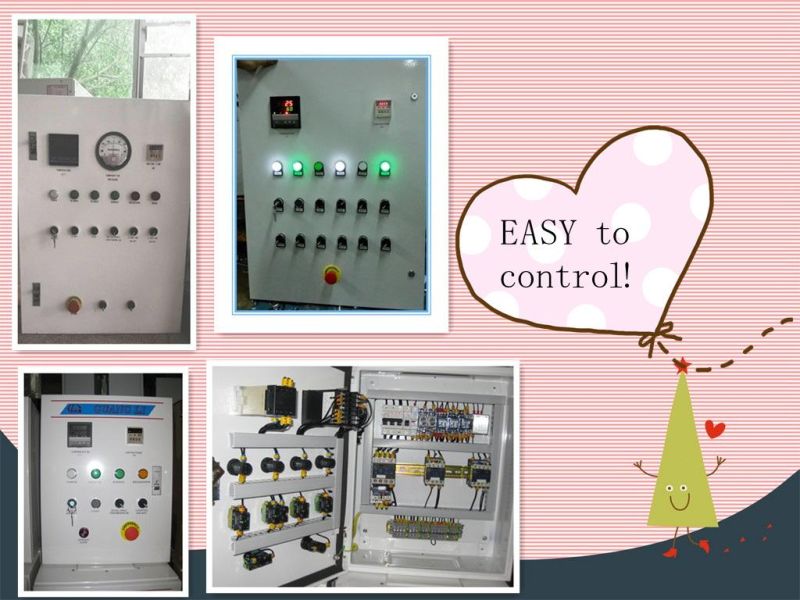

5m straight chimney and 2 small bends.Motor Voltage380V/50HZ/3PH(other voltage contact me)Control boxCE components;Motor soft start; Without 1 pcs pressure meter
All components should be CE standard, and the control box voltage should be as 24 V.
Basement:Floor full gridsFloor filter2 rows/setRamps2 pcs of veins plates style ramps
Filter Frame:Top filter 4 pcs/setStructureHinge installed iron welded, powdered
Automatically stop when preset time is up. ---Constant temperature spraying
Total Power: 18 KW

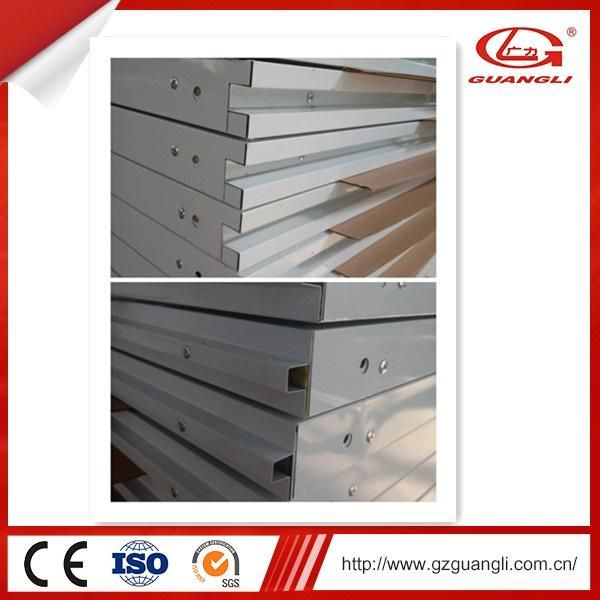

Optional wall panel structure--- stronger







Door :Enter size3*2.66(m)Structure3 folded sheet metal process without framecolourorange, or blue or greyFront horizontal panel and front vertical panelsWhiteMaterial Rock woolSafe doorwhite; 2000*800(mm), 1 piece in the side wall, with pressure lock
with one pc of ramp for safe door and with LED exit light
Light system:Top light(2) sides*(5) sets* (4) pcs, LED 18W/piece
-With tempering glass cover
-With aviation connetor
-with full frame for light box for ensurring the sealSide light(2)sides*(4)sets*(2)pcs, LED 18W/piece
-with tempering glass cover
-with aviation connector
-with full frame for light box for ensuring the sealGenerator:ColorWhite, Iron frame with Aluminum angelBurnerItaly Riello diesel burner G20Intake Fan1 set of 7.5 kw with M style pre-filter With explosion-proof impellerExhaust Fan1 set of 7.5 kw without pre-filterFan capacity(30000)M3/hDuct&Chimney ductWith 5m exhaust duct.
5m straight chimney and 2 small bends.Motor Voltage380V/50HZ/3PH(other voltage contact me)Control boxCE components;Motor soft start; Without 1 pcs pressure meter
All components should be CE standard, and the control box voltage should be as 24 V.
Basement:Floor full gridsFloor filter2 rows/setRamps2 pcs of veins plates style ramps
Filter Frame:Top filter 4 pcs/setStructureHinge installed iron welded, powdered
Automatically stop when preset time is up. ---Constant temperature spraying
Total Power: 18 KW
Optional wall panel structure--- stronger
